2009 RENAULT TWINGO RS Tail light

87C-2
OPENING ELEMENT MANAGEMENT
Opening elements management: List and location of components87C
4 - Central door locking switch
To remove it (see 84A, Control - Signals, Hazard
warning lights and central door control: Removal -
Refitting, page 84A-10) .
5 - Tailgate opening switch
121084
120162

88A-59

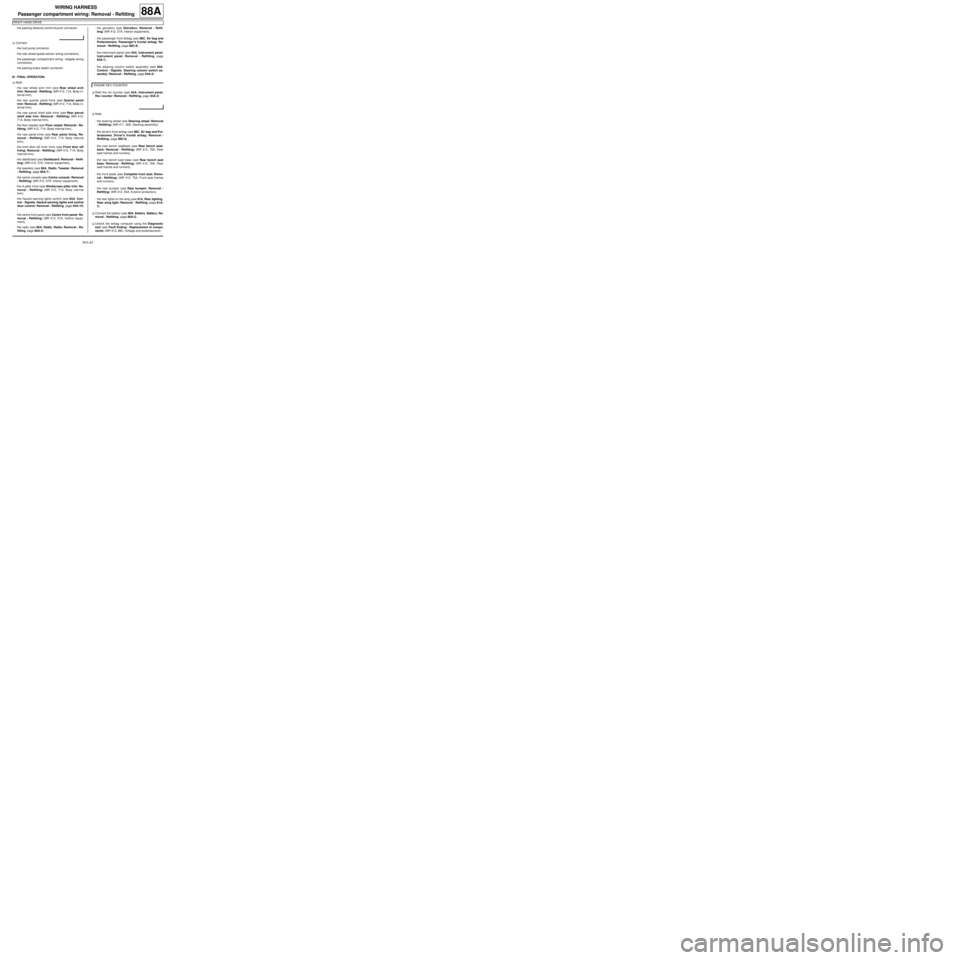

WIRING HARNESS
Passenger compartment wiring: Removal - Refitting
LEFT-HAND DRIVE
88A
-the parking distance control buzzer connector.
aConnect:
-the fuel pump connector,
-the rear wheel speed sensor wiring connectors,
-the passenger compartment wiring / tailgate wiring
connectors,
-the parking brake switch connector.
III - FINAL OPERATION.
aRefit:
-the rear wheel arch trim (see Rear wheel arch
trim: Removal - Refitting) (MR 412, 71A, Body in-
ternal trim),
-the rear quarter panel trims (see Quarter panel
trim: Removal - Refitting) (MR 412, 71A, Body in-
ternal trim),
-the rear parcel shelf side trims (see Rear parcel
shelf side trim: Removal - Refitting) (MR 412,
71A, Body internal trim),
-the floor carpets (see Floor carpet: Removal - Re-
fitting) (MR 412, 71A, Body internal trim),
-the rear panel trims (see Rear panel lining: Re-
moval - Refitting) (MR 412, 71A, Body internal
trim),
-the front door sill inner trims (see Front door sill
lining: Removal - Refitting) (MR 412, 71A, Body
internal trim),
-the dashboard (see Dashboard: Removal - Refit-
ting) (MR 412, 57A, Interior equipment),
-the tweeters (see 86A, Radio, Tweeter: Removal
- Refitting, page 86A-7) ,
-the centre console (see Centre console: Removal
- Refitting) (MR 412, 57A, Interior equipment),
-the A-pillar trims (see Windscreen pillar trim: Re-
moval - Refitting) (MR 412, 71A, Body internal
trim),
-the hazard warning lights control (see 84A, Con-
trol - Signals, Hazard warning lights and central
door control: Removal - Refitting, page 84A-10)
,
-the centre front panel (see Centre front panel: Re-
moval - Refitting) (MR 412, 57A, Interior equip-
ment),
-the radio (see 86A, Radio, Radio: Removal - Re-
fitting, page 86A-4) ,-the glovebox (see Glovebox: Removal - Refit-
ting) (MR 412, 57A, Interior equipment),
-the passenger front airbag (see 88C, Air bag and
Pretensioners, Passenger's frontal airbag: Re-
moval - Refitting, page 88C-8) ,
-the instrument panel (see 83A, Instrument panel,
Instrument panel: Removal - Refitting, page
83A-1) ,
-the steering column switch assembly (see 84A,
Control - Signals, Steering column switch as-
sembly: Removal - Refitting, page 84A-2) .
aRefit the rev counter (see 83A, Instrument panel,
Rev counter: Removal - Refitting, page 83A-3) .
aRefit:
-the steering wheel (see Steering wheel: Removal
- Refitting) (MR 411, 36A, Steering assembly),
-the driver's front airbag (see 88C, Air bag and Pre-
tensioners, Driver's frontal airbag: Removal -
Refitting, page 88C-6) ,
-the rear bench seatback (see Rear bench seat-
back: Removal - Refitting) (MR 412, 76A, Rear
seat frames and runners),
-the rear bench seat base (see Rear bench seat
base: Removal - Refitting) (MR 412, 76A, Rear
seat frames and runners),
-the front seats (see Complete front seat: Remo-
val - Refitting) (MR 412, 75A, Front seat frames
and runners),
-the rear bumper (see Rear bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection),
-the rear lights on the wing (see 81A, Rear lighting,
Rear wing light: Removal - Refitting, page 81A-
3) .
aConnect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (MR 413, 88C, Airbags and pretensioners).
ENGINE REV COUNTER

88A-65
WIRING HARNESS
Passenger compartment wiring: Removal - Refitting
RIGHT-HAND DRIVE
88A
-the parking distance control buzzer connector.
aConnect:
-the fuel pump connector,
-the rear wheel speed sensor wiring connectors,
-the passenger compartment wiring / tailgate wiring
connectors,
-the parking brake switch connector.
III - FINAL OPERATION.
aRefit:
-the rear wheel arch trim (see Rear wheel arch
trim: Removal - Refitting) (MR 412, 71A, Body in-
ternal trim),
-the rear quarter panel trims (see Quarter panel
trim: Removal - Refitting) (MR 412, 71A, Body in-
ternal trim),
-the rear parcel shelf side trims (see Rear parcel
shelf side trim: Removal - Refitting) (MR 412,
71A, Body internal trim),
-the floor carpets (see Floor carpet: Removal - Re-
fitting) (MR 412, 71A, Body internal trim),
-the rear panel trims (see Rear panel lining: Re-
moval - Refitting) (MR 412, 71A, Body internal
trim),
-the front door sill inner trims (see Front door sill
lining: Removal - Refitting) (MR 412, 71A, Body
internal trim),
-the dashboard (see Dashboard: Removal - Refit-
ting) (MR 412, 57A, Interior equipment),
-the tweeters (see 86A, Radio, Tweeter: Removal
- Refitting, page 86A-7) ,
-the centre console (see Centre console: Removal
- Refitting) (MR 412, 57A, Interior equipment),
-the A-pillar trims (see Windscreen pillar trim: Re-
moval - Refitting) (MR 412, 71A, Body internal
trim),
-the hazard warning lights control (see 84A, Con-
trol - Signals, Hazard warning lights and central
door control: Removal - Refitting, page 84A-10)
,
-the centre front panel (see Centre front panel: Re-
moval - Refitting) (MR 412, 57A, Interior equip-
ment),
-the radio (see 86A, Radio, Radio: Removal - Re-
fitting, page 86A-4) ,-the glovebox (see Glovebox: Removal - Refit-
ting) (MR 412, 57A, Interior equipment),
-the passenger front airbag (see 88C, Air bag and
Pretensioners, Passenger's frontal airbag: Re-
moval - Refitting, page 88C-8) ,
-the instrument panel (see 83A, Instrument panel,
Instrument panel: Removal - Refitting, page
83A-1) ,
-the steering column switch assembly (see 84A,
Control - Signals, Steering column switch as-
sembly: Removal - Refitting, page 84A-2) .
aRefit the rev counter (see 83A, Instrument panel,
Rev counter: Removal - Refitting, page 83A-3) .
aRefit:
-the steering wheel (see Steering wheel: Removal
- Refitting) (MR 411, 36A, Steering assembly),
-the driver's front airbag (see 88C, Air bag and Pre-
tensioners, Driver's frontal airbag: Removal -
Refitting, page 88C-6) ,
-the rear bench seatback (see Rear bench seat-
back: Removal - Refitting) (MR 412, 76A, Rear
seat frames and runners),
-the rear bench seat base (see Rear bench seat
base: Removal - Refitting) (MR 412, 76A, Rear
seat frames and runners),
-the front seats (see Complete front seat: Remo-
val - Refitting) (MR 412, 75A, Front seat frames
and runners),
-the rear bumper (see Rear bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection),
-the rear lights on the wing (see 81A, Rear lighting,
Rear wing light: Removal - Refitting, page 81A-
3) .
aConnect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (MR 413, 88C, Airbags and pretensioners).
ENGINE REV COUNTER
