Available configuration and operating mode
SC002 Computer configuration.
This configuration is used to configure the computer according to the vehicle equipment level.
Reread the configuration in the "configuration reading" menu to confirm that the modification was correctly stored
using the configuration readings.
Configuration modification procedure:
•Activate the + after ignition feed.
•Connect the diagnostic tool and switch on the radio.
•Establish dialogue with the computer.
•Select the Repair mode menu.
•Select the Configuration and programming menu.
•Select the special command SC002 Computer configuration.
•Select the connection in the drop-down menu that corresponds to the vehicle.
•Click on Confirm.
•Exit diagnostic mode (ends dialogue with the computer without switching off the tool), switch off the ignition for
30 seconds and then switch the ignition back on.
•Establish dialogue with the computer.
•Check to see that the configurations have been correctly stored in the Configuration reading menu.
RADIO
Fault finding – Configurations
Page 26 of 91

86A-26V2 MR-413-X44-86A100$090.mif
86A
R01-08
Vdiag No.: A4
VP001: Write VIN
This command permits manual entry of the vehicle's VIN into the computer. Use this command each time the
computer is replaced. The VIN number is inscribed on the manufacturer's plate.
Procedure for writing the VIN
•Establish dialogue with the navigation computer.
•Select the Repair mode menu.
•Select the Other configuration menu.
•Select line VP001 Enter VIN.
•Enter the VIN.
•Exit fault finding mode.
•Switch off the ignition.
•Wait for the end of the Powerlatch* phase (20 minutes maximum).
•Reread the VIN in the Identification menu to confirm ID014 VIN code.
VP003: Enter After-Sales operation date
This command is used to enter the date of the last After-Sales operation on the radio.
Consecutively enter the six figures of the date: two for the day, two for the month and two for the year.
For example: 060700 (6 July 2000).
Reread the date of the last After-Sales operation in the Identification menu to confirm ID005 Last After-Sales
operation date.
*Powerlatch: Time required for injection computer supply after + 12 V after ignition feed cut-off.
RADIO
Fault finding – Programming
Page 27 of 91

86A-27V2 MR-413-X44-86A100$100.mif
86A
R01-08
Vdiag No.: A4
To remove and refit the radio, consult the Repair Manual for the vehicle concerned:
–Clio III (see MR 392, Mechanical, 86A, Radio, Radio: Removal - Refitting).
–New Twingo (see MR 411, Mechanical, 86A, Radio, Radio: Removal - Refitting).
Operations to perform before replacing the radio computer:
–With the approval of the Techline, read the fault code and perform the conformity check to determine whether the
fault is detected before replacing the computer.
–Remove any CDs before removing the computer or when replacing the CD changer.
–Switch off the ignition and remove the computer.
Operations to perform after replacing the radio computer:
–Connect the diagnostic tool, switch on the radio and establish dialogue with the computer.
–For New Twingo: before configuring the radio, it is essential to correctly configure the display (see 86D,
Multimedia connection unit).
–Configure the computer using special command SC002 Computer configuration (see Configuration).
–Enter the VIN code using command VP001 Write VIN (see Programming).
–Enter the computer replacement date using command VP003 Enter After-Sales operation date
(see Programming).
–Check that there are no faults and that the radio functions correctly, then enter the anti-theft code if the radio
requests it (see Anti-theft code).
RADIO
Fault finding – Replacement of components
Page 28 of 91
86A-28V2 MR-413-X44-86A100$110.mif
86A
R01-08
Vdiag No.: A4

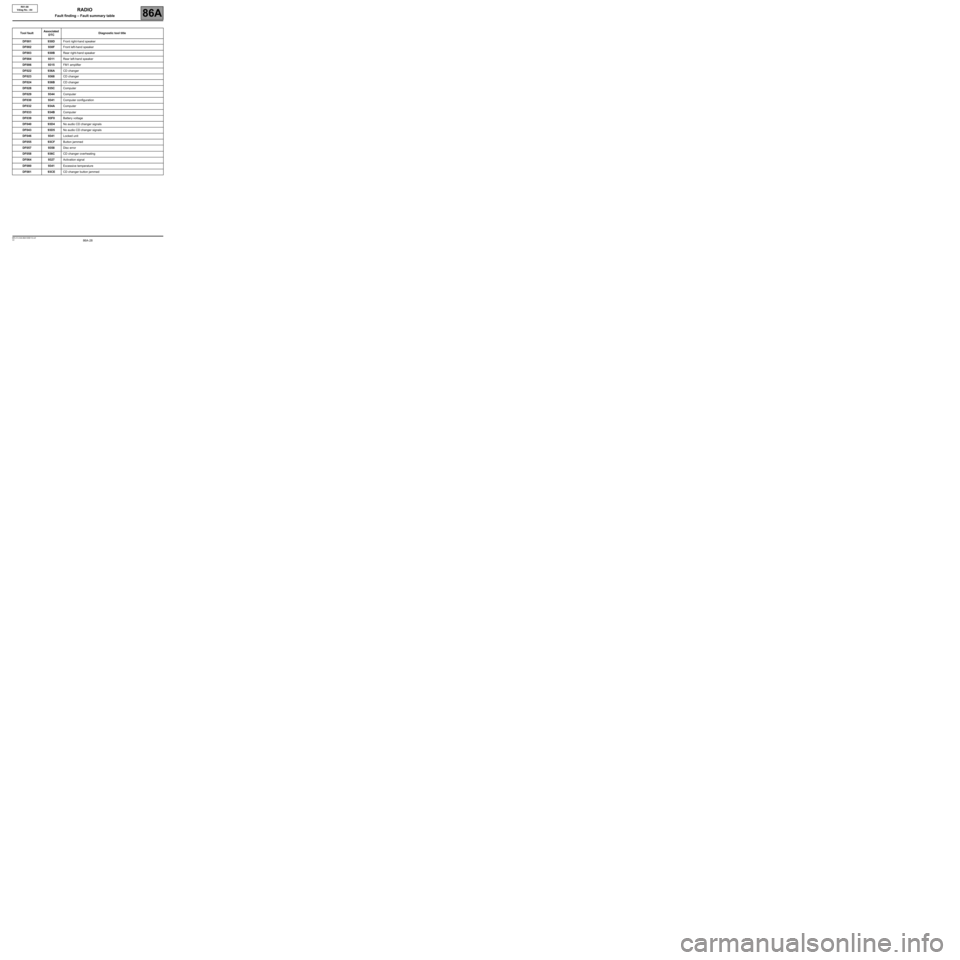

Tool faultAssociated
DTCDiagnostic tool title
DF001930DFront right-hand speaker
DF002930FFront left-hand speaker
DF003930BRear right-hand speaker
DF004 9311Rear left-hand speaker
DF0069315FM1 amplifier
DF022936ACD changer
DF0239368CD changer
DF024936BCD changer
DF028935CComputer
DF0299344Computer
DF0309341Computer configuration
DF032934AComputer
DF033934BComputer
DF03993F0Battery voltage
DF04093D4No audio CD changer signals
DF04393D5No audio CD changer signals
DF0469341Locked unit
DF05593CFButton jammed
DF0579358Disc error
DF058936CCD changer overheating
DF0649327Activation signal
DF0809341Excessive temperature
DF08193CECD changer button jammed
RADIO
Fault finding – Fault summary table
Page 29 of 91

86A-29
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
86A
R01-08
Vdiag No.: A4
DF001
PRESENT
OR
STOREDFRONT RIGHT-HAND SPEAKERCC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
1.DEF: Short circuit between lines
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–The multimedia system was switched on using the on/off button for at least
10 seconds,
–Command AC004 Front right-hand speakers line test was run.
–The fault can only be detected if the battery voltage is between:
12 V < X < 15 V.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check the condition and connection of the connectors of the radio 261, of the front right-hand tweeter 365, of
the front right-hand speaker 1598 (left-hand drive) or 1597 (right-hand drive) (bent or broken tabs, etc.).
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Disconnect the connector of component 1598 (left-hand drive) or 1597 (right-hand drive) (see MR 392 (Clio III) or
MR 411 (New Twingo) Mechanical, 86A, Radio, Front speaker: Removal - Refitting).
Measure the resistance of component 1598 (left-hand drive) or 1597 (right-hand drive) using a multimeter, with the
ignition off.
If the resistance is not between: 3.5 Ω < X < 4.5 Ω, replace component 1598 (left-hand drive) or 1597 (right-hand
drive) (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A, Radio, Front speaker: Removal -
Refitting).
Check the continuity, insulation and absence of interference resistance on the following connections:
•34E between components 261 and 365, 1598 (left-hand drive) or 1597 (right-hand drive),
•34F between components 261 and 365, 1598 (left-hand drive) or 1597 (right-hand drive).
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault persists, contact your Techline.
R108_VA4_DF001
RADIO
Fault finding – Interpretation of faults
Page 30 of 91

86A-30
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF002
PRESENT
OR
STOREDFRONT LEFT-HAND SPEAKERCC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
1.DEF: Short circuit between lines
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–The multimedia system was switched on using the on/off button for at least
10 seconds,
–Command AC005 Front left-hand speaker line test was run,
–The fault can only be detected if the battery voltage is between:
12 V < X < 15 V.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check the condition and connection of the connectors of the radio 261, of the front right-hand tweeter 366, of
the front right-hand speaker 1597 (left-hand drive) or 1598 (right-hand drive) (bent or broken tabs, etc.).
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Disconnect the connector of component 1597 (left-hand drive) or 1598 (right-hand drive) (see MR 392 (Clio III) or
MR 411 (New Twingo) Mechanical, 86A, Radio, Front speaker: Removal - Refitting).
Measure the resistance of component 1597 (left-hand drive) or 1598 (right-hand drive) using a multimeter, with the
ignition off.
If the resistance is not between: 3.5 Ω < X < 4.5 Ω, replace component 1597 (left-hand drive) or 1598 (right-hand
drive) (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A, Radio, Front speaker: Removal -
Refitting).
Check the continuity, insulation and absence of interference resistance on the following connections:
•34G between components 261 and 366, 1597 (left-hand drive) or 1598 (right-hand drive),
•34H between components 261 and 366, 1597 (left-hand drive) or 1598 (right-hand drive).
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault persists, contact your Techline.
R108_VA4_DF002
Page 31 of 91

86A-31
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF003
PRESENT
OR
STOREDREAR RIGHT-HAND SPEAKERCC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
1.DEF: Short circuit between lines
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–The multimedia system was switched on using the on/off button for at least
10 seconds,
–Command AC006 Rear right-hand speaker line test was run,
–The fault can only be detected if the battery voltage is between:
12 V < X < 15 V.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check the condition and connection of the connectors of radio 261 and of the rear right-hand speaker 189 (bent
or broken tabs, etc.).
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Disconnect the connector of component 189 (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Rear speaker: Removal - Refitting).
Measure the resistance of component 189 using a multimeter, with the ignition off.
If the resistance is not between: 3.5 Ω < X < 4.5 Ω, replace component 189 (see MR 392 (Clio III) or MR 411 (New
Twingo) Mechanical, 86A, Radio, Rear speaker: Removal - Refitting).
Check the continuity, insulation and absence of interference resistance on the following connections:
•34D between components 261 and 189,
•34C between components 261 and 189.
If the connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring
repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault persists, contact your Techline.
R108_VA4_DF003
Page 32 of 91

86A-32
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF004
PRESENT
OR
STOREDREAR LEFT-HAND SPEAKERCC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
1.DEF: Short circuit between lines
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–The multimedia system was switched on using the on/off button for at least
10 seconds,
–Command AC007 Rear left-hand speaker line test was run,
–The fault can only be detected if the battery voltage is between:
12 V < X < 15 V.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check the condition and connection of the connectors of radio 261 and of the rear left-hand speaker 190 (bent
or broken tabs, etc.).
If any of the connectors are faulty and there is a repair method (see Technical Note 6015A, Electrical wiring
repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Disconnect the connector of component 190 (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Rear speaker: Removal - Refitting).
Measure the resistance of component 190 using a multimeter, with the ignition off.
If the resistance is not between: 3.5 Ω < X < 4.5 Ω, replace component 190 (see MR 392 (Clio III) or MR 411 (New
Twingo) Mechanical, 86A, Radio, Rear speaker: Removal - Refitting).
Check the continuity, insulation and absence of interference resistance on the following connections:
•34A between components 261 and 190,
•34B between components 261 and 190.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault persists, contact your Techline.
R108_VA4_DF004
