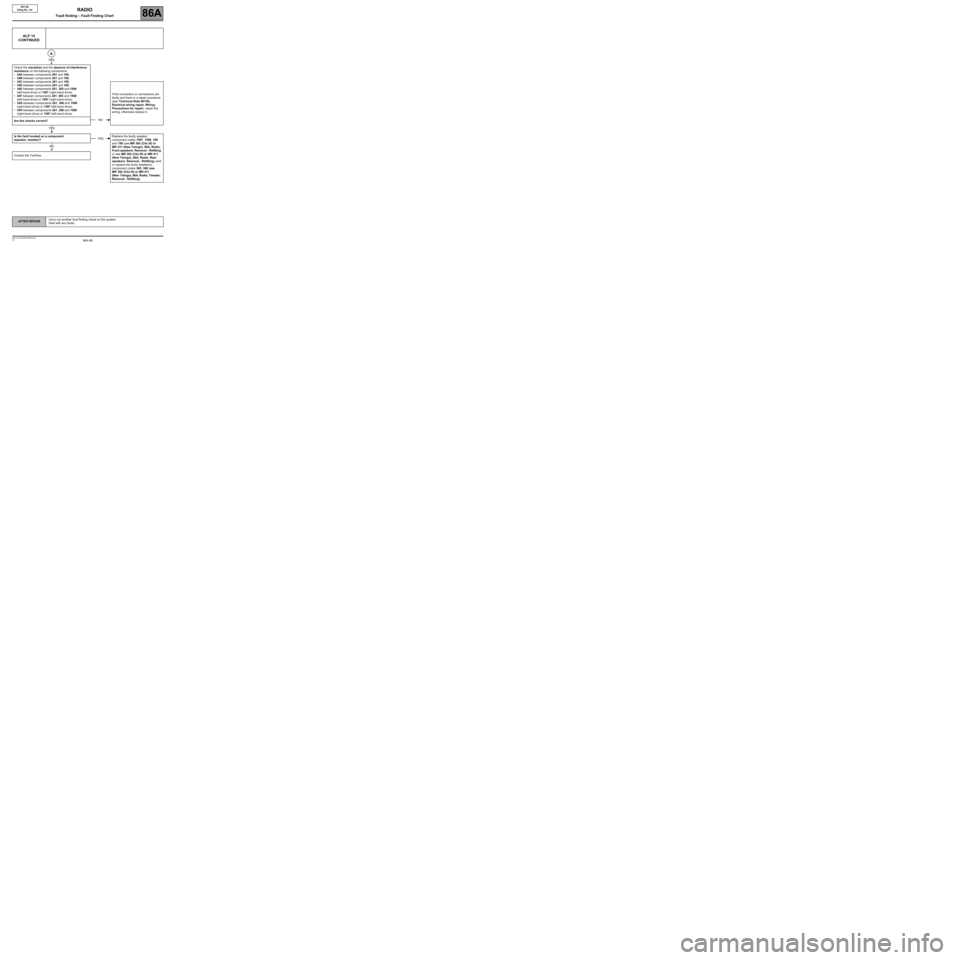

86A-89
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V2 MR-413-X44-86A100$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: A4
ALP 14
CONTINUED
Check the insulation and the absence of interference
resistance on the following connections:
•34A between components 261 and 190,
•34B between components 261 and 190,
•34C between components 261 and 189,
•34D between components 261 and 189,
•34E between components 261, 365 and 1598
(left-hand drive) or 1597 (right-hand drive),
•34F between components 261, 365 and 1598
(left-hand drive) or 1597 (right-hand drive),
•34G between components 261, 366 and 1598
(right-hand drive) or 1597 (left-hand drive),
•34H between components 261, 366 and 1598
(right-hand drive) or 1597 (left-hand drive).If the connection or connections are
faulty and there is a repair procedure
(see Technical Note 6015A,
Electrical wiring repair, Wiring:
Precautions for repair), repair the
wiring, otherwise replace it.
Are the checks correct?
Is the fault located on a component
(speaker, tweeter)?Replace the faulty speaker,
component codes 1597, 1598, 189
and 190 (see MR 392 (Clio III) or
MR 411 (New Twingo), 86A, Radio,
Front speakers: Removal - Refitting
or see MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Rear
speakers: Removal - Refitting) and/
or replace the faulty tweeter(s),
component codes 365, 366 (see
MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Tweeter:
Removal - Refitting). Contact the Techline.
A
YES
NO
YES
YES
NO
86A-90
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V2 MR-413-X44-86A100$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: A4
ALP 15 Fault when using the mobile connectivity terminal
NOTESSee Clio III or New Twingo wiring diagrams.
ALP 15 is used to run fault finding on the mobile connectivity terminal if a mobile
connectivity computer is not fitted on the vehicle.
In a vehicle equipped with a navigation computer, the terminal is connected to the
navigation computer, component code 662. Otherwise, it is connected to the radio,
component code 261.
Is the mobile device connected to the mobile connectivity
terminal switched on and is the volume sufficient?Increase the volume of the
mobile device.
Does the customer's mobile device operate correctly with
earphones that are in good condition?Explain to the customer that the
mobile device is defective.
Check the condition (appearance check) of the cable
connecting the mobile device to the analogue terminal.
Explain to the customer that the
cable of the mobile device is
faulty. Are the checks correct?
NO
YES
NO
YES
NO
YES
A
R108_VA4_ALP15
86A-91
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V2 MR-413-X44-86A100$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: A4
ALP 15
CONTINUED
Check the continuity, insulation and absence of
interference resistance on the following connections:
•34EE between components 1877 and 261 or 662,
•34ET between components 1877 and 261 or 662,
•34EC between components 1877 and 261 or 662,
•TB37 between components 1877 and 261 or 662,
as well as the condition of the shielding TB37 between
the mobile connectivity computer, component code 1877
and component 261 or 662.If the connection or connections are
faulty and there is a repair procedure
(see Technical Note 6015A,
Electrical wiring repair, Wiring:
Precautions for repair), repair the
wiring, otherwise replace it. Are the checks correct?
Contact the Techline.
A
YES
NO
YES
