2009 RENAULT TWINGO Electrical Equipment - Radio R2-08 Workshop Manual

86A-9V1 MR-413-X44-86A150$010.mif
RADIO
Fault finding – Introduction86A
R2-08
Vdiag No.: 64
5. FAULT FINDING LOG
You will always be asked for this log:
–when requesting technical assistance from Techline,
–when requesting approval before replacing parts for which approval is compulsory,
–to be attached to monitored parts for which reimbursement is requested. The log is needed for warranty
reimbursement, and enables better analysis of the parts removed.
6. SAFETY INSTRUCTIONS
Safety rules must be observed during any work on a component to prevent any material damage or personal injury:
–check the battery voltage to avoid incorrect operation of computer functions,
–use the proper tools. IMPORTANT!IMPORTANT
All faults involving a complex system call for thorough diagnostics with the appropriate tools.
The FAULT FINDING LOG, which should be completed during the fault finding procedure,
ensures a record is kept of the procedure carried out. It is an essential document when
consulting the manufacturer.
IT IS THEREFORE COMPULSORY TO COMPLETE A FAULT FINDING LOG
EACH TIME IT IS REQUESTED BY TECHLINE OR THE WARRANTY RETURNS DEPARTMENT.

86A-10V1 MR-413-X44-86A150$020.mif
86A
R2-08
Vdiag No.: 64
For Clio III
Location of components in the passenger compartment
Radio control satellite
RADIO
Fault finding – List and location of components

86A-11V1 MR-413-X44-86A150$020.mif
RADIO
Fault finding – List and location of components86A
R2-08
Vdiag No.: 64
Radio
Display

86A-12V1 MR-413-X44-86A150$020.mif
RADIO
Fault finding – List and location of components86A
R2-08
Vdiag No.: 64
Rear view of the ISO radio connection
Aerial with amplifier

86A-13V1 MR-413-X44-86A150$020.mif
RADIO
Fault finding – List and location of components86A
R2-08
Vdiag No.: 64

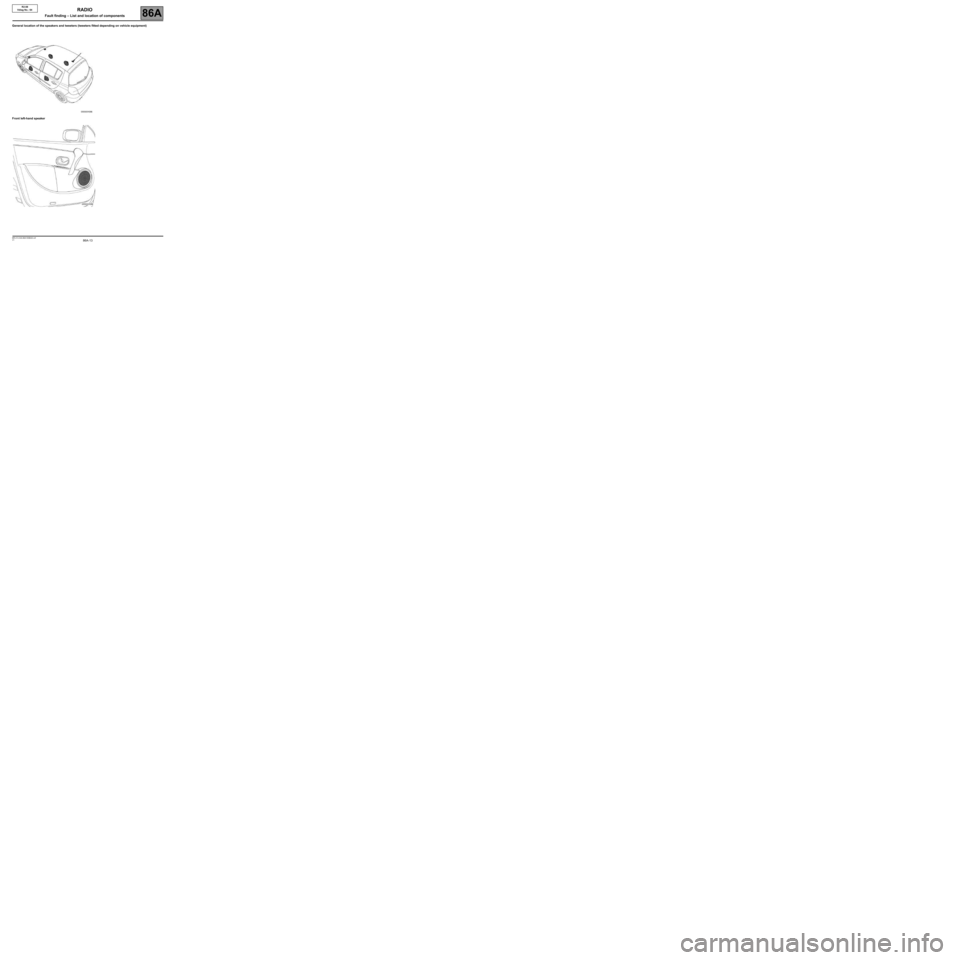

General location of the speakers and tweeters (tweeters fitted depending on vehicle equipment)
Front left-hand speaker

86A-14V1 MR-413-X44-86A150$020.mif
RADIO
Fault finding – List and location of components86A
R2-08
Vdiag No.: 64
Rear right-hand speaker
Front left-hand tweeter

86A-15V1 MR-413-X44-86A150$020.mif
RADIO
Fault finding – List and location of components86A
R2-08
Vdiag No.: 64
Rear view of the mobile connectivity terminal

86A-16V1 MR-413-X44-86A150$020.mif
RADIO
Fault finding – List and location of components86A
R2-08
Vdiag No.: 64
For New Twingo
Location of components in the passenger compartment
Radio control satellite
