TROUBLESHOOTING
7
Changing a wheel
- Lower the vehicle completely by folding the jack, then remove the
jack.
- Tighten the bolts again using the wheelbrace, tighten them fully
without forcing them.
- Place the wheel to be repaired in the carrier. - Secure the carrier on the hook then
raise the carrier using the bolt and
the wheelbrace.
Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use
a screwdriver in place of the
wheelbrace.
5. FITTING THE SPARE WHEEL
- Position the wheel on the hub and
start tightening the bolts by hand.
- Carry out an initial tightening of the bolts using the wheelbrace.

110
Snow screen
6. REFITTING THE REPAIRED WHEEL
The wheel is refi tted as described in
step 5, not forgetting to refi t the wheel
trim.
Refer to the "Instruments and
controls" section of chapter 2,
"Tyre under-infl ation detection"
part, for recommendations after
changing a wheel fi tted with a tyre
under-infl ation detection sensor. Refer to the "Identifi cation
features" section of chapter 8 to
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10 °C (no risk of snowfall)
and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
and refi tted by a PEUGEOT dealer as
soon as possible.

110
Snow screen
6. REFITTING THE REPAIRED WHEEL
The wheel is refi tted as described in
step 5, not forgetting to refi t the wheel
trim.
Refer to the "Instruments and
controls" section of chapter 2,
"Tyre under-infl ation detection"
part, for recommendations after
changing a wheel fi tted with a tyre
under-infl ation detection sensor. Refer to the "Identifi cation
features" section of chapter 8 to
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10 °C (no risk of snowfall)
and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
and refi tted by a PEUGEOT dealer as
soon as possible.

111
TROUBLESHOOTING
7
Changing a bulb
CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Type A
Entirely glass bulb: pull
gently as it is fi tted by
pressure.
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refi t each bulb and check that
the bonnet is closed securely.
Type C
Halogen bulb: release the
retaining spring from its
housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi ngers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lights operate correctly
after each operation.
High pressure washing
Types of bulb
Various types of bulb are installed on
your vehicle. To remove them:
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.

112
Changing a bulb

3. Direction indicators
Type B, PY 21 W - 21 W (amber)
- Remove the cover by pulling the fl exible rubber tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
- Ensure that the cover is refi tted correctly over its entire periphery
to guarantee sealing.

2. Side lights
Type A, W 5 W - 5 W
- Remove the cover by pulling the fl exible rubber tab.
- Remove the bulb holder fi tted by pressure by pulling the connector.
- Change the bulb.
- Ensure that the cover is refi tted correctly over its entire periphery
to guarantee sealing.
FRONT LIGHTS

1. Dipped headlamps/Main beam
headlamps
Type C, H4 - 55 W
- Remove the centre cover by pulling the fl exible rubber tab.
- Disconnect the electrical connector.
- Release the retaining tab.
- Change the bulb taking care to align the metal part with the
grooves on the light.
- Reposition the retaining tab.
- Ensure that the cover is refi tted correctly over its entire periphery
to guarantee sealing.

113
TROUBLESHOOTING
7
Changing a bulb

4. Fog lamps
Type C, H1 - 55 W
-
Remove the fog lamp by removing the
bolt, which can be accessed via the
hole provided for this purpose in the
bumper, using a Torx
© 30 screwdriver.
- Remove the three mud guard fi xing clips, located below the bumper.
- Move the mud guard upwards.
- Unclip the fog lamp by squeezing the clip to release it.
- Remove the fog lamp from the outside.
- Turn the yellow cover a 1/4 turn to open.
- Separate the clips which secure the base of bulb on each side to release the
bulb.
- Remove the bulb by pulling, keeping it straight.
- Insert the new bulb, re-tighten the clips around the base of the bulb and carry
out the operations in reverse order to
put the light unit and the bumper back in
position.
SIDE REPEATER

Type A, WY 5 W (amber)
- Push the repeater towards the rear and disengage it by pulling the
front.
- Consult a PEUGEOT dealer to obtain a new repeater which is a
fully moulded part.
- To refi t, engage the repeater towards the rear and bring it
towards the front.
Front/Rear
COURTESY LIGHTS

Type A, 12 V 5 W - 5 W
- Unclip the lens by sliding a screwdriver in the slots on each
side of the courtesy light.
- Pull the bulb and change it.
- Clip the lens in its housing and ensure that it is secured correctly.

114
Changing a bulb
For further information concerning the
bulbs, refer to the "Types of bulb".

1. Brake lights/side lights
Type B, P21/5 W - 21/5 W

2. Direction indicators
Type B, PY 21 W - 21 W (amber)

3. Reversing lights
Type B, P21 W - 21 W

4. Fog lamps

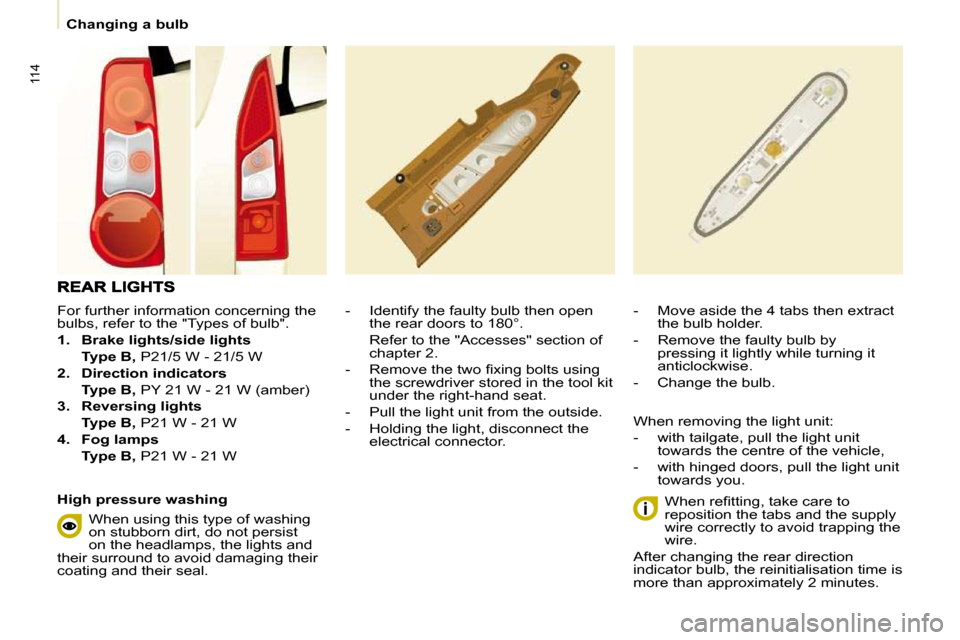

Type B, P21 W - 21 W - Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Accesses" section of chapter 2.
- Remove the two fi xing bolts using the screwdriver stored in the tool kit
under the right-hand seat.
- Pull the light unit from the outside.
- Holding the light, disconnect the electrical connector. - Move aside the 4 tabs then extract
the bulb holder.
- Remove the faulty bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.

When removing the light unit:
- with tailgate, pull the light unit
towards the centre of the vehicle,
- with hinged doors, pull the light unit towards you.
When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
more than approximately 2 minutes.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.

115
TROUBLESHOOTING
7
Changing a bulb
NUMBER PLATE LIGHTS
- Unscrew the two nuts.
- Push the pins.
- If necessary, disconnect the connector to remove the light.
- Change the bulb.
With tailgate
- Move aside the plastic lens using a
screwdriver.
- Change the bulb.
- Replace the plastic lens and press on it.
THIRD BRAKE LIGHT

Type A, W 16 W - 16 W
With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving aside its tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Change the bulb.
- Put the bulb holder back in place and reconnect the connector.
- Put the trim back in place.

Type A, W 5 W - 5 W
