2009 PEUGEOT 807 Owners Manual

16
04
1
2
3
4
1
2
5
3
POWERSTOPMODE
SMART
ROOT ACID-JAZZ
CHILL OUT
INDEPENDANT
LATINROOT ACID-JAZZ
CHILL OUT
INDEPENDANT
LATIN
POPPOP
. .002PAC-Cali
ANASTACIA -
BABYLON ZOO
BRANDY MONICULTURE BA 1 23 4
52PAC-Cali
ANASTACIA -
BABYLON ZOO
BRANDY MONI
CULTURE BA 1 2 34
5MP3MP3MP3MP3MP3MP3MP3MP3MP3MP3
SMART NAVI 00 : 02 : 58

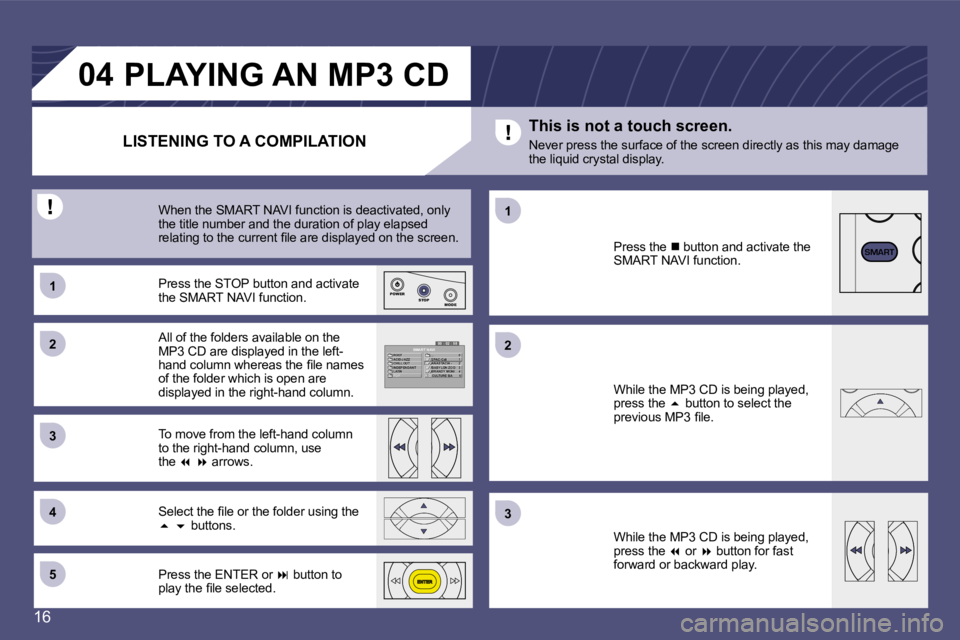

LISTENING TO A COMPILATIONPLAYING AN MP3 CD
All of the folders available on the
MP3 CD are displayed in the left-
hand column whereas the ile names
of the folder which is open are
displayed in the right-hand column.
Press the STOP button and activate
the SMART NAVI function.
To move from the left-hand column
to the right-hand column, use

the 7 8 arrows.
When the SMART NAVI function is deactivated, only
the title number and the duration of play elapsed
relating to the current ile are displayed on the sc
reen.
Select the ile or the folder using the 5 6 buttons.
Press the ENTER or  button to
play the ile selected. Press the
n button and activate the
SMART NAVI function.
While the MP3 CD is being played,
press the 5 button to select the
previous MP3 ile.
While the MP3 CD is being played,
press the 7 or 8 button for fast
forward or backward play.
This is not a touch screen.
Never press the surface of the screen directly as t
his may damage
the liquid crystal display.

17
05
1
1
2
123
456
789
MENU
INFORMATION AND ADVICEPLAYING A JPEG IMAGES CD
PLAYING A JPEG IMAGES CD
Check that the JPEG images have the extension
".jpeg".
The folder can only be selected in STOP mode ( n).
The volume, colours, contrast and brightness of the
images cannot be adjusted while the CD is being
played. Select the next/previous images using
the
5 and 6 buttons.
To activate the thumbnails mode,
press the MENU button. Insert the JPEG images CD in the
player. The navigation menu is
displayed on the screen.
To navigate through the iles, refer to the previous
section: 04 PLAYING AN MP3 CD, LISTENING TO A
COMPILATION.
To display an image in full screen
mode, press the buttons on the
remote control which correspond to
the number of the image.
The thumbnails mode is deactivated
automatically and the ilmstrip begins
starting with the image selected.

18
06
1
2
3
4
3
2
1
5

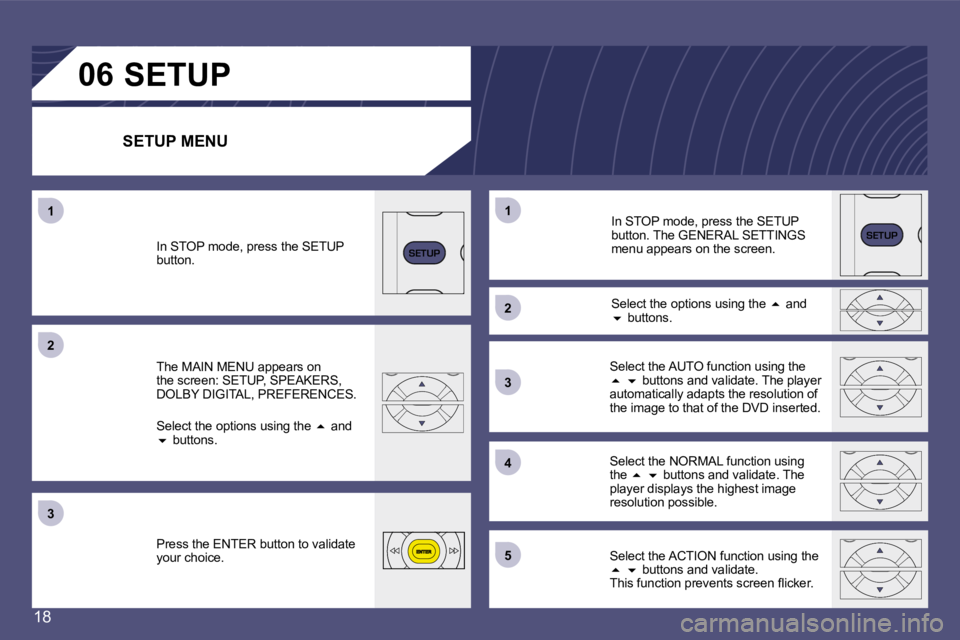

SETUP
SETUP
SETUP MENU
SETUP
In STOP mode, press the SETUP
button.
The MAIN MENU appears on
the screen: SETUP, SPEAKERS,
DOLBY DIGITAL, PREFERENCES.
Select the options using the 5 and
6 buttons.
Press the ENTER button to validate
your choice. Select the NORMAL function using
the
5 6 buttons and validate. The
player displays the highest image
resolution possible.
Select the AUTO function using the 5
6 buttons and validate. The player
automatically adapts the resolution of
the image to that of the DVD inserted. Select the options using the
5 and
6 buttons.
In STOP mode, press the SETUP
button. The GENERAL SETTINGS
menu appears on the screen.
Select the ACTION function using the 5 6 buttons and validate.
This function prevents screen licker.

19
07
1
2
3
2
3
1
4
2Do not the discard the batteries or
the bulbs, take them to a collection
point.

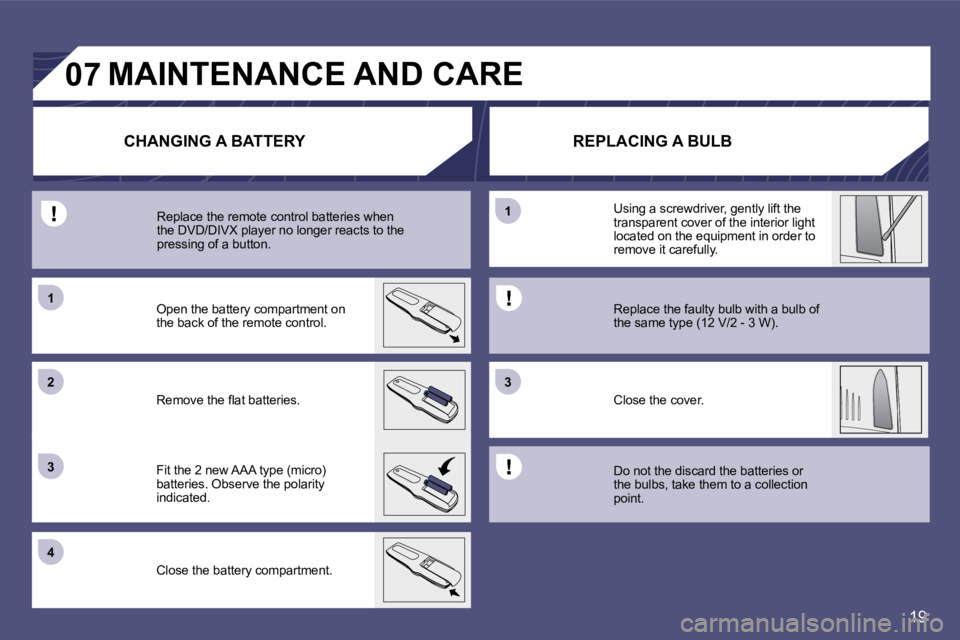

CHANGING A BATTERY
MAINTENANCE AND CARE
REPLACING A BULB
Open the battery compartment on
the back of the remote control. Replace the remote control batteries when
the DVD/DIVX player no longer reacts to the

pressing of a button.
Remove the lat batteries.
Fit the 2 new AAA type (micro)
batteries. Observe the polarity
indicated.
Close the battery compartment. Replace the faulty bulb with a bulb of
the same type (12 V/2 - 3 W).
Close the cover.
Using a screwdriver, gently lift the
transparent cover of the interior light
located on the equipment in order to
remove it carefully.

20
08
A/B
POWER
VOLUME Volume adjustment
On/off
Stereo 2 channels The headphones are not
supplied with the roof
console display.

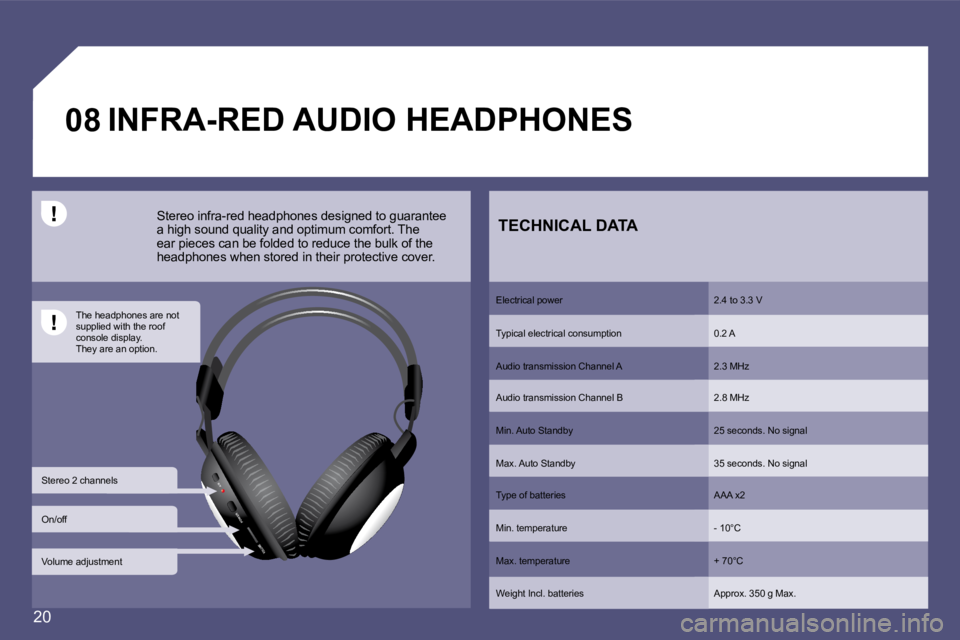

They are an option. INFRA-RED AUDIO HEADPHONES
Stereo infra-red headphones designed to guarantee
a high sound quality and optimum comfort. The
ear pieces can be folded to reduce the bulk of the
headphones when stored in their protective cover. TECHNICAL DATA
Electrical power 2.4 to 3.3 V
Typical electrical consumption 0.2 A
Audio transmission Channel A 2.3 MHz
Audio transmission Channel B 2.8 MHz
Min. Auto Standby 25 seconds. No signal
Max. Auto Standby 35 seconds. No signal
Type of batteries AAA x2
Min. temperature - 10°C
Max. temperature + 70°C
Weight Incl. batteries Approx. 350 g Max.

21
12332
123333333333
12333
2333
12333
12333
2333
332
12344433333222
12
12
333
12
22
2222222
3

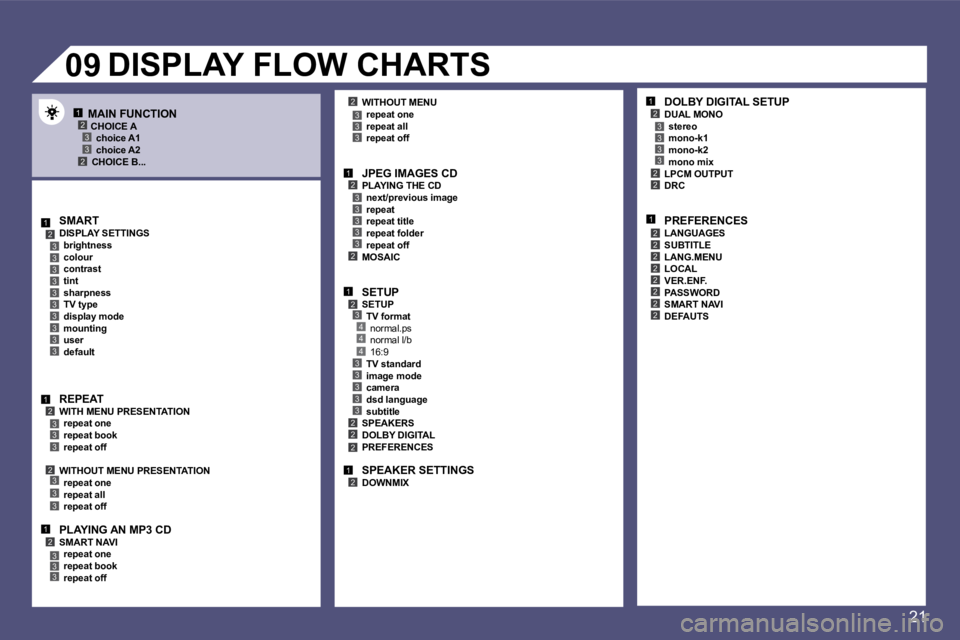

09MAIN FUNCTION
SMART DOLBY DIGITAL SETUP
DISPLAY FLOW CHARTS
CHOICE A choice A1
choice A2
CHOICE B...
REPEAT
PLAYING AN MP3 CD
DISPLAY SETTINGS
brightness
colour
contrast
tint
sharpness
TV type
display mode
mounting
user
default
WITH MENU PRESENTATION repeat one
repeat book
repeat off
WITHOUT MENU PRESENTATION repeat one
repeat all
repeat off
SMART NAVI repeat one
repeat book
repeat off JPEG IMAGES CD
WITHOUT MENU
repeat one
repeat all
repeat off
PLAYING THE CD next/previous image
repeat
repeat title
repeat folder
repeat off
MOSAIC
SETUP
SETUP TV format
normal.ps
normal l/b
16:9
TV standard
image mode
camera
dsd language
subtitle
SPEAKERS
DOLBY DIGITAL
PREFERENCES
SPEAKER SETTINGS
DOWNMIX DUAL MONO
stereo
mono-k1
mono-k2
mono mix
LPCM OUTPUT
DRC
PREFERENCES
LANGUAGES
SUBTITLE
LANG.MENU
LOCAL
VER.ENF.
PASSWORD
SMART NAVI
DEFAUTS

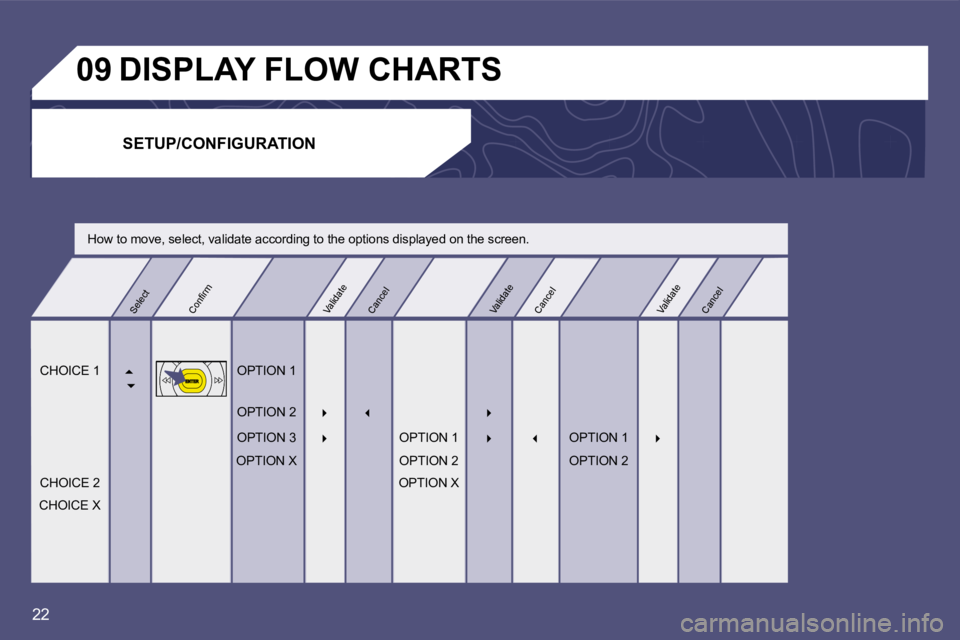

09DISPLAY FLOW CHARTSSETUP/CONFIGURATION
How to move, select, validate according to the opti ons displayed on the screen.
CHOICE 1 5
6 OPTION 1
OPTION 2
4 3 4
OPTION 3 4 OPTION 1
4 3 OPTION 1
4
OPTION X OPTION 2 OPTION 2
CHOICE 2 OPTION X
CHOICE X
Select
Conirm
ValidateCancel
ValidateCancel
ValidateCancel
22

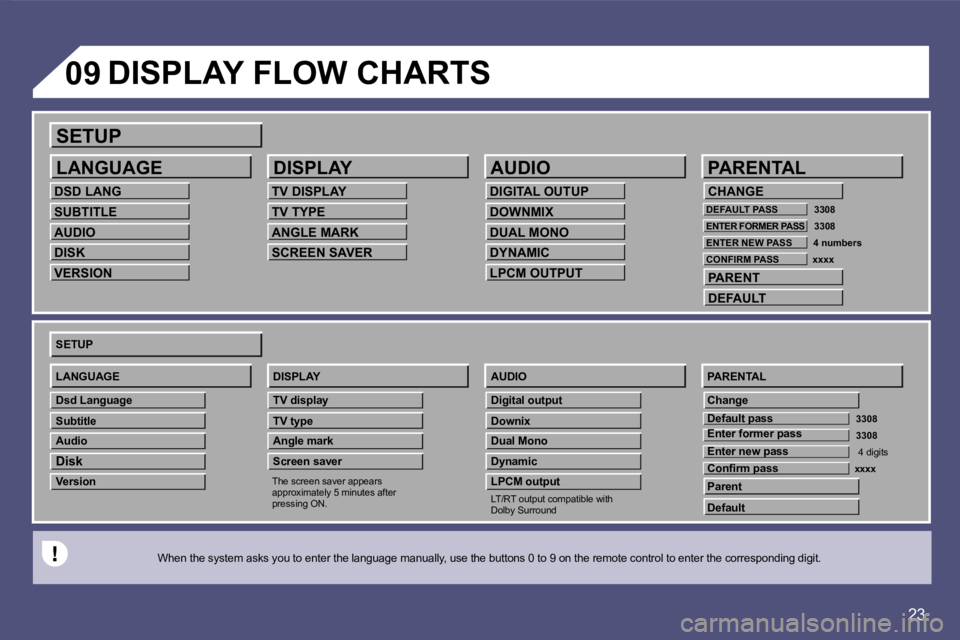

SETUP
LANGUAGE
DSD LANG
SUBTITLE
AUDIO
DISK
VERSION
TV DISPLAY
TV TYPE
ANGLE MARK
SCREEN SAVER
DIGITAL OUTUP
DOWNMIX
DUAL MONO
DYNAMIC
LPCM OUTPUT
CHANGE
DEFAULT PASS 3308
ENTER FORMER PASS 3308
ENTER NEW PASS 4 numbers
CONFIRM PASS xxxx
PARENT
DEFAULT
DISPLAYAUDIOPARENTAL
33083308
xxxx
09
The screen saver appears
approximately 5 minutes after
pressing ON. LT/RT output compatible with
Dolby Surround
DISPLAY FLOW CHARTS
When the system asks you to enter the language manu ally, use the buttons 0 to 9 on the remote control to enter the corresponding digit.
SETUP
LANGUAGE
Dsd Language
Subtitle
Audio
Disk
Version
DISPLAY
TV display
TV type
Angle mark
Screen saver
AUDIO
Digital output
Downix
Dual Mono
Dynamic
LPCM outputPARENTAL
Change
Parent
Default
Default pass
Enter former pass
Enter new pass
Conirm pass
4 digits
23
