2009 PEUGEOT 807 Owners Manual

33
22
11
44
06
9.279.27
The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

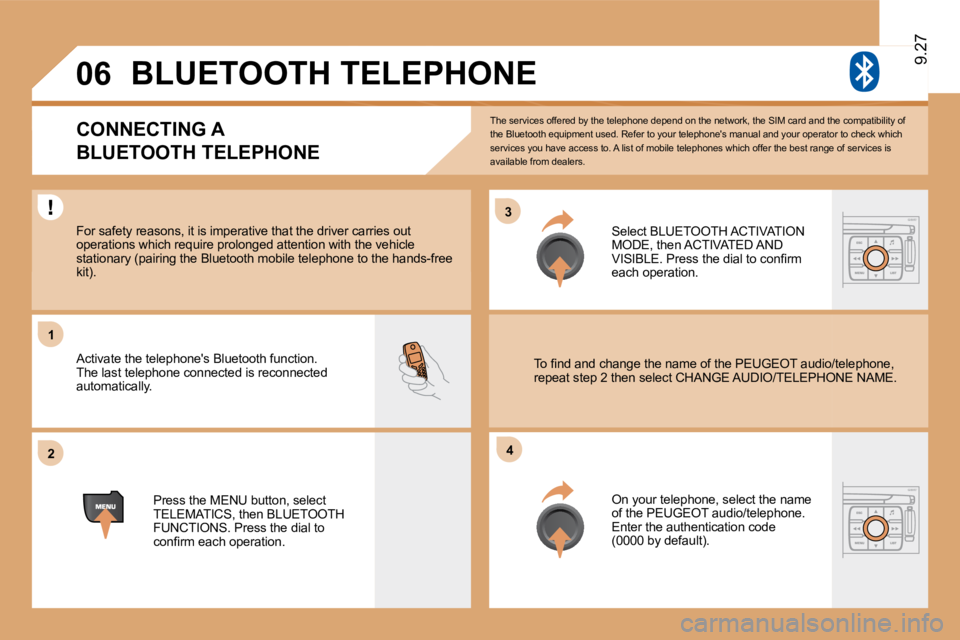

BLUETOOTH TELEPHONE
CONNECTING A
BLUETOOTH TELEPHONE
For safety reasons, it is imperative that the driv er carries out operations which require prolonged attention with t he vehicle stationary (pairing the Bluetooth mobile telephone to the hands-free kit).
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND VISIBLE. Press the dial to confi rm each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to confi rm each operation.
On your telephone, select the name of the PEUGEOT audio/telephone. Enter the authentication code (0000 by default).
To fi nd and change the name of the PEUGEOT audio/t elephone, To fi nd and change the name of the PEUGEOT audio/telephone, repeat step 2 then select CHANGE AUDIO/TELEPHONE NA ME. repeat step 2 then select CHANGE AUDIO/TELEPHONE NAME.

9.28
06

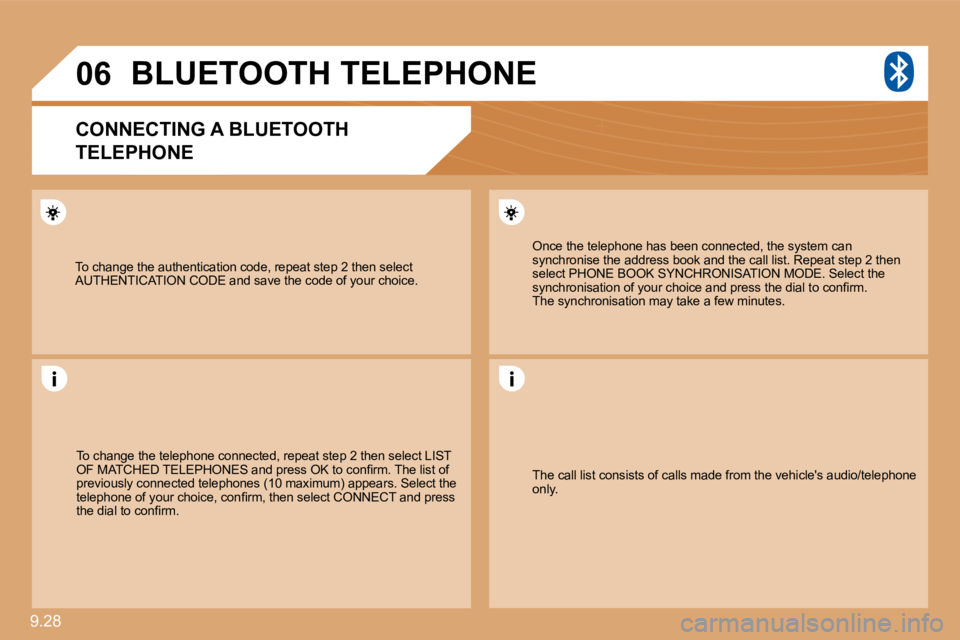

To change the authentication code, repeat step 2 then select AUTHENTICATION CODE and save the code of your choic e.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
To change the telephone connected, repeat step 2 then select LIST OF MATCHED TELEPHONES and press OK to confi rm. The list of previously connected telephones (10 maximum) appears. Select the telephone of your choice, confi rm, then select CONNECT and press the dial to confi rm.
Once the telephone has been connected, the system catem can synchronise the address book and the call list. Repeat step 2 then synchronise the address book and the call list. Repeat step 2 then select PHONE BOOK SYNCHRONISATION MODE. Select the select PHONE BOOK SYNCHRONISATION MODE. Select the synchronisation of your choice and press the dial to confi rm. synchronisation of your choice and press the dial to confi rm. The synchronisation may take a few minutes.
The call list consists of calls made from the vehicle's audio/telephone only.

11
22
33
55
66
44
06
9.29
DIAL

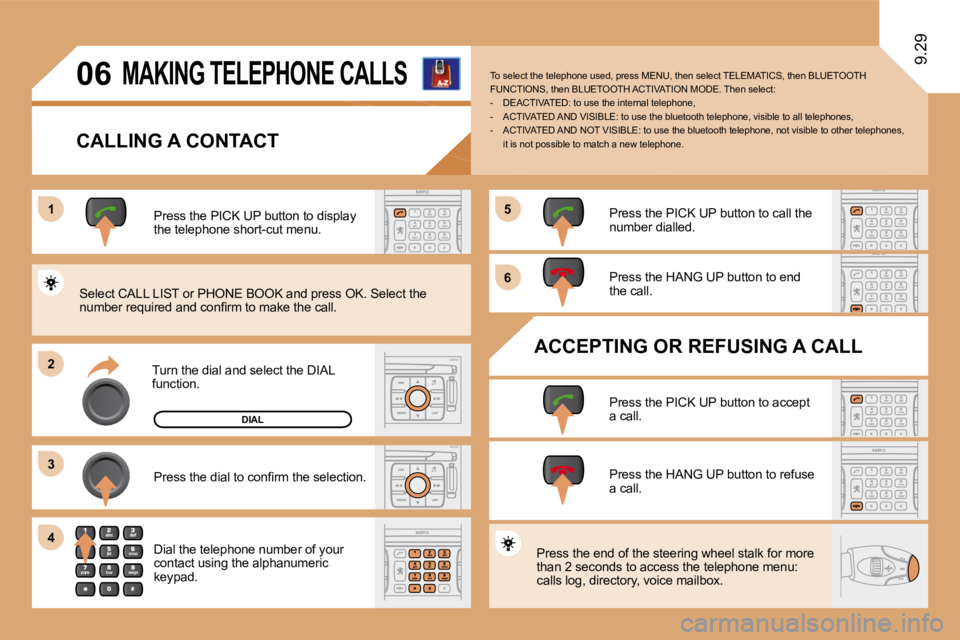

MAKING TELEPHONE CALLS
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
Press the dial to confi rm the selection.
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Selec t the number required and confi rm to make the call.

9.30
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
* On condition that the PEUGEOT Emergency contract has been signed. This is free and of unlimited duration. Consult a PEUGEOT dealer.
EMERGENCY CALL
When the PEUGEOT Emergency contract has been signe d, it is recommended that an initial call is made to the PEUGEOT Emergency team.
In an emergency, press the SOS button until an audible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed (if valid SIM card inserted). A call is made to the emergency services (112). In certain countries * , this emergency call is made directly by the PEUGEOT Emergency team which locates the vehicle and alerts the appropriate emergency services as quickly as possible.
If necessary, the internal telephone is activated automattomatically to make an emergency call.
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES
Press this button to gain access to the PEUGEOT services * .
Select CUSTOMER CONTACT CENTRE to request any information about the PEUGEOT marque.
Select PEUGEOT ASSISTANCE to make a breakdown assistance call.

07
1
2
2
11
2
9.31
Each press of the button permits displaying of the different trip computer data in succession, depending on the displ ay.
Zero reset When the required route is displayed, press the control for more than two seconds.

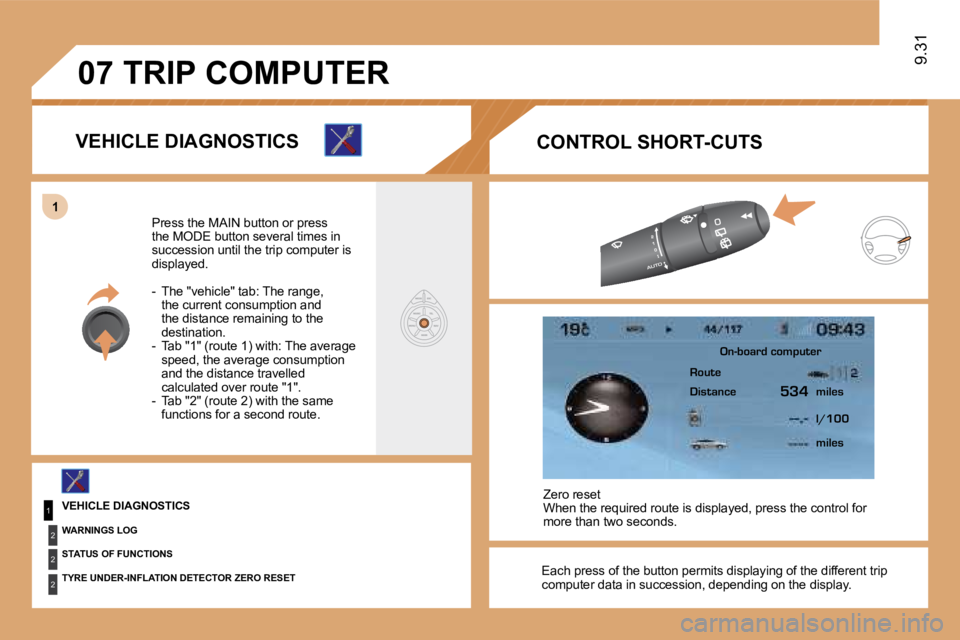

TRIP COMPUTER
VEHICLE DIAGNOSTICS
Press the MAIN button or press the MODE button several times in succession until the trip computer is displayed.
- The "vehicle" tab: The range, the current consumption and the distance remaining to the destination. - Tab "1" (route 1) with: The average speed, the average consumption and the distance travelled calculated over route "1". - Tab "2" (route 2) with the same functions for a second route.
CONTROL SHORT-CUTS
On-board computer
Route
Distance miles 534
miles
l/100
VEHICLE DIAGNOSTICS
WARNINGS LOG
STATUS OF FUNCTIONS
TYRE UNDER-INFLATION DETECTOR ZERO RESET

9.32
07
A few defi nitions
Range: displays the distance which can be travelled with theremaining fuel detected in the tank, in relation to the averageconsumption over the last few miles (kilometres). This displayed value may vary signifi cantly following a changein the vehicle speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. After fi lling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of digits,contact a PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph (30 km/h).
Average consumption: this is the average quantity of fuelconsumed since the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with referenceto the fi nal destination, entered by the user. If guidance is activated,the navigation system calculates it as a current va lue.
Average speed: this is the average speed calculated since the lasttrip computer zero reset (ignition on).
TRIP COMPUTER
With tab "1" (route 1):

08
9.33
CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
RADIO: selection of the previous stored station. MP3/USB/JUKEBOX: selection of the previous directory. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu.
RADIO: selection of the next stored station. MP3/USB/JUKEBOX: selection of the next directory. CD CHANGER: selection of the next CD. Selection of the next item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3/USB/JUKEBOX/CD CHANGER: selection of the next track. CD/USB/CD CHANGER: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency. CD/MP3/USB/JUKEBOX/CD CHANGER: selection of the previous track. CD/USB/CD CHANGER: continuous press: fast backwards play.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.

9.34
22
11
Press the end of the lights stalk to start the voice Press the end of the lights stalk to start the voice recognition. Say the words one by one and wait for the for the audible confi rmation signal between each word. confi rmation signal between each word. The list which follows is exhaustive.
To display the list of available voice commcommands, press the end of the lights stalk to start the voice reco gnition, the end of the lights stalk to start the voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.

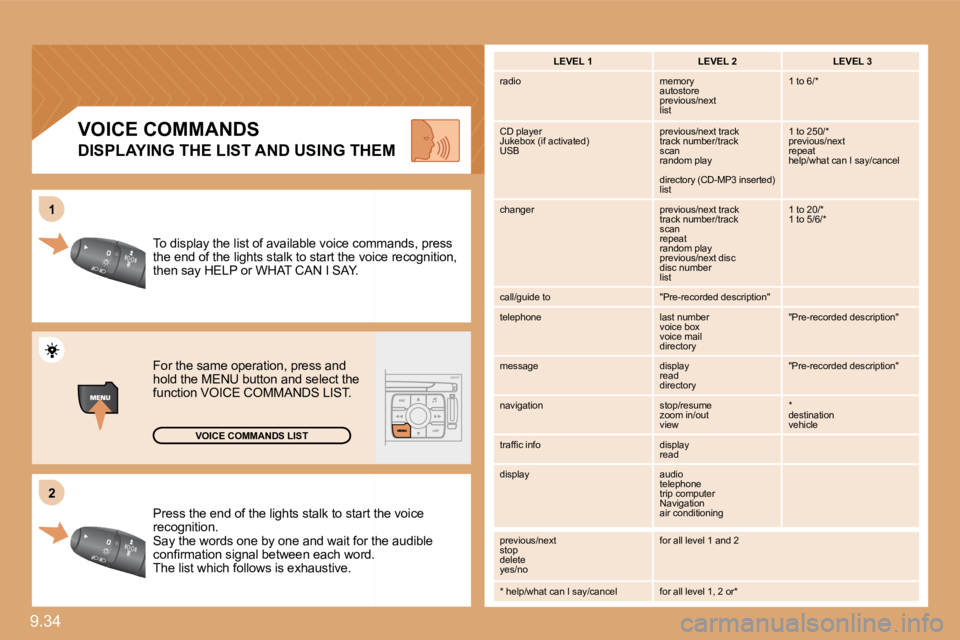

VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1 LEVEL 2 LEVEL 3
radio memory autostore previous/next list
1 to 6/*
CD player Jukebox (if activated) USB
previous/next track track number/track scan random play
directory (CD-MP3 inserted) list
1 to 250/* previous/next repeat help/what can I say/cancel
changer previous/next track track number/track scan repeat random play previous/next disc disc number list
1 to 20/* 1 to 5/6/*
call/guide to "Pre-recorded description"
telephone last number voice box voice mail directory
"Pre-recorded description"
message display read directory
"Pre-recorded description"
navigation stop/resume zoom in/out view
* destination vehicle
traffi c info display read
display audio telephone trip computer Navigation air conditioning
previous/next stop delete yes/no
for all level 1 and 2
* help/what can I say/cancel for all level 1, 2 or*
