Page 105 of 257

SAFETY
105
Child safety
4
a : Group 0: from birth to 10 kg. Infant car seats and "car cots" can not be installed on the front passenger seat.
b
: consult the legislation in force in your country before instal ling your child on this seat.
U : seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/o r
"forward facing".
L- : only the child seats indicated can be installed on the sea t concerned (according to country).
X : seat not suitable for the installation of a child seat o f the weight group indicated.

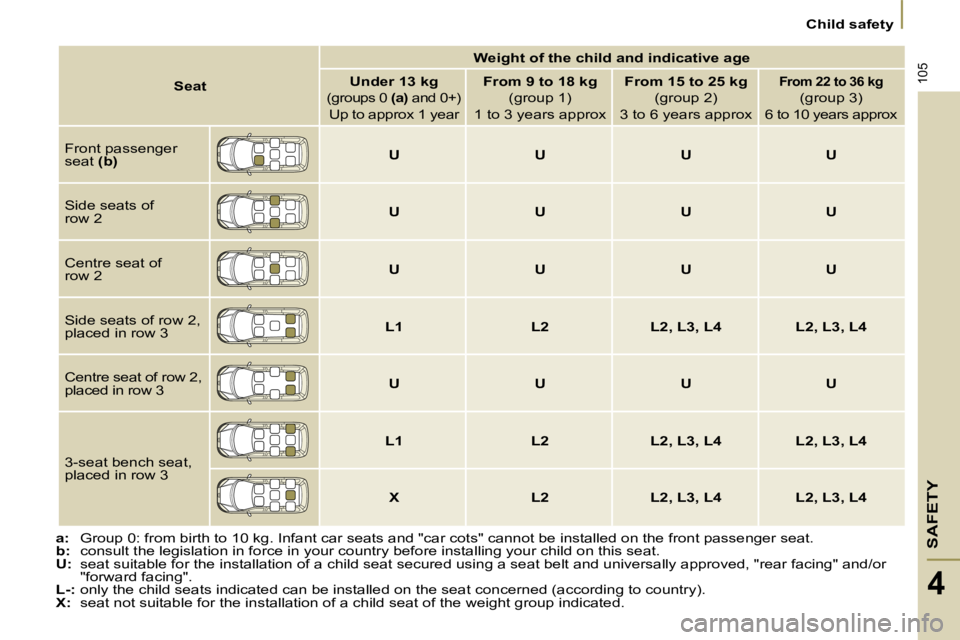

Seat
Weight of the child and indicative age
Under 13 kg (groups 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U
Side seats of
row 2
U U U U
Centre seat of
row 2
U U U U
Side seats of row 2,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4
Centre seat of row 2,
placed in row 3
U U U U
3-seat bench seat,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4
X L2 L2, L3, L4 L2, L3, L4
Page 106 of 257

106
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s t o
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
restraint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
Page 107 of 257

106
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s t o
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
restraint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
Page 108 of 257
107
Towing a trailer
ACCESSORIES
5
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights and
towed loads" section of chapter 8.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 109 of 257

108
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi r s t f o r f u r t h e r i n f o r m a t i o n .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable. Lighting
Bicycle carrier I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display's
c o n fi g u r a t i o n m e n u .
R e f e r t o t h e "
