2009 Peugeot 308 CC belt

i
FAMILIARISATION

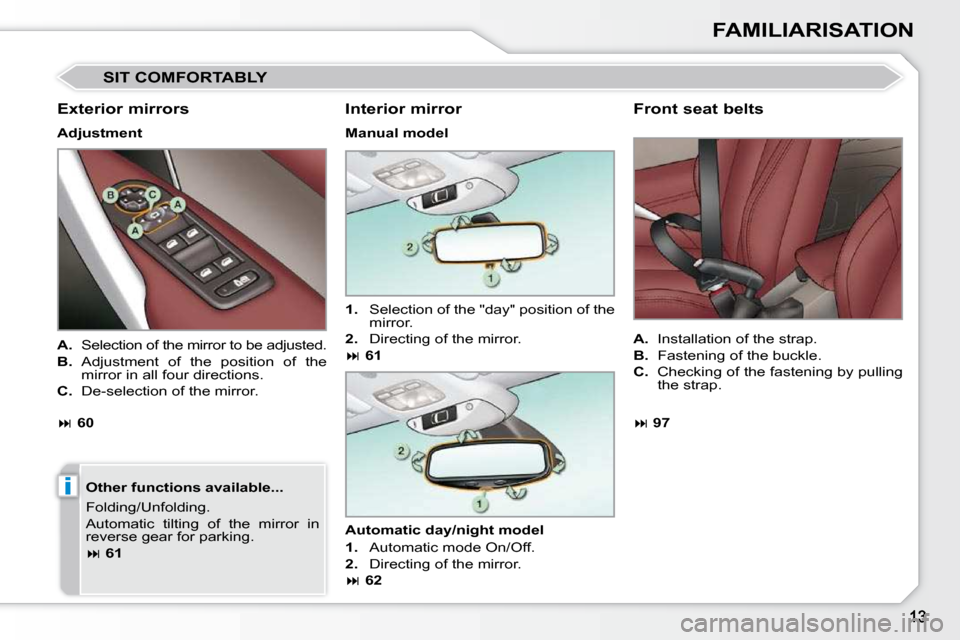

SIT COMFORTABLY
Exterior mirrors
Adjustment Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.


 61 Interior mirror

1. Selection of the "day" position of the
mirror.

2. Directing of the mirror.


 61 Front seat belts

A. Installation of the strap.

B. Fastening of the buckle.

C. Checking of the fastening by pulling
the strap.

A. Selection of the mirror to be adjusted.

B. Adjustment of the position of the
mirror in all four directions.

C. De-selection of the mirror.


 97
Manual model
Automatic day/night model

1. Automatic mode On/Off.

2. Directing of the mirror.


 62


 60

i
FAMILIARISATION
Passenger’s front air bag
START

1. Insertion of the key.

2. Selection of the position:
"OFF" (disarming), with "rear facing"
child seat,
"ON" (activation), with front passenger
or "forwards facing" child seat.

3. Removal of the key keeping the
switch in this position.
1. Stop position.

2. Running position.

3. Starting position.

A. Front and/or rear seat belts not fas-
tened/unfastened warning light.

B. Front left seat belt warning light.

C. Front right seat belt warning light.

D. Rear right seat belt warning light.

E. Rear left seat belt warning light.

F. Passenger’s front air bag disarmed
warning light.

G. Passenger’s front air bag activated
warning light.
Seat belts and passenger’s
front air bag


 100


 97, 101 Ignition switch


 66
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

1
25
INSTRUMENTS and CONTROLS
Deactivation warning lights
If one of the following warning lights
comes on, this confi rms that the corres-
ponding system has been switched off
intentionally. Passenger's air bag system
deactivation.
The passenger's air bag system
is put into service automatically
when the vehicle is started.
A specifi c control, located on the pas-
senger's side of the fascia, permits
deactivation of the system. This is con-
fi rmed by continuous lighting of this
warning light on the instrument panel or
on the seat belt and passenger's front
air bag warning lights display. Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A specifi c button, located in the centre
of the dashboard, permits deactivation
of the system. This is confi rmed by con-
tinuous lighting of this warning lamp and
of the indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation
warning lights Specifi c deactivation warning
lights Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.
Automatic wiping.
If this is displayed, it indicates
that you have deactivated the
automatic windscreen wiping.
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic lighting.
If this is displayed, it indicates
that you have deactivated the
automatic switching on of the
headlamps.

1
27
INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
If it fl ashes, it indicates the occurrence of
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates
that the temperature in the coo-
ling system is too high. Stop the vehicle
immediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the injection
system on Diesel engines.
Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt...).
Engine oil pressure.
If this comes on, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as
safely as possible.
Specifi c warning lights
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactiva-
ted, if this warning light and the indicator
light on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system.
** According to country.
- i
f the speed is below 6 mph (10 km/h), this
warning light comes on continuously,

- if the speed is higher than 6 mph (10 km/h),
this warning light comes on continuously,
accompanied by an audible signal.

1
i
!
28
INSTRUMENTS and CONTROLS
The displaying of certain warning
lights may be accompanied by an
audible signal and a message on
the multifunction display.
Specifi c warning lights
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lights may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning light, stop the vehicle imme-
diately and as safely as possible.
Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the
directional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as
safely as possible.
Service.
If this is displayed, it indicates the occur-
rence of a fault in one of the following:
Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates
an insuffi cient level of oil in the
engine. Stop the vehicle imme-
diately and as safely as pos-
sible.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the
cooling system is too high. Stop
the vehicle immediately and as
safely as possible.
Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt...).
- the engine management system,
- the emission control system.

1
29
INSTRUMENTS and CONTROLS
Air bags.
If this is displayed, it indicates the
occurrence of a fault in one of the
air bag, roll-over hoop or preten-
sioning seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deacti-
vated, if this warning light and the indi-
cator light on the button come on, this
indicates the occurrence of a fault in the
ESP/ASR system.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as
possible.
Door open.
A door, the boot or the bonnet *
is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the formation
of ice on the road below a temperature
of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the
vehicle is moving, it indicates
that the handbrake has not been
released fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control battery
is fl at.
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel
remaining to drive approxima-
tely 30 miles (50 km).
The capacity of the tank is approxima tely
60 litres. Screenwash fl uid level.
If this is displayed, following an
action on the wipers stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl uid
reservoir when you stop. -
if the speed is below 6 mph (10 km/h), this
warning light is displayed in orange,

if the speed is higher than 6 mph (10 km/h), this warning light is displayed in red.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant
in the circuit. Stop the vehicle
immediately and as safely as
possible.

7
!
96
SAFETY

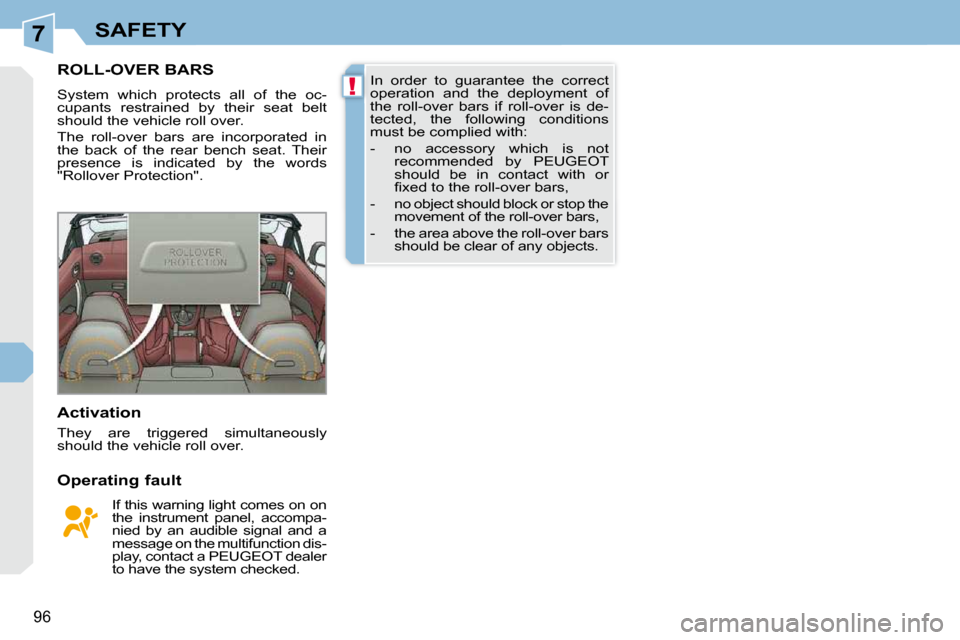

ROLL-OVER BARS
System which protects all of the oc-
cupants restrained by their seat belt
should the vehicle roll over.
The roll-over bars are incorporated in
the back of the rear bench seat. Their
presence is indicated by the words
"Rollover Protection".
Activation
They are triggered simultaneously
should the vehicle roll over.
Operating fault If this warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction dis-
play, contact a PEUGEOT dealer
to have the system checked. In order to guarantee the correct
operation and the deployment of
the roll-over bars if roll-over is de-
tected, the following conditions
must be complied with:
- no accessory which is not
recommended by PEUGEOT
should be in contact with or
fi xed to the roll-over bars,
- no object should block or stop the movement of the roll-over bars,
- the area above the roll-over bars should be clear of any objects.

7SAFETY

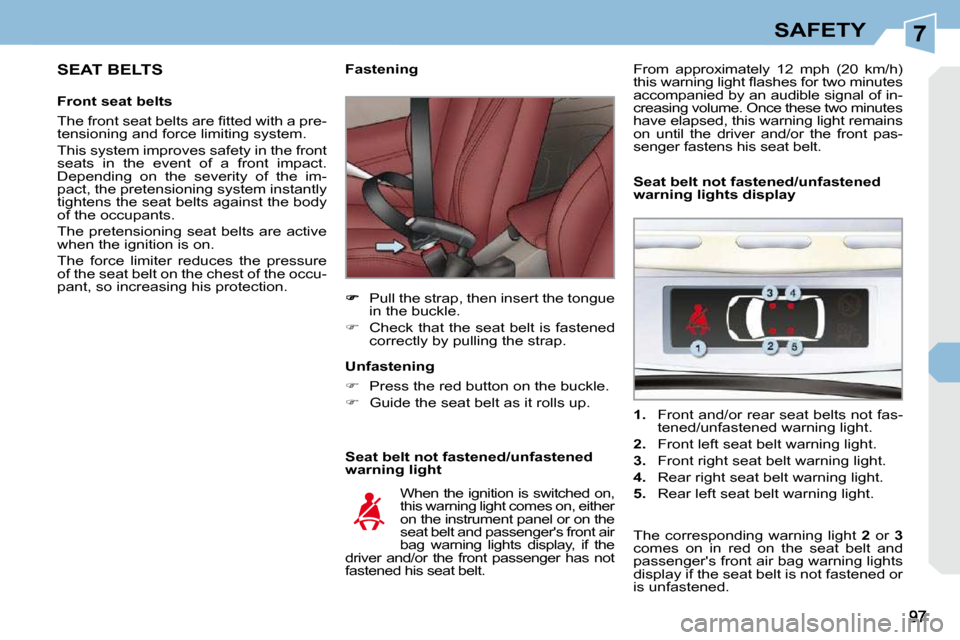

SEAT BELTS
Front seat belts
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact.
Depending on the severity of the im-
pact, the pretensioning system instantly
tightens the seat belts against the body
of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so increasing his protection. Seat belt not fastened/unfastened
warning light
Fastening

Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened correctly by pulling the strap.
When the ignition is switched on,
this warning light comes on, either
on the instrument panel or on the
seat belt and passenger's front air
bag warning lights display, if the
driver and/or the front passenger has not
fastened his seat belt.
Unfastening

 Press the red button on the buckle.

 Guide the seat belt as it rolls up.
1. Front and/or rear seat belts not fas-
tened/unfastened warning light.

2. Front left seat belt warning light.

3. Front right seat belt warning light.

4. Rear right seat belt warning light.

5. Rear left seat belt warning light.
Seat belt not fastened/unfastened
warning lights display
The corresponding warning light
2 or 3
comes on in red on the seat belt and
passenger's front air bag warning lights
display if the seat belt is not fastened or
is unfastened.
From approximately 12 mph (20 km/h)
this warning light fl ashes for two minutes
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning light remains
on until the driver and/or the front pas-
senger fastens his seat belt.
