1
27
INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates
that the temperature in the coo-
ling system is too high. Stop the vehicle
immediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the injection
system on Diesel engines.
Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt...).
Engine oil pressure.
If this comes on, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as
safely as possible.
S p e c i fi c w a r n i n g l i g h t s
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactiva-
ted, if this warning light and the indicator
light on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system.
** According to country.
- i
f the speed is below 6 mph (10 km/h), this
warning light comes on continuously,
- if the speed is higher than 6 mph (10 km/h),
this warning light comes on continuously,
accompanied by an audible signal.
Page 26 of 294
1
29
INSTRUMENTS and CONTROLS
Air bags.
If this is displayed, it indicates the
occurrence of a fault in one of the
air bag, roll-over hoop or preten-
sioning seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deacti-
vated, if this warning light and the indi-
cator light on the button come on, this
indicates the occurrence of a fault in the
ESP/ASR system.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as
possible.
Door open.
A door, the boot or the bonnet *
is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the formation
of ice on the road below a temperature
of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the
vehicle is moving, it indicates
that the handbrake has not been
released fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control battery
i s fl a t .
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel
remaining to drive approxima-
tely 30 miles (50 km).
The capacity of the tank is approxima tely
60 litres. S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wipers stalk, it in-
d i c a t e s a n i n s u f fi c i e n t l e v e l o f
fl u i d .
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u i d
reservoir when you stop. -
if the speed is below 6 mph (10 km/h), this
warning light is displayed in orange,
if the speed is higher than 6 mph (10 km/h), this warning light is displayed in red.
Coolant level.
If this is displayed, it indicates
a n i n s u f fi c i e n t l e v e l o f c o o l a n t
in the circuit. Stop the vehicle
immediately and as safely as
possible.
Page 28 of 294
1
31
INSTRUMENTS and CONTROLS
Coolant temperature indicator
System which informs the driver of
the changes in the temperature of the
engine coolant while driving. With the engine running, when the
needle is:
- in zone
A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
light 1 and the central STOP warning
light come on, accompanied by an
audible signal and a message on
the multifunction display.
You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.
After driving for a few minutes, the
tempe rature and pressure in the coo ling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to allow the pressure to drop,
when the pressure has dropped, remove the cap,
top up the level to the "MAX" mark.
Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.
With the engine running, to start a
manual check, press the
"CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,
"CHECK OK" appears on the large instru-
ment panel display. If a "minor" fault has been detected, the
warning lights concerned then
"CHECK
OK" appear on the large instrument
panel display. Consult a PEUGEOT
dealer.
If a "major" fault has been detected, only
the warning lights concerned appear on
the large instrument panel display. Have
it checked by a PEUGEOT dealer.
Page 67 of 294
4
!
67
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 69 of 294
4
!
67
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 187 of 294
172
NAV
5
6
7
1
2
3
4
8

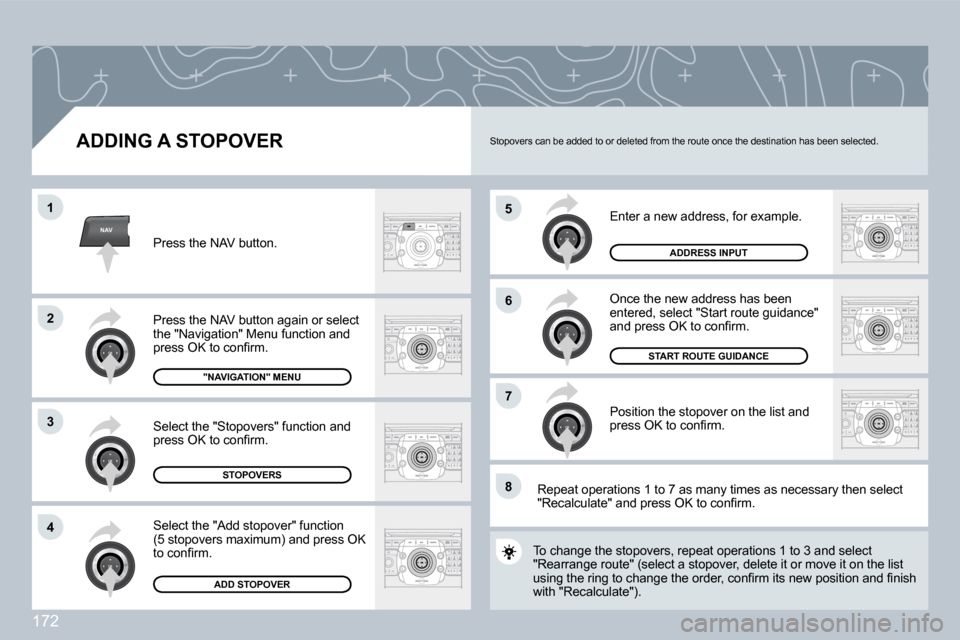

A D D I N G A S T O P O V E R
Enter a new address, for example.
Once the new address has been e n t e r e d , s e l e c t " S t a r t r o u t e g u i d a n c e " a n d p r e s s O K t o c o n fi r m .
Position the stopover on the list and p r e s s O K t o c o n fi r m .
Press the NAV button.
P r e s s t h e N A V b u t t o n a g a i n o r s e l e c t t h e " N a v i g a t i o n " M e n u f u n c t i o n a n d p r e s s O K t o c o n fi r m .
Select the "Add stopover" function(5 stopovers maximum) and press OK t o c o n fi r m .
Select the "Stopovers" function and p r e s s O K t o c o n fi r m .
" N A V I G A T I O N " M E N U
S T O P O V E R S
A D D S T O P O V E R
ADDRESS INPUT
T o c h a n g e t h e s t o p o v e r s , r e p e a t o p e r a t i o n s 1 t o 3 a n d s e l e c t T o c h a n g e t h e s t o p o v e r s , r e p e a t o p e r a t i o n s 1 t o 3 a n d s e l e c t " R e a r r a n g e r o u t e " ( s e l e c t a s t o p o v e r , d e l e t e i t o r m o v e i t o n t h e l i s t " R e a r r a n g e r o u t e " ( s e l e c t a s t o p o v e r , d e l e t e i t o r m o v e i t o n t h e l i s t u s i n g t h e r i n g t o c h a n g e t h e o r d e r , c o n fi r m i t s n e w p o s i t i o n a n d fi n i s h u s i n g t h e r i n g t o c h a n g e t h e o r d e r , c o n fi r m i t s n e w p o s i t i o n a n d fi n i s h with "Recalculate").
Stopovers can be added to or deleted from the route once the destination has been selected.
Repeat operations 1 to 7 as many times as necessar y then select " R e c a l c u l a t e " a n d p r e s s O K t o c o n fi r m .
START ROUTE GUIDANCE
