39
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may
appear temporarily. Some can be
cleared by pressing the "ESC" button.

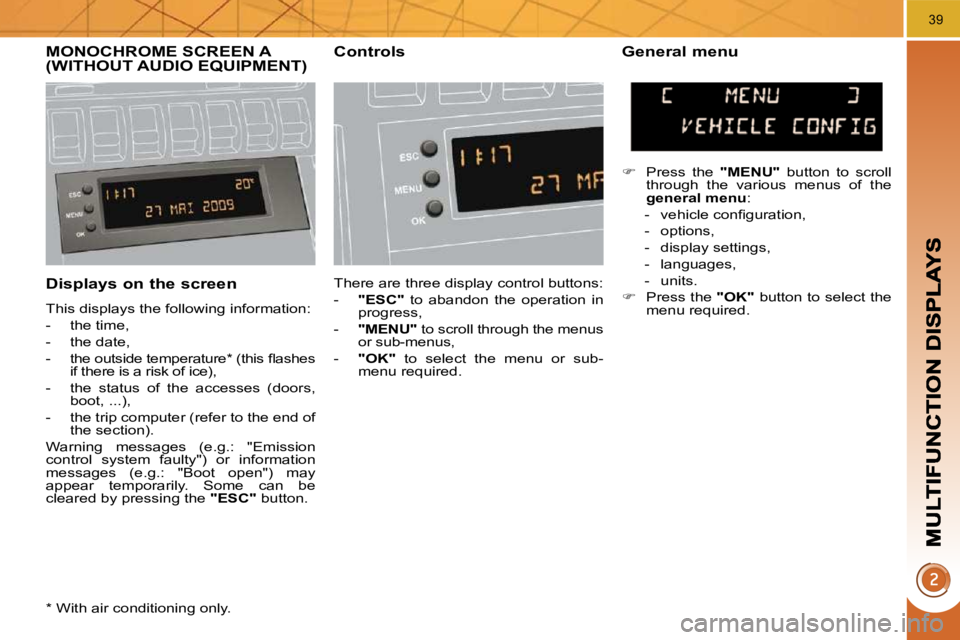

MONOCHROME SCREEN A (WITHOUT AUDIO EQUIPMENT) Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
general menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
* With air conditioning only.
Page 19 of 290
41

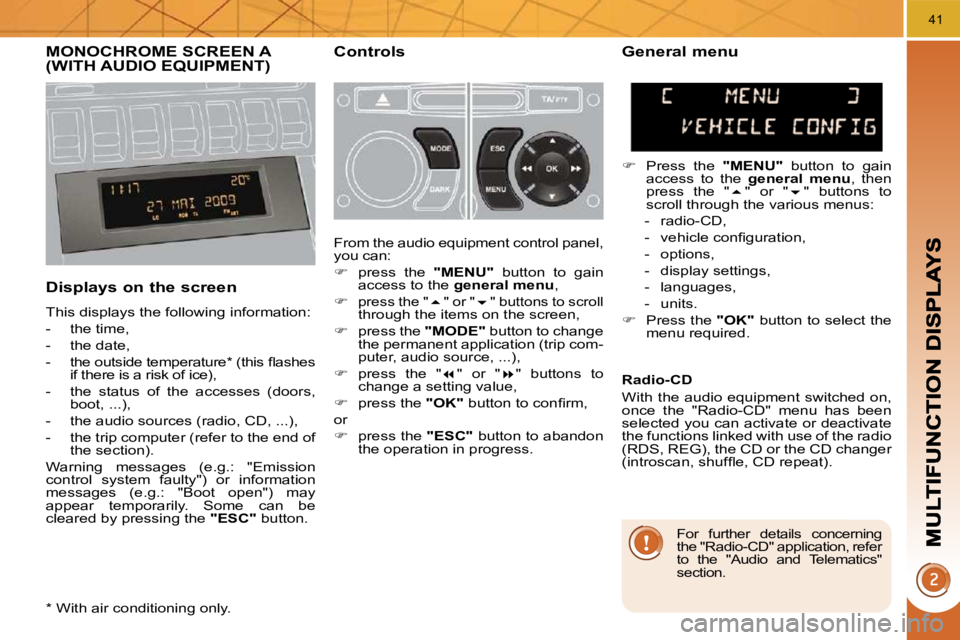

MONOCHROME SCREEN A (WITH AUDIO EQUIPMENT) Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may
appear temporarily. Some can be
cleared by pressing the "ESC" button.
General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
* With air conditioning only.
For further details concerning
the "Radio-CD" application, refer
to the "Audio and Telematics"
section.
Page 21 of 290
43
MONOCHROME SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. Some can be
cleared by pressing the "ESC" button.
Controls
From the audio equipment control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to select t h e m e n u r e q u i r e d , t h e n c o n fi r m b y
pressing the "OK" button.
* With air conditioning only. With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning
the "Audio functions" applica-
tion, refer to the "Audio and
Telematics" section.
Page 34 of 290
55
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air combining several air
vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower. These controls are grouped together on
control panel
A on the centre console.
Depending on the model, the functions
offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Air diffusion

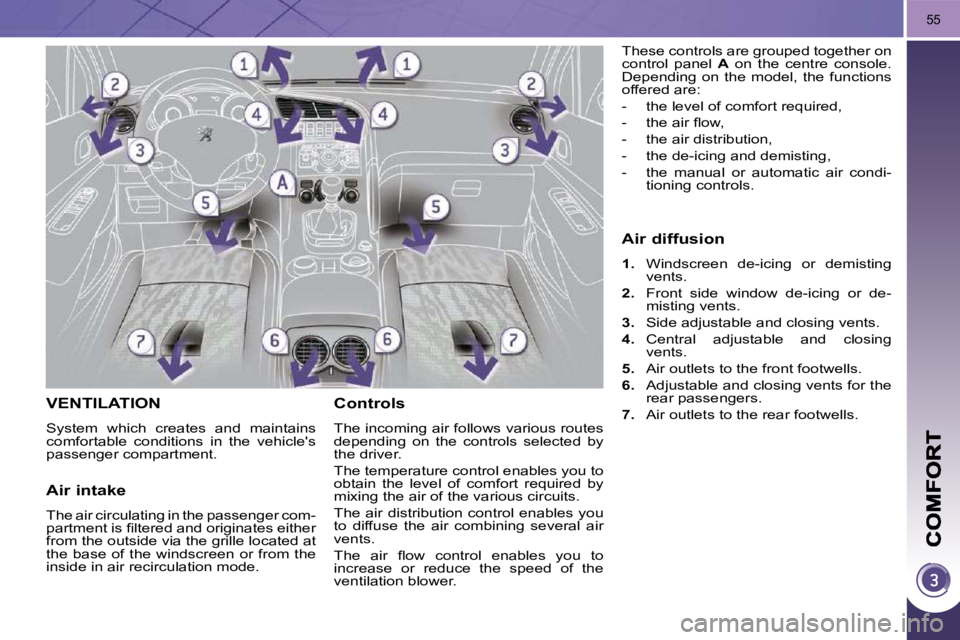

1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or de-
misting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Adjustable and closing vents for the
rear passengers.
7. Air outlets to the rear footwells.
Page 35 of 290
56
The air conditioning system
does not contain chlorine and
does not present any danger

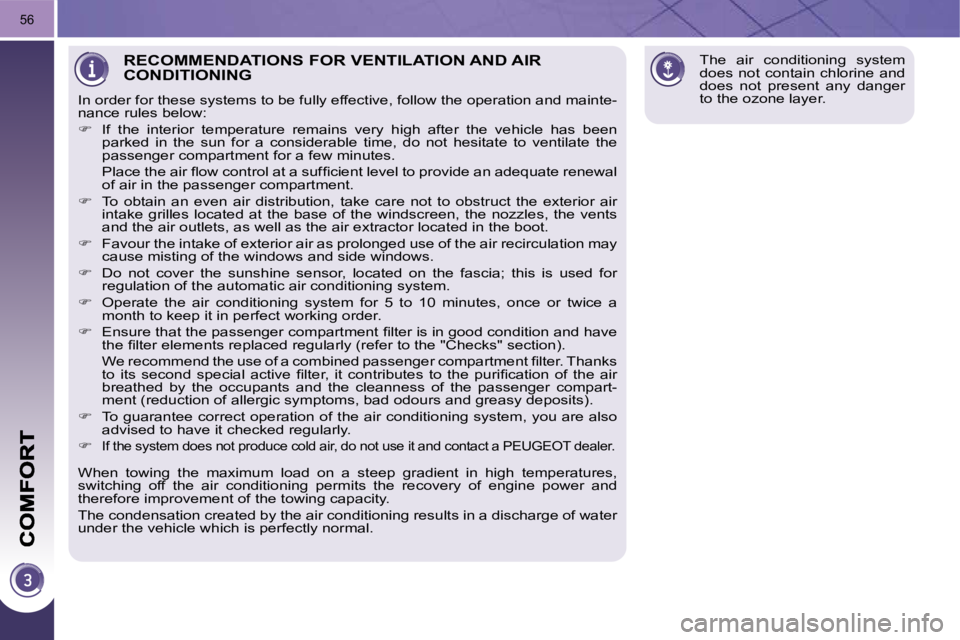

to the ozone layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and mainte-
nance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e n e w a l
of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Favour the intake of exterior air as prolonged use of the a ir recirculation may
cause misting of the windows and side windows.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the automatic air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d h a v e
t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanness of the passenger co mpart-
m e n t ( r e d u c t i o n o f a l l e r g i c s y m p t o m s , b a d o d o u r s a n d g r e a s y d e p o s i t s ) .
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of water
under the vehicle which is perfectly normal.
Page 36 of 290
57

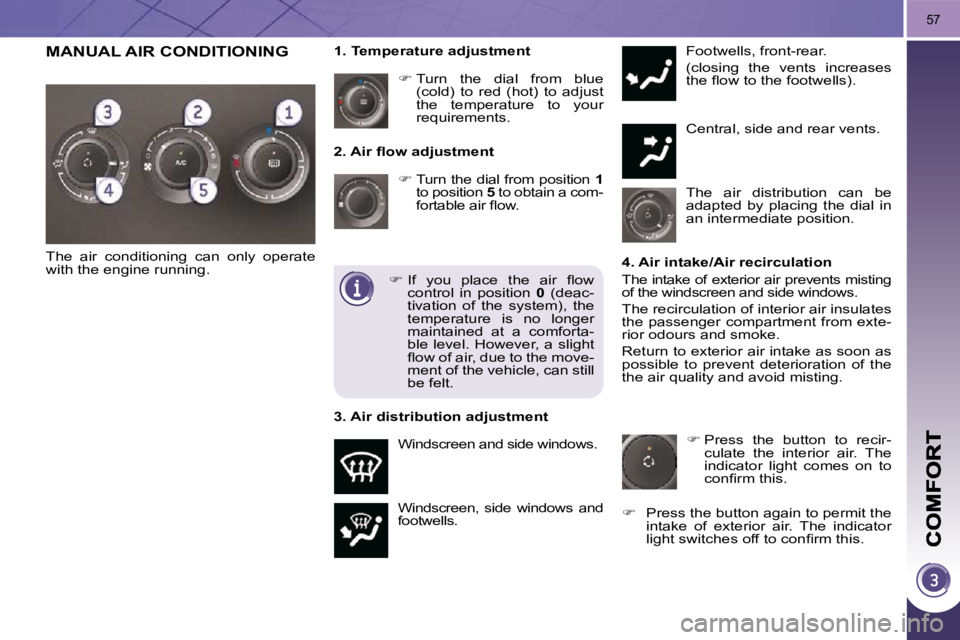

2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 5 to obtain a com-
f o r t a b l e a i r fl o w .
Windscreen, side windows and
footwells. Footwells, front-rear.
( c l o s i n g t h e v e n t s i n c r e a s e s
t h e fl o w t o t h e f o o t w e l l s ) .
Central, side and rear vents.
Turn the dial from blue
( c o l d ) t o r e d ( h o t ) t o a d j u s t
the temperature to your
requirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air prevents misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
the air quality and avoid misting.
I f y o u p l a c e t h e a i r fl o w
control in position 0 ( d e a c -
t i v a t i o n o f t h e s y s t e m ) , t h e
temperature is no longer
maintained at a comforta-
ble level. However, a slight
fl o w o f a i r , d u e t o t h e m o v e -
ment of the vehicle, can still
be felt.
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press the button to recir-
culate the interior air. The
indicator light comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator
l i g h t s w i t c h e s o f f t o c o n fi r m t h i s .
MANUAL AIR CONDITIONING
Page 37 of 290
58
D e - i c i n g - D e m i s t i n g

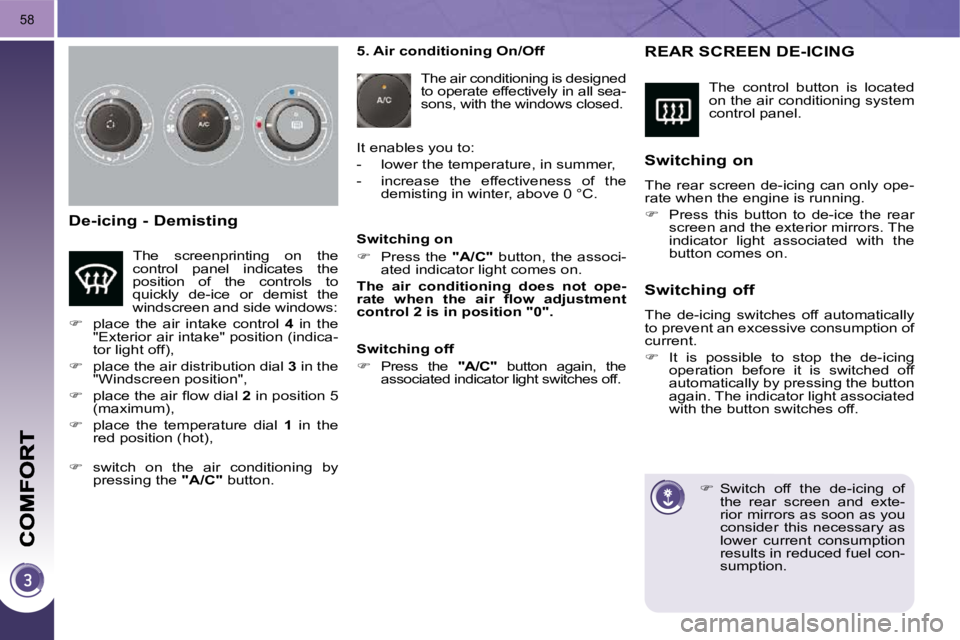

The control button is located
on the air conditioning system
control panel.
REAR SCREEN DE-ICING
Switch off the de-icing of
the rear screen and exte-
rior mirrors as soon as you
consider this necessary as
lower current consumption
results in reduced fuel con-
sumption.
S w i t c h i n g o n
The rear screen de-icing can only ope-
rate when the engine is running.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e -
r a t e w h e n t h e a i r fl o w a d j u s t m e n t
c o n t r o l 2 i s i n p o s i t i o n " 0 " .
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator light switches off.
switch on the air conditioning by
pressing the "A/C" button.
The screenprinting on the
control panel indicates the
position of the controls to
quickly de-ice or demist the
windscreen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ( i n d i c a -
t o r l i g h t o f f ) ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
p l a c e t h e a i r fl o w d i a l 2 in position 5
( m a x i m u m ) ,
place the temperature dial 1 in the
r e d p o s i t i o n ( h o t ) ,
Page 38 of 290
58
D e - i c i n g - D e m i s t i n g
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DE-ICING
Switch off the de-icing of
the rear screen and exte-
rior mirrors as soon as you
consider this necessary as
lower current consumption
results in reduced fuel con-
sumption.
S w i t c h i n g o n
The rear screen de-icing can only ope-
rate when the engine is running.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e -
r a t e w h e n t h e a i r fl o w a d j u s t m e n t
c o n t r o l 2 i s i n p o s i t i o n " 0 " .
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator light switches off.
switch on the air conditioning by
pressing the "A/C" button.
The screenprinting on the
control panel indicates the
position of the controls to
quickly de-ice or demist the
windscreen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ( i n d i c a -
t o r l i g h t o f f ) ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
p l a c e t h e a i r fl o w d i a l 2 in position 5
( m a x i m u m ) ,
place the temperature dial 1 in the
r e d p o s i t i o n ( h o t ) ,
