2009 PEUGEOT 3008 DAG child lock

75
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and
your personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control The high frequency remote control is a sensitive system; do not o perate it while
it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when
the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system; this
could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys
in your possession are the only ones which can start the vehicle.

79
Indicator light on, the rear con-
trols are deactivated.
Indicator light off, the rear con-
trols are activated.
This control also deactivates
the interior controls for the
rear doors (refer to the section
"Child safety - § Electric child lock").
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it again,
repeat these operations until the
window closes fully,

 continue to hold the control for ap-
proximately one second after the
window has closed,

 press the control to lower the window
automatically to the low position,

 when the window has reached the
low position, press the control again
for approximately one second. Any other status of the indica-
tor light indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the controls
for the passengers' electric windows,
he must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Deactivation of the rear electric window and door controls

 For the safety of your children, with
the ignition on, press control 5 to
deactivate the rear electric window
controls regardless of their position.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.

The safety auto-reverse function is
not operational during these opera-
tions.

CHILD SAFETY
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accord-
ance with the new ISOFIX regulation .
The seats, represented below, are fi tted
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , behind the seat, referred to
as the TOP TETHER for fi xing the
upper strap. This ISOFIX mounting system guaran-
tees you fast, reliable and safe fi tting of
the child seat in your vehicle.
The
ISOFIX child seats are fi tted with
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in your
vehicle, consult the summary table for
the location of the ISOFIX child seats.

CHILD SAFETY
115
This system is independent
and in no circumstances does
it take the place of the central
locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
MANUAL CHILD LOCK
Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.

 Turn the red control one eighth of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.

 With the ignition on, press button A .
The indicator light on button A comes
on, accompanied by a message on the
multifunction display.
This indicator light remains on until the
child lock is deactivated.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
Locking
Unlocking

 Turn the red control one eighth of
a turn to the right using the ignition
key. Activation
Deactivation

 With the ignition on, press button A
again.
The indicator light on button A switches
off, accompanied by a message on the
multifunction display.
This indicator light remains off until the
child lock is activated.
Any other status of the indica-
tor light indicates a malfunction
of the electric child lock. Have
it checked by a PEUGEOT
dealer.

124

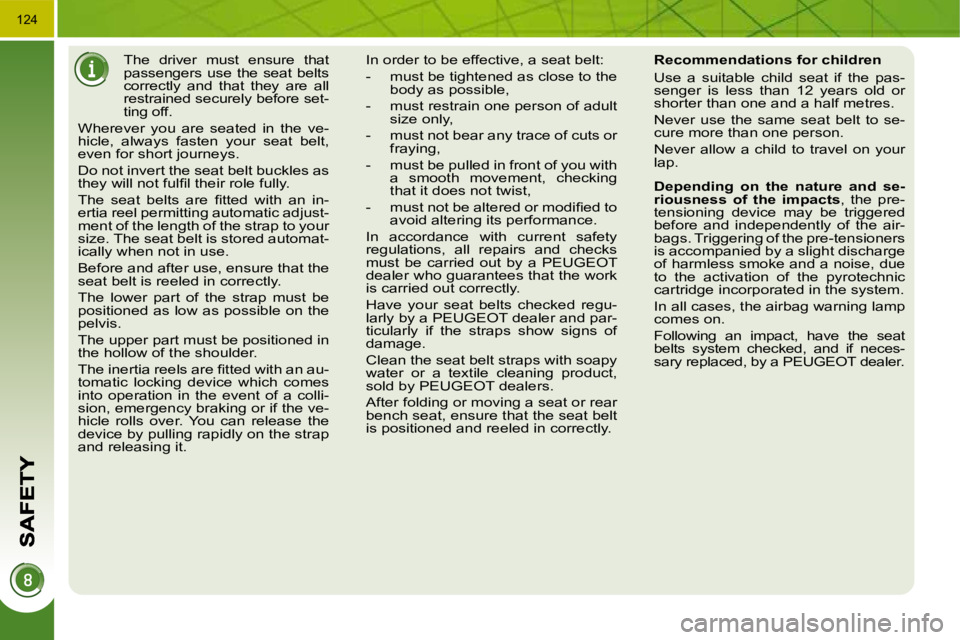

The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before set-
ting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
The seat belts are fi tted with an in-
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be altered or modifi ed to avoid altering its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.

Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
