30

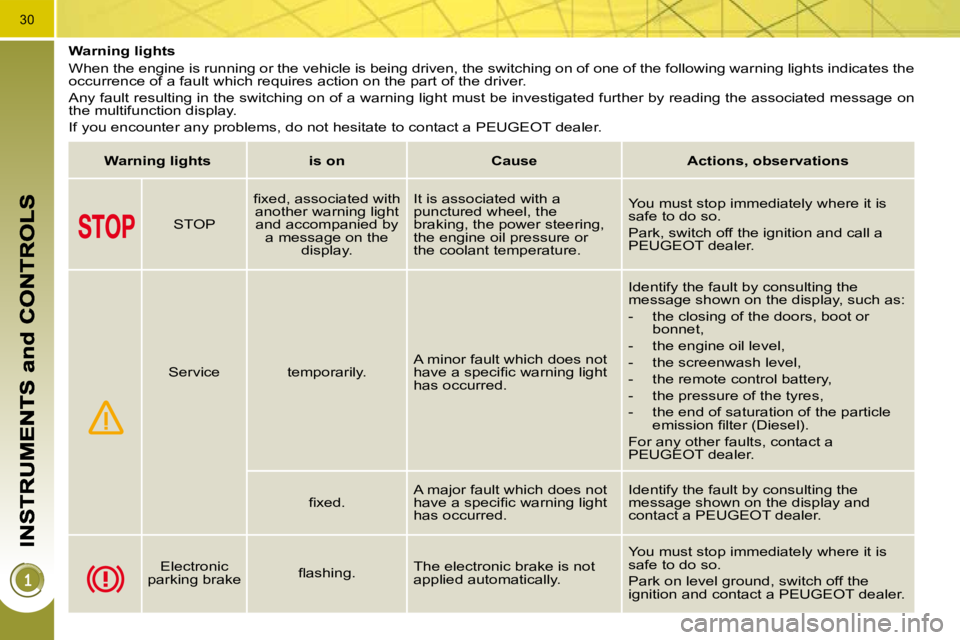

Warning lights
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lights indicates the
occurrence of a fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning ligh t must be investigated further by reading the associated message on
the multifunction display.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lights is on Cause Actions, observations
STOP fi x e d , a s s o c i a t e d w i t h
another warning light and accompanied by a message on the display. It is associated with a
punctured wheel, the
braking, the power steering,
the engine oil pressure or
the coolant temperature.
You must stop immediately where it is
safe to do so.
Park, switch off the ignition and call a
PEUGEOT dealer.
Identify the fault by consulting the
message shown on the display, such as:
- the closing of the doors, boot or
bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
For any other faults, contact a
PEUGEOT dealer.
Service temporarily.
A minor fault which does not
h a v e a s p e c i fi c w a r n i n g l i g h t
has occurred.
fi x e d . A major fault which does not
h a v e a s p e c i fi c w a r n i n g l i g h t
has occurred.
Identify the fault by consulting the
message shown on the display and
contact a PEUGEOT dealer.
Electronic
parking brake fl a s h i n g . The electronic brake is not
applied automatically. You must stop immediately where it is
safe to do so.
Park on level ground, switch off the
ignition and contact a PEUGEOT dealer.
Page 84 of 290
LAYOUT
98
12 V ACCESSORIES SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled
air.
PORTABLE ASHTRAY
Pull the cover to open the ashtray.
To empty it, remove the ashtray by
pulling it upwards.
USB PLUG - READER
This connection box, consisting of a
JACK and/or USB socket, is located in
the front armrest (under the cover).
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type or a USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( M P 3 ,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB socket is used, the port-
able equipment charges automatically.
For further details concerning
the use of this equipment, refer
to the "Audio and Telematics"
section.
Page 88 of 290
LAYOUT
98
12 V ACCESSORIES SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled
air.
PORTABLE ASHTRAY
Pull the cover to open the ashtray.
To empty it, remove the ashtray by
pulling it upwards.
USB PLUG - READER
This connection box, consisting of a
JACK and/or USB socket, is located in
the front armrest (under the cover).
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type or a USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( M P 3 ,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB socket is used, the port-
able equipment charges automatically.
For further details concerning
the use of this equipment, refer
to the "Audio and Telematics"
section.
Page 159 of 290
CHECKS
PETROL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fuse box.
7. A i r fi l t e r * .
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .
Page 160 of 290
CHECKS
159
DIESEL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r r e p r i m i n g t h e f u e l .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fuse box.
7. A i r fi l t e r * .
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. R e p r i m i n g p u m p * .
11. D e g a s s c r e w * .
* A c c o r d i n g t o e n g i n e .
Page 161 of 290
CHECKS
160
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or using
the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km). T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Power steering fluid level T h e p o w e r s t e e r i n g fl u i d l e v e l
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible signal
and a message on the multi-
function display.
Top up the level when you stop the vehicle.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engi-
neand conform to the manufacturer's
recommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s c o l d . F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
Page 186 of 290
PRACTICAL INFORMATION
183

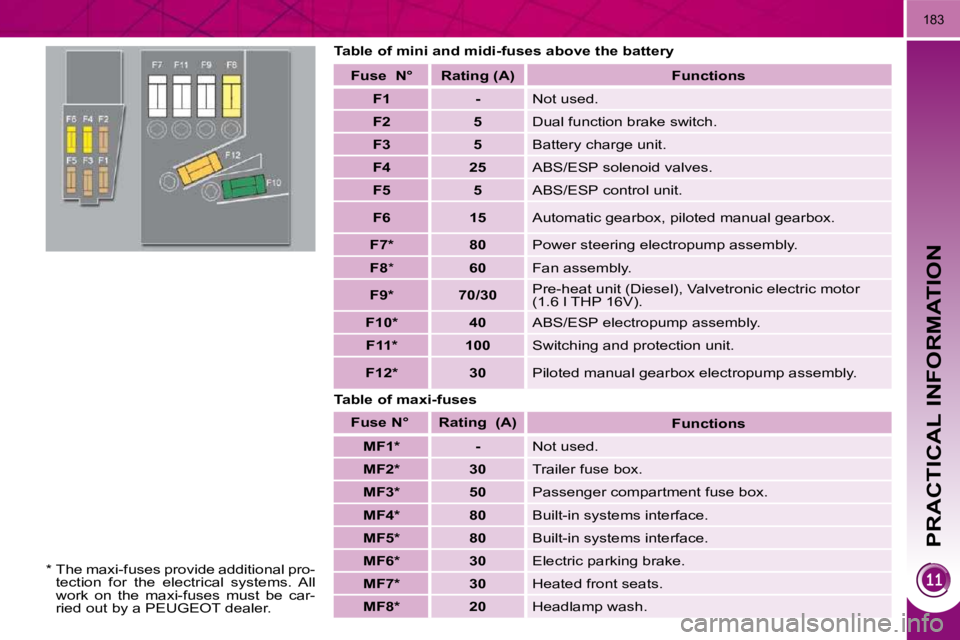

Table of mini and midi-fuses above the battery
Table of maxi-fuses Fuse N° Rating (A) Functions
F1 - Not used.
F2 5 Dual function brake switch.
F3 5 Battery charge unit.
F4 25 A B S / E S P s o l e n o i d v a l v e s .
F5 5 A B S / E S P c o n t r o l u n i t .
F6 15 A u t o m a t i c g e a r b o x , p i l o t e d m a n u a l g e a r b o x .
F7 * 80 Power steering electropump assembly.
F8 * 60 Fan assembly.
F9 * 70/30 P r e - h e a t u n i t ( D i e s e l ) , V a l v e t r o n i c e l e c t r i c m o t o r
(1.6 l THP 16V).
F10 * 40 A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 Switching and protection unit.
F12 * 30 P i l o t e d m a n u a l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating (A) Functions
MF1 * - Not used.
MF2 * 30 T r a i l e r f u s e b o x .
MF3 * 50 P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 Built-in systems interface.
MF5 * 80 Built-in systems interface.
MF6 * 30 E l e c t r i c p a r k i n g b r a k e .
MF7 * 30 Heated front seats.
MF8 * 20 Headlamp wash.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o -
tection for the electrical systems. All
w o r k o n t h e m a x i - f u s e s m u s t b e c a r -
r i e d o u t b y a P E U G E O T d e a l e r .
