2009 NISSAN CUBE Owners Manual

Black plate (5,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

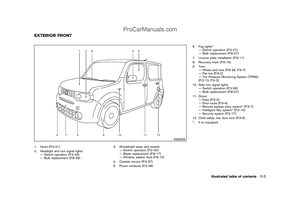

SSI0559
1. Hood (P.3-21)
2. Headlight and turn signal lights
— Switch operation (P.2-23)
— Bulb replacement (P.8-26)3. Windshield wiper and washer
— Switch operation (P.2-20)
— Blade replacement (P.8-17)

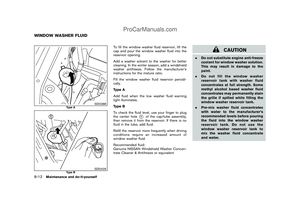

— Window washer fluid (P.8-12)

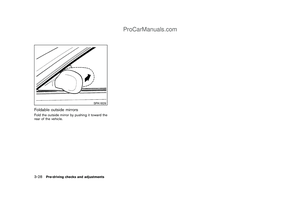

4. Outside mirrors (P.3-27)
5. Power windows (P.2-36)6. Fog lights*
— Switch operation (P.2-27)
— Bulb replacement (P.8-27)

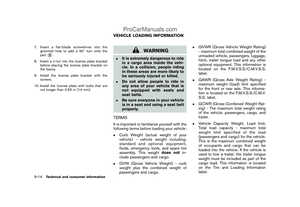

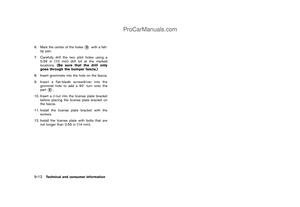

7. License plate installation (P.9-11)

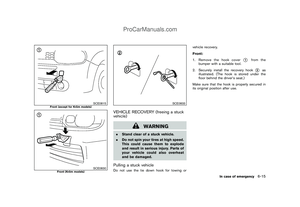

8. Recovery hook (P.6-15)
9. Tires

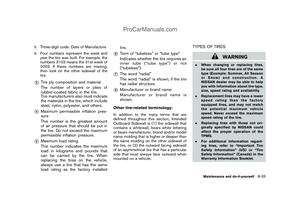

— Wheel and tires (P.8-28, P.9-7)

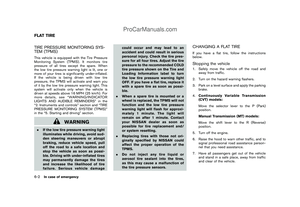

— Flat tire (P.6-2)

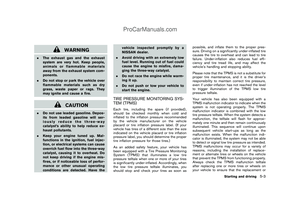

— Tire Pressure Monitoring System (TPMS)
(P.2-13, P.5-3)
10. Side turn signal lights
— Switch operation (P.2-26)
— Bulb replacement (P.8-27)
11. Doors

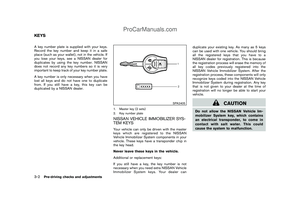

— Keys (P.3-2)
— Door locks (P.3-4)
— Remote keyless entry system* (P.3-7)

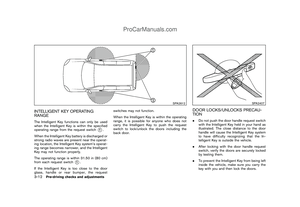

— Intelligent Key system* (P.3-10)
— Security system (P.2-17)
12. Child safety rear door lock (P.3-6)
*: if so equippedEXTERIOR FRONT
Illustrated table of contents
0-3
ProCarManuals.com

Black plate (6,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

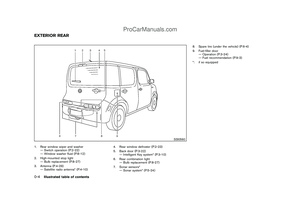

SSI0560
1. Rear window wiper and washer
— Switch operation (P.2-22)
— Window washer fluid (P.8-12)
2. High-mounted stop light
— Bulb replacement (P.8-27)

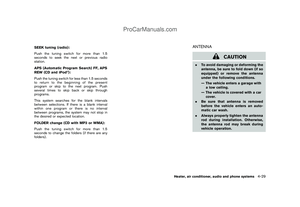

3. Antenna (P.4-29)
— Satellite radio antenna* (P.4-10)4. Rear window defroster (P.2-23)

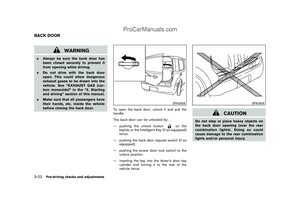

5. Back door (P.3-22)
— Intelligent Key system* (P.3-10)
6. Rear combination light
— Bulb replacement (P.8-27)
7. Sonar sensors*

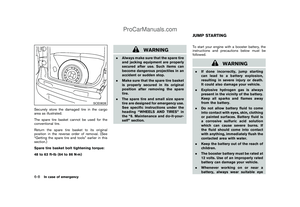

— Sonar system* (P.5-24)8. Spare tire (under the vehicle) (P.6-4)
9. Fuel-filler door
— Operation (P.3-24)

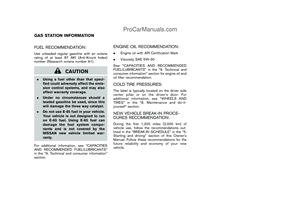

— Fuel recommendation (P.9-3)
*: if so equippedEXTERIOR REAR0-4
Illustrated table of contents
ProCarManuals.com

Black plate (7,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSI0577
For Kro¯
m models, the vehicle parts listed below
require special care or caution for treating. Refer
to additional information in each section.1. Side sill extensions (P.3-23)
2. Aluminum alloy wheels (P.7-4)
3. Front bumper (P.3-23, P.6-14)
4. Rear spoiler (P.7-3)
5. Rear bumper (P.3-23, P.6-14)
EXTERIOR (Kro¯
m models)
Illustrated table of contents
0-5
ProCarManuals.com

Black plate (8,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

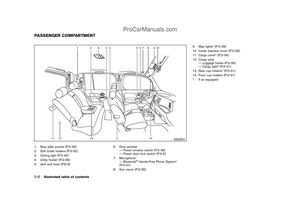

SSI0561
1. Rear pillar pocket (P.2-33)
2. Soft bottle holders (P.2-32)
3. Ceiling light (P.2-40)

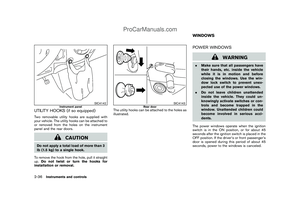

4. Utility hooks* (P.2-36)
5. Jack and tools (P.6-3)6. Door armrest
— Power window switch (P.2-36)
— Power door lock switch (P.3-5)
7. Microphone*
— Bluetooth
®Hands-Free Phone System*

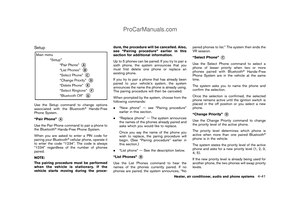

(P.4-31)

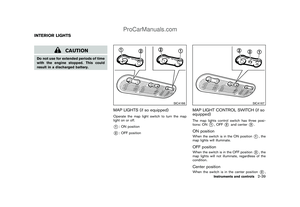

8. Sun visors (P.3-26)9. Map lights* (P.2-39)
10. Inside rearview mirror (P.3-26)
11. Cargo cover* (P.2-34)
12. Cargo area

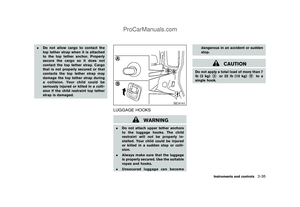

— Luggage hooks (P.2-35)
— Cargo light* (P.2-41)
13. Rear cup holders* (P.2-31)
14. Front cup holders (P.2-31)
*: if so equipped
PASSENGER COMPARTMENT0-6
Illustrated table of contents
ProCarManuals.com

Black plate (9,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSI0563
1. Front cup holders (P.2-31)
2. Headlight, fog light and turn signal switch
— Headlight (P.2-23)
— Turn signal (P.2-26)
— Fog light* (P.2-27)3. Steering wheel
— Electric power steering system (P.5-26)
— Horn (P.2-28)
— Driver’s supplemental front-impact air bag
(P.1-40)
4. Wiper and washer switch (P.2-20)
5. Fuse box cover (P.8-21)6. Outside mirror remote control switch (P.3-27)

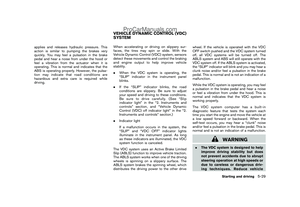

7. Vehicle Dynamic Control (VDC) OFF switch
(P.5-29)
8. Tilting steering wheel lever (P.3-25)
9. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-28)
— Bluetooth
®Hands-Free Phone System control*
(P.4-31)
10. Steering-wheel-mounted controls (right side)*

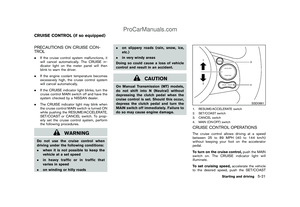

— Cruise control switches* (P.5-21)
11. Selector lever or Shift lever
— Continuously Variable Transmission (CVT)
(P.5-14)
— Manual Transmission (MT) (P.5-18)

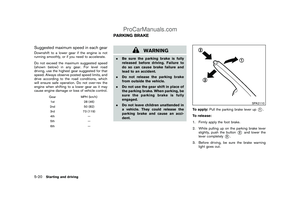

12. Parking brake (P.5-20)
*: if so equipped

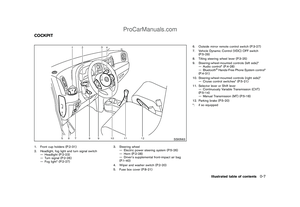

COCKPIT
Illustrated table of contents
0-7
ProCarManuals.com

Black plate (10,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

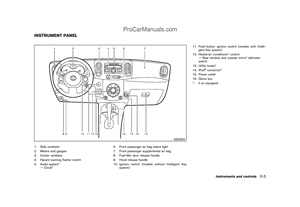

SSI0562

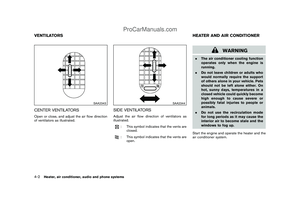

1. Side ventilator (P.4-2)
2. Meters and gauges (P.2-4)
3. Center ventilator (P.4-2)
4. Hazard warning flasher switch (P.2-27)

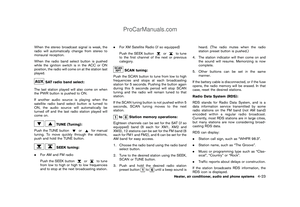

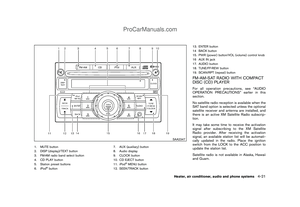

5. Audio system* (P.4-9)
— Clock* (P.2-28)6. Front passenger air bag status light (P.1-47)
7. Front passenger supplemental air bag (P.1-40)
8. Fuel-filler door release handle (P.3-24)
9. Hood release handle (P.3-21)

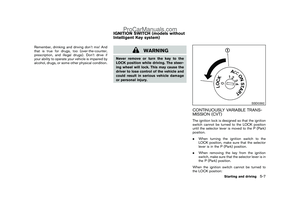

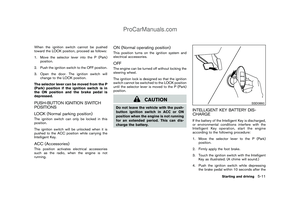

10. Ignition switch (models without Intelligent Key
system) (P.5-7)11. Push-button ignition switch (models with Intelli-
gent Key system) (P.5-9)
12. Heater/air conditioner* control (P.4-2)
— Rear window and outside mirror* defroster
switch (P.2-23)
13. Utility hooks* (P.2-36)
14. iPod
®connector* (P.4-25)

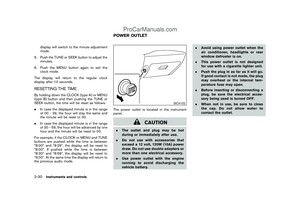

15. Power outlet (P.2-30)
16. Glove box (P.2-33)
*: if so equipped
INSTRUMENT PANEL0-8
Illustrated table of contents
ProCarManuals.com

Black plate (11,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

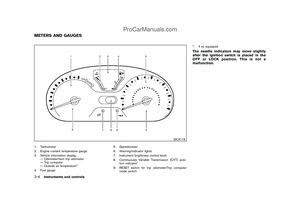

SIC4119

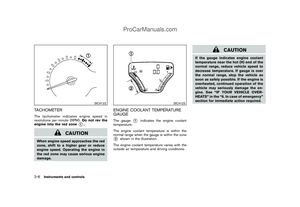

1. Tachometer (P.2-6)
2. Engine coolant temperature gauge (P.2-6)
3. Vehicle information display (P.2-7)
— Odometer/twin trip odometer (P.2-5)
— Trip computer (P.2-8)
— Outside air temperature* (P.2-7)

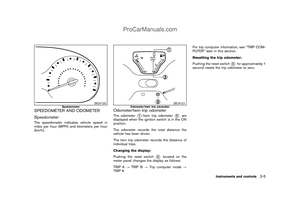

4. Fuel gauge (P.2-7)5. Speedometer (P.2-5)
6. Warning/indicator lights (P.2-10)
7. Instrument brightness control knob (P.2-26)
8. Continuously Variable Transmission (CVT) posi-
tion indicator* (P.2-8)9. RESET switch for trip odometer (P.2-5)/Trip
computer mode switch (P.2-8)

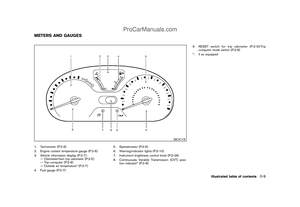

*: if so equippedMETERS AND GAUGES
Illustrated table of contents
0-9
ProCarManuals.com

Black plate (12,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

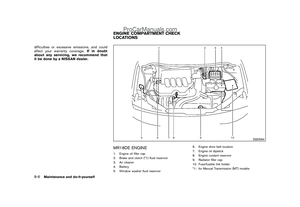

SSI0564
MR18DE ENGINE1. Engine oil filler cap (P.8-8)
2. Brake and clutch (*1) fluid reservoir (P.8-11)
3. Air cleaner (P.8-16)
4. Battery (P.8-13)
— Jump starting (P.6-8)5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-8)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-11)
10. Fuse/fusible link holder (P.8-19)*1: for Manual Transmission (MT) modelsENGINE COMPARTMENT0-10
Illustrated table of contents
