2009 MERCEDES-BENZ E-CLASS COUPE refuelling

Rain closin
gfeature ....................... 159
Resetting ....................................... 160
Park Assist
Parking Guidance ........................... 140
Parking ............................................... 100
Parking aid Exterior mirror on the front-
passenger sid e................................. 75
PARKTRONI C................................. 138
Reversing camera ..........................143
Parking brake .................................... 100
Display message ............................ 219
Parking Guidance .............................. 140
Display message ............................ 213
Trailer towing ................................. 143
Parking lamps
Display message ............................ 224
Parking lock
Releasing manually (automatic
transmission) ................................. 255
Parking position
Exterior mirror on the front-
passenger sid e................................. 75
PARKTRONIC ...................................... 138
Activating/deactivating .................140
Malfunction ................................... .243
Range of the sensors .....................138
Trailer towing ................................. 140
Warning displa y............................. 139
PASSENGE RAIRBAG OFF warning
lamp ............................................. 44, 231
Permanent display (on-board com-
puter) ................................................. .118
Permanent Speedtronic ....................135
Petrol Minimum grad e............................. 179
see Fuel
Plastic trim
Cleaning ......................................... 204
Power supply (trailer) .......................197
Power windows see Side windows
Pre-emptive occupant safety system
see PRE-SAFE ® PRE-SAFE
®
Brake (vehicles with
DISTRONIC PLUS) ................................ 56
Activating/deactivating (on-
board computer) ............................ 116
Display message ............................ 214
PRE-SAFE ®
system .............................. 40
Display message ............................ 214
Program selector button ..................104
Pulling away ......................................... 99 R
Radar sensor system Country overview ........................... 304
Display message ............................ 215
Radar syste msensors
Switching on/off (on-board com-
puter) ............................................. 121
Radio
Selecting astatio n(on-board
computer) ...................................... 113
Rain closing feature
Panorama sliding sunroo f.............. 159
Range
Calling up (on-board computer) .....111
Rear compartment
Setting the airv ents...................... 153
Setting the temperature ................152
Rear-compartment seat bel tsta-
tus indicator ........................................ 79
Rear foglamp Display message ............................ 224
Rear seat backrest
Display message ............................ 227
Folding forwards/back ..................169
Rear-vie wmirror
Adjusting ......................................... 73
Anti-dazzle (manual )......................... 73
Anti-dazzle mode (automatic) ..........74
Rear window blind ............................173
Rear window heating ........................156
Refuelling ........................................... 178
Reserve fuel ....................................... 288
Display message ............................ 228
Fuel tank ........................................ 288
Warning lamp ................................. 237 12
Index 207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 12

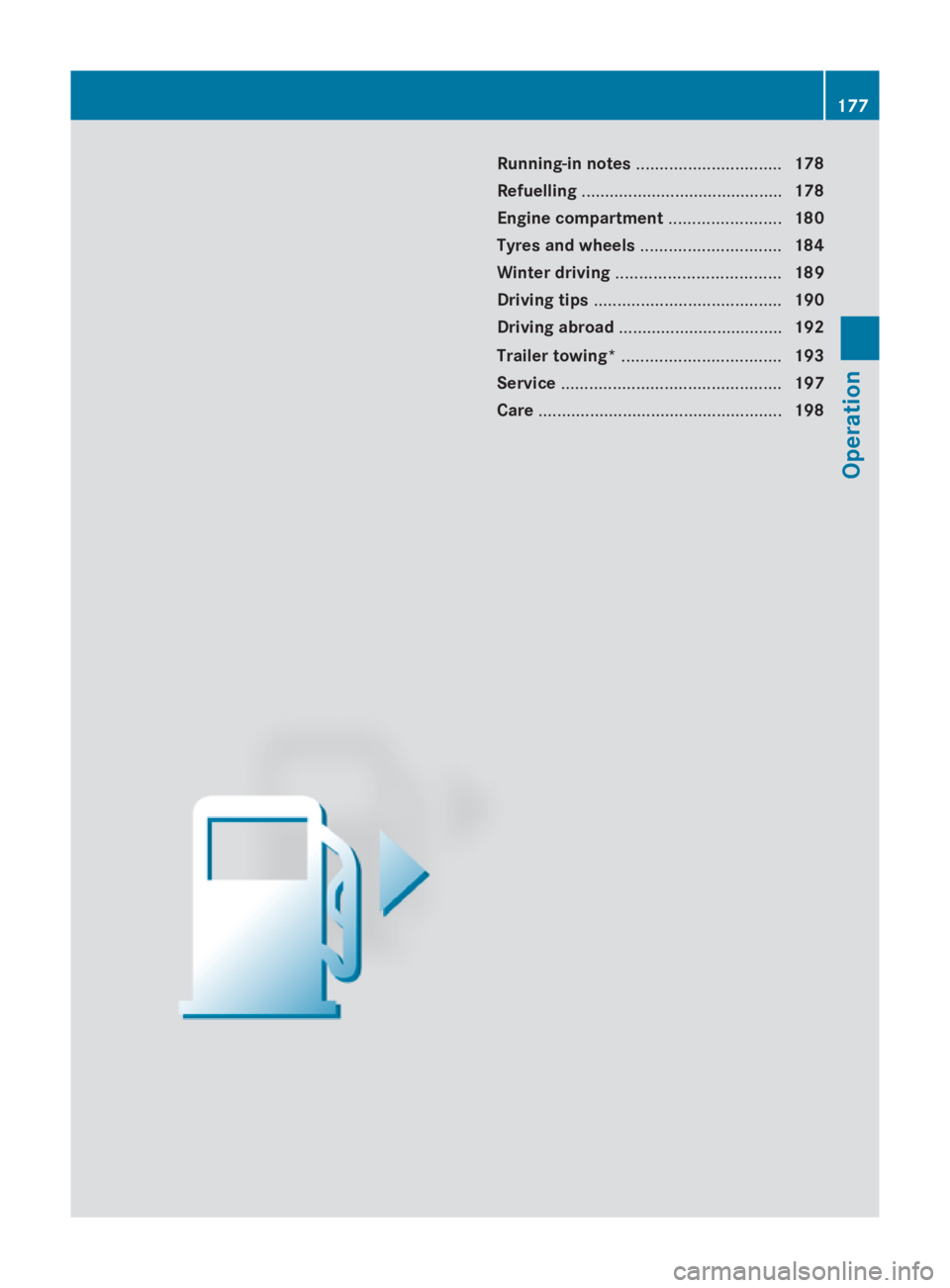

Running-i
nnotes ............................... 178
Refuelling ........................................... 178
Engine compartment ........................180
Tyres and wheels .............................. 184
Winter driving ................................... 189
Driving tips ........................................ 190
Driving abroad ................................... 192
Trailer towing* .................................. 193
Service ............................................... 197
Care .................................................... 198 177Operation
207_AKB
;2;3,en-GB
mkalafa, Version:2.11.8.1
2009-07-23T10:23:49+02:0
0-Seite 177

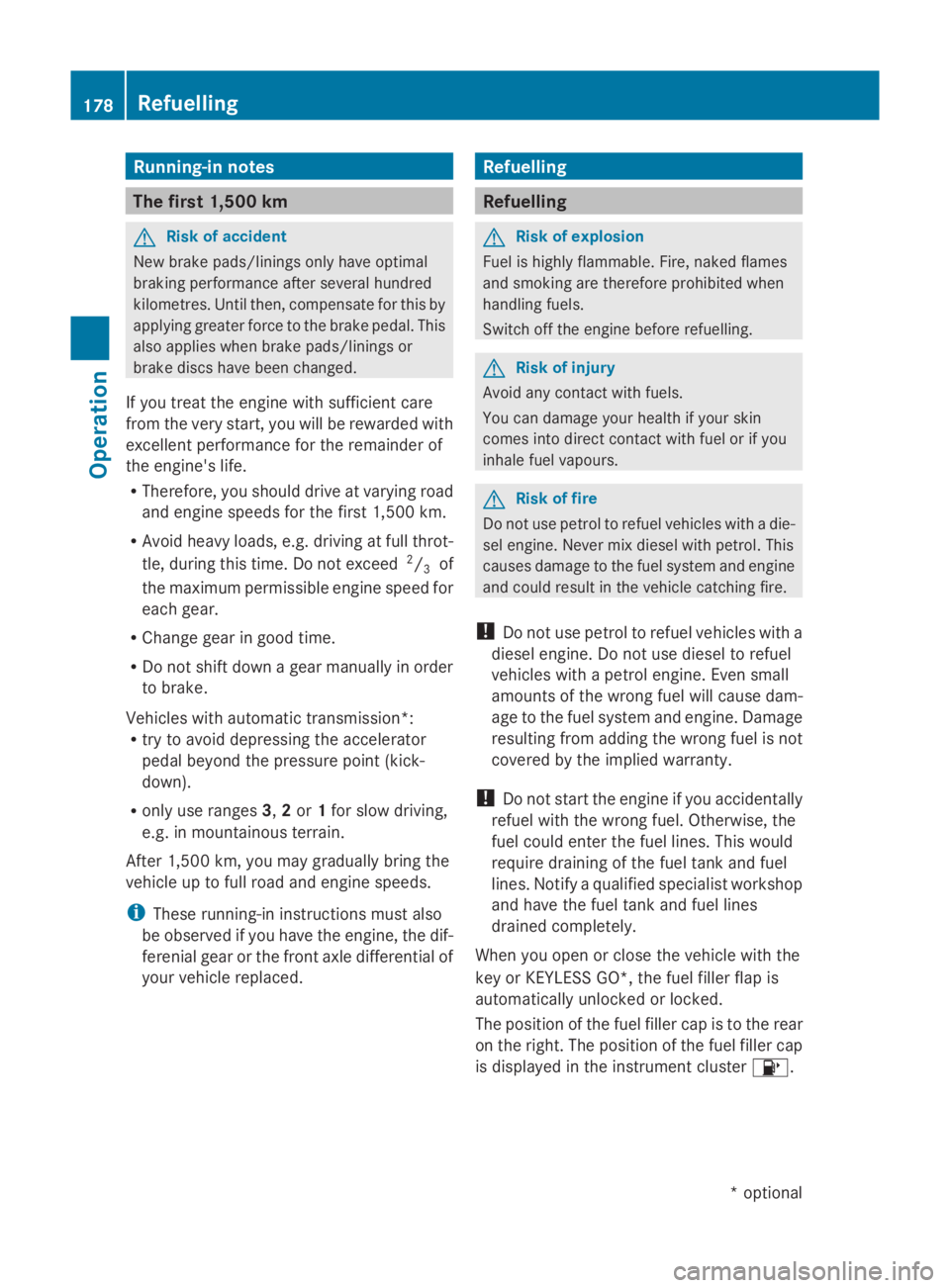

Running-i
nnotes The firs
t1,50 0km G
Ris
kofa ccident
New brake pads/linings only have optimal
braking performance afte rsevera lhun dred
kilometres. Until then, compensate for this by
applying greate rforce to the brake pedal .This
also applie swhenb rake pads/linings or
brake discs have bee nchanged.
If yo utrea tthe engine with sufficient care
from the very start, yo uwillber ewarded with
excellent performance for the remainder of
the engine's life.
R Therefore, yo ushoul ddrive at varying road
and engine speeds for the firs t1,500 km.
R Avoi dheavy loads, e.g. driving at ful lthrot-
tle, during this time .Donot exceed 2
/ 3 of
the maximum permissible engine speed for
each gear.
R Chang egearing oodt ime.
R Do not shift dow nagearm anually in order
to brake.
Vehicles with automatic transmission*:
R try to avoid depressing the accelerator
pedal beyond the pressure point (kick-
down).
R only us eranges 3,2or 1for slo wdriving,
e.g. in mountainou sterrain.
After 1,500 km ,you may gradually bring the
vehicl euptof ullr oa da nd engine speeds.
i These running-in instructions mus talso
be observe difyouhave the engine, the dif-
ferenia lgea rort he front axl edifferentia lof
your vehicl ereplaced. Refuelling
Refuelling
G
Ris
kofe xplosion
Fue lish ighly flammable. Fire ,nake dflames
and smoking are therefore prohibited when
handling fuels.
Switch off the engine before refuelling. G
Ris
kofi njury
Avoi dany contact with fuels.
Yo uc an damag eyourh ealth if your skin
come sinto direct contact with fue lorifyou
inhale fue lvapours. G
Ris
koff ire
Do not us epetrol to refuel vehicles with adie-
sel engine. Neve rmix diese lwithp etrol .This
causes damag etothe fue lsys tem and engine
and could resul tinthe vehicl ecatching fire.
! Do not us epetrol to refuel vehicles with a
diese lengine. Do not us ediese ltor efuel
vehicles with apetrol engine. Even small
amounts of the wrong fue lwillc ause dam-
ag etot he fue lsys tem and engine. Damage
resulting from adding the wrong fue lisnot
covered by the implied warranty.
! Do not star tthe engine if yo uaccidentally
refuel with the wrong fuel. Otherwise, the
fue lcould enter the fue llin es. Thi swould
require draining of the fue ltank and fuel
lines. Notify aquali fied specialist workshop
and have the fue ltank and fue llin es
draine dcompletely.
Whe nyou ope norc lose the vehicl ewitht he
key or KEYLESS GO*, the fue lfille rflapis
automaticall yunlocked or locked.
The position of the fue lfille rcap is to the rear
on the right. The position of the fue lfille rcap
is displayed in the instrument cluster 00B8.178
RefuellingOperation
*o
ptional
207_AKB; 2; 3, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 178

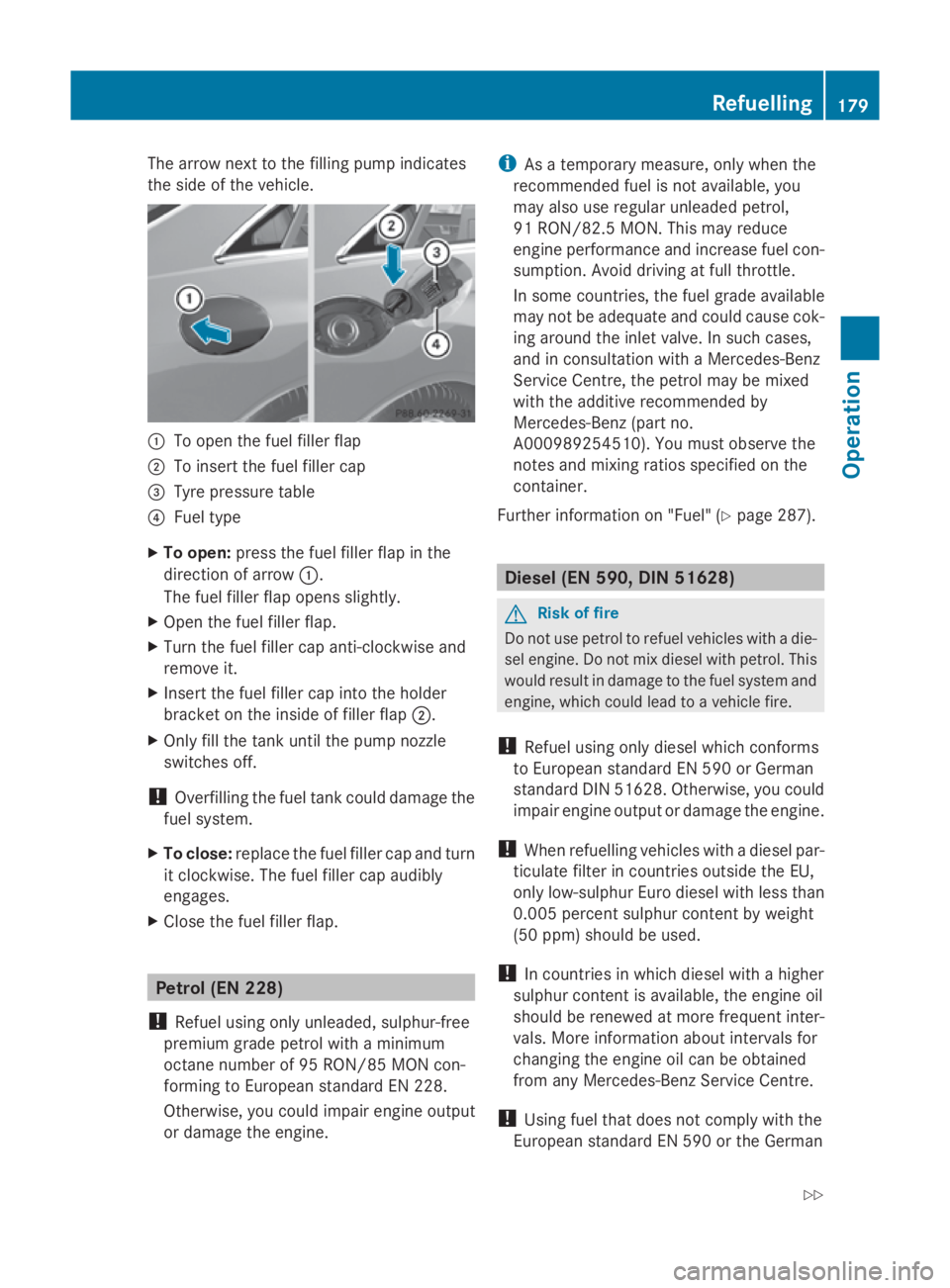

The arrow next to the filling pump indicates
the side of the vehicle. 0046
To open the fuel filler flap
0047 To insert the fuel filler cap
008A Tyre pressure table
0088 Fuel type
X To open: press the fuel filler flap in the
direction of arrow 0046.
The fuel filler flap opens slightly.
X Open the fuel filler flap.
X Turn the fuel filler cap anti-clockwise and
remove it.
X Insert the fuel filler cap into the holder
bracket on the inside of filler flap 0047.
X Only fill the tank until the pump nozzle
switches off.
! Overfilling the fuel tank could damage the
fuel system.
X To close: replace the fuel filler cap and turn
it clockwise. The fuel filler cap audibly
engages.
X Close the fuel filler flap. Petrol (EN 228)
! Refuel using only unleaded, sulphur-free
premium grade petrol with aminimum
octan enumber of 95 RON/85 MON con-
formin gtoEuropean standard EN 228.
Otherwise, you could impair engine output
or damage the engine. i
Asatemporary measure, only when the
recommended fuel is not available, you
may also use regular unleaded petrol,
91 RON/82. 5MON. This may reduce
engine performance and increase fuel con-
sumption. Avoid driving at full throttle.
In some countries, the fuel grade available
may not be adequate and could cause cok-
ing around the inlet valve. In such cases,
and in consultation with aMercedes-Benz
Servic eCentre, the petrol may be mixed
with the additive recommended by
Mercedes-Benz (part no.
A000989254510). You must observe the
notes and mixing ratios specified on the
container.
Further information on "Fuel" (Y page 287). Diese
l(EN 590, DIN 51628) G
Risk of fire
Do not use petrol to refuel vehicles with adie-
sel engine. Do not mix diesel with petrol. This
would result in damage to the fuel system and
engine, which could lead to avehicle fire.
! Refuel using only diesel which conforms
to European standard EN 590 or German
standard DIN 51628. Otherwise, you could
impair engine output or damage the engine.
! When refuelling vehicles with adiesel par-
ticulate filter in countries outside the EU,
only low-sulphur Euro diesel with less than
0.005 percent sulphur content by weight
(50 ppm) should be used.
! In countries in which diesel with ahigher
sulphur content is available, the engine oil
should be renewed at more frequent inter-
vals. More information about intervals for
changin gthe engine oil can be obtained
from any Mercedes-Benz Servic eCentre.
! Using fuel that does not comply with the
European standard EN 590 or the German Refuelling
179Operation
207_AKB; 2; 3, en-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 179 Z

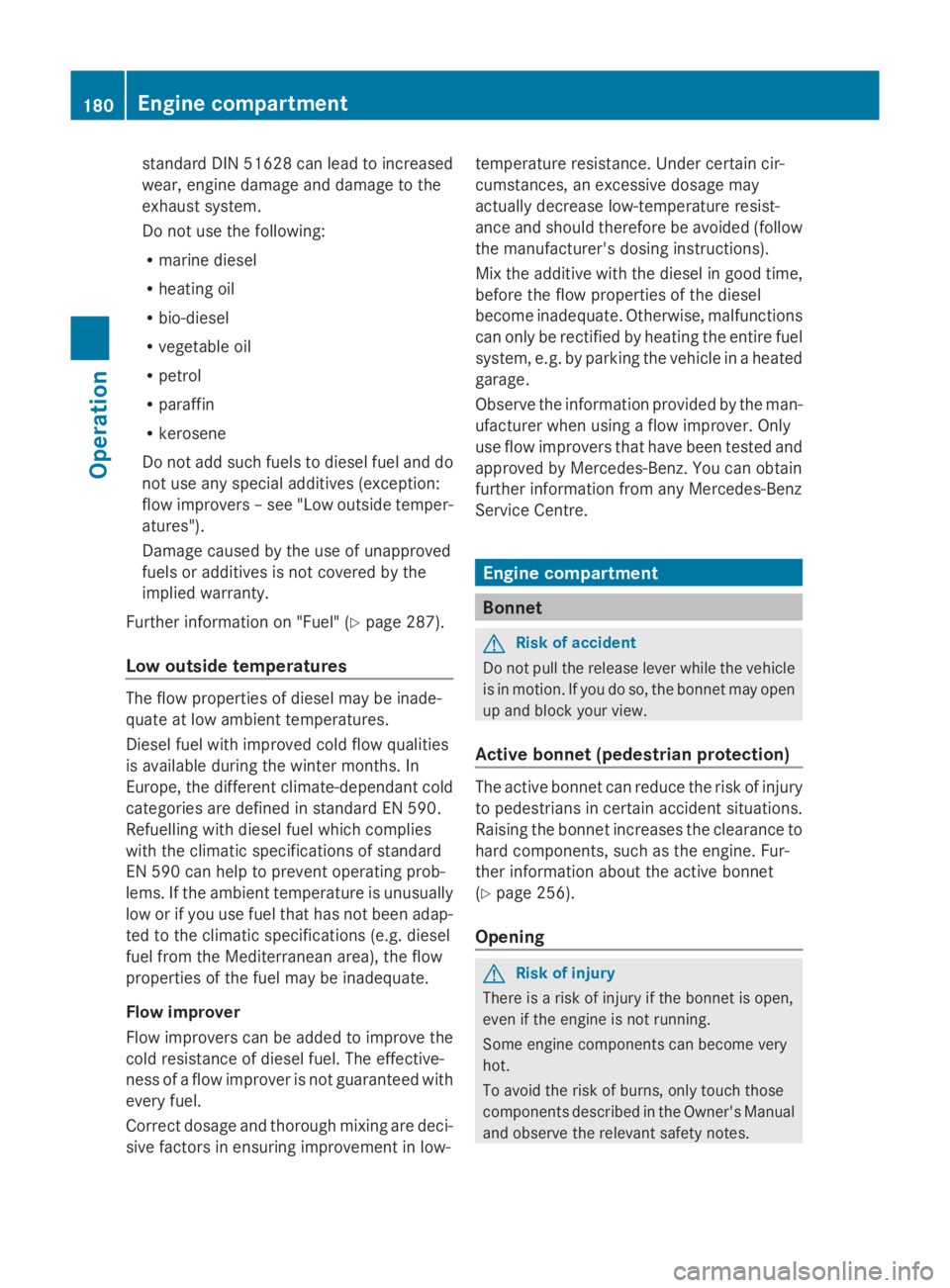

standard DIN 51628 can lead to increased
wear, engine damage and damage to the
exhaust system.
Do not use the following:
R
marine diesel
R heating oil
R bio-diesel
R vegetable oil
R petrol
R paraffin
R kerosene
Do not add such fuels to diesel fuel and do
not use any special additives (exception:
flow improvers –see "Low outside temper-
atures").
Damage caused by the use of unapproved
fuels or additives is not covered by the
implied warranty.
Further information on "Fuel" (Y page 287).
Low outside temperatures The flow properties of diesel may be inade-
quate at low ambient temperatures.
Diesel fuel with improved cold flow qualities
is available during the winter months. In
Europe, the different climate-dependant cold
categories are defined in standard EN 590.
Refuelling with diesel fuel which complies
with the climatic specifications of standard
EN 590 can help to prevent operating prob-
lems. If the ambient temperature is unusually
low or if you use fuel that has not been adap-
ted to the climatic specifications (e.g. diesel
fuel from the Mediterranean area), the flow
properties of the fuel may be inadequate.
Flow improver
Flow improvers can be added to improve the
cold resistance of diesel fuel. The effective-
ness of aflow improver is not guaranteed with
every fuel.
Correct dosage and thorough mixing are deci-
sive factors in ensuring improvement in low- temperature resistance. Under certain cir-
cumstances, an excessive dosage may
actually decrease low-temperature resist-
ance and should therefore be avoided (follow
the manufacturer's dosing instructions).
Mix the additive with the diesel in good time,
before the flow properties of the diesel
become inadequate. Otherwise, malfunctions
can only be rectified by heating the entire fuel
system, e.g. by parking the vehicle in
aheated
garage.
Observe the information provided by the man-
ufacturer when using aflow improver. Only
use flow improvers that have been tested and
approved by Mercedes-Benz.Y ou can obtain
further information from any Mercedes-Benz
Service Centre. Enginec
ompartment Bonnet
G
Risk of accident
Do not pull the release lever while the vehicle
is in motion. If you do so, the bonnet may open
up and block your view.
Active bonnet( pedestrian protection) The active bonnet can reduce the risk of injury
to pedestrians in certain accident situations.
Raising the bonnet increases the clearance to
hard components, such as the engine. Fur-
ther information aboutt
he active bonnet
(Y page 256).
Opening G
Risk of injury
There is arisk of injury if the bonnet is open,
even if the engine is not running.
Some engine componentsc an become very
hot.
To avoid the risk of burns, only touch those
componentsd escribed in the Owner's Manual
and observe the relevant safety notes. 180
Engine compartmentOperation
207_AKB;2;3,e
n-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 180

Problem Possible causes/consequences and
0050
0050Solutions 00AE
The red coolant
warning lamp
comes on while
the engine is
running. Awarn-
ing tone also
sounds. The coolant temperature has exceeded 130 †. The airflow to the
radiator may be blocked or the coolant level may be too low.
The engine is not being cooled sufficiently and may be damaged.
X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Allow the engine and coolant to cool.
X Make sure that the air supply to the radiator is not blocked, e.g.
by slush.
X Check the coolant level (Y page 183). Observe the warning
notes.
X If necessary, top up the coolant.
X Have the engine cooling system checked at aqualified specialist
workshop if the coolant needs topping up more often than usual.
If the coolant level is correct,t he electric radiator fan may be
faulty.
X Do not continue driving under any circumstances.
X Consult aqualified specialist workshop. 00BB
The yellow
engine diagnos-
tics warning
lamp lights up
while the engine
is running. Vehicles with
adiesel engine: the fuel tank has been run dry.
X Start the engine three to four times after refuelling.
Emergency running mode is cancelled. The vehicle need not be
checked. 00BB
The yellow
engine diagnos-
tics warning
lamp lights up
while the engine
is running. There may be
afault, for example:
R in the engine management
R in the ignition system
R in the exhaust system
R in the ignition system (for vehicles with petrol engines)
The emission limit values may be exceeded and the engine can
run in emergency mode.
X Have the vehicle checked as soon as possible at aqualified
specialist workshop. Troubleshooting
235Practical advice
207_AKB; 2; 3, en-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 235 Z

Vehicl
eidentificatio nnumber (VIN)
In additio ntobeing stampe donthe vehicle
identificatio nplate ,t he vehicl eide ntification
numbe r(VIN) is also stampe donto the vehicle
body .Itisloc ate dont he floor in front of the
right-hand front seat. X
Slide the right-hand front sea ttoits rear-
mos tposition.
X Slightl yraise front floor covering 008Aand
fol df loor covering flap 0046upwards.
Yo uw ills ee vehicl eide ntificatio nnumber
(VIN) 0047. Engine number
The engine numbe risstampe donthe crank-
case. Mor einformatio ncan be obtained from
any Mercedes-Benz Service Centre. Servic
eproducts and capacities
Service products includ ethe following:
R fuels (e.g. petrol ,diesel)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscree nwashe rc oncentrate
Mercedes-Benz recommends tha tyou use
products which have been teste dand spe-
ciall yapproved by Mercedes-Benz for your vehicl
eand ar elisted in this Mercedes-Benz
Owner' sManualint he relevant chapte ras:
R parts and service products ar ematched
R damage caused by the us eofnon-approved
service products is not covered by the
implied warranty
Yo uc an recognise service products approved
by Mercedes-Benz by the following inscrip-
tio nont he containers:
R MB-Freigab e(e.g. MB-Freigab e229.51)
R MB Approva l(e.g. MB Approva l229.51)
Othe rdesig nations or recommendations that
relate to alev el of quality or aspecification in
accordance with an MB Shee tnumbe r(such
as MB 229.5) have not necessaril ybeen
approved by Mercedes-Benz.
Yo uc an obtai nfurthe rinformatio nfrom any
Mercedes-Benz Service Centre. G
Ris
kofi njury
Whe nhandling ,storing and disposing of any
service products, please observe the relevant
regulations, as yo ucould otherwise endanger
yoursel fand others.
Kee pservice products away from children.
To protect your health ,donot allo wservice
products to come into contact with your eyes
or open wounds. See adoctor immediatel yif
any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
mentally-responsibl emanner. Fuel
G
Ris
kofe xplosion
Fue lish ighl yf lammable. Fire ,nake dflames
and smoking are therefore prohibited when
handling fuels.
Before refuelling, turn off the engine and the
auxiliary heating *. Service products and capacities
287Technical data
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 287 Z

G
Risk of injury
Do not allow fue ltocome into contact with
skin or clothing.
Allowing fuels to come into direct contact with
your skin or inhaling fue lvapours is damaging
to your health.
Tank capacity Total capacity 66 l
Of which reserve
fuel Approximately
8l !
Do not us epetro ltor efuel vehicle switha
diese lengine. Do not us ediese ltor efuel
vehicle swithap etrolengine. Neve rmix
diese lwithp etrol. Even small amounts of
the wrong fue lresult in damag etothe
injection system. Damage resulting from
adding the wrong fue lisnot covered by the
implied warranty.
Further information on refuelling and on fuels
(Y page 178)
Note sonf uel consumption The vehicle will us
emore fue lthan usua lin
the following situations:
R at very low temperatures
R in urban traffic
R on short trips
R whe ntowing atrailer
R in mountainou sterrain
i Only for certain countries :the respective
current consumption and emission values of your vehicle can be found in the COC
paper
s(EC CERTIFICATE OF CONFORM-
ITY). These documents are supplie dwhen
the vehicle is delivered.
The consumption figure sfor vehicle supto
the EURO 4standard have bee ndetermined
in accordance with EU Directive 80/1268/
EEC while figure sfor vehicle scomplying
with the EURO 5standard or higher have
bee ndetermine dinaccordance with Reg-
ulation (EC )No. 715/2007, in each case
based on the currently applicabl eversion.
The value sdonot refe rtoaspecificvehicle.
Deviations from these value smay occur
under norma loperating conditions.
! Do not us eany specia laddit ives, as they
can cause malfunctions and engine dam-
age. Damage resulting from the us eofsuch
additive sisnot covered by the Mercedes-
Benz implied warranty. H
Environmental note
CO 2(carbo
ndioxide) is the ga swhich scien-
tists believe to be principall yresponsibl efor
globa lwarming (the greenhouse effect). Your
vehicle's CO 2emissions are directl
yrelated
to fue lconsumption and therefore depend on:
R efficient us eofthe fue lbythe engine
R driving style
R othe rnon-technical factors, such as envi-
ronmental influences or roa dconditions
You can minimis eyourv ehicle's CO
2emis-
sions by driving carefully and having it serv-
ice dregularly. Engine oil
Only Mercedes-Benz approved engine oil smay be used in Mercedes-Benz engines.
Al istoft he engine oil stested and approved in accordance with the Mercedes-Benz Specifi-
cations for Service Products can be calle dupbyvisiting http://bevo.daimler.com and entering
the MB Shee tnumber. Further information on tested and approved engine oil scan be obtained 288
Servic
eproducts and capacitiesTechnical data
207_AKB ;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 288
