2009 MERCEDES-BENZ CLK-Class ESP

Welcome to COMAND!Please make yourself familiar with your
COMAND control unit and read the instruc
-
tions in this manual before operating the
COMAND system. This will help you derive
a greater benefit from the system. Please
also follow the instructions and warnings
contained in this manual. Ignoring them
could result in damage to the vehicle or
personal injury to you or others. Depending on model, version and configu
-
ration, your COMAND system equipment
-
may differ. Therefore, you may find
explanations for optional equipment not in
-
stalled in your vehicle. If you have any
questions about the operation of any
equipment, your authorized Mercedes-
Benz Center will be glad to demonstrate
the proper procedures. We continuously strive to improve our pro
-
duct and ask for your understanding that
we reserve the right to make changes in design and equipment. Therefore, informa
-
tion, illustrations and descriptions in this
manual might differ from the equipment in
-
stalled in your vehicle. As such, the infor
-
mation, illustrations and descriptions
contained in this manual may not be reaso
-
nably relied upon in making any claims
with respect to the actual performance of
the product. These operating instructions form an inte
-
gral part of the vehicle and should there
-
fore always be kept inside the vehicle and
passed on to the new owner if the vehicle
is sold. We extend our best wishes for many miles
of safe, pleasurable driving.Mercedes-Benz USA, LLCA Daimler Company
209_MY09_A_US.book Seite 1 Montag, 26. Mai 2008 6:12 18

9 Introduction
Operating safety


Operating
safety
Warning
G
Any alterations made to electronic compo-
nents and the software can cause malfunc
-
tions.The radio, amplifier, CD changer, satellite ra
-
dio, telephone and navigation module are in
-
terconnected. When one of the components
is not operational or has not been removed/
replaced properly, the function of other
components may be impaired. This condition might seriously impair the
operating safety of your vehicle.We recommend that you have any service
work on electronic components carried out
only by qualified personnel.
Warning
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a stand
-
still and operate the system only when road,
weather and traffic conditions permit. Bear in mind that at a speed of just

30 mp/h (approximately 50 km/h),
your car
is covering a distance of 44 feet (approxima
-
tely 14 m) every second.COMAND supplies you with information to
help you select your route more easily and
guide you conveniently and safely to your
destination. For safety reasons, we encoura
-
ge the driver to stop the vehicle in a safe
place before answering or placing a call, or
consulting the COMAND screen to read na
-
vigational maps, instructions, or downloa
-
ded information.
While the navigation system provides direc
-
tional assistance, the driver must remain fo
-
cused on safe driving behavior, including
attention to traffic and street signs, and
should utilize the system’s audio cues while
driving. The navigation system does not supply any
information on stop signs, yield signs, traffic
regulations or traffic safety rules. This al
-
ways remains your personal responsibility
when you drive. DVD maps do not cover all
areas nor all routes within an area.
209_MY09_A_US.book Seite 9 Montag, 26. Mai 2008 6:12 18

29 At a glance
Multifunction steering wheel

Switch the multifunction display to the
respective system if you wish to
operate the system using the buttons
on the multifunction steering wheel.

On the multifunction steering wheel,
press è or ÿ repeatedly until
one of the following, Radio, Single CD
or MP3 CD, CD changer, Satellite radio
or Telephone display appears in the
multifunction display of the instrument
cluster.
Radio operation1Waveband2Station frequency
Single CD/ CD changer operation1Current CD2Current trackMP3 CD operation1MP3 mode2Current MP3 track
Satellite radio operation1SAT mode and preset channel number2Setting for station selection using
memory3Channel name or number
Selecting the multifunction display
209_MY09_A_US.book Seite 29 Montag, 26. Mai 2008 6:12 18

38 At a glanceQuick reference COMAND
Speech:Playback optimized for language
comprehensibility.

LOGIC7 Surround:Surround playback.
You can use different sound functions for
the modes mentioned above.E.g.: For radio operation the function

Standard
, for CD operation the function
LOGIC7 Surround
.
Activating the sound functionsIn any audio source operation:
Activate the main menu for the
respective operating mode ( page
31)
.

Press the
Sound
soft key.
The Sound menu will appear.

Push the joystick to g or G to
select the desired function.

Press E.The function is activated.
iLOGIC7 Surround sound offers a sound
quality superior to conventional stereo
sound. If the radio reception is poor, the
system should be switched back to
standard stereo playback. Switching
back to standard stereo playback may
improve audio quality.
209_MY09_A_US.book Seite 38 Montag, 26. Mai 2008 6:12 18

41 System settings
System settings

Push the joystick to h to or h to
shift the highlighting from the hours to
the minutes or vice versa.

Push the joystick to g or G to set
minutes or hours respectively.

Press the
Back
softkey or E.
The new time is set and reappears in
the lower right corner of the display.
The language affects the menu text
displays and the voice output during route
guidance.
In the System settings menu ( page
40)
, press the
Lang.
soft key.
The languages list will appear.

Select
Instr. cluster setting
.
COMAND will use the same language
as is set in instrument cluster.
or
Push the joystick to
g
or
G
to
select the desired language.

Press E.The System settings menu will appear
with the display text in the language
selected.

In the System settings menu, press the Tones
soft key.
The Tones menu will appear.

Push the joystick to
g
or
G
to
select an entry.


Press E.
Selecting the language
Switching verification and
notification tones on and offOption
Symbol
Tone activated
Q
Tone deactivated
q

209_MY09_A_US.book Seite 41 Montag, 26. Mai 2008 6:12 18

42 System settingsSystem settings
The respective tones are activated or
deactivated. You hear the tone when
you activate it.

Press the
Back
soft key.
The System settings menu will appear.
The setting is saved.

In the System settings menu, press the Display
soft key.
You can use the following functions:
set the display dimming characteristics

adjust the display brightness
Setting the display dimming
characteristics
Push the joystick to
G
or g
to
select an entry.
Day modeThe display is continuously set to
daylight design.Night modeThe display is continuously set to night-
time design.AutomaticThe display changes depending on the
ambient light sensor in the vehicle.

Press E
.
The setting is applied. The System
settings menu will appear.
Adjusting the display brightness
Press the
Bright.
soft key.

Push the joystick to H or h
direction to adjust the brightness.
or
Press the
Bright
. soft key longer than
2 seconds.
The display brightness changes
gradually. When the slider reaches the
end of the left or right border, it starts
moving into the opposite direction.The display brightness changes
gradually. When the slider reaches the
end of the left or right border, it starts
moving into the opposite direction.
Selecting display settingsOption
Symbol
Display mode selected
_
Display mode not
selected
-
209_MY09_A_US.book Seite 42 Montag, 26. Mai 2008 6:12 18

51 Audio
Radio operation
The station you have selected will
begin to play.
FM, AM bandEntries outside the frequency range are
not accepted. The message
Please
observe frequency range 87.7 - 107.9
MHz
will appear briefly.
Preset station selection via number
keypadFM- and AM-Bands
Press one of the number keys, such as
2 briefly.The radio will tune to the frequency as
-
signed to that memory location. If none
has been set by you, the radio will not
change the station.
Automatic station scan (FM, AM)The stations on the same band (FM, AM)
can be scanned one after the other for 8
seconds each.Start scan function
Activate the desired wave band ( page
48)
.

Press the
Scan
soft key.
Frequency band
Frequency range
FMAM
87.7 - 107.9 MHz530 - 1710 kHz
iIf you do not make another entry within
8 seconds, the function will be canceled
and you will continue listening to the
station last tuned to.
iFM and AM presets are independent
and can only be accessed while in the
corresponding band.Saving stations for FM and AM ( page
52)
.
iIn the AM band, two search runs take
place. During the first run, stations with
good reception are played. During the
second run, stations with weaker
reception are played.
209_MY09_A_US.book Seite 51 Montag, 26. Mai 2008 6:12 18

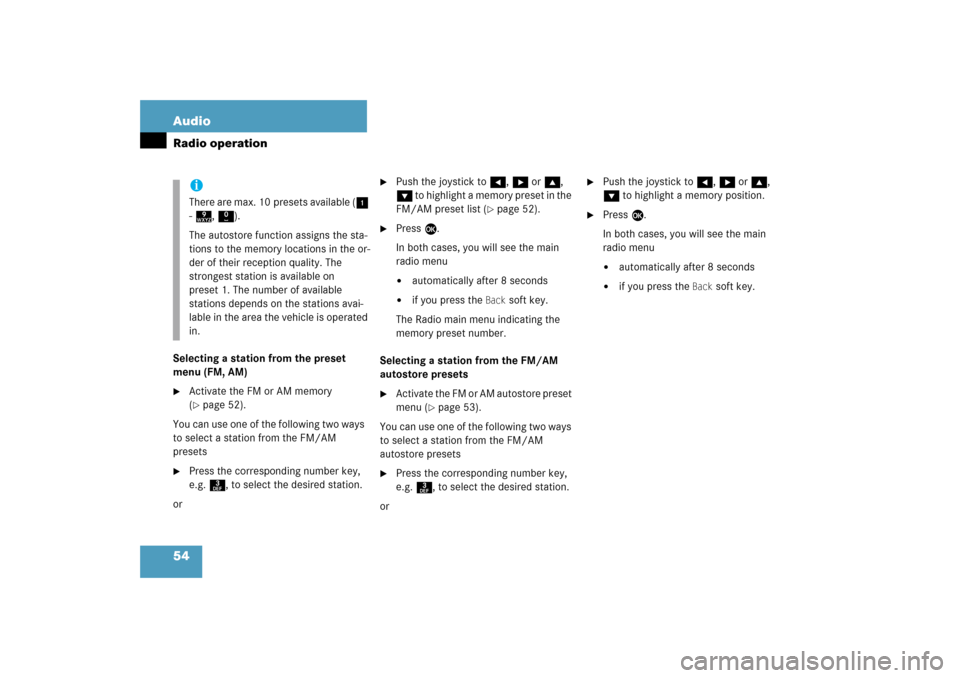

54 AudioRadio operationSelecting a station from the preset
menu (FM, AM)
Activate the FM or AM memory ( page
52)
.
You can use one of the following two ways
to select a station from the FM/AM
presets
Press the corresponding number key,
e.g. 3, to select the desired station.
or

Push the joystick to H, h or g,
G to highlight a memory preset in the
FM/AM preset list
( page
52)
.

Press E.In both cases, you will see the main
radio menu
automatically after 8 seconds

if you press the
Back
soft key.
The Radio main menu indicating the
memory preset number.
Selecting a station from the FM/AM
autostore presets
Activate the FM or AM autostore preset
menu
( page
53)
.
You can use one of the following two ways
to select a station from the FM/AM
autostore presets
Press the corresponding number key,
e.g. 3, to select the desired station.
or

Push the joystick to H, h or g,
G to highlight a memory position.

Press E.In both cases, you will see the main
radio menu
automatically after 8 seconds

if you press the
Back
soft key.
iThere are max. 10
presets available (1
- 9, 0).
The autostore function assigns the sta
-
tions to the memory locations in the or
-
der of their reception quality. The
strongest station is available on

preset 1. The number of available

stations depends on the stations avai
-
lable in the area the vehicle is operated
in.
209_MY09_A_US.book Seite 54 Montag, 26. Mai 2008 6:12 18
