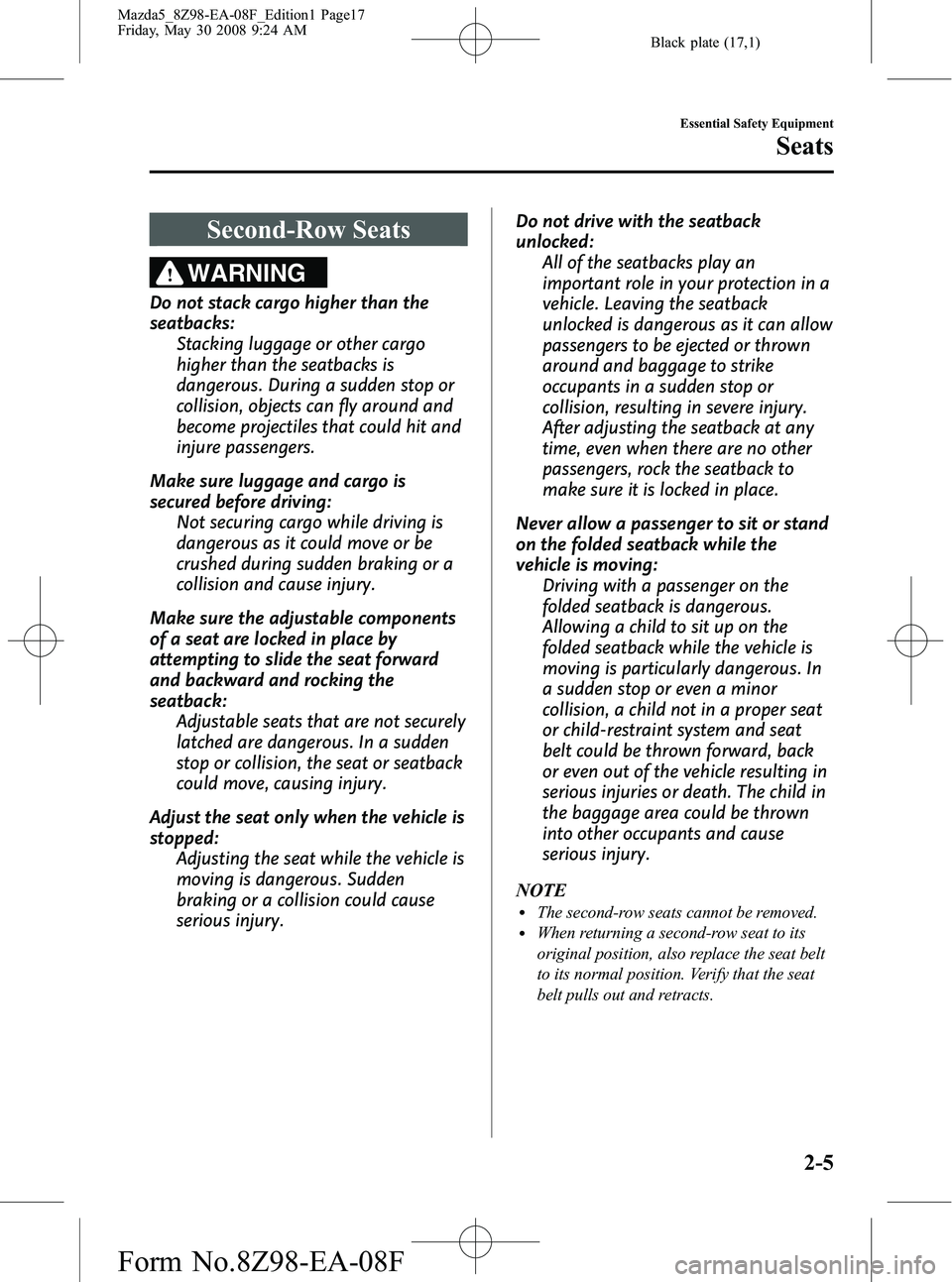

Second-Row Seats
WARNING
Do not stack cargo higher than the
seatbacks:Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback: Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Adjust the seat only when the vehicle is
stopped: Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving: Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
lThe second-row seats cannot be removed.lWhen returning a second-row seat to its
original position, also replace the seat belt
to its normal position. Verify that the seat
belt pulls out and retracts.
Essential Safety Equipment
Seats
2-5
Mazda5_8Z98-EA-08F_Edition1 Page17
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (18,1)
qSeat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied: Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
2-6
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page18
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (19,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a second-row seat belt over the
armrest:
Positioning the shoulder portion of a
second-row seat belt over the
armrest is dangerous as it cannot
provide adequate protection in a
collision and could result in serious
injuries.
qThird-Row Seat Access
Passenger ingress
To reach the third-row seat, raise the lever
of the second-row seat. The seatback will
tilt forward.
After entering the vehicle, return the
seatback to its upright position.
Passenger egress
Pull the belt and fold the seatback
forward. The seatback will tilt forward.
After exiting the vehicle, return the
seatback to its upright position.
Essential Safety Equipment
Seats
2-7
Mazda5_8Z98-EA-08F_Edition1 Page19
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (20,1)
qFolding the Second-Row Seats
To create a flat luggage compartment
space, lift the seat-bottoms of the second-
row seats and fold the seatbacks forward.
Folding the seatbacks
1. Insert the second-row outboard seat
belts in the retainers.
2. Move the seat all the way back.
3. Lower the head restraint all the waydown (page 2-11).
4. Pull the strap and lift the end of the seat-bottom up and forward.
5. If the armrest and storage box are inthe position for use, store them.
Refer to Storage Box on page 6-73. 6. Raise the lever and fold the seatback
forward.
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
Ø When folding the seatback of the
right second-row seat, make sure
the storage box is stowed. If the
storage box is not stowed, it could
be damaged.
2-8
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page20
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (21,1)
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-10).
Returning seatbacks to their original
positions
1. Return the seatback to its originalposition while raising its lever.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. Return the seat-bottom to its original
position and secure it. After returning
the seat-bottom to its original position,
make sure the seat-bottom is secured
by attempting to lightly move it up and
down.
Third-Row Seat
WARNING
Do not stack cargo higher than the
seatbacks: Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked: All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Essential Safety Equipment
Seats
2-9
Mazda5_8Z98-EA-08F_Edition1 Page21
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (22,1)
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
lThe third-row seat cannot be removed.lWhen returning a third-row seat to its
original position, also replace the seat belt
to its normal position. Verify that the seat
belt pulls out and retracts.
q Split-Folding the Third-Row
Seatback
To create a flat luggage compartment
space, fold the seatbacks forward.
To fold third-row seat
1. Slide the second-row seat all the way
forward. 2. Insert the third-row outboard seat belts
in the retainers.
3. Lower the head restraints all the way
down (page 2-11).
4. Pull the strap and fold the seatback forward.
2-10
Essential Safety Equipment
Seats
Mazda5_8Z98-EA-08F_Edition1 Page22
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (23,1)
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-8).
To return third-row seat to its original
position
Return the seatback to its original position
while pulling its strap.
Make sure the seatback is secured by
attempting to lightly move it forward and
back.
Head Restraints
Head restraints are intended to help
protect you and the passengers from neck
injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Front seat
Essential Safety Equipment
Seats
2-11
Mazda5_8Z98-EA-08F_Edition1 Page23
Friday, May 30 2008 9:24 AM
Form No.8Z98-EA-08F

Black plate (24,1)
Second-Row seat
Third-Row seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Seat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Indicator
OFF
ON
