2009 Lancia Musa Owner handbook (in English)

56
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
˙
▼Air flow distributed between the
foot well vents (hotter air) and the
central and side dashboard vents
(cooler air). This distribution
mode is particularly useful in
spring and autumn on a sunny
day.
▲
▼Air flow distributed between foot
well vents and windscreen and
front side window
defrosting/demisting vents. This
distribution mode enables proper
heating of the passenger compart-
ment, thus preventing possible
window misting. The function is enabled when the pas-
senger compartment needs to be
cooled as quickly as possible, thus us-
ing the system operating capacity at
best. This function enables air recir-
culation and engages the climate con-
trol system compressor; air distribu-
tion and fan speed are managed by
the system based on ambient condi-
tions. All manual settings will be al-
lowed when this function is on.
To switch the function off, simply turn
the temperature knob clockwise and
set the required temperature.Air distribution
buttons I-M
Pressing these but-
tons it is possible to
manually set one of
the five possible air
distribution modes to
the passenger com-
partment (right or
left side):
▲air flow to the windscreen and
front side window vents to demist
or defrost them;
˙air flow at central and side dash-
board vents to ventilate the chest
and the face during the hot season;
▼air flow to the front and rear foot
well vents. Thanks to the natural
upwards movement of heat, this
type of distribution is the quickest
for heating the passenger com-
partment offering the passenger(s)
a prompt feeling of heated air.
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 56

57
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

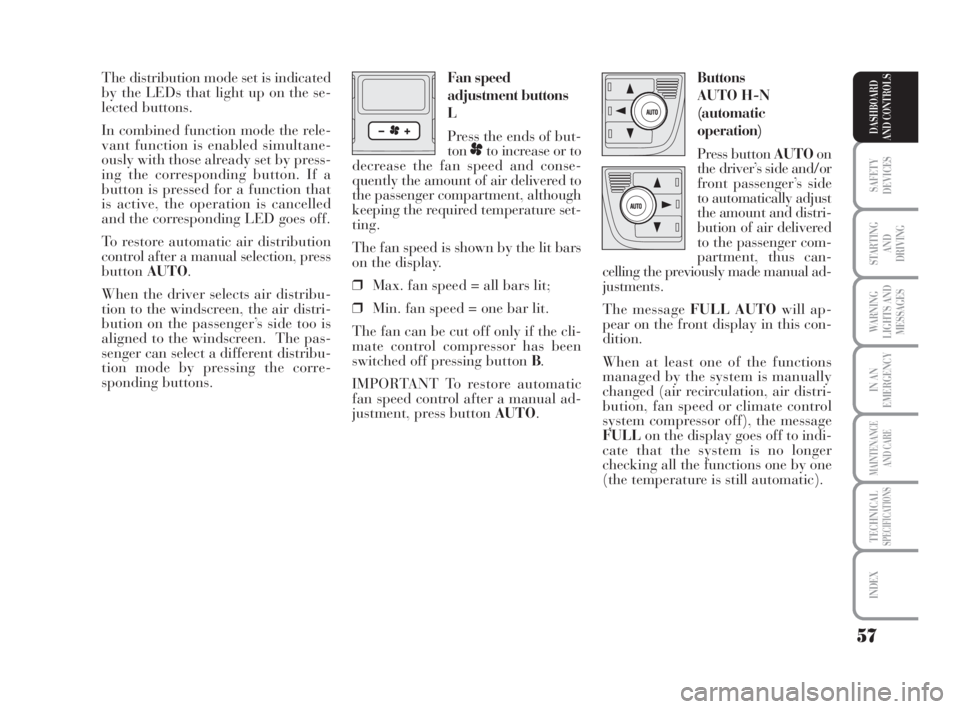

The distribution mode set is indicated
by the LEDs that light up on the se-
lected buttons.
In combined function mode the rele-
vant function is enabled simultane-
ously with those already set by press-
ing the corresponding button. If a
button is pressed for a function that
is active, the operation is cancelled
and the corresponding LED goes off.
To restore automatic air distribution
control after a manual selection, press
buttonAUTO.
When the driver selects air distribu-
tion to the windscreen, the air distri-
bution on the passenger’s side too is
aligned to the windscreen. The pas-
senger can select a different distribu-
tion mode by pressing the corre-
sponding buttons.Buttons
AUTO H-N
(automatic
operation)
Press button AUTOon
the driver’s side and/or
front passenger’s side
to automatically adjust
the amount and distri-
bution of air delivered
to the passenger com-
partment, thus can-
celling the previously made manual ad-
justments.
The message FULL AUTOwill ap-
pear on the front display in this con-
dition.
When at least one of the functions
managed by the system is manually
changed (air recirculation, air distri-
bution, fan speed or climate control
system compressor off), the message
FULLon the display goes off to indi-
cate that the system is no longer
checking all the functions one by one
(the temperature is still automatic). Fan speed
adjustment buttons
L
Press the ends of but-
ton
pto increase or to
decrease the fan speed and conse-
quently the amount of air delivered to
the passenger compartment, although
keeping the required temperature set-
ting.
The fan speed is shown by the lit bars
on the display.
❒Max. fan speed = all bars lit;
❒Min. fan speed = one bar lit.
The fan can be cut off only if the cli-
mate control compressor has been
switched off pressing button B.
IMPORTANT To restore automatic
fan speed control after a manual ad-
justment, press button AUTO.
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 57

58
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Air recirculation
on/off button C
Air recirculation is
managed according to
the following operat-
ing logics:
❒override on (air recirculation al-
ways on), indicated by the active
LED on button Cand symbol
íon the display;
❒override off (air recirculation al-
ways off and introduction of ex-
ternal air), indicated by the inac-
tive LED on the button and the
symbol
êon the display.
These operating conditions are ob-
tained by pressing the air recircula-
tion button Cin sequence.
For safety reasons, the system auto-
matically disengages air recirculation
after a pre-set time, thus letting fresh
air in. Button MONO A (to
align set
temperatures and air
distribution)
Press button MONO
to automatically align the air temper-
ature and distribution in the front
passenger’s area and that on the dri-
ver’s side. This means that the same
temperature can be set in the two ar-
eas by turning the knob on the dri-
ver’s side. This function makes tem-
perature regulation easier inside the
passenger compartment when the dri-
ver is the only passenger. For separate
management of temperatures and air
distribution in the two different areas
of the passenger compartment, turn
knobHor press button MONO A
again when the LED on the button is
on. IMPORTANT If the system can no
longer guarantee achievement or
preservation of the required temper-
ature in the different areas of the pas-
senger compartment due to manual
adjustments of the functions, the set
temperature value flashes, thus indi-
cating a system fault. One minute
later the message AUTOgoes off.
To restore system automatic control at
any time, after one or more manual
selections, press button AUTO.
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 58

59
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT Air recirculation ON
enables faster achievement of the de-
sired conditions (for passenger com-
partment heating or cooling). It is
however inadvisable to use it on
rainy/cold days as it would consider-
ably increase the possibility of the
windows misting inside, especially if
the climate control compressor is off.
Recirculation is forced to off (i.e. air
is introduced from the outside) when
the outside temperature is inferior to
5-7°C to prevent misting up.Climate control
compressor on/off
button B
Press button
√when
the LED on it goes on.
The LED goes off when the climate
control compressor is switched off.
Press the button when the LED is off
to automatically restore system con-
trol and use of the compressor. Suc-
cessful completion of this operation is
highlighted by the button LED
switching on.
The system will switch recirculation
off when the compressor is switched
to off to prevent windows from mist-
ing up. Although the system is capa-
ble of maintaining the required tem-
perature, the word FULLwill disap-
pear from the display. If on the other
hand the system cannot maintain the
required temperature, the digits will
blink and the word AUTOwill disap-
pear.
IMPORTANT With the compressor
off, it is not possible to introduced air
cooler than ambient temperature into
the passenger compartment. Further-
more, in certain conditions, the win-
dows could mist up rapidly because
the air is not dehumidified.
It is advisable not to use the
air recirculation function
when the outside temperature is low
to prevent the windows from rapidly
misting up.
WARNING
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 59

60
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT The fast window
demisting/defrosting function remains
engaged for approx. 3 minutes start-
ing from the time when the engine
coolant exceeds 50°C (petrol versions)
or 35°C (Multijet versions).
When this function is active, the LED
of the corresponding button switches
on and that of the rear window
demister. The text FULL AUTOgoes
off on the display.
You can only adjust the fan speed and
switch the rear window demister off
manually when this function is active.
To restore operating conditions before
this function is activated, press but-
tonF, the air recirculation button C,
the compressor button Bor button
AUTO NorH. Fast window
demisting/
defrosting button F
Press this button: the
climate control system
will automatically switch on all the
functions required for fast windscreen
and front side window demisting/de-
frosting, that is:
❒switches on the climate control
compressor when weather condi-
tions are suitable;
❒disables air recirculation;
❒sets the maximum air temperature
HIin both areas;
❒sets proper fan speed according to
engine coolant temperature to
limit the flow of not sufficiently
warm air to demist the windows
into the passenger compartment;
❒directs the air flow to the wind-
screen and front side windows
vents;
❒engages the rear window mister.Disengagement of the compressor re-
mains stored even after the engine
stops.
To restore automatic compressor con-
trol, press button
√again (in this
case, the system will only work as a
heater) or press AUTO.
With climate control compressor off if
the outside temperature is higher than
the one set, the system will not be able
to keep the required condition, the
temperature value will then start
flashing on the display for a few sec-
onds and the message AUTOgoes off.
With climate control compressor off,
the fan speed can be set to zero man-
ually (no bar shown).
With the compressor enabled and the
engine started, the fan speed may be
reduced to the minimum setting only
(one bar shown).
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 60

61
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Switching the system
OFF E
Press button Eto
switch the climate
control system off.
The display will go
out as a consequence.
The following climate control condi-
tions will be established when the sys-
tem is off:
❒LEDs are off;
❒temperatures set are not displayed;
❒air recirculation is enabled, thus
isolating the passenger compart-
ment from external conditions;
❒the climate control compressor is
off;
❒the fan is off.With the system OFF the rear window
demister can either be enabled or dis-
abled manually by pressing button G.
IMPORTANT The system unit stores
the temperatures set before turning
off and resets them when pressing any
button (except heated rear window).
If the function corresponding to the
button pressed is off, it will be turned
on; if on, it will be kept active.
Press button AUTOto switch the the
climate control system on in auto-
matic mode. Demisting/defrosting
button for rear
window and door
mirrors G
Press this button to
activate heated rear window demist-
ing/defrosting. When this function is
on, the button led is on.
This function switches off automati-
cally after a pre-set time or by press-
ing again the button or by turning the
engine off. It will not be switched on
automatically when restarting the en-
gine.
IMPORTANT Do not affix decals on
the inside of the rear window over the
heating filaments to avoid damage
that might cause it to stop working
properly.
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 61

62
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PARKING LIGHTS fig. 67
With the ignition key in position STOP
or removed, rotate knurled ring in po-
sition
6. The warning light 3is lit
on the instrument panel and all the
plate lights and side/taillights go on.
Move the lever
aupwards to turn on
the lights on the right-hand side; move
it downwards
bto turn on the lights
on the left-hand side. In both cases the
warning light
3on the instrument
panel does not turn on. FLASHING THE HEADLIGHTS
Pull the stalk towards the steering
wheel (unstable position) regardless
of the position of the knurled ring.
The warning light
1on the instru-
ment panel will come on at the same
time.
fig. 63L0D0066m
fig. 66L0D0069m
fig. 65L0D0068m
fig. 64L0D0067m
EXTERNAL LIGHTS
The left-hand lever includes the con-
trols for the external lights.
The external lights can only be
switched on when the ignition key is at
MAR.
LIGHTS OFF fig. 63
Knurled ring turned to position
å.
SIDE/TAILLIGHTS fig. 64
Turn the knurled ring to position
6.
The warning light
3on the instru-
ment panel comes on at the same time.
DIPPED BEAM HEADLIGHTS fig.
65
Turn the knurled ring to position
2.
The warning light
3on the instru-
ment panel comes on at the same time.
BEAM HEADLIGHTS fig. 66
When the knurled ring is in position
2pull the lever towards the steering
wheel (stable position). The warning
light
1on the instrument panel comes
on at the same time.
To turn the beam headlights off, pull
again the lever towards the steering
wheel (dipped beams will turn on
again).
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 62

63
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DIRECTION INDICATORS
fig. 67
Push the stalk to (stable) position:
❒up (position 1): right-hand indica-
tor ON;
❒down (position 2): left-hand indi-
cator ON.
Warning light
ForDstart flashing
on the instrument panel.
Indicators are switched off automati-
cally when the steering wheel is
straightened.
If you want the indicator to flash
briefly to show that you are about to
change lane, move the stalk up or
down without clicking into position
(unstable position). When released,
the stalk will return to its home posi-
tion.AUTOMATIC LIGHT SENSORS
(dusk sensor) (where provided)
This sensor detects any changes in the
external brightness according to the
sensitivity of the set light level: the
higher the sensitivity, the lower the
amount of external light needed to
switch the lights on. The sensitivity of
the dusk sensor is adjusted by means
of the “Setup menu” on the “Multi-
functional Display”.
Activation
Rotate the knurled ring in position
2A
fig. 69as to cause automatic switch-
ing on of the side/tail lights and low
beam lights simultaneously depend-
ing on the external brightness. “FOLLOW ME HOME”
DEVICE fig. 68
This function allows the illumination
of the space in front of the car for a
preset period of time.
Activation
With the ignition key on STOPor re-
moved, pull the stalk towards the
steering wheel within 2 minutes from
when the engine is turned off.
At each single movement of the stalk,
the time in which the lights stay on is
extended by 30 seconds up to maxi-
mum 210 seconds. After this time, the
lights go off automatically.
fig. 67L0D0071mfig. 68L0D0070mfig. 69L0D0072m
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 63
