2009 Lancia Musa Owner handbook (in English)

104
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 13L0D0139m
GROUP 3 fig. 13
For children from 22 kg to 36 kg in
weight the size of the child’s chest no
longer requires a support to space the
child’s back from the seat backrest.
The figure shows proper child seat po-
sitioning on the rear seat.
Children over 1.50 m in height can
wear seat belts like adults.
The figure is indicative for
assembly purposes only. Re-
fer to the instructions supplied with
the child seat.
WARNING
PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON CHILD
SEAT USE
The car complies with the new European Directive 2000/3/EC which governs
the arrangement of child restraints on the various seats of the car as shown in
the following table.
CAR SEAT
Group Weight rangesPassenger Passenger Passenger
frontbackcentre
side(where
provided)
Group 0, 0+ up to 13 kg U U *
Group 1 9-18 kg U U *
Group 2 15-25 kg U U *
Group 3 22-36 kg U U *
Key:
U = suitable for child restraint systems of the “Universal” category, according
to European standard ECE-R44 for the specified “Groups”.
* Never mount child restraint systems on the rear central seat.
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 104

105
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Below is a summary of the safety
rules to be followed for carrying
children:
❒The recommended position for in-
stalling the child seat is on the rear
seat, as it is the most protected
area in the event of a crash.
❒If the passenger’s air bag is deac-
tivated (where provided) always
check that the amber “warning
light on the panel is permanently
on to indicate actual airbag deac-
tivation.
❒Thoroughly follow the instructions
that must be provided by the
manufacturer with the child seat.
Keep the instructions in the car
along with the other papers and
this handbook. Do not use child
seats without instructions.
❒Pull the belt to make sure that the
seat belt is properly hooked.❒Only one child must sit on the
child seat: never let two children
sit on it simultaneously.
❒Always check that the seat belts do
not run around the child’s neck.
❒While travelling, do not let the
child sit incorrectly or release the
belts.
❒Never carry children, nor even in-
fants, on your lap. No-one, how-
ever strong, can hold a child in the
case of an accident.
❒In the event of an accident, replace
the child’s seat with a new one. ISOFIX
CHILD RESTRAINT
ASSEMBLY SETUP
Provision has been made on the car to
mount a Universal Isofix child re-
straint system, a new European stan-
dardised system for carrying children
safely.
Isofix systems can be mounted simul-
taneously with a traditional restraint
system.
An example of child seat is shown in
fig. 14.
The Universal Isofix child seat covers
weight group: 1.
Specific Isofix child seats cover the
other weight groups. These seats must
be designed, tested and type-ap-
proved specifically for this car (refer
to the list of cars attached to the child
seat).
Do not arrange child seats
on the front seat in cars fit-
ted with an airbag on the passenger
side. Children must never travel on
the front seat.
WARNING
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 105

106
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 14L0C0425m
As the attachment system is different,
the child seat must be secured using
the lower metal rings A-fig. 15posi-
tioned between the backrest and rear
bag. Then, fit the upper belt (pro-
vided with the child seat) in the sup-
plied ring D-fig. 16located at the
back of the backrest near the child
seat.
fig. 15L0C0140m
Remember that only Universal Isofix
child seats bearing the type-approval
text “ECE R44/03 Universal Isofix”
can be used.
Universal Isofix “Duo Plus” child seat
is available from Lineaccessori
Lancia.For further details about the installa-
tion/use of child seats, refer to the
“Instructions Manual” of the child
seat.
fig. 16L0C0143m
Fit the child seat when the
car is stationary. The child
seat is correctly anchored to the
brackets when you hear the click.
Follow the instructions for assem-
bly, disassembly and positioning
that the manufacturer must supply
with the child seat.
WARNING
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 106

107
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL ISOFIX CHILD SEAT USE
The table below shows the different installation possibilities of Isofix restraint systems on seats fitted with Universal
Isofix fasteners in compliance with European standard ECE 16.
Weight group Orientation Class Isofix positionchild seat Isofix size rear side
Group 0 up to 10 kg
Group 0+ up to 13 kg
Group 1 from 9
up to 18 kg
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing forwards
Facing forwards
Facing forwards E
E
D
C
D
C
B
B1
AIL
IL
IL
IL (*)
IL
IL (*)
IUF
IUF
IUF
IUF suitable for Isofix child restraint systems facing forwards, universal class (fitted with third upper fastener),
type-approved for the relevant weight group.
IL: suitable for special child restraint systems, specific Isofix type, and type-approved for this type of car. The seat
can be installed by moving the front seat forward.
(*) The Isofix child seat can be installed by moving the front seat all the way up.
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 107

108
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

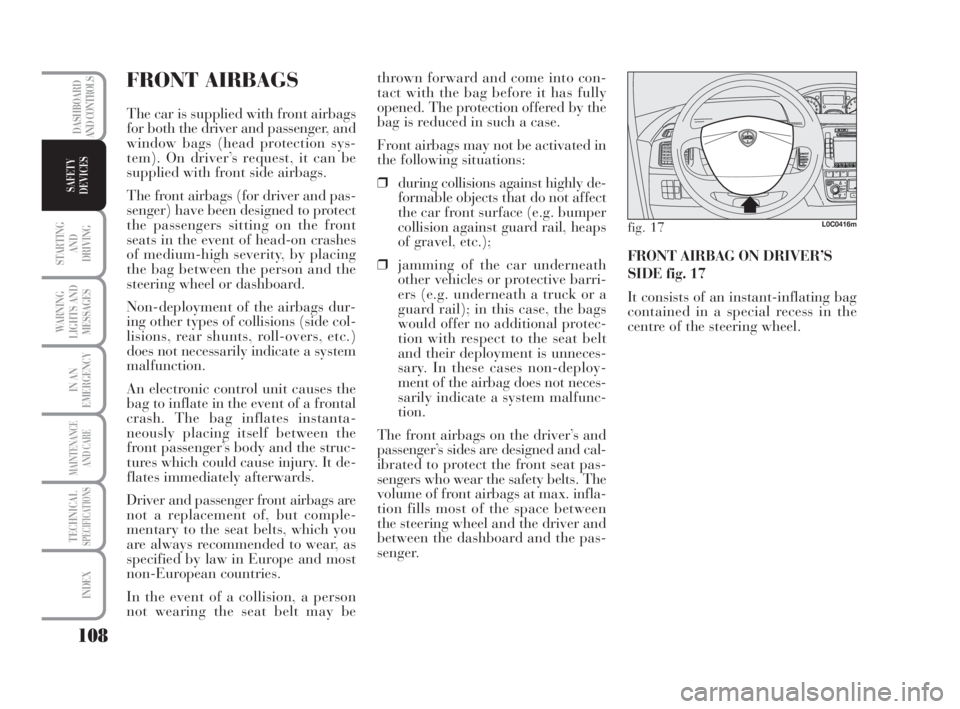

FRONT AIRBAGS
The car is supplied with front airbags
for both the driver and passenger, and
window bags (head protection sys-
tem). On driver’s request, it can be
supplied with front side airbags.
The front airbags (for driver and pas-
senger) have been designed to protect
the passengers sitting on the front
seats in the event of head-on crashes
of medium-high severity, by placing
the bag between the person and the
steering wheel or dashboard.
Non-deployment of the airbags dur-
ing other types of collisions (side col-
lisions, rear shunts, roll-overs, etc.)
does not necessarily indicate a system
malfunction.
An electronic control unit causes the
bag to inflate in the event of a frontal
crash. The bag inflates instanta-
neously placing itself between the
front passenger’s body and the struc-
tures which could cause injury. It de-
flates immediately afterwards.
Driver and passenger front airbags are
not a replacement of, but comple-
mentary to the seat belts, which you
are always recommended to wear, as
specified by law in Europe and most
non-European countries.
In the event of a collision, a person
not wearing the seat belt may bethrown forward and come into con-
tact with the bag before it has fully
opened. The protection offered by the
bag is reduced in such a case.
Front airbags may not be activated in
the following situations:
❒during collisions against highly de-
formable objects that do not affect
the car front surface (e.g. bumper
collision against guard rail, heaps
of gravel, etc.);
❒jamming of the car underneath
other vehicles or protective barri-
ers (e.g. underneath a truck or a
guard rail); in this case, the bags
would offer no additional protec-
tion with respect to the seat belt
and their deployment is unneces-
sary. In these cases non-deploy-
ment of the airbag does not neces-
sarily indicate a system malfunc-
tion.
The front airbags on the driver’s and
passenger’s sides are designed and cal-
ibrated to protect the front seat pas-
sengers who wear the safety belts. The
volume of front airbags at max. infla-
tion fills most of the space between
the steering wheel and the driver and
between the dashboard and the pas-
senger.FRONT AIRBAG ON DRIVER’S
SIDE fig. 17
It consists of an instant-inflating bag
contained in a special recess in the
centre of the steering wheel.
fig. 17L0C0416m
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 108

109
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 18L0C0145m
FRONT AIRBAG ON
PASSENGER’S SIDE fig. 18
It consists of an instant-inflating bag
contained into a special recess Ain the
dashboard. The bag is larger in vol-
ume than the airbag on the driver’s
side. The airbags are not deployed in
the event of collisions of low severity
(for which the withholding action of
the seat belts is sufficient). For this
reason, the seat belt must be worn at
all times. During side collisions the
seat belts hold passengers in the cor-
rect position and prevent ejection
from the car during very violent col-
lisions.
Do not apply stickers/decals
or other objects on the
steering wheel, in area A-fig. 18 on
the passenger side airbag or side up-
holstery on the roof side. Do not
place objects (e.g. cell phones) on
the passenger side dashboard, be-
cause they could interfere with cor-
rect deployment of the passenger
airbag and cause severe injury to the
persons in the car.
WARNING
SEVERE DANGER: do not
arrange child seats facing
backwards if the front airbag on the
passenger’s side is enabled. Airbag
deployment during a crash may
cause fatal injuries to the child.
WARNING
If the car is equipped with
a deactivation system for
the front passenger airbag,
disable it whenever the
child seat needs to be
mounted on the front seat.
Move the passenger’s seat as far
back as possible to avoid contact be-
tween the child seat and the dash-
board. Although this is not manda-
tory by law, the airbag should be
immediately reactivated when chil-
dren are no longer carried to ensure
better protection to adults.
WARNING
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 109

110
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
MANUAL DEACTIVATION OF
FRONT AIRBAG AND SIDE BAG
ON PASSENGER’S SIDE
(where provided)
Whenever a child needs to be carried
on the front seat, the passenger’s front
airbag and the Side Bag (where pro-
vided) must be deactivated.
The warning light “on the instru-
ment panel stays on steadily until the
passenger’s front airbag and the Side
Bag (where provided) are re-acti-
vated.SIDE BAGS
(window bag)
(where provided)
SIDE BAG (where provided) fig.
19
It consists of an instant-inflating bag
housed in the front seat backrest. It
protects the chest of the passengers in
the event of a side crash of medium-
high severity.
To manually deactivate the
passenger’s front airbag and
the Side Bag (where provided), re-
fer to paragraph “Multifunctional
reconfigurable display” in section
“Dashboard and controls”.
WARNING
Do not cover the front seat
backrest with upholstery or
seat covers that hinder deployment
of the side bag.
WARNING
fig. 19L0C0147m
fig. 20L0C0148m
WINDOW BAG
(where provided) fig. 20
It consists of two “drop-down” bags
housed behind the side upholstery of
the roof and covered with finishing el-
ements that protect the head of front
and rear passengers in the event of a
side crash thanks to a wide bag de-
ployment area. Lineaccessori Lancia includes seat
covers enabling side bag deployment.
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 110

111
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Side bags are not a replacement of,
but complementary to the seat belts,
which you are always recommended
to wear, as specified by law in Europe
and in most non-European countries.
IMPORTANT In the event of a side
crash, the system provides best pro-
tection if the passenger sits on the seat
in a correct position, thus allowing
correct window bag deployment.
IMPORTANT The front airbags
and/or side bags are deployed also if
the car is subject to strong collisions
or accidents involving the underbody
area, such as violent shocks against
steps, kerbs or low obstacles, falling
of the car in big holes or sags in the
road.
IMPORTANT A small amount of dust
is released when the airbags are de-
ployed. The dust is not harmful and
does not indicate the beginning of a
fire. Furthermore, the surface of the
deployed bag and the interior of the
car may be covered with residual
dust. This dust may irritate the skin
and the eyes. Use mild soap and wa-
ter to wash the parts of your body ex-
posed to this dust.The pyrotechnic charge of the airbag
system lasts for 14 years; the spiral
contact 10 years. Go to a Lancia
Dealership to have the devices re-
placed when the expiration date ap-
proaches.
IMPORTANT Should an accident oc-
cur activating any of the safety de-
vices, take the car to a Lancia Deal-
ership to have the activated devices
replaced and the system checked.
Airbag checking, repair and replace-
ment must only be carried out c/o the
Lancia Dealership.
If you are having the car scrapped,
have the airbag system deactivated at
a Lancia Dealership first. If the car
changes ownership, the new owner
must be informed of how to use the
airbags and the above warnings: s/he
must also be given this “Owner’s
Handbook”.
IMPORTANT Pretensioners, front
airbags and front side bags are de-
ployed differently according to the
type of collision. Non-deployment of
one of the devices does not necessar-
ily indicate a system malfunction.
Do not rest the head, arms
or elbows on the door, win-
dows and window bag area to avoid
possible injuries during inflation.
Never lean head, arms and elbows
out of the window.
WARNING
If the warning light ¬does
not turn on or stays on dur-
ing car travel when turning the key
to MAR, a failure may be present in
the restraint systems. If this is the
case, the airbags or pretensioners
may not be deployed after an impact
or, in a minor number of cases, they
may be deployed accidentally. Con-
tact a Lancia Dealership immedi-
ately to have the system checked.
Do not cover the front seat backrest
with upholstery or seat covers that
hinder deployment of the side bag.
WARNING
GENERAL WARNINGS
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 111
