2009 Lancia Musa stop start

78
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DRIVER’S SIDE DOOR fig. 103
Two or five switches (where provided)
located on the internal armrest are
used, with ignition key at MAR:
Ato open/close the left front win-
dow;
Bto open/close the right front win-
dow;
WINDOW
WINDERS
POWER WINDOWS
The 2 button version (front power
windows only) does not feature auto-
matic lifting or lowering, while the 4
button version (front and rear power
windows) is equipped with automatic
lifting and lowering on the driver’s
side, automatic lowering on the pas-
senger’s side (also automatic lifting,
where provided) and automatic low-
ering only for rear power windows.
IMPORTANT With ignition key at
STOPor removed, the power win-
dows remain activated for about 2
minutes and are deactivated immedi-
ately the moment a door is opened.
fig. 103L0D0103m
Cto open/close the left rear window
(where provided);
Dto open/close the right rear win-
dow (where provided);
Eto inhibit rear door controls
(where provided). When the de-
vice is activated, the LED on the
button goes on.
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 78

79
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Automatic continuous operation
(where provided)
Some versions feature four power
windows with automatic lifting and
lowering of the front window (driver’s
side) and automatic lowering only of
the other windows.
AButton for continuous auto-
matic opening and closing;
B-C-DButtons for continuous auto-
matic opening only.
By pressing one of the buttons briefly,
the window moves “in pulse mode”
and stops on releasing the button.
PASSENGER’S SIDE DOOR
AND REAR DOORS (where
provided) fig. 104
The switch controlling the corre-
sponding window is located on the in-
ternal armrest of each door.
fig. 104L0D0103m
Incorrect use of the power
windows may be danger-
ous. Before operation, always check
that no-one is exposed to the risk of
being injured by directly by the
moving window or objects getting
caught and dragged. When leaving
the car, always remove the key from
the ignition device to avoid the risk
of injury due to accidental operation
of the power windows.
WARNING
fig. 105L0D0156m
MANUAL (where provided)
To open and to close the window use
the relevant window winderfig. 105.
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 79

82
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
BONNET
OPENING THE BONNET
Proceed as follows:
❒pull lever A-fig. 111in the direc-
tion indicated by the arrow;
❒shift the lever towards the left B-
fig. 113 as shown by the arrow;
❒lift the bonnet and at the same
time release the rod C-fig. 112
from the catch D, then fit end of
the rod into the bonnet recess E.
IMPORTANT Before opening the
bonnet, check that windscreen wiper
arms are not lifted from the wind-
screen.
fig. 111L0D0113m
fig. 112L0C0115m
fig. 113L0D0392m
The bonnet must always be
perfectly closed while trav-
elling for safety reasons. Make sure
that the bonnet is perfectly closed
and that the lock is engaged. If you
discover that the bonnet is not per-
fectly closed while travelling, stop
immediately and close the bonnet in
the correct manner.
WARNING
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 82

86
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
EOBD SYSTEM
The EOBD system (European On
Board Diagnosis) allows continuous
diagnosis of the components of the car
correlated with emissions.
It also alerts the driver, by turning on
the warning light
Uon the instru-
ment panel (together with relevant
message on the multifunction display,
where provided) (see section “Warn-
ing lights and messages”), when these
components are no longer in peak
conditions.
The objective is:
❒to keep the system efficiency un-
der control;
❒to warn when a fault causes emis-
sion levels to increase;
❒to signal the need to replace worn
components. EBD failure
EBD failure is indicated by the turn-
ing on warning lights >andxon
the instrument panel, together with
the message (where provided) shown
on the multifunctional display (see
section “Warning lights and mes-
sages”).
In this case, the rear wheels may sud-
denly lock and the car may swerve.
Drive carefully to the nearest Lancia
Dealership to have the system
checked.
When the ABS intervenes,
a slight pulsing of the brake
pedal is felt. Do not lessen the pres-
sure of your foot on the pedal; main-
tain pressure on the brake without
hesitation; this will ensure that you
stop in the shortest possible space al-
lowed by the road conditions.
WARNING
If the warning lightxon
the instrument panel goes
on (and a message, were provided,
is shown in the multifunctional dis-
play), stop the car immediately and
contact your nearest Lancia Dealer-
ship. Leakage of hydraulic fluid
from the braking system will com-
promise functionality of the braking
system, either of the conventional
type or with ABS.
WARNING
038-094 MUSA 1ed GB 11-07-2008 14:10 Pagina 86

91
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Detection distances
The central radius of action varies ac-
cording to the engine/ trim of the car:
The recognition area is equivalent to
140 cm, while for small obstacles (or
in the case of parking bollards which
have a rounded shape) it is equivalent
to 70 cm. The lateral radius of action
has a recognition area of 60 cm.
If several obstacles are detected, the
control unit indicates the nearest one.
FAILURE INDICATIONS
See “Warning lights and messages”
section.
OPERATION WITH TRAILER
The system is programmed to deacti-
vate automatically when the trailer
electric cable plug is fitted into the car
tow hook socket.
Sensors are reactivated on removing
the trailer cable plug. BUZZER WARNINGS
When the reverse gear is engaged an
intermittent acoustic signal is auto-
matically activated.
The acoustic signal:
❒becomes louder as the reduction of
distance between the car and the
obstacle decreases;
❒becomes continuous when the dis-
tance between the car and the ob-
stacle is less than 30 cm and stops
immediately if the distance in-
creases;
❒iremains constant if the distance
between vehicle and obstacle re-
mains unvaried; if this situation
concerns the side sensors, the
buzzer will stop after about 3 sec-
onds to avoid, for example, warn-
ing indications in the event of ma-
noeuvres along walls.
fig. 120L0D0395m
GENERAL WARNINGS
❒When parking, take the utmost
care to avoid obstacles that may
be located above or below the
sensors.
❒Objects located near the rear of
the car, under certain circum-
stances are not detected and could
therefore cause damage to the car
or be damaged.
❒Indications sent by the sensors
can be altered by dirt, snow or ice
deposited on the sensors or by ul-
trasound systems (e.g.: truck
pneumatic brakes or pneumatic
hammers) nearby the car.
038-094 MUSA 1ed GB 11-07-2008 14:11 Pagina 91

97
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
S.B.R. system
The car is fitted with a Seat Belt Re-
minder system (S.B.R.), consisting of
a buzzer and a flashing warning light
warns the driver that the seat belt
must be fastened.
The buzzer can be deactivated tem-
porarily (until the next engine stop)
as follows:
❒fasten the driver’s seat belt;
❒turn the ignition key to MAR
❒wait for over 20 seconds and then
release at least one of the seat
belts.
For permanent deactivation, contact
Lancia Dealership.
The S.B.R. system can be re-activated
through the “Setup” menu only (see
paragraph “Seat belts not fastened”
in section “Warning lights and mes-
sages”).ADJUSTING THE
FRONT SEAT BELT HEIGHT
(where provided)
Always adjust the seat belt height to
the passenger’s body. This precaution
may considerably reduce the risk of
injury in the event of a collision.
Correct regulation is obtained when
the belt passes approximately half
way between the shoulder and the
neck.
To adjust, either lift or lower the grip
A-fig. 4of the locking mechanism and
at the same time move the ring Bto
the most suitable of the allowed posi-
tions.
Remember that in the event
of a violent collision, rear
seat passengers that do not wear seat
belts both pose a risk for their safety
and also represent a serious danger
for the front seat passengers.
WARNING
fig. 4L0D0128m
Stop the car to adjust the
seat belt height.
WARNING
After the adjustment, make
sure that the cursor to
which the ring is secured is blocked
in one of the possible positions. Re-
lease the grip and push downwards
to enable the locking device to click
if the grip has not been released in
one of the possible positions.
WARNING
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 97

112
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Always drive keeping your
hands on the steering wheel
so that the airbag can inflate with-
out obstacles if it is deployed. Do
not drive with your body bent for-
ward. Keep your back straight
against the backrest. If the car is
stolen or an attempt is made to steal
it, or if the car has been subjected to
illegal attacks or flooding, have the
airbag system checked by a Lancia
Dealership.
WARNING
Do not travel carrying ob-
jects on your lap or opposite
the chest and keeping a pipe, pen-
cils, etc. between your lips in order
to avoid serious injuries due to de-
ployment of the airbag after a colli-
sion.
WARNING
The front airbag is de-
ployed in the event of colli-
sions having a more severe nature
than those required to activate the
pretensioners. For collisions in the
range between the two activation
thresholds, pretensioner activation
is normal.
WARNING
Turning the ignition key to
MAR, the warning light “
(airbag on passenger’s side enabled)
goes on and flashes for a few sec-
onds, thus reminding the passenger
that the airbag on his/her side will
deploy in the event of a collision. Af-
ter this time, the light goes off.
WARNING
Do not wash the car seats
with water or pressurised
steam (both by hand or at automatic
washing stations).
WARNING
The airbag does not replace
the safety belts, it increases
their effectiveness. Furthermore,
since front airbags are not deployed
after low speed collisions, side colli-
sions, rear-end shunts or roll-overs,
the passengers are only protected by
the seat belts which must be fas-
tened at all times.
WARNING
Do not hook rigid objects to
cloth hangers and to the
support handles.
WARNING
If the ignition key is in
place and in the MAR posi-
tion, the airbags are deployed even
with the engine off in the event of a
car crash against another moving
vehicle. For this reason, children
must never sit on the front seat, even
if the car is not moving. On the other
hand, whenever the key is positioned
on STOP, the safety devices (airbags
or pretensioners) do not deploy af-
ter a collision. In this case non-de-
ployment of these devices does not
indicate a system malfunction.
WARNING
095-112 MUSA 1ed GB 10-07-2008 9:37 Pagina 112

114
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING

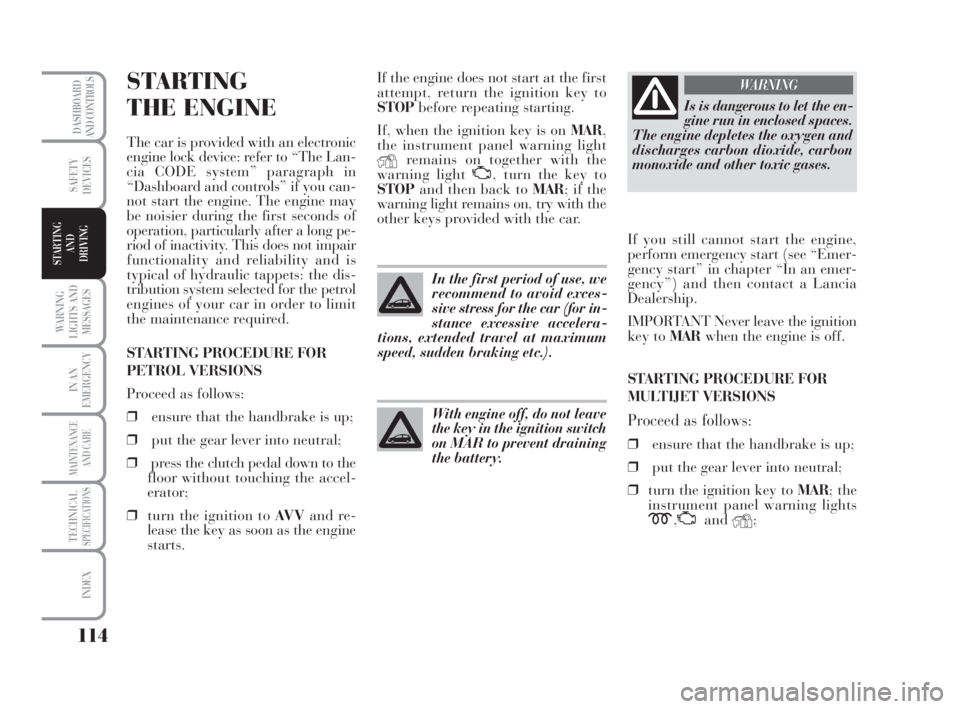

STARTING
THE ENGINE
The car is provided with an electronic
engine lock device: refer to “The Lan-
cia CODE system” paragraph in
“Dashboard and controls” if you can-
not start the engine. The engine may
be noisier during the first seconds of
operation, particularly after a long pe-
riod of inactivity. This does not impair
functionality and reliability and is
typical of hydraulic tappets: the dis-
tribution system selected for the petrol
engines of your car in order to limit
the maintenance required.
STARTING PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒ensure that the handbrake is up;
❒put the gear lever into neutral;
❒press the clutch pedal down to the
floor without touching the accel-
erator;
❒turn the ignition to AV Vand re-
lease the key as soon as the engine
starts.If the engine does not start at the first
attempt, return the ignition key to
STOPbefore repeating starting.
If, when the ignition key is on MAR,
the instrument panel warning light
Yremains on together with the
warning light U, turn the key to
STOPand then back to MAR; if the
warning light remains on, try with the
other keys provided with the car.
Is is dangerous to let the en-
gine run in enclosed spaces.
The engine depletes the oxygen and
discharges carbon dioxide, carbon
monoxide and other toxic gases.
WARNING
In the first period of use, we
recommend to avoid exces-
sive stress for the car (for in-
stance excessive accelera-
tions, extended travel at maximum
speed, sudden braking etc.).
With engine off, do not leave
the key in the ignition switch
on MAR to prevent draining
the battery.
If you still cannot start the engine,
perform emergency start (see “Emer-
gency start” in chapter “In an emer-
gency”) and then contact a Lancia
Dealership.
IMPORTANT Never leave the ignition
key to MARwhen the engine is off.
STARTING PROCEDURE FOR
MULTIJET VERSIONS
Proceed as follows:
❒ensure that the handbrake is up;
❒put the gear lever into neutral;
❒turn the ignition key to MAR; the
instrument panel warning lights
m,
UandY;
113-124 MUSA 1ed GB 10-07-2008 9:37 Pagina 114
