2009 Lancia Musa stop start

132
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
GENERAL FAILURE
INDICATION
(amber)
The warning light turns on in
the following circumstances.
Externallight failure
The warning light comes on (on some
versions only) when a failure is de-
tected in one of the following lights:
– tail lights
– stop lights (excluding 3
rdstop)
– rear fog lights
– direction indicators
– plate lights.
The fault identified in the lights above
may be due to: one or more burnt
lamps, a blown protection fuse or in-
terruption of the electrical connection.
The display will show the dedicated
message.
è
Fresh air filter clogged
(where provided)
The warning light turns on when the
particulate filter is clogged and the
driving conditions do not enable au-
tomatic activation of the regeneration
procedure.
To allow the regeneration procedure,
keep the car running until the warn-
ing light turns off.
The display will show the dedicated
message.
Engine oil pressure sensor failure
The warning light turns on when a
failure is detected in the engine oil
pressure sensor. Go to a Lancia Deal-
ership as soon as possible.Twilight/rain sensor failure
The warning light turns on when a
failure is detected in the twilight/rain
sensors. Go to a Lancia Dealership as
soon as possible.
The display will show the dedicated
message.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch trips.
The display will show the dedicated
message.
Speed limit exceeded
The display shows the dedicated mes-
sage when the car exceeds the set
speed limit (see “Multifunction Dis-
play” in section “Dashboard and con-
trols”).
125-134 MUSA 1ed GB 10-07-2008 9:38 Pagina 132

138
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY

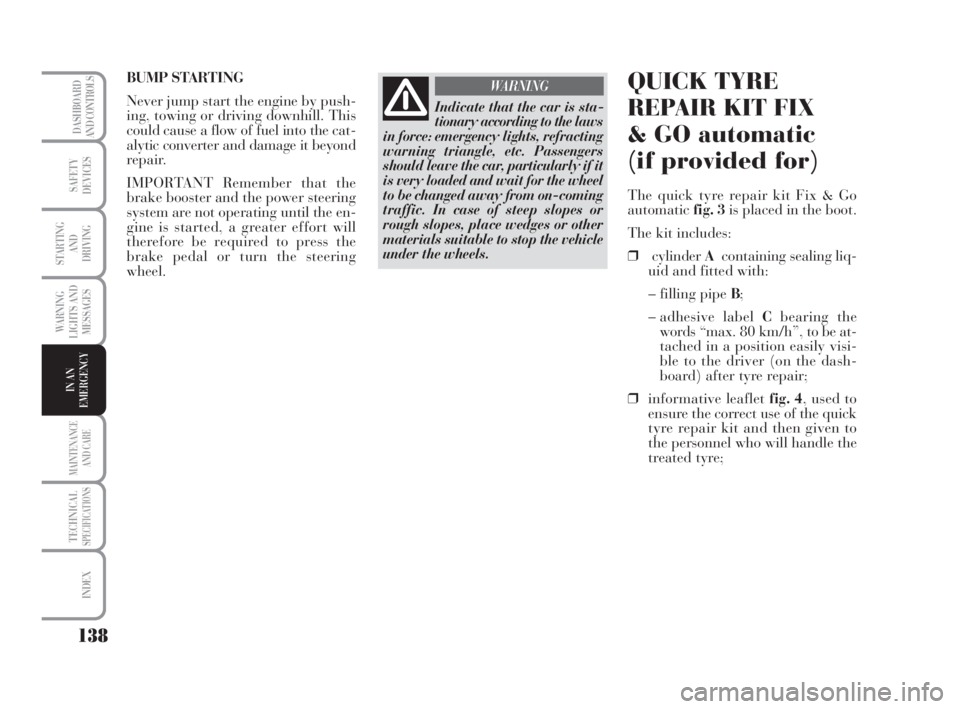

Indicate that the car is sta-
tionary according to the laws
in force: emergency lights, refracting
warning triangle, etc. Passengers
should leave the car, particularly if it
is very loaded and wait for the wheel
to be changed away from on-coming
traffic. In case of steep slopes or
rough slopes, place wedges or other
materials suitable to stop the vehicle
under the wheels.
WARNINGQUICK TYRE
REPAIR KIT FIX
& GO automatic
(if provided for)
The quick tyre repair kit Fix & Go
automaticfig. 3is placed in the boot.
The kit includes:
❒cylinderAcontaining sealing liq-
uid and fitted with:
– filling pipe B;
– adhesive label Cbearing the
words “max. 80 km/h”, to be at-
tached in a position easily visi-
ble to the driver (on the dash-
board) after tyre repair;
❒informative leaflet fig. 4, used to
ensure the correct use of the quick
tyre repair kit and then given to
the personnel who will handle the
treated tyre; BUMP STARTING
Never jump start the engine by push-
ing, towing or driving downhill. This
could cause a flow of fuel into the cat-
alytic converter and damage it beyond
repair.
IMPORTANT Remember that the
brake booster and the power steering
system are not operating until the en-
gine is started, a greater effort will
therefore be required to press the
brake pedal or turn the steering
wheel.
135-164 MUSA 1ed GB 10-07-2008 9:38 Pagina 138

141
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
For a more accurate reading,
check pressure gauge F-fig. 6with
the compressor off;
❒if after 5 minutes it is still impos-
sible to reach at least 1.5 bar, dis-
engage compressor from the valve
and current outlet and move the
car forward by approx. ten metres
in order to distribute the sealing
fluid inside the tyre evenly. Then
repeat the inflation operation;
❒If after this operation it is still im-
possible after 5 minutes to reach
at least 1.8 bar, do not start dri-
ving since the tyre is excessively
damaged and the quick tyre repair
kit cannot guarantee suitable seal-
ing, contact the Lancia Dealership;
fig. 8L0D0485m
Apply the adhesive label in
a position clearly visible by
the driver as a reminder that the tyre
has been treated with the quick re-
pair kit. Drive carefully, particularly
on bends. Do not exceed 80 km/h.
Do not accelerate and brake sharply.
WARNING
If the pressure has dropped
below 1.8 bar, do not con-
tinue to drive: the automatic Fix &
Go quick repair kit cannot work
properly because the tyre is exces-
sively damaged. Contact a Lancia
Dealership.
WARNING
❒if the tyre has been inflated to the
pressure in paragraph “Inflation
pressure” in section “Technical
Specifications”, resume driving
immediately;
❒after driving for about 10 minutes,
stop and check again the tyre
pressure again; remember to pull
the handbrake;
❒if, on the other hand, a pressure
of at least 1.8 bar pressure is read,
restore the correct (with engine
running and handbrake on) and
restart;
❒drive with the utmost care to the
nearest Lancia Dealership.
FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only. Release the
quick coupling and connect directly
to the tyre valve; in this way, the
cylinder will not be connected to the
compressor and no sealing fluid will
be injected.
135-164 MUSA 1ed GB 10-07-2008 9:38 Pagina 141

144
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
If the hub cap is not in-
stalled properly, it can de-
tach itself when the vehicle is run-
ning. Never tamper with the infla-
tion valve. Never introduce tools of
any kind between rim and tyre.
Check tyre and small spare wheel
pressure regularly referring to the
values shown in the “Technical
Specifications” chapter.
WARNINGImportant notes:
❒the jack cannot be repaired: re-
place with an original spare part if
damaged;
❒no tool other than its cranking de-
vice may be fitted on the jack.
To change a wheel proceed as follows:
❒stop the car in a position so that
it is not a danger for on-coming
traffic and where you can replace
the wheel safely. The ground must
be flat and compact;
❒turn the engine off and pull the
handbrake;
❒engage first gear or reverse;
❒raise the mat on the floor of the
baggage compartment;
❒loosen the fastener A-fig. 10;
❒take out the tool container Band
bring it near to the wheel to be
changed;
❒take the small spare wheel C;
L0D0161mfig. 10
135-164 MUSA 1ed GB 10-07-2008 9:38 Pagina 144

164
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
fig. 44L0D0251m
HOOKING THE TOW RING
Proceed as follows:
❒take the tow hook B-fig. 45from
its support;
❒tighten the ring on the rear or
front threaded pin.
fig. 45L0D0487m
fig. 46L0D0205m
The power brakes and the
electrical power steering
will not work while the car is being
towed. More effort on the brake
pedal and steering wheel will there-
fore be required. Do not use wires
for towing. Do not jerk. Make sure
not to damage parts in contact with
the car while towing. When towing
the vehicle, be sure to respect the
specific rules of the Highway Code
when towing the car specifically in
relation to the towing device and the
behaviour to maintain on the road.
WARNING
Before beginning the tow,
turn the ignition key to
MAR and then to STOP, without ex-
tracting it When the key is removed,
the steering wheel lock automati-
cally activates. making it impossible
to turn the wheels.
WARNING
During towing do not start
up the engine.
WARNING
135-164 MUSA 1ed GB 10-07-2008 9:38 Pagina 164

173
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
fig. 5 - 1.4 8V version(where provided)L0D0258mfig. 6 -1.416VversionL0D0208mfig. 7 - 1.3 Multijet versionL0D0209m
fig. 8 - 1.6 Multijet versionL0D0326m
ENGINE OIL fig. 5-6-7-8
Engine oil check
Check the oil level a few minutes
(about 5) after the engine has
stopped, with the car parked on level
ground.
The oil level must be included be-
tween the MINandMAXmarks on
the dipstick. The range between the
MINandMAXlevels corresponds to
approximately 1 litre of oil.Topping up the engine oil
If the oil level is near or under the
MINline, add oil through the filler to
reach the MAXline. Oil level shall
never exceed the MAXline.
IMPORTANT If, following the rou-
tine checks, the engine oil level is
found to be above the MAXline, con-
tact the Lancia Dealership in order to
have the correct level restored.
IMPORTANT After adding or chang-
ing the oil, before checking the level,
run the engine for a few seconds and
wait for a few minutes after it has
stopped.
165-186 MUSA 1ed GB 10-07-2008 9:39 Pagina 173

177
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
DIESEL FILTER
(green filter)
DISCHARGE OF THE
CONDENSATE (Multijet versions)
The presence of water in
the feeding circuit may
cause severe damage to the injection
system and irregular engine opera-
tion. If the warning lightcon the
display lights up (on some versions
with the message on the reconfig-
urable multifunctional display), go
to a Lancia Dealership as soon as
possible to have the system bled.
Water may have been introduced in
the tank if this appears immediately
after refuelling: in this case, stop the
engine immediately and contact a
Lancia Dealership.
WARNING
INSPECTING THE CHARGE
AND THE ELECTROLYTE
LEVEL
Inspection operations must be carried
out by specialised personnel, follow-
ing the prescriptions contained in the
Owner Handbook.
Any top-up operations must be carried
out exclusively by specialised person-
nel and by the Lancia Dealership.
Battery liquid is poisonous
and corrosive. Avoid contact
with the skin and eyes. Keep naked
flames or possible sources of sparks
away from the battery: risk of ex-
plosion or fire.
WARNING
BATTERY
The battery is of the “Limited main-
tenance” type: under normal condi-
tions of use the electrolyte does not
need topping up with distilled water.
165-186 MUSA 1ed GB 10-07-2008 9:39 Pagina 177

179
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
IMPORTANT If the charge level re-
mains for a long time under 50%, the
battery is damaged by sulphation, re-
ducing its capacity and starting atti-
tude.
The battery will also be more at risk
of freezing (e.g. already at –10°C).
Refer to the paragraph “Car inactiv-
ity” in “Starting and driving” if the
car is left parked for a long time.
If after buying the car, you want to in-
stall electric accessories which require
permanent electric supply (alarm,
etc.) contact the Lancia Dealership
whose qualified personnel, in addition
to suggesting the most suitable devices
beloning to the Lancia Lineaccessori
line, will evaluate the overall electric
absorption, checking whether the car’s
electric system is capable of with-
standing the load required, or whether
it should be integrated with a more
powerful battery.
Since these devices continue absorb-
ing energy even when the ignition key
is off, they gradually run down the
battery.WHEELS
AND TYRES
Check the pressure of each type, in-
cluding the spare, approximately once
every two weeks and before starting a
long journey: this check must be per-
formed with the tyre rested and cold.
It is normal for the pressure to in-
crease when the car is used; for the
correct tyre inflation pressure, see
“Wheels” in “Technical specifica-
tions” section.
Incorrect pressure causes abnormal
tyre wear:
A: normal pressure: evenly worn
tread.
B: low pressure: tread particularly
worn on the edges.
C: excessive pressure: tread particu-
larly worn in the middle.
The tyres must be replaced when the
tread is less than 1.6 mm thick. In all
cases, follow the laws in force in the
country where you are driving.IMPORTANT NOTES
❒Avoid braking suddenly, burning
starts and violent knocks against
the curb, potholes or other obsta-
cles if possible. Long distances on
rough roads may damage the
tyres;
❒check the tyres regularly for cuts
on the sides, swelling or irregular
tread wear. Go to a Lancia Deal-
ership if required;
❒do not overload your car: this may
cause serious damage to wheels
and tyres;
❒if a tyre is punctured, stop imme-
diately and charge it to avoid
damage to the tyre, the rim, sus-
pensions and steering system;
fig. 13L0D0216m
165-186 MUSA 1ed GB 10-07-2008 9:39 Pagina 179
