2009 KIA Sedona Owner's Manual

Page 57 of 356

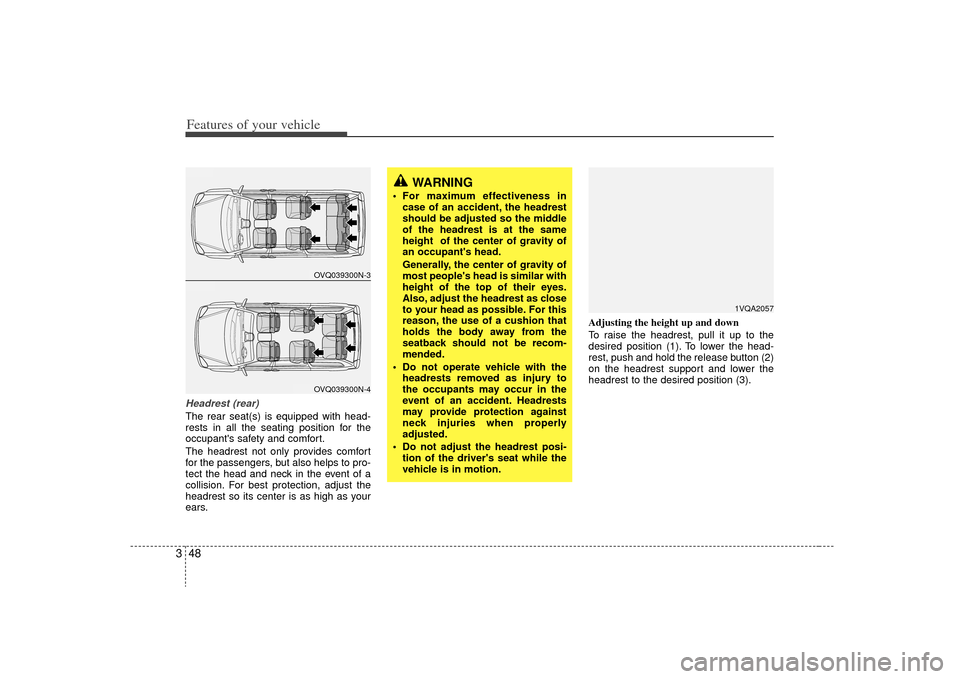

KIA Sedona 2009 2.G Owners Manual Features of your vehicle48
3Headrest (rear)The rear seat(s) is equipped with head-
rests in all the seating position for the
occupants safety and comfort.
The headrest not only provides comfort
for t

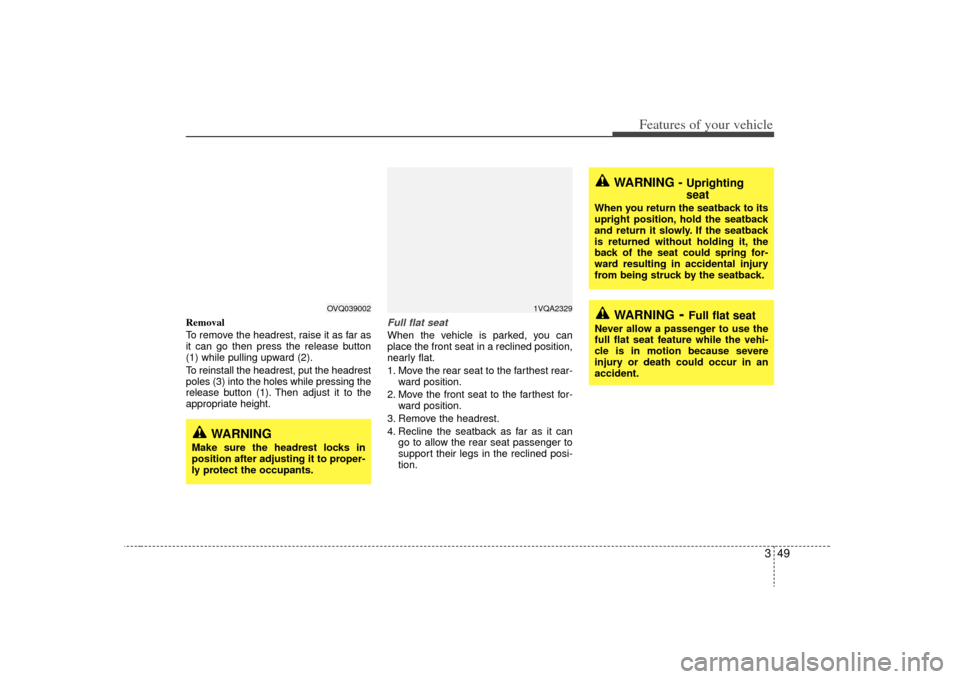

Page 58 of 356

KIA Sedona 2009 2.G Owners Manual 349
Features of your vehicle
Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
To reinstall the headrest, put the headrest
poles

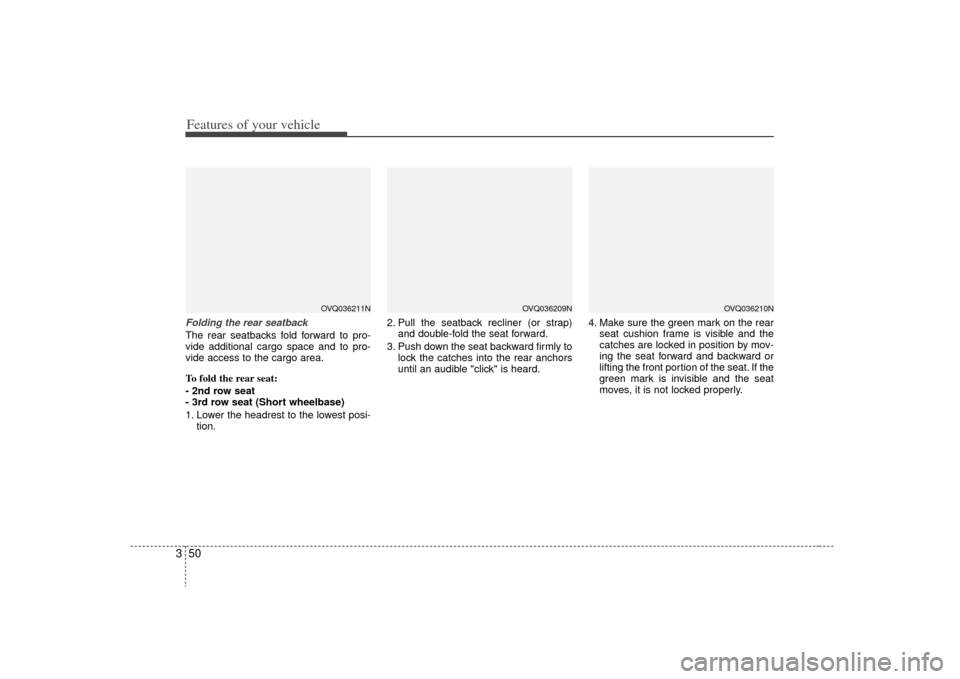

Page 59 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle50
3Folding the rear seatbackThe rear seatbacks fold forward to pro-
vide additional cargo space and to pro-
vide access to the cargo area.
To fold the rear seat:
- 2nd row sea

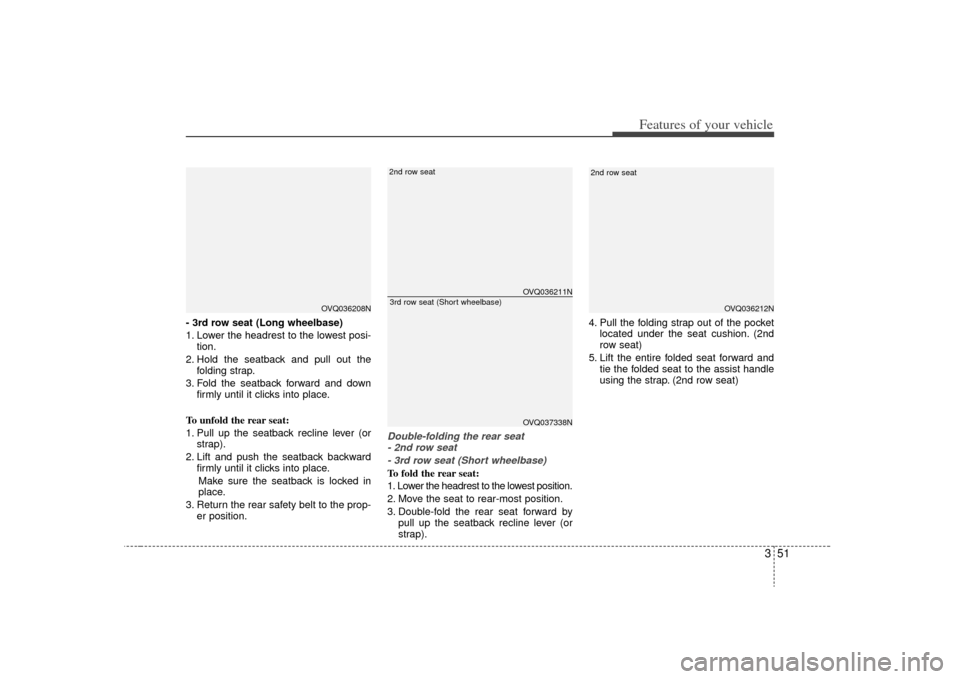

Page 60 of 356

KIA Sedona 2009 2.G Owners Manual 351
Features of your vehicle
- 3rd row seat (Long wheelbase)
1. Lower the headrest to the lowest posi-tion.
2. Hold the seatback and pull out the folding strap.
3. Fold the seatback forward and down f

Page 61 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle52
3To unfold the rear seat
1. Untie the strap from the assist handle
and insert the strap into the pocket.
(2nd row seat)
2. Push down the seat backward firmly to lock the cat

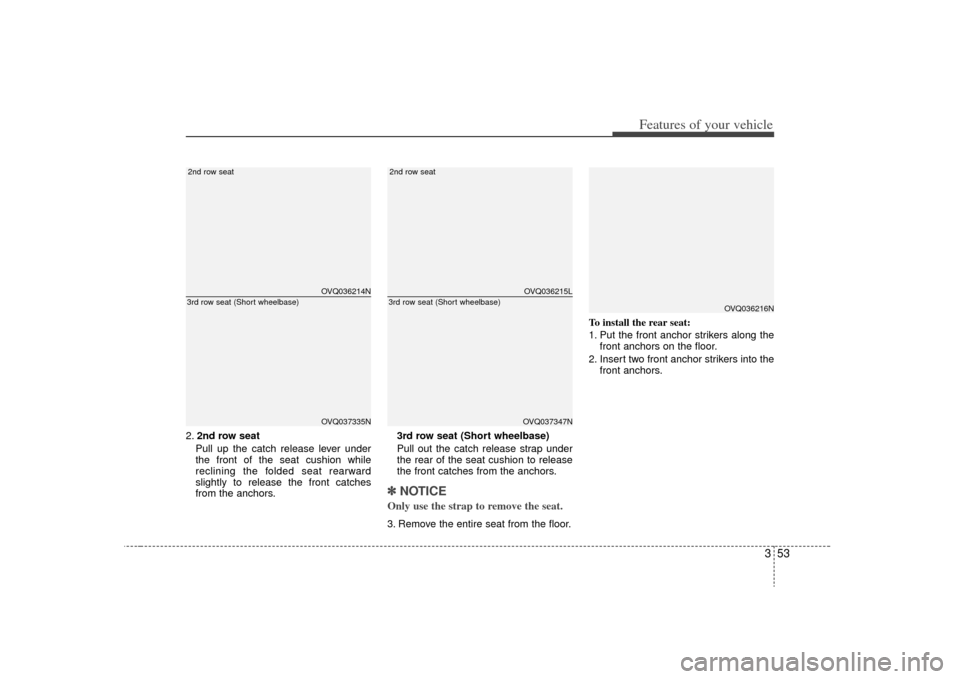

Page 62 of 356

KIA Sedona 2009 2.G Owners Manual 353
Features of your vehicle
2.2nd row seat
Pull up the catch release lever under
the front of the seat cushion while
reclining the folded seat rearward
slightly to release the front catches
from the

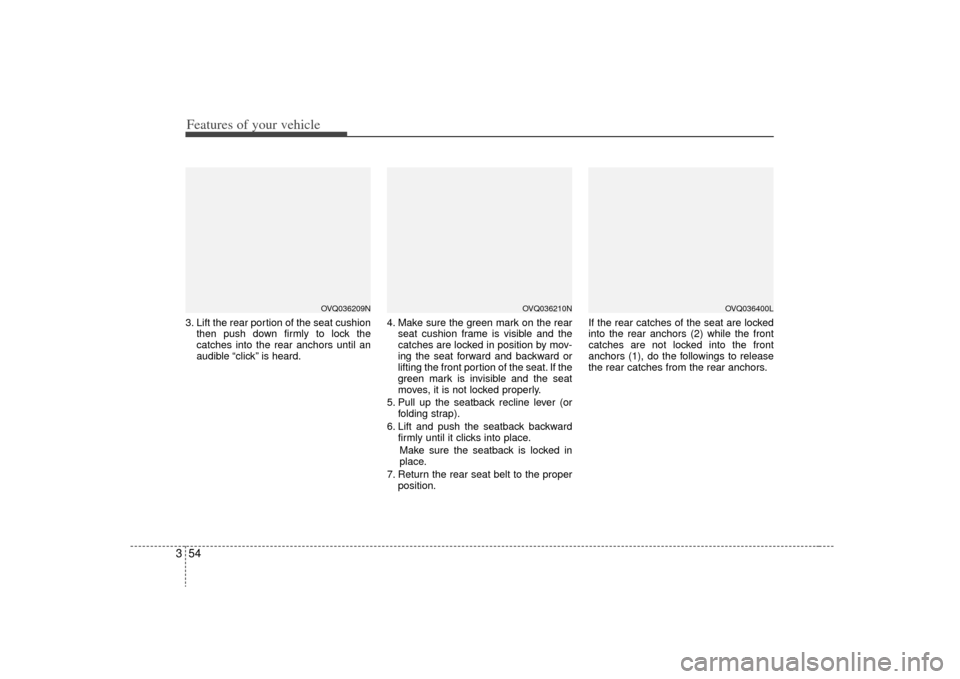

Page 63 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle54
33. Lift the rear portion of the seat cushion
then push down firmly to lock the
catches into the rear anchors until an
audible “click” is heard. 4. Make sure the green m

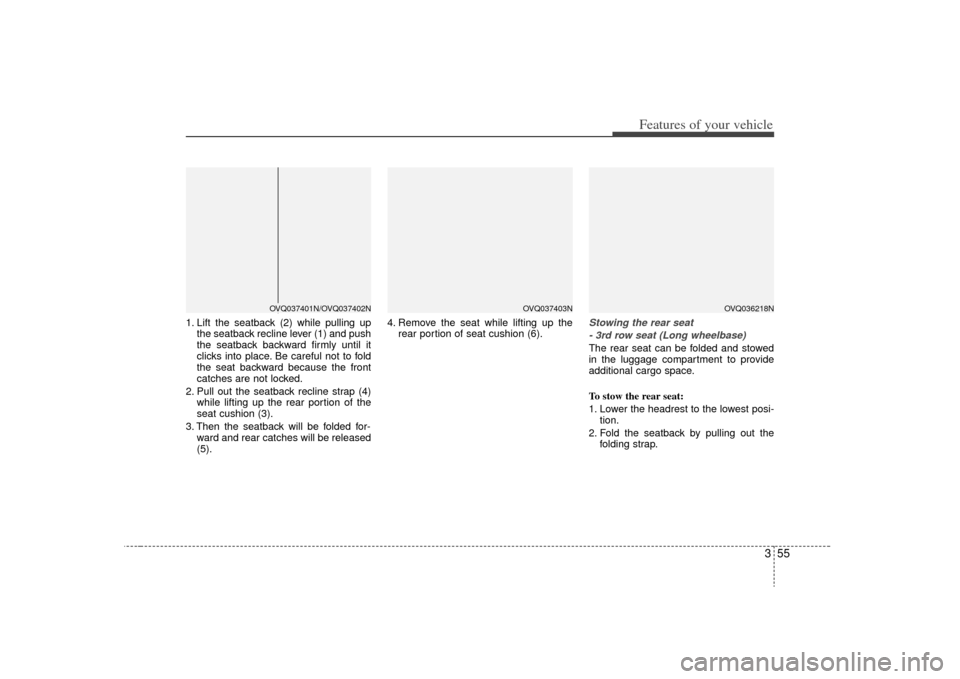

Page 64 of 356

KIA Sedona 2009 2.G Owners Manual 355
Features of your vehicle
1. Lift the seatback (2) while pulling upthe seatback recline lever (1) and push
the seatback backward firmly until it
clicks into place. Be careful not to fold
the seat b
