2009 KIA Sedona Owner's Manual

Page 49 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle40
3Seat cushion height (for driver’s seat)To change the height of the seat cushion,
push the lever up or down located on the
outside of the seat cushion.
 To lower the seat

Page 50 of 356

KIA Sedona 2009 2.G Owners Manual 341
Features of your vehicle
Forward and backward Push the control knob forward or back-
ward to move the seat to the desired
position. Release the knob once the seat
reaches to the desired position.

Page 51 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle42
3Seat cushion height (for driver’s seat)Push the control knob up to raise or
down to lower the seat cushion. Release
the knob once the seat reaches to the
desired position

Page 52 of 356

KIA Sedona 2009 2.G Owners Manual 343
Features of your vehicle
Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the drivers and
front passenger’s h

Page 53 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle44
3Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
To reinstall the headrest, put the headrest
poles (

Page 54 of 356

KIA Sedona 2009 2.G Owners Manual 345
Features of your vehicle

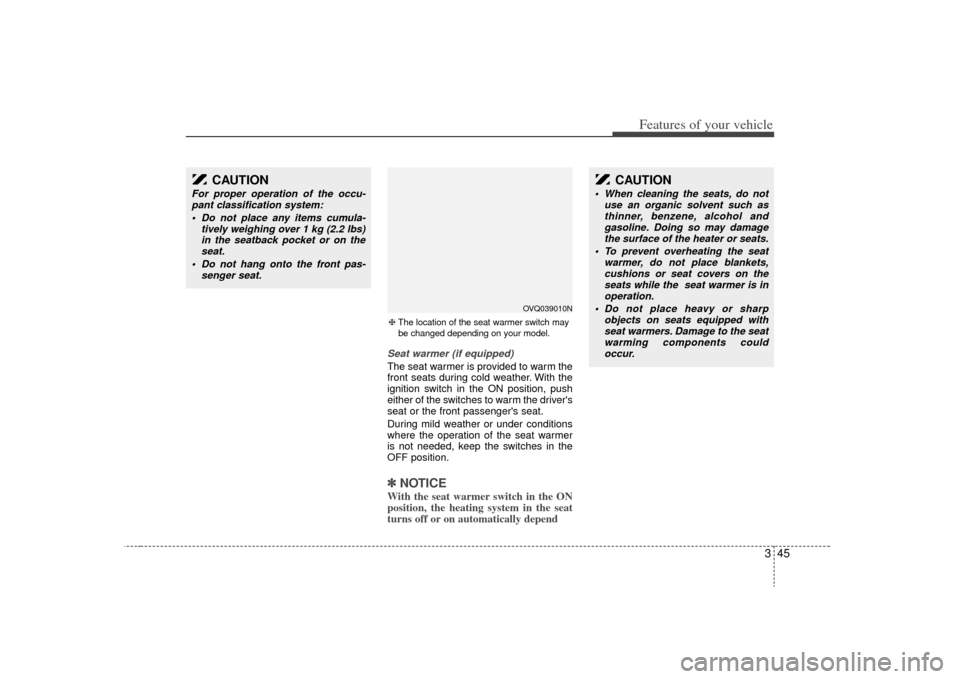

Seat warmer (if equipped)The seat warmer is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
either of the switches

Page 55 of 356

KIA Sedona 2009 2.G Owners Manual Features of your vehicle46
3
Lumbar support (driver’s seat only)
(if equipped)You can adjust the lumbar support by
moving the lever on the outside of the dri-
ver’s seatback. Pivoting the lever in

Page 56 of 356

KIA Sedona 2009 2.G Owners Manual 347
Features of your vehicle
Seatback angleTo recline the  seatback:
1. Lean forward slightly and lift up on theseatback recline lever (or strap) locat-
ed on the outside of the seat at the
rear.
2. C
