2009 KIA Borrego Owner's Manual

Maintenance48
7
Description Fuse rating Protected component
START7.5A Burglar Alarm Relay, Start Relay
AIR BAG IND. 7.5A Instrument Cluster (Air Bag IND.)
ABS 7.5AABS Control Module, ESC Control Module, DBC Relay, Steering Angle Sensor, Crash Pad Switch LH,
Smart Key Control Module, Rear Parking Assist Control Module
Rheostat, Instrument Cluster (MICOM), Multifunction Switch (Cruise Remocon), Generator,
IGN 1 7.5A Rear Parking Assist Buzzer, Rear Parking Assist Switch, Audio, PODS Module,
Tire Pressure Monitoring Module
ENG 7.5AMultipurpose Check Connector, ECM, TCM, Front Wiper Motor, 4WD ECM, Stop Lamp Switch,
Free Running Differential Air Pump, Generator (G8BA)
AIR BAG 15A SRS Control Module, Telltale Lamp
DDM 30A Driver Door Module, Driver Safety Power Window Motor
ADM 30A Assistant Door Module, Passenger Safety Power Window Motor

749
Maintenance
Inner fuse panel (Luggage compartment)
FUSE Fuse ratingCircuit Protected
RR DEFOG25A RR Defog Relay, Rear Defogger (+)
T/G POWER LATCH 30A Tail Gate Control Module
RR WIPER 15A Rear Wiper Motor Relay (+), Rear Wiper Motor
DOOR LOCK 15A Rear Door Lock Actuator LH/RH, Rear Door Lock/Unlock Relay
CTR P/OUT 15A Console Power Outlet
RR P/OUT 15A Rear Power Outlet
FUEL DR 15A Fuel Door Relay, Fuel Filler Door Actuator
TRAILER3 15A Tail Lamp Converter (Back up)
RR P/WIN-LH 20A Rear Power Window Relay LH(UP/DH), Rear Power Window Motor LH
RR P/WIN-RH 20A Rear Power Window Relay RH(UP/DH), Rear Power Window Motor RH(DN)
LUGGAGE 7.5A Luggage Lamp
AMP 30A AMP
TRAILER2 30A Tail Lamp Converter (Tail)

Maintenance50
7Engine compartment main fuse panel
Description Fuse rating Protected component
FRT/RR WASHER 10A Front/Rear Washer Motor Relay, Washer Motor
TRAILER 5 15A Tail Lamp Converter (Turn/Stop)
STOP LAMP 20A Stop Lamp Switch, DBC Relay
KEY SW 1 25A Ignition Switch, PDM Relay Box (IG1 Relay , ACC Relay)
STOP SIGNAL 7.5A ABS Control Module, ESC Control Module, ECM, Smart Key Control Module
A/C COMP 7.5A A/C Comp Relay
FRT DEICER 15A Front Deicer Relay
HORN 15A Horn Relay
ECU 1 10A ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN 10A Oxygen Sensor #3,#4
ECU 2 15A Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve, Canister Close Valve
O2 UP 10A Oxygen Sensor #1,#2
IGN COIL 20A Ignition Coil #1~#8, Condenser #1,#2
INJECTOR 15A ECM, Injector #1~#8, Camshaft Position Sensor #1 ~ #3 (G8BA)
P/TRAIN 7.5A ECM, Main Relay, Relay Box(Burglar Horn Relay), Generator (G8BA)
FUEL PUMP 15A Fuel Pump Relay, Fuel Sender & Fuel Pump Motor
ATM 15A TCM

751
Maintenance
Description Fuse ratingProtected component
ABS 240A ABS Control Module
ABS 1 40A ABS Control Module
PDM 20A PDM
FRT WIPER 30A Front Wiper ON Relay, Front Wiper HI/LO Relay
KEY SW 2 30A Start Relay #1, Ignition Switch, PDM Relay Box (IG2 Relay)
RAM 1 50ARAM(CTR P/OUT FUSE 15A, RR P/OUT FUSE 15A, FUEL DR FUSE 15A, RR P/WIN-L\
H FUSE 20A,
RR P/WIN-RH FUSE 20A, LUGGAGE FUSE 7.5A)
RAM 2 50ARAM(RR DEFOG FUSE 25A, T/G POWER LATCH FUSIBLE LINK 30A, DOOR LOCK FUSE 15A,
RR WIPER FUSE 15A)
RAM 3 50A RAM (AMP FUSIBLE LIMK 30A TRAILER 2 FUSIBLE LINK 30A)
IPM 1 50AIPM (ILLUMI FUSE 7.5A, DDM FUSIBLE LINK 30A, FRT S/WARMER FUSE 20A, OBD-II FUSE 7.5A,
SUNROOF FUSE 25A, KEY LOCK FUSE 7.5A)
IPM 2 50A IPM (ADM FUSIBLE LINK 30A, F/PWR OUTLET FUSE 15A, PEDAL FUSE 15A, S/TILT & TELE FUSE 20A)
IPM 3 50AIPM (MEMORY FUSE 7.5A, DRIVER P/SEAT FUSE 30A, PASS P/SEAT FUSE 20A,
RR S/WARMER FUSE 20A, ROOM FUSE 7.5A, AUDIO FUSE 15A)
4WD 30A 4WD ECM
AC 110V 30A AC inverter module

Maintenance52
7Engine compartment sub fuse panel
Description Fuse rating Protected component
C/FAN LOW30A C/Fan Low Relay
E/BRAKE 30A Trailer Electric Brake
FRONT BLOWER 40A Front Blower Relay
REAR BLOWER 30A Rear Blower Relay
C/FAN HI 60A C/Fan Hi Relay
TRAILER 1 30A Trailer Relay

753
Maintenance

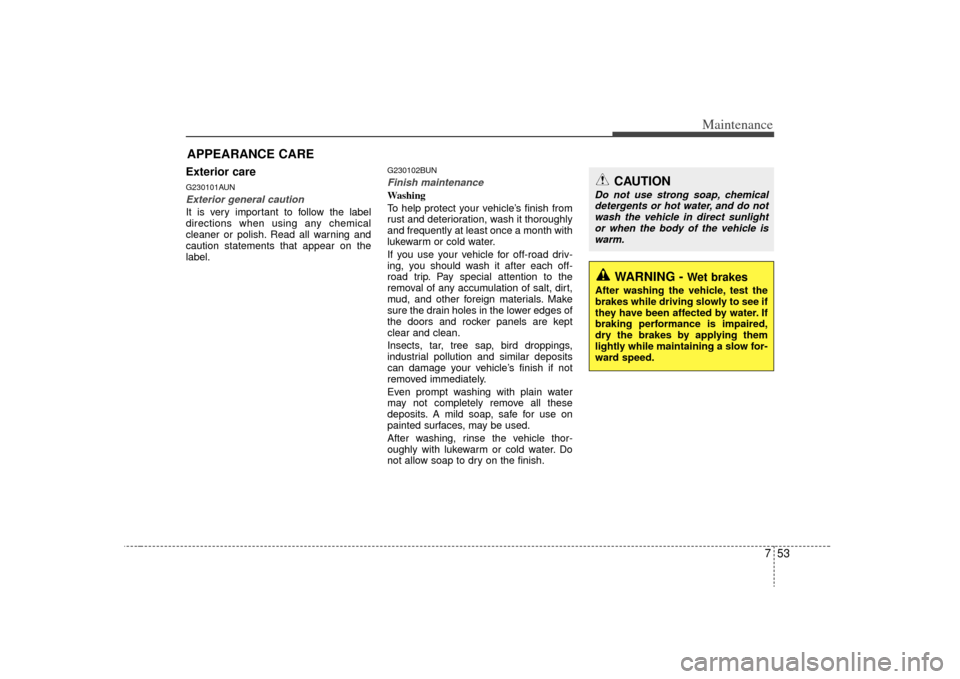

APPEARANCE CAREExterior careG230101AUNExterior general caution It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
G230102BUNFinish maintenanceWashing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month with
lukewarm or cold water.
If you use your vehicle for off-road driv-
ing, you should wash it after each off-
road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges of
the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water. Do
not allow soap to dry on the finish.
CAUTION
Do not use strong soap, chemicaldetergents or hot water, and do notwash the vehicle in direct sunlightor when the body of the vehicle is warm.
WARNING -
Wet brakes
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired,
dry the brakes by applying them
lightly while maintaining a slow for-
ward speed.

Maintenance54
7

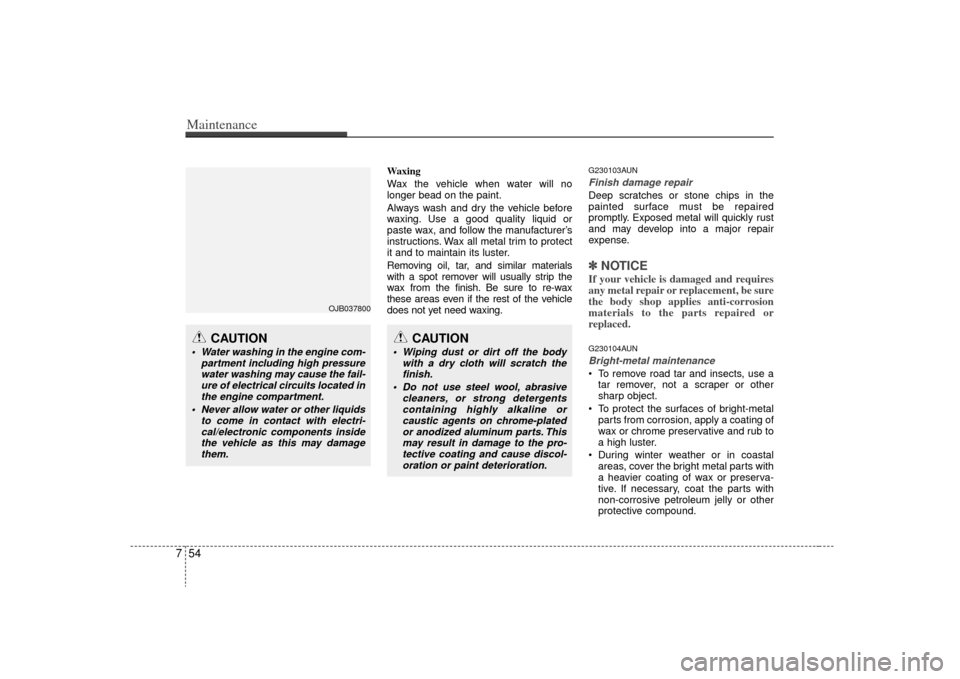

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle before
waxing. Use a good quality liquid or
paste wax, and follow the manufacturer’s
instructions. Wax all metal trim to protect
it and to maintain its luster.
Removing oil, tar, and similar materials
with a spot remover will usually strip the
wax from the finish. Be sure to re-wax
these areas even if the rest of the vehicle
does not yet need waxing.
G230103AUNFinish damage repair Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly rust
and may develop into a major repair
expense.✽ ✽
NOTICEIf your vehicle is damaged and requires
any metal repair or replacement, be sure
the body shop applies anti-corrosion
materials to the parts repaired or
replaced. G230104AUNBright-metal maintenance To remove road tar and insects, use a
tar remover, not a scraper or other
sharp object.
To protect the surfaces of bright-metal parts from corrosion, apply a coating of
wax or chrome preservative and rub to
a high luster.
During winter weather or in coastal areas, cover the bright metal parts with
a heavier coating of wax or preserva-
tive. If necessary, coat the parts with
non-corrosive petroleum jelly or other
protective compound.
CAUTION
Water washing in the engine com- partment including high pressurewater washing may cause the fail-ure of electrical circuits located in the engine compartment.
Never allow water or other liquids to come in contact with electri-cal/electronic components insidethe vehicle as this may damagethem.
CAUTION
Wiping dust or dirt off the body with a dry cloth will scratch thefinish.
Do not use steel wool, abrasive cleaners, or strong detergentscontaining highly alkaline or caustic agents on chrome-platedor anodized aluminum parts. This may result in damage to the pro-tective coating and cause discol-oration or paint deterioration.
OJB037800

755
Maintenance

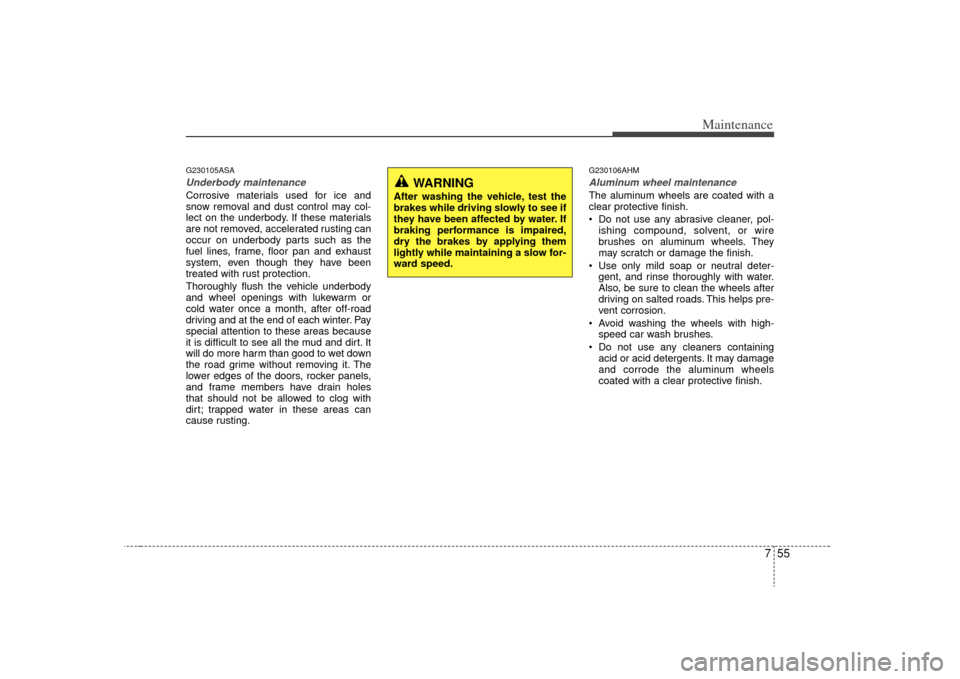

G230105ASAUnderbody maintenanceCorrosive materials used for ice and
snow removal and dust control may col-
lect on the underbody. If these materials
are not removed, accelerated rusting can
occur on underbody parts such as the
fuel lines, frame, floor pan and exhaust
system, even though they have been
treated with rust protection.
Thoroughly flush the vehicle underbody
and wheel openings with lukewarm or
cold water once a month, after off-road
driving and at the end of each winter. Pay
special attention to these areas because
it is difficult to see all the mud and dirt. It
will do more harm than good to wet down
the road grime without removing it. The
lower edges of the doors, rocker panels,
and frame members have drain holes
that should not be allowed to clog with
dirt; trapped water in these areas can
cause rusting.
G230106AHMAluminum wheel maintenance The aluminum wheels are coated with a
clear protective finish.
Do not use any abrasive cleaner, pol-ishing compound, solvent, or wire
brushes on aluminum wheels. They
may scratch or damage the finish.
Use only mild soap or neutral deter- gent, and rinse thoroughly with water.
Also, be sure to clean the wheels after
driving on salted roads. This helps pre-
vent corrosion.
Avoid washing the wheels with high- speed car wash brushes.
Do not use any cleaners containing acid or acid detergents. It may damage
and corrode the aluminum wheels
coated with a clear protective finish.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired,
dry the brakes by applying them
lightly while maintaining a slow for-
ward speed.
