operation, press the button a second time. To prevent
excessive battery drain, use the defroster only when the
engine is operating.
CAUTION!
Use care when washing the inside of the rear window
to prevent damage to heating elements. Use a soft
cloth and a mild washing solution, wiping parallel to
the heating elements. Also, keep all objects a safe
distance from the window to prevent damaging the
heating elements.
ROOF LUGGAGE RACK — IF EQUIPPED
External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the rated vehicle capacity.This vehicle is not equipped with roof rack cross rails as
built, unless ordered as optional equipment. Cross rails
must be installed prior to carrying loads on the roof rack.
If not equipped, your authorized dealer can order and
install Moparcross rails built specifically for this roof
rack system or a number of aftermarket rails that are
tailored to your lifestyle or activities.
NOTE:The optional cross rails have seven specific
locations identified by a feature on both the side rail and
the cross rail. Cross rails must be secured in one of the
seven detent locations on the side rail to prevent move-
ment with a sudden stop. For improved wind noise
performance when cross rails are not in use, place them
in detent positions two (second detent from the front of
the vehicle) and seven (detent closest to the rear of the
vehicle) as indicated with a unique feature on the side
rails.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3

CAUTION!
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without
cross rails installed. The load should be secured
and placed on top of the cross rails, not directly on
the roof. If it is necessary to place the load on the
roof, place a blanket or some other protection
between the load and the roof surface.
•To avoid damage to the roof rack and vehicle, do
not exceed the rated load capacity of your cross rail
system or the roof rack system maximum load
capacity of 150 lbs (68 kg). Always distribute
heavy loads as evenly as possible and secure the
load appropriately.
•Long loads which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
(Continued)
CAUTION! (Continued)
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward loads.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied down before driving
your vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
“Cautions” when carrying cargo on your roof rack.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features................ 165
Instrument Cluster – Premium............ 166
Instrument Cluster Descriptions............ 167
Electronic Vehicle Information Center (EVIC) —
If Equipped........................... 179
▫Engine Oil Change Indicator System....... 180
▫EVIC Functions...................... 181
▫Compass/Temperature/Audio........... 182▫Average Fuel Economy................ 182
▫Distance To Empty (DTE)............... 183
▫Elapsed Time....................... 183
▫Tire Pressure Monitor (TPM)............. 183
▫Personal Settings (Customer-Programmable
Features)........................... 183
Electronic Digital Clock................. 189
▫Clock Setting Procedure................ 1894

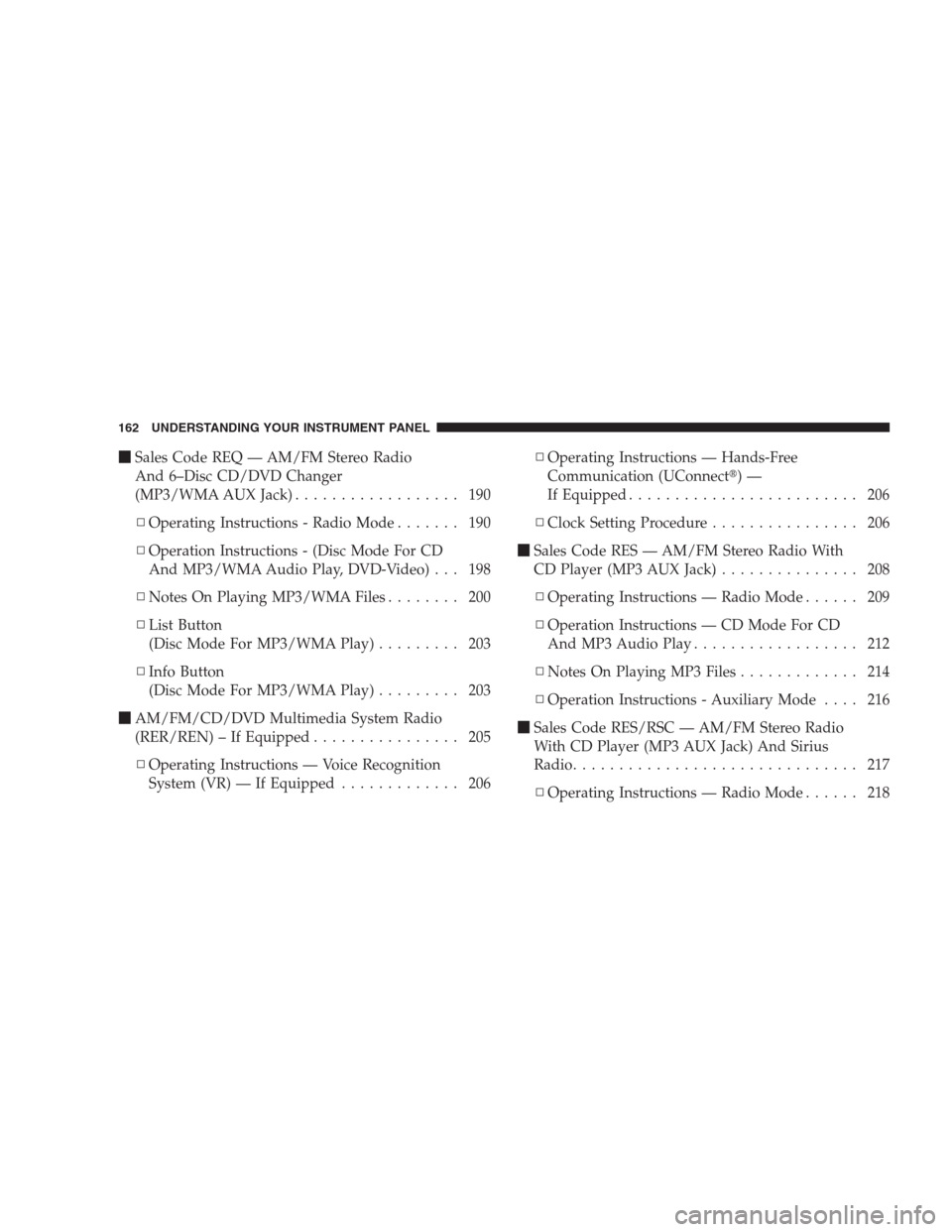

Sales Code REQ — AM/FM Stereo Radio
And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack).................. 190
▫Operating Instructions - Radio Mode....... 190
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 198
▫Notes On Playing MP3/WMA Files........ 200
▫List Button
(Disc Mode For MP3/WMA Play)......... 203
▫Info Button
(Disc Mode For MP3/WMA Play)......... 203
AM/FM/CD/DVD Multimedia System Radio
(RER/REN) – If Equipped................ 205
▫Operating Instructions — Voice Recognition
System (VR) — If Equipped............. 206▫Operating Instructions — Hands-Free
Communication (UConnect)—
If Equipped......................... 206
▫Clock Setting Procedure................ 206
Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)................ 208
▫Operating Instructions — Radio Mode...... 209
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play.................. 212
▫Notes On Playing MP3 Files............. 214
▫Operation Instructions - Auxiliary Mode.... 216
Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio............................... 217
▫Operating Instructions — Radio Mode...... 218
162 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Operation Instructions — CD Mode For CD
And MP3 Audio Play.................. 223
▫Notes On Playing MP3 Files............. 225
▫List Button (CD Mode For MP3 Play)...... 228
▫Info Button (CD Mode For MP3 Play)...... 228
Universal Consumer Interface (UCI) —
If Equipped........................... 229
▫Connecting The iPod................. 230
▫Using This Feature................... 230
▫Controlling The iPodUsing Radio
Buttons............................ 231
▫Play Mode......................... 231

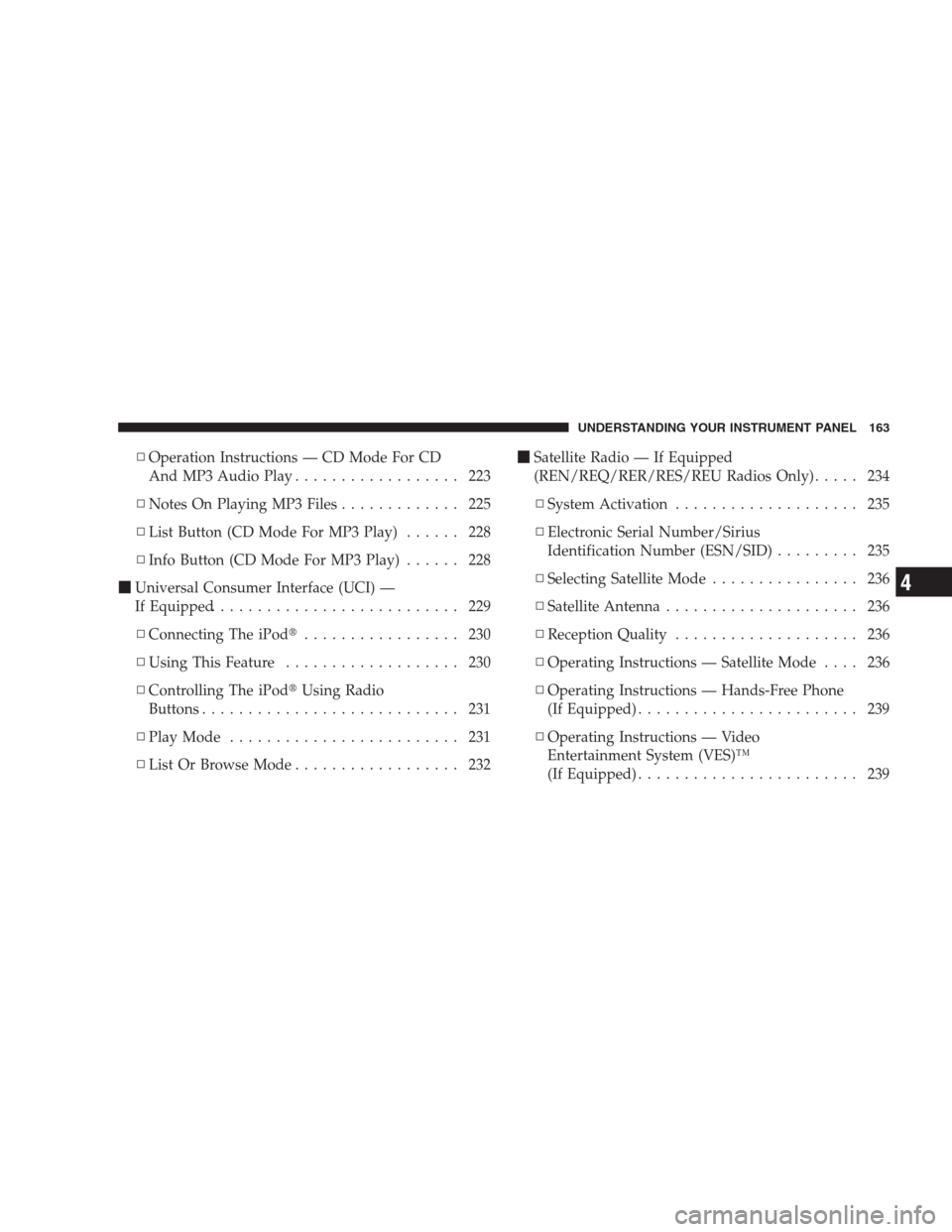

▫List Or Browse Mode.................. 232Satellite Radio — If Equipped
(REN/REQ/RER/RES/REU Radios Only)..... 234
▫System Activation.................... 235
▫Electronic Serial Number/Sirius
Identification Number (ESN/SID)......... 235
▫Selecting Satellite Mode................ 236
▫Satellite Antenna..................... 236
▫Reception Quality.................... 236
▫Operating Instructions — Satellite Mode.... 236
▫Operating Instructions — Hands-Free Phone
(If Equipped)........................ 239
▫Operating Instructions — Video
Entertainment System (VES)™
(If Equipped)........................ 239
UNDERSTANDING YOUR INSTRUMENT PANEL 163
4

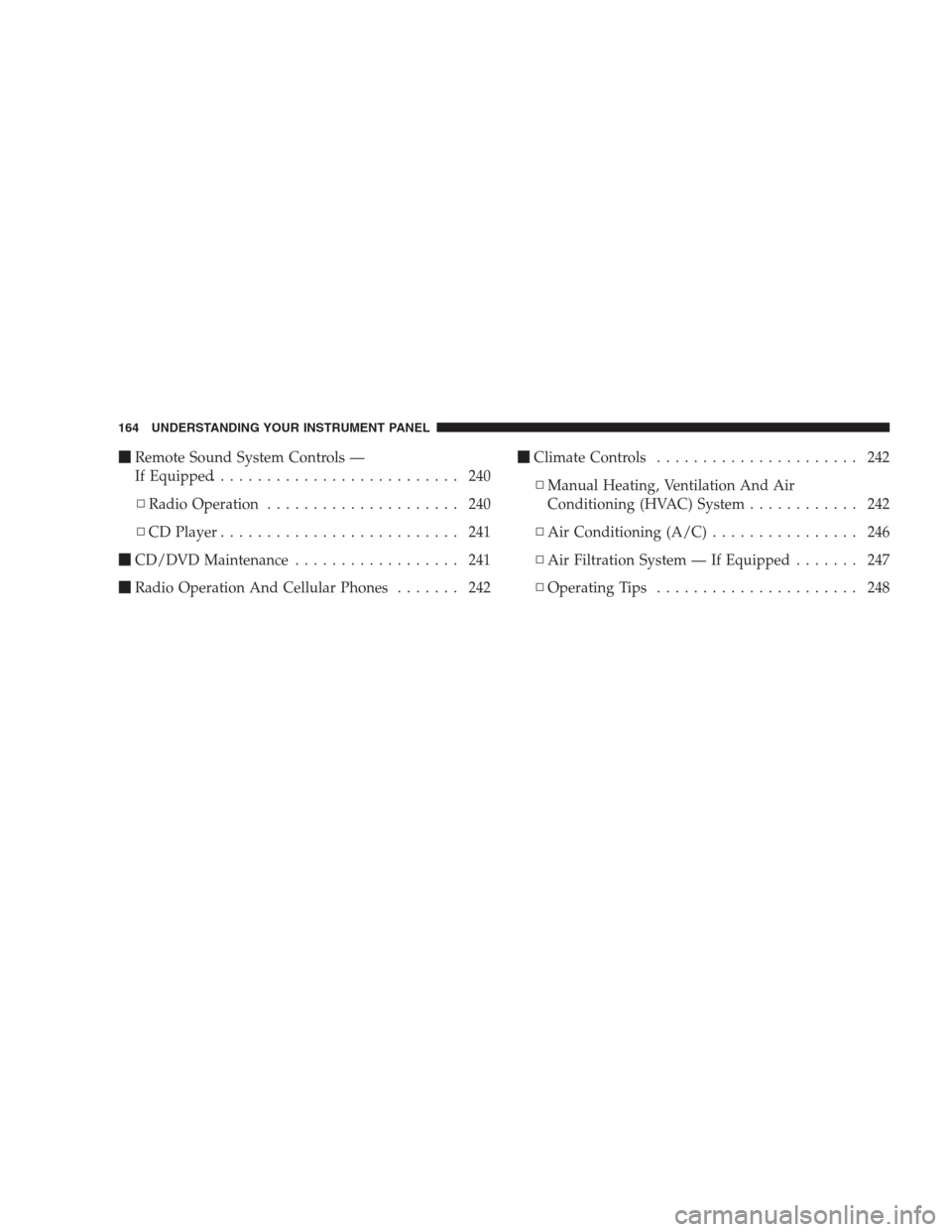

Remote Sound System Controls —
If Equipped........................... 240
▫Radio Operation..................... 240
▫CD Player.......................... 241
CD/DVD Maintenance.................. 241
Radio Operation And Cellular Phones....... 242Climate Controls...................... 242
▫Manual Heating, Ventilation And Air
Conditioning (HVAC) System............ 242
▫Air Conditioning (A/C)................ 246
▫Air Filtration System — If Equipped....... 247
▫Operating Tips...................... 248
164 UNDERSTANDING YOUR INSTRUMENT PANEL

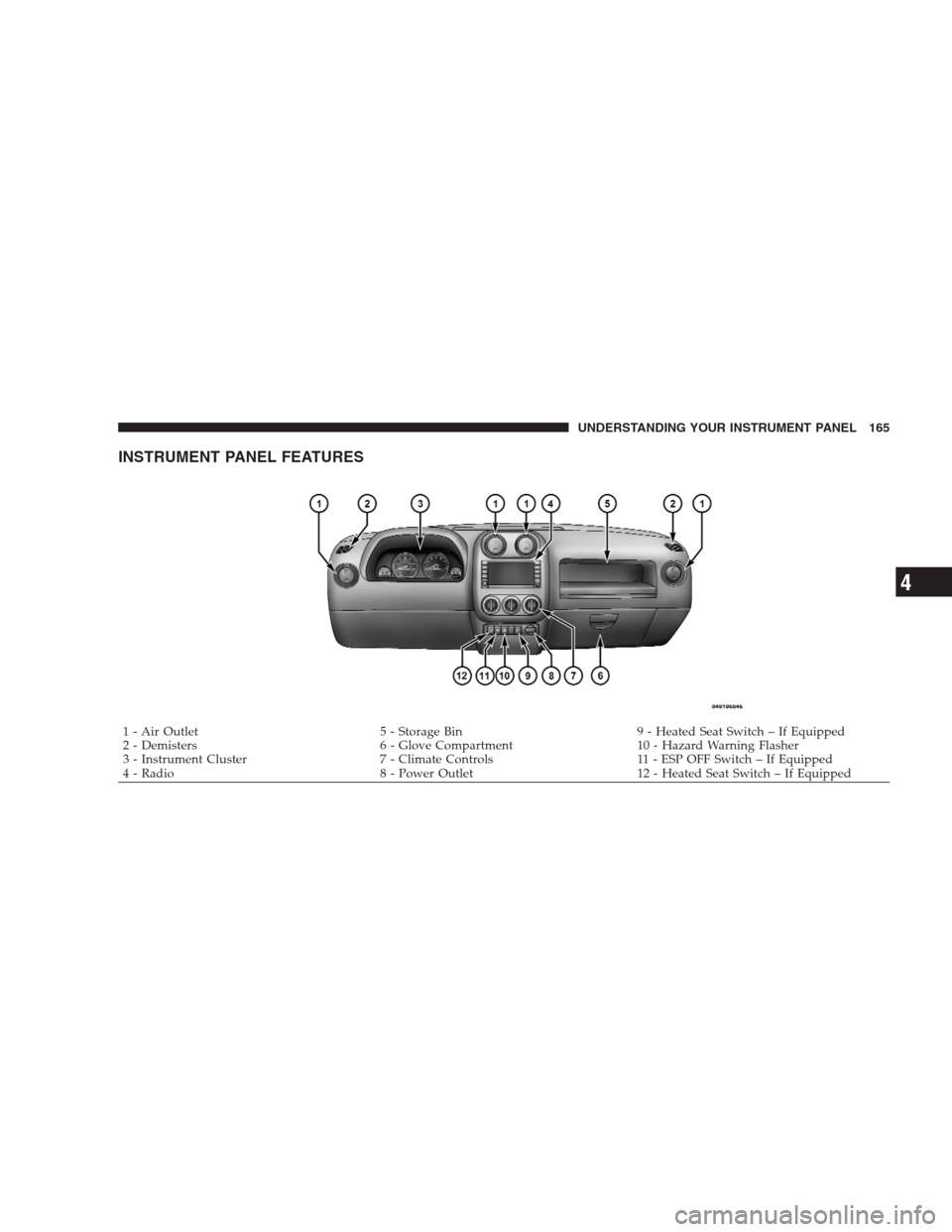

INSTRUMENT PANEL FEATURES
1 - Air Outlet 5 - Storage Bin 9 - Heated Seat Switch – If Equipped
2 - Demisters 6 - Glove Compartment 10 - Hazard Warning Flasher
3 - Instrument Cluster 7 - Climate Controls 11 - ESP OFF Switch – If Equipped
4 - Radio 8 - Power Outlet 12 - Heated Seat Switch – If EquippedUNDERSTANDING YOUR INSTRUMENT PANEL 165
4

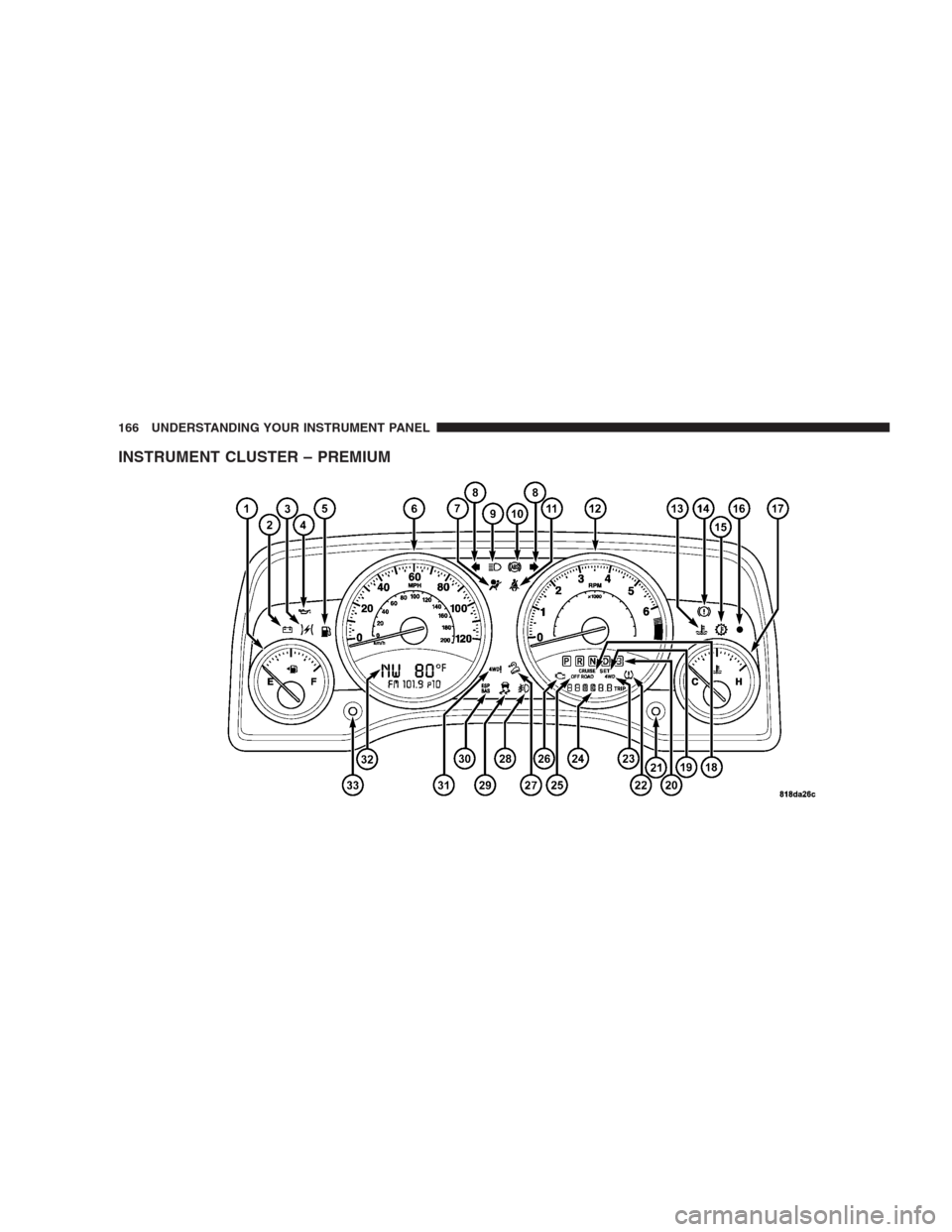

INSTRUMENT CLUSTER – PREMIUM
