2009 JEEP PATRIOT Owners Manual

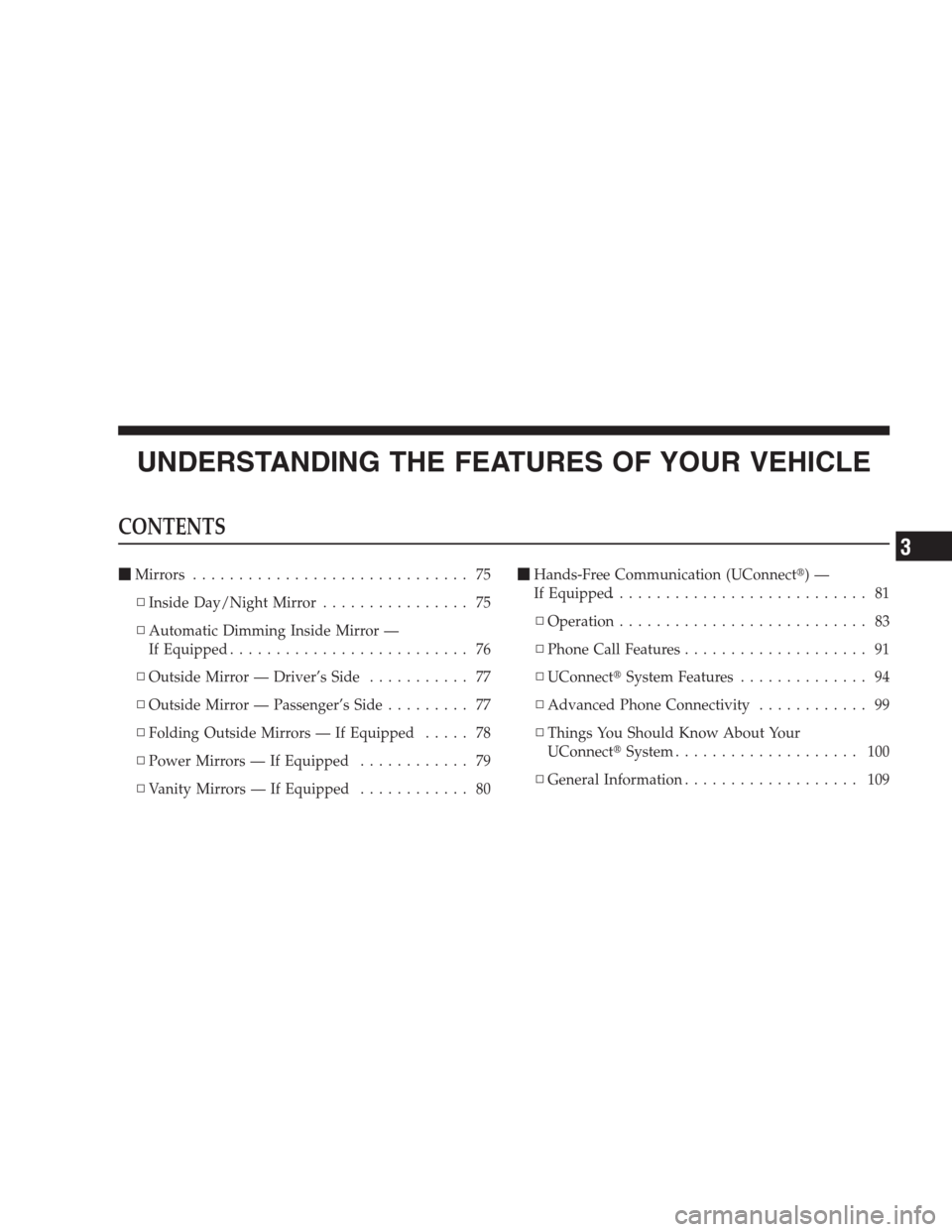

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors.............................. 75
▫Inside Day/Night Mirror................ 75
▫Automatic Dimming Inside Mirror —
If Equipped.......................... 76
▫Outside Mirror — Driver’s Side........... 77
▫Outside Mirror — Passenger’s Side......... 77
▫Folding Outside Mirrors — If Equipped..... 78
▫Power Mirrors — If Equipped............ 79
▫Vanity Mirrors — If Equipped............ 80Hands-Free Communication (UConnect)—
If Equipped............................ 81
▫Operation........................... 83
▫Phone Call Features.................... 91
▫UConnectSystem Features.............. 94
▫Advanced Phone Connectivity............ 99
▫Things You Should Know About Your
UConnectSystem.................... 100
▫General Information................... 109
3

Voice Recognition System (VR) —
If Equipped........................... 109
▫Voice Recognition System (VR) Operation . . . 109
▫Commands..........................111
▫Voice Training....................... 114
Seats............................... 114
▫Front Seat Adjustment................. 114
▫Manual Seat Height Adjustment —
If Equipped......................... 115
▫Manual Lumbar — If Equipped.......... 116
▫Driver’s Seatback Recline............... 116
▫Adjustable Head Restraints.............. 117
▫Heated Seats — If Equipped............. 117
▫Fold-Flat Front Passenger Seat........... 119▫Folding Rear Seat.................... 120
To Open And Close The Hood............. 121
Lights.............................. 123
▫Multifunction Lever................... 123
▫Headlights, Parking Lights And Instrument
Panel Lights........................ 123
▫Lights-On Reminder.................. 124
▫Fog Lights — If Equipped.............. 124
▫Daytime Running Lights (DRL) —
If Equipped......................... 125
▫Turn Signals........................ 126
▫High Beam/Low Beam Select Switch....... 126
▫Flash-To-Pass....................... 127
▫Off-Road Lights — If Equipped.......... 127

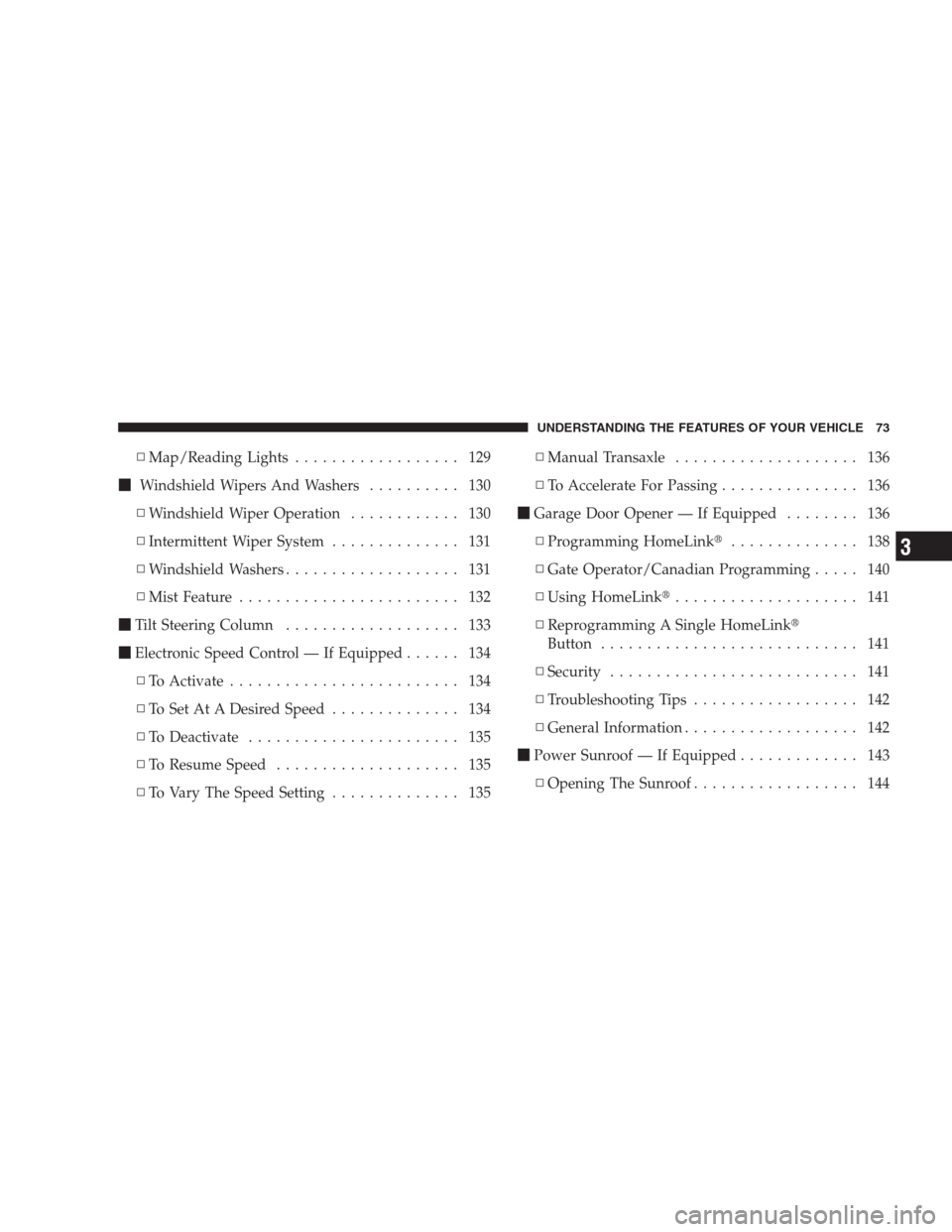

72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Map/Reading Lights.................. 129
Windshield Wipers And Washers.......... 130
▫Windshield Wiper Operation............ 130
▫Intermittent Wiper System.............. 131
▫Windshield Washers................... 131
▫Mist Feature........................ 132
Tilt Steering Column................... 133
Electronic Speed Control — If Equipped...... 134
▫To Activate......................... 134
▫To Set At A Desired Speed.............. 134
▫To Deactivate....................... 135
▫To Resume Speed.................... 135
▫To Vary The Speed Setting.............. 135▫Manual Transaxle.................... 136
▫To Accelerate For Passing............... 136
Garage Door Opener — If Equipped........ 136
▫Programming HomeLink.............. 138
▫Gate Operator/Canadian Programming..... 140
▫Using HomeLink.................... 141
▫Reprogramming A Single HomeLink
Button............................ 141
▫Security........................... 141
▫Troubleshooting Tips.................. 142
▫General Information................... 142
Power Sunroof — If Equipped............. 143
▫Opening The Sunroof.................. 144
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3

▫Closing The Sunroof.................. 144
▫Pinch Protect Feature.................. 144
▫Pinch Protect Override................. 145
▫Venting Sunroof — Express............. 145
▫Sunshade Operation................... 145
▫Wind Buffeting...................... 145
▫Sunroof Maintenance.................. 146
▫Ignition Off Operation................. 146
Electrical Power Outlets................. 146
Power Inverter — If Equipped............ 148
Cupholders.......................... 150
Storage............................. 151
▫Glove Compartment And Storage Bin...... 151▫Door Storage — If Equipped............. 152
Console Features...................... 153
Cargo Area Features.................... 154
▫Cargo Light/Removable Self-Recharging
Flashlight — If Equipped............... 154
▫Cargo Cover — If Equipped............. 155
▫Removable Load Floor................. 156
▫Cargo Tie-Down Loops................ 156
▫Fold Down Speakers — If Equipped....... 157
Rear Window Features.................. 157
▫Rear Window Wiper/Washer............ 157
▫Rear Window Defroster................ 158
Roof Luggage Rack — If Equipped......... 159
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

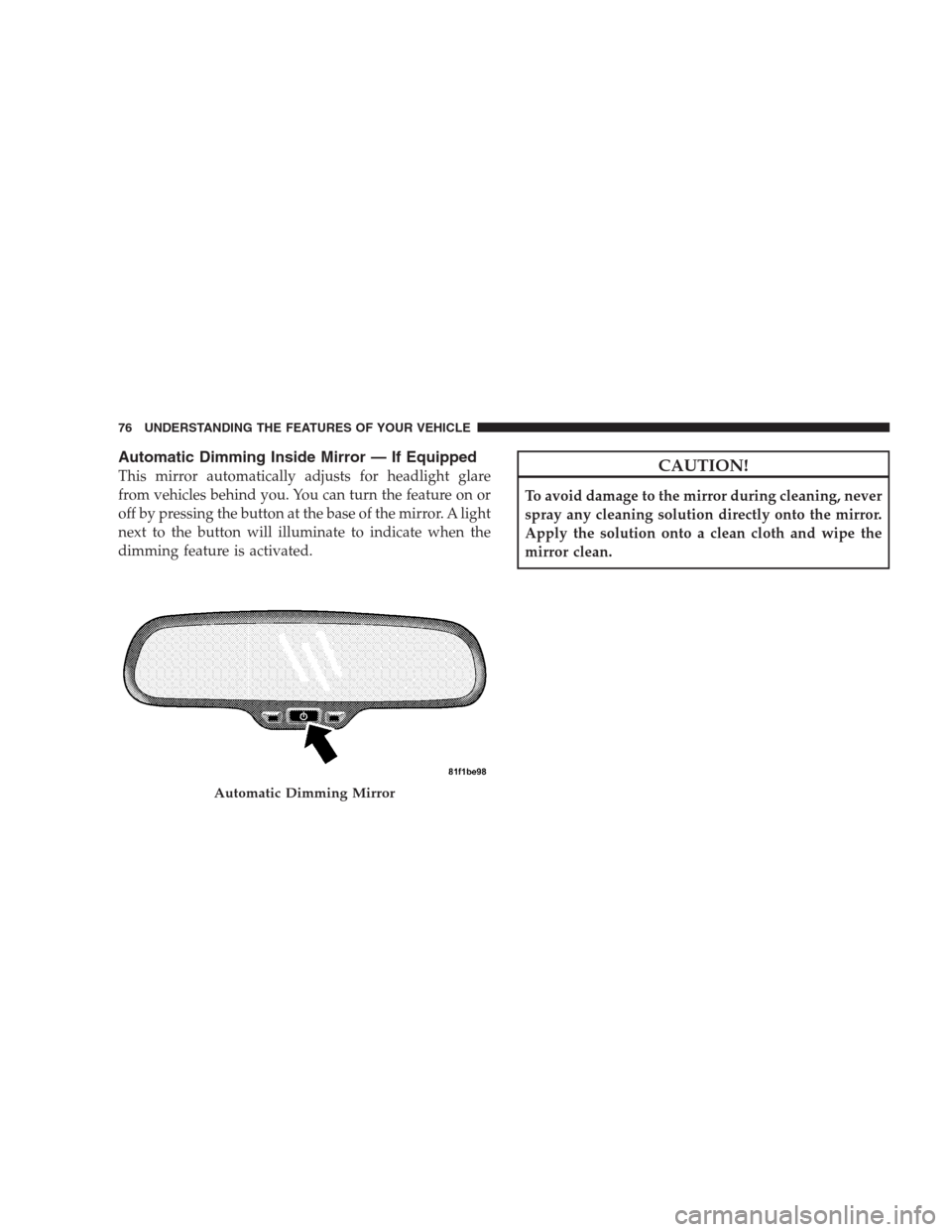

Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirror — Driver’s Side
Adjust the flat (drivers side) outside mirror to center on
the adjacent lane of traffic with a slight overlap of the
view obtained on the inside mirror.
Outside Mirror — Passenger’s Side
Adjust the convex (passengers side) outside mirror to
center on the adjacent lane of traffic with a slight overlap
of the view obtained on the inside mirror.
Drivers Side Mirror DirectionsPassenger Side Mirror Directions
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Folding Outside Mirrors — If Equipped
The outside mirrors are hinged and may be moved,
manually, either forward or rearward to resist damage.
The hinges have three detent positions; full forward, full
rearward and normal.
Folding the Outside Mirrors
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
