DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (PASSENGER)

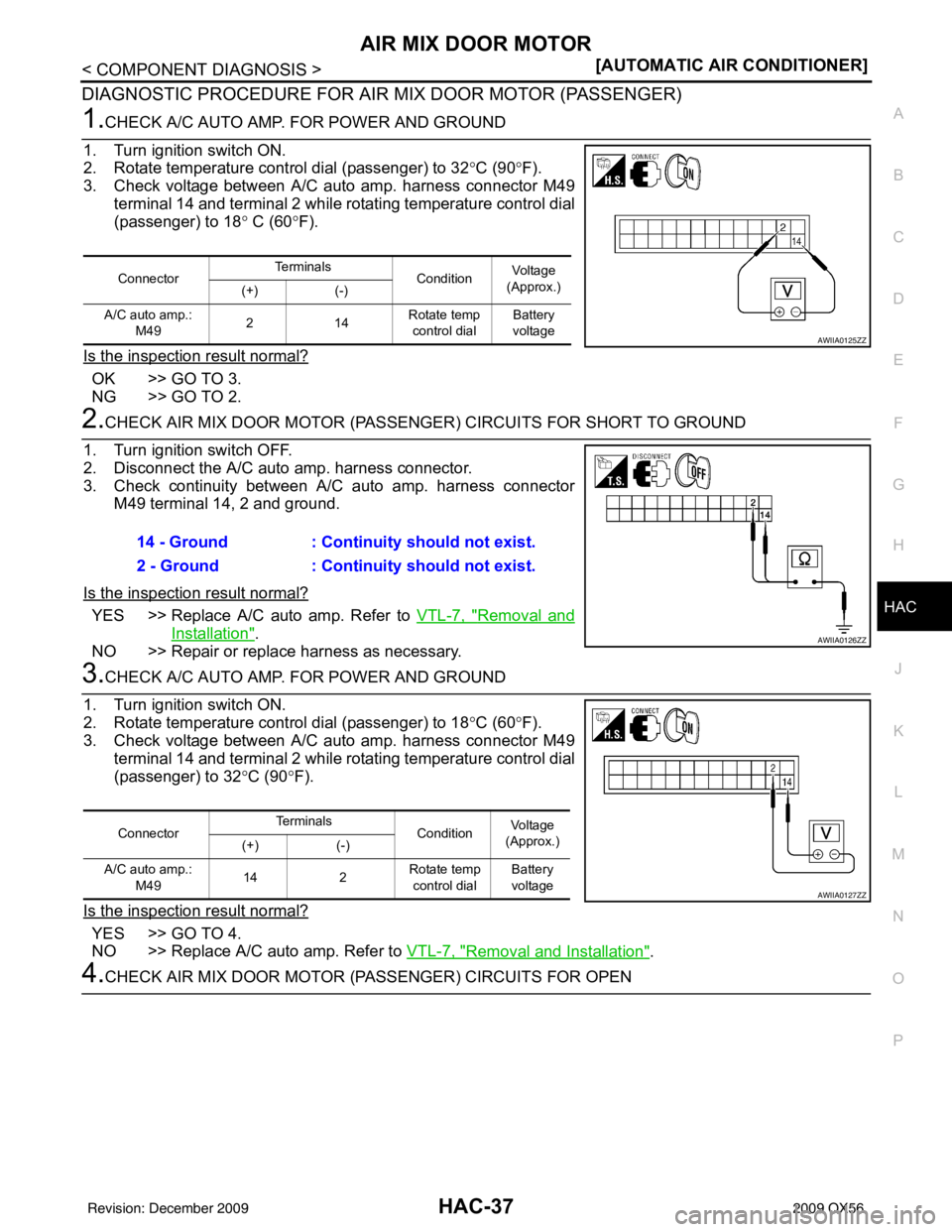

1.CHECK A/C AUTO AMP. FOR POWER AND GROUND
1. Turn ignition switch ON.
2. Rotate temperature control dial (passenger) to 32 °C (90 °F).
3. Check voltage between A/C auto amp. harness connector M49 terminal 14 and terminal 2 while rotating temperature control dial
(passenger) to 18 ° C (60 °F).
Is the inspection result normal?
OK >> GO TO 3.
NG >> GO TO 2.
2.CHECK AIR MIX DOOR MOTOR (PASSENG ER) CIRCUITS FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M49 terminal 14, 2 and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
3.CHECK A/C AUTO AMP. FOR POWER AND GROUND
1. Turn ignition switch ON.
2. Rotate temperature control dial (passenger) to 18 °C (60 °F).
3. Check voltage between A/C auto amp. harness connector M49
terminal 14 and terminal 2 while rotating temperature control dial
(passenger) to 32 °C (90° F).
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace A/C auto amp. Refer to VTL-7, "
Removal and Installation".
4.CHECK AIR MIX DOOR MOTOR (PASSENGER) CIRCUITS FOR OPEN
ConnectorTe r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M49 2 14 Rotate temp
control dial Battery
voltage
AWIIA0125ZZ
14 - Ground : Continuity should not exist.
2 - Ground : Continuity should not exist.
AWIIA0126ZZ
Connector Te r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M49 14 2 Rotate temp
control dial Battery
voltage
AWIIA0127ZZ
Revision: December 20092009 QX56

HAC-38
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
AIR MIX DOOR MOTOR
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector
M50 terminal 14 and terminal 2.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5.CHECK AIR MIX DOOR MOTOR (P ASSENGER) CIRCUITS FOR OPEN
1. Disconnect the air mix door motor (passenger) harness connec- tor.
2. Check continuity between A/C auto amp. harness connector
M49 (A) terminal 14, 2 and the air mix door motor (passenger)
harness connector M143 (B) terminal 1, 6.
Is the inspection result normal?
YES >> Replace air mix door motor (passenger). Refer to VTL-
26, "Removal and Installation" .
NO >> Repair or replace harness as necessary.
6.CHECK A/C AUTO AMP. FOR PBR POWER AND GROUND
1. Reconnect A/C auto am p. harness connector.
2. Turn ignition switch ON.
3. Check voltage between A/C auto amp. harness connector M50
(A) terminal 28 and M49 (B) terminal 3.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 7.
7.CHECK PBR REFERENCE VOLTAGE CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M49 terminal 29 and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
8.CHECK PBR REFERENCE VOLTAGE AND GROUND CIRCUITS Continuity should exist.
AWIIA0128ZZ
14 - 1
: Continuity should exist.
2 - 6 : Continuity should exist.
AWIIA0129ZZ
Connector Te r m i n a l s
Voltage (Ap-
prox.)
(+) (-)
A/C auto amp.: M49 28 35V
AWIIA0099ZZ
Continuity should not exist.
AWIIA0241ZZ
Revision: December 20092009 QX56

AIR MIX DOOR MOTORHAC-39
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M50 (A) terminal 28 and M49 (B) terminal 3.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 9.
9.CHECK PBR REFERENCE VOLTAGE CIRCUIT FOR OPEN
1. Disconnect the air mix door mo tor (passenger) harness connec-
tor.
2. Check continuity between air mix door motor (passenger) har-
ness connector M143 (B) terminal 3, 2 and A/C auto amp. har-
ness connector M49 (C) terminal 3 and M50 (A) terminal 28.
Is the inspection result normal?
YES >> Replace air mix door motor (passenger). Refer to VTL-
26, "Removal and Installation" .
NO >> Repair or replace harness as necessary.
10.CHECK PBR FEEDBACK VOLTAGE
1. Reconnect the A/C auto amp. harness connector.
2. Turn ignition switch ON.
3. Check voltage between A/C auto amp. harness connector M50 terminal 29 and ground while rotating temperature control dial
(passenger) from 32 °C (90° F) to 18° (60°F).
Is the inspection result normal?
YES >> GO TO 12.
NO >> GO TO 11.
11 .CHECK PBR FEEDBACK SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M50 terminal 29 and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
12.CHECK PBR FEEDBACK CIRCUIT FOR OPEN Continuity should exist.
AWIIA0101ZZ
28 - 3
: Continuity should exist.
3 - 2 : Continuity should exist.
AWIIA0121ZZ
Voltage : Approx. .5V - 4.5V
AWIIA0131ZZ
Continuity should not exist.
AWIIA0132ZZ
Revision: December 20092009 QX56

HAC-40
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
AIR MIX DOOR MOTOR
1. Turn ignition switch OFF.
2. Disconnect the air mix door motor (passenger) harness connec-
tor and A/C auto amp. harness connector.
3. Check continuity between air mix door motor (passenger) har- ness connector M143 (B) terminal 4 and A/C auto amp. harness
connector M50 (A) terminal 29.
Is the inspection result normal?
YES >> Replace air mix door motor (passenger). Refer to VTL-
26, "Removal and Installation".
NO >> Repair or replace harness as necessary. Continuity should exist.AWIIA0133ZZ
Revision: December 20092009 QX56

INTAKE DOOR MOTORHAC-41
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
INTAKE DOOR MOTOR
System DescriptionINFOID:0000000003775350
SYSTEM DESCRIPTION
SYMTOM:• Intake door motor does not operate normally.
• Intake door does not change.
SYSTEM DESCRIPTION
Component Parts
Intake door control system components are:• A/C auto amp.
• A/C and AV switch assembly
• Intake door motor (PRB built into the intake door motor)
• In-vehicle sensor
• Ambient sensor
• Optical sensor
• Intake sensor
System Operation
The intake door control determines the intake door position based on the position of the recirculation switch.
When the recirculation switch is depressed the intake door motor rotates closing off the fresh air inlet and
recirculating the cabin air. If the recirculation switch is depressed again, the intake door motor rotates in the
opposite direction, again allowing fresh air into the cabin.
In the AUTO mode, the A/C auto amp. determines the intake door position based on the ambient temperature,
the intake air temperature and the in-vehicle temperatur e. When the DEF, D/F, FLOOR or OFF switches are
pushed, the A/C auto amp. sets the intake door at the fresh position.
Intake Door Control Specification
AWIIA0144GB
AWIIA0145GB
Revision: December 20092009 QX56

HAC-42
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
INTAKE DOOR MOTOR
COMPONENT DESCRIPTION
Intake door motor
The intake door motor is attached to the intake unit. It rotates so that
air is drawn from inlets set by the A/C auto amp. Motor rotation is
conveyed to a lever which activates the intake door.
Intake Door Motor Component Function CheckINFOID:0000000003775351
INSPECTION FLOW
1.CONFIRM SYMPTOM BY PERFORMING
OPERATIONAL CHECK - REC ( )
1. Press the mode switch to vent mode( ).
2. Press REC ( ) switch. The REC ( )indicator should illuminate.
3. Press REC ( ) switch again. The REC ( ) indicator should go out.
4. Listen for intake door position change (you should hear blower sound change slightly).
Can a symptom be duplicated?
YES >> GO TO 3.
NO >> GO TO 2.
2.PERFORM COMPLETE OPERATIONAL CHECK
Perform a complete operational check and check for any symptoms. Refer to HAC-4, "
Operational Check
(Front)".
Can a symptom be duplicated?
YES >> Refer to HAC-3, "How to Perform Trouble Diagnosis For Quick And Accurate Repair".
NO >> System OK.
3.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 4.
4.CHECK INTAKE DOOR OPERATION
Check and verify intake door mechanism for smooth operation.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair intake door mechanism.
5.PERFORM SELF-DIAGNOSIS
Perform self-diagnosis to check for any codes. Refer to HAC-23, "
A/C and AV Switch Assembly Self-Diagno-
sis".
Are any self-diagnosis codes present?
YES >> Refer to HAC-24, "A/C System Self-Diagnosis Code Chart".
NO >> GO TO 6.
6.RECHECK FOR ANY SYMPTOMS
Perform a complete operational check for any symptoms. Refer to HAC-4, "
Operational Check (Front)".
Does another symptom exist?
YES >> Refer to HAC-3, "How to Perform Trouble Diagnosis For Quick And Accurate Repair".
NO >> Replace A/C auto amp. Refer to VTL-7, "
Removal and Installation".
WJIA0552E
Revision: December 20092009 QX56

INTAKE DOOR MOTORHAC-43
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
Intake Door Motor Diagnosis ProcedureINFOID:0000000003775352
SYMPTOM:
• Intake door does not change.
• Intake door motor does not operate normally.
DIAGNOSTIC PROCEDURE FOR INTAKE DOOR MOTOR
1.CHECK A/C AUTO AMP. FOR POWER AND GROUND
1. Turn ignition switch ON.
2. Check voltage between A/C auto amp. harness connector M49 terminal 21 and terminal 22 while placing the HVAC system into
self-diagnostic mode.
Is the inspection result normal?
OK >> GO TO 3.
NO >> GO TO 2.
2.CHECK INTAKE DOOR MOTOR CIRCUITS FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M49 terminal 21, 22 and ground.
Is the inspection result normal?
OK >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
3.CHECK A/C AUTO AMP. FOR GROUND AND POWER
1. Press the BACK button to back out of self-diagnostic mode.
2. Check voltage between A/C auto amp. harness connector M49 terminal 21 and terminal 22 while placing the HVAC system into
self-diagnostic mode.
Is the inspection result normal?
OK >> GO TO 4.
NO >> Replace A/C auto amp. Refer to VTL-7, "
Removal and Installation".
4.CHECK INTAKE DOOR MOTOR AND CIRCUITS FOR OPEN
ConnectorTe r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M49 21
22Self-diagnostic
mode Battery volt-
age
AWIIA0146ZZ
21 - Ground : Continuity should not exist.
22 - Ground : Continuity should not exist.
AWIIA0147ZZ
Connector Te r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M49 22 21 Self-diagnostic
mode Battery
voltage
AWIIA0148ZZ
Revision: December 20092009 QX56

HAC-44
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
INTAKE DOOR MOTOR
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector
M49 terminal 21 and terminal 22.
Is the inspection result normal?
OK >> Replace intake door motor. Refer to VTL-22, "Removal
and Installation".
NO >> GO TO 5.
5.CHECK INTAKE DOOR MOTOR CIRCUITS FOR OPEN
1. Disconnect the intake door motor harness connector.
2. Check continuity between A/C auto amp. harness connector M49 (A) terminal 21, 22 and the intake door motor harness con-
nector M58 (B) terminal 1, 6.
Is the inspection result normal?
YES >> Replace intake door motor. Refer to VTL-22, "Removal
and Installation" .
NO >> Repair or replace harness as necessary. Continuity should exist.
AWIIA0149ZZ
21 - 6
: Continuity should exist.
22 - 1 : Continuity should exist.
AWIIA0234ZZ
Revision: December 20092009 QX56
