P0117, P0118 ECT SENSOREC-123
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Check resistance between engine
coolant temperature sensor
terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
PBIB2005E
Engine coolant temperature °C ( °F)] Resistance (k Ω)
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
Revision: December 20092009 QX56

EC-124
< COMPONENT DIAGNOSIS >[VK56DE]
P0122, P0123 TP SENSOR
P0122, P0123 TP SENSOR
Component DescriptionINFOID:0000000003771379
Electric throttle control actuator
consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has t he two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagn osis LogicINFOID:0000000003771380
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000003771381
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-124, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003771382
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122 Throttle position sensor
2 circuit low input An excessively low voltage from the TP sensor
2 is sent to ECM.  Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
 Electric throttle control actuator
(TP sensor 2)
 Accelerator pedal position sensor (APP sensor 2)
P0123
0123
Throttle position sensor
2 circuit high input An excessively high voltage from the TP sensor
2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Revision: December 20092009 QX56

P0122, P0123 TP SENSOREC-125
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-85, "Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE POSI TION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle c ontrol actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 2 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3.CHECK THROTTLE POSI TION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 2 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace open circuit.
4.CHECK THROTTLE POSI TION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
BBIA0354E
PBIB1480E
Voltage: Approximately 5V
PBIB2065E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2 EC-432, "Wiring Diagram - ENGINE
CONTROL SYSTEM -"91 APP sensor terminal 6
Revision: December 20092009 QX56

EC-126
< COMPONENT DIAGNOSIS >[VK56DE]
P0122, P0123 TP SENSOR
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5.CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-376, "Component Inspection"
.
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-18, "Accelerator Pedal Released Position Learning"
.
3. Perform EC-18, "Throttle Valve Closed Position Learning"
.
4. Perform EC-18, "Idle Air Volume Learning"
.
>> INSPECTION END
7.CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 4 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 69 and electric throttle control actuator terminal 3.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK THROTTLE POSITION SENSOR
Refer to EC-127, "Component Inspection"
.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-18, "Throttle Valve Closed Position Learning"
.
3. Perform EC-18, "Idle Air Volume Learning"
.
>> INSPECTION END
11 .CHECK INTERMITTENT INCIDENT
Refer to GI-35, "How to Check Terminal"
and GI-38, "Intermittent Incident".
Continuity should exist.
Continuity should exist.
Revision: December 20092009 QX56

P0122, P0123 TP SENSOREC-127
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>>
INSPECTION END
Component InspectionINFOID:0000000003771383
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-18, "Throttle Valve Closed Position Learning"
.
3. Turn ignition switch ON.
4. Set selector lever to D position.

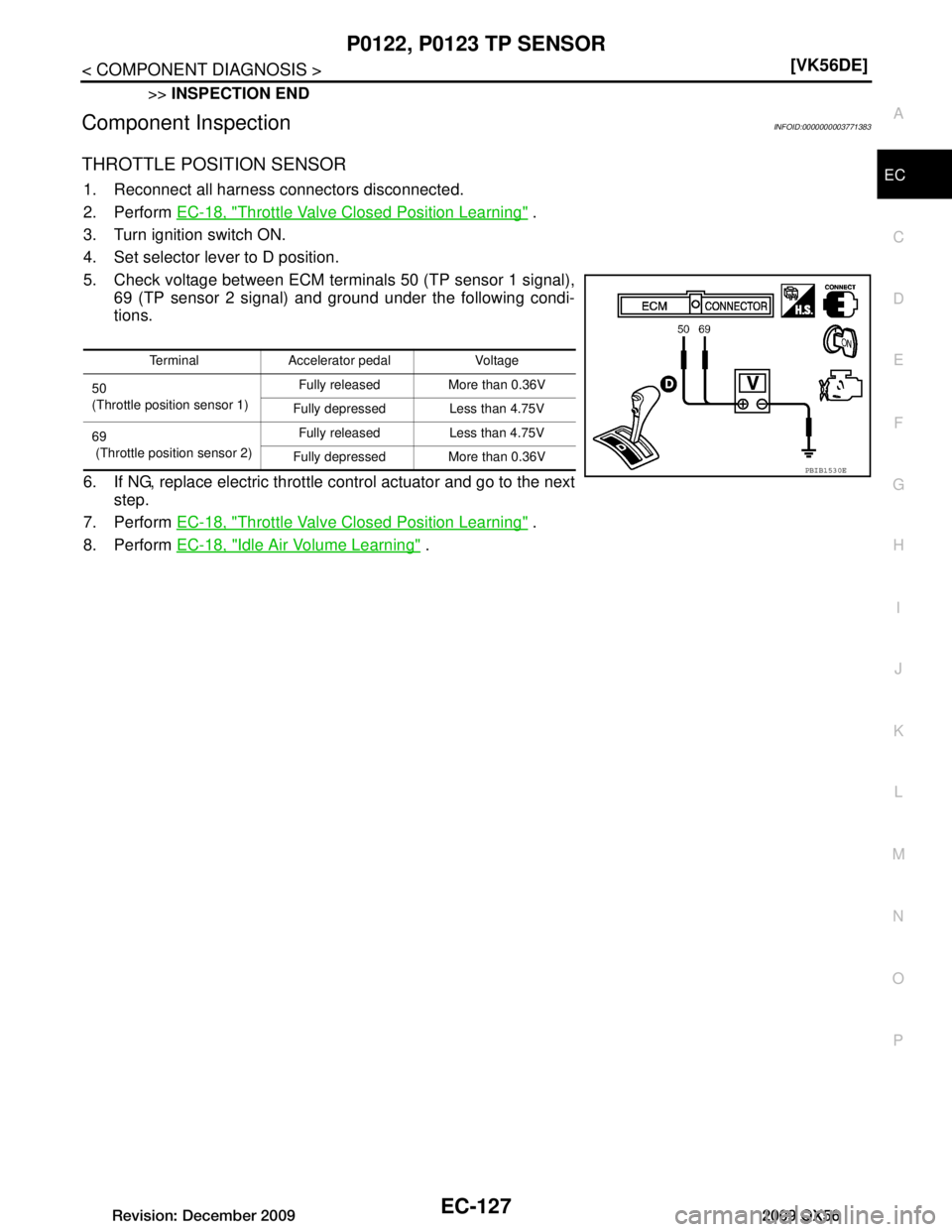

5. Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-18, "Throttle Valve Closed Position Learning"
.
8. Perform EC-18, "Idle Air Volume Learning"
.
Terminal Accelerator pedal Voltage
50
(Throttle position sensor 1) Fully released More than 0.36V
Fully depressed Less than 4.75V
69
(Throttle position sensor 2) Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB1530E
Revision: December 20092009 QX56

EC-128
< COMPONENT DIAGNOSIS >[VK56DE]
P0125 ECT SENSOR
P0125 ECT SENSOR
Component DescriptionINFOID:0000000003771384
The engine coolant temperature sens
or is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The elec trical resistance of the ther-
mistor decreases as temperature increases.

*: This data is reference value and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
On Board Diagnosis LogicINFOID:0000000003771385
DTC Confirmation ProcedureINFOID:0000000003771386
CAUTION:
Be careful not to overheat engine.
NOTE:
If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117,
P0118. Refer to EC-121, "DTC Confirmation Procedure"
.
 If DTC P0125 is displayed with P0116, first perf orm the trouble diagnosis for DTC P011. Refer to EC-
117, "DTC Confirmation Procedure".
1. If DTC Confirmation Procedure has been previously conducted, always perform the following before con-
ducting the next step.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Turn ignition switch ON.
c. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
SEF594K
Engine coolant temperature °C ( °F)] Voltage* (V) Resistance (k
Ω)
–10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0125
0125 Insufficient engine coolant
temperature for closed loop
fuel control  Voltage sent to ECM from the sensor is not
practical, even when some time has passed
after starting the engine.
 Engine coolant temperature is insufficient for closed loop fuel control.  Harness or connectors
(High resistance in the circuit)
 Engine coolant temperature sensor
Thermostat
Revision: December 20092009 QX56

P0125 ECT SENSOREC-129
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Check that “COOLAN TEMP/S” is above 31
°C (88 °F).
If it is above 31 °C (88 °F), the test result will be OK.
If it is below 31 °C (88 °F), go to following step.
5. Start engine and run it for 65 minutes at idle speed. If “COOLAN TEMP/S” increases to more than 31 °C (88 °F) within 65 minutes, stop engine because
the test result will be OK.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to EC-129, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003771387
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-85, "Ground Inspection"
.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-129, "Component Inspection"
.
OK or NG
OK >> GO TO 3.
NG >> Replace engine coolant temperature sensor.
3.CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70 °C (158 °F)] condition, grasp lower radiator hose and confirm the engine
coolant does not flow.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace thermostat. Refer to CO-22, "Removal and Installation"
.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "How to Check Terminal"
and GI-38, "Intermittent Incident".
Refer to EC-432, "Wiring Diagram - ENGINE CONTROL SYSTEM -"
.
>> INSPECTION END
Component InspectionINFOID:0000000003771388
ENGINE COOLANT TEMPERATURE SENSOR
BBIA0354E
Revision: December 20092009 QX56

EC-130
< COMPONENT DIAGNOSIS >[VK56DE]
P0125 ECT SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
PBIB2005E
Engine coolant temperature °C ( °F)] Resistance (k Ω)
