P0011, P0021 IVT CONTROL
On Board Diagnosis LogicINFOID:0000000003771334
FAIL-SAFE MODE
When the malfunction is detected,
the ECM enters fail-safe mode.
DTC Confirmation ProcedureINFOID:0000000003771335
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with DTC P0075, P0081, P1140 or P1145, first perform the trouble
diagnosis for EC-100
or EC-291.
 If DTC Confirmation Procedure has been previously c onducted, always perform the following before con-
ducting the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Maintain the following conditions for at least 10 consecutive seconds.
DTC No. Trouble diagnosis name Detecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing control
performance A
The alignment of the intake valve timing
control has been misresistered.  Harness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
 Harness or connectors (Intake valve timing control position
sensor circuit is open or shorted.)
 Intake valve timing control solenoid valve
 Intake valve timing control position sensor
 Crankshaft position sensor (POS)
 Camshaft position sensor (PHASE)
 Accumulation of debris to the signal
pick-up portion of the camshaft
sprocket
 Timing chain installation
 Foreign matter caught in the oil groove for intake valve timing control
P0021
0021
(Bank 2)
B
There is a gap between angle of target and
phase-control angle degree.
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
Revision: December 20092009 QX56

P0011, P0021 IVT CONTROLEC-89
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK >> GO TO 3.
NG >> Repair or replace ground connections.
3.CHECK INTAKE VALVE TIMING CONTROL PO
SITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen- sor terminal 3 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E2, F32
 Harness for open or short between intake valve timing control position sensor and ECM
 Harness for open or short between intake valve timing control position sensor and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTAKE VALVE TIMING CONTROL POSI TION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve ti ming control position sensor terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E2, F32
 Harness for open or short between intake valve timing control position sensor and ground
1. Intake valve timing control position sensor (bank 2) 2. Intake valve timing control solenoid
valve (bank 2) 3. Drive belt
4. Radiator hose 5. Intake valve timing control solenoid valve (bank 1)6. Intake valve timing control position
sensor (bank 1)
Voltage: Battery voltage
BBIA0771E
PBIB2613E
Continuity should exist.
Revision: December 20092009 QX56

EC-90
< COMPONENT DIAGNOSIS >[VK56DE]
P0011, P0021 IVT CONTROL
>> Repair open circuit or short to power in harness or connectors.
7.CHECK INTAKE VALVE TIMING CONTROL POSITI
ON SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 72 and intake valve timing control position sensor (Bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (Bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-92, "Component Inspection"
.
OK or NG
OK >> GO TO 9.
NG >> Replace malfunctioning intake valve timing control position sensor. Refer to EC-493
.
9.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harness connector.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E2, F32 Continuity should exist.
1. Intake valve timing control position
sensor (bank 2) 2. Intake valve timing control solenoid
valve (bank 2) 3. Drive belt
4. Radiator hose 5. Intake valve timing control solenoid valve (bank 1)6. Intake valve timing control position
sensor (bank 1)
Voltage: Battery voltage
BBIA0771E
PBIB0351E
Revision: December 20092009 QX56

P0011, P0021 IVT CONTROLEC-91
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
 Harness for open or short between intake valve timing control solenoid valve and IPDM E/R.
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK INTAKE VALVE TIMING CONTROL SOLENO ID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following; ECM terminal 10 and intake valve timing control solenoid valve (Bank 1) terminal 1 or
ECM terminal 11 and intake valve timing control solenoid valve (Bank 2) terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-92, "Component Inspection"
.
OK or NG
OK >> GO TO 13.
NG >> Replace malfunctioning intake valve timing control solenoid valve. Refer to EC-492
.
13.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-200, "Component Inspection"
.
OK or NG
OK >> GO TO 14.
NG >> Replace crankshaft position sensor (POS).
14.CHECK CAMSHAFT POSIT ION SENSOR (PHASE)
Refer to EC-204, "Component Inspection"
.
OK or NG
OK >> GO TO 15.
NG >> Replace malfunctioning camshaft position sensor (PHASE). Refer to EC-493
.
15.CHECK CAMSHAFT SPROCKET
Check accumulation of debris to the signal pick- up portion of the camshaft sprocket. Refer to EM-62, "Inspec-
tion after Installation".
OK or NG
OK >> GO TO 16.
NG >> Remove debris and clean the signal pick-up cutout of camshaft sprocket.
16.CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-45, "Removal and Installation".
No >> GO TO 17.
17.CHECK LUBRICATION CIRCUIT
Refer to EM-62, "Inspection after Installation"
.
OK or NG
OK >> GO TO 18.
NG >> Clean lubrication line. Continuity should exist.
Revision: December 20092009 QX56

EC-92
< COMPONENT DIAGNOSIS >[VK56DE]
P0011, P0021 IVT CONTROL
18.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "How to Check Terminal"
and GI-38, "Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000003771337
INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control position sensor. Refer
to EC-493
.
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve terminals as follows.
If NG, replace intake valve timing control solenoid valve. Refer to
EC-492
.
If OK, go to next step.
3. Remove intake valve timing control solenoid valve. Refer to EC-
492.
SEF362Z
Terminal No. (Polarity) Resistance Ω [at 25 °C (77 °F)]
3 (+) - 1 (-) Except 0 or ∞
2 (+) - 1 (-)
3 (+) - 2 (-)
JMBIA0600ZZ
Terminals Resistance
1 and 2 7.1 - 7.7 Ω [at 20 °C (68 °F)]
1 or 2 and ground ∞Ω
(Continuity should not exist)
MBIB0027E
Revision: December 20092009 QX56

EC-94
< COMPONENT DIAGNOSIS >[VK56DE]
P0031, P0032, P0051, P00
52 A/F SENSOR 1 HEATER
P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
DescriptionINFOID:0000000003771338
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
On Board Diagnosis LogicINFOID:0000000003771339
DTC Confirmation ProcedureINFOID:0000000003771340
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following pr ocedure, confirm that battery voltage is between 10.5V and 16V at
idle.
1. Start engine and let it idle for at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-94, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003771341
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0031
0031
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit low The current amperage in the air fuel ratio (A/F) sen-
sor 1 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.)  Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)
 A/F sensor 1 heater
P0051
0051
(Bank 2)
P0032
0032
(Bank 1)
Air fuel ratio (A/F) sensor
1 heater control circuit
high The current amperage in the air fuel ratio (A/F) sen-
sor 1 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.)  Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)
 A/F sensor 1 heater
P0052
0052
(Bank 2)
Revision: December 20092009 QX56

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-95
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

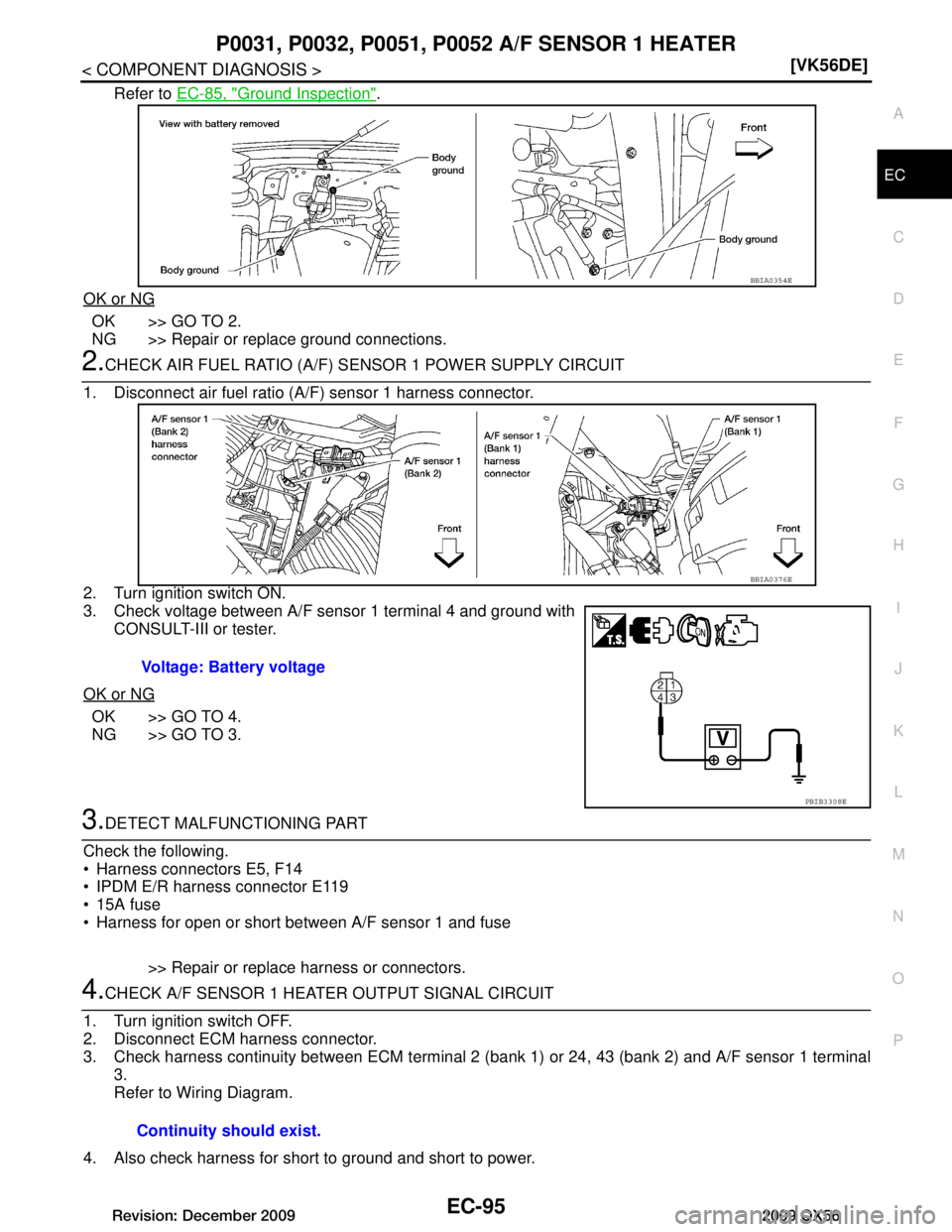

Refer to
EC-85, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A /F) sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E5, F14
 IPDM E/R harness connector E119
 15A fuse
 Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4.CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 2 (bank 1) or 24, 43 (bank 2) and A/F sensor 1 terminal
3.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
BBIA0354E
Voltage: Battery voltage
BBIA0376E
PBIB3308E
Continuity should exist.
Revision: December 20092009 QX56

EC-96
< COMPONENT DIAGNOSIS >[VK56DE]
P0031, P0032, P0051, P00
52 A/F SENSOR 1 HEATER
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK A/F SENSOR 1 HEATER
Refer to EC-96, "Component Inspection"
.
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning air fuel ratio (A/F) sensor 1.
6.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "How to Check Terminal"
and GI-38, "Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000003771342
AIR FUEL RATIO (A/F) SENSOR 1 HEATER
1. Check resistance between A/F sensor 1 terminals as follows.
2. If NG, replace air fuel ratio (A/F) sensor 1.
CAUTION:
 Discard any A/F sensor which has been dropped from a
height of more than 0.5 m ( 19.7 in) onto a hard surface such
as a concrete floor; use a new one.
 Before installing new A/F sensor, clean exhaust system threads using Heated Oxygen Se nsor Thread Cleaner tool J-
43897-18 or J-43897-12 and approved anti-seize lubricant.
Terminal No. Resistance
3 and 4 1.98 - 2.66 Ω [at 25 °C (77 °F)]
3 and 1, 2 ∞ Ω
(Continuity should not exist)
4 and 1, 2
PBIB3309E
Revision: December 20092009 QX56
