REMOVAL AND INSTALLATION
INSIDE MIRROR
Removal and InstallationINFOID:0000000003776138
1. Remove inside mirror finisher.
2. Slide the mirror upward to remove.
3. Disconnect the connector.
Installation is in the reverse order of removal.
1. Inside mirror 2. Inside mirror finisher
LIIA0277E
Revision: December 20092009 QX56

MIR-12
< REMOVAL AND INSTALLATION >
DOOR MIRROR
DOOR MIRROR
Door Mirror AssemblyINFOID:0000000005890823
REMOVAL
NOTE:
Be careful not to damage the mirror bodies.

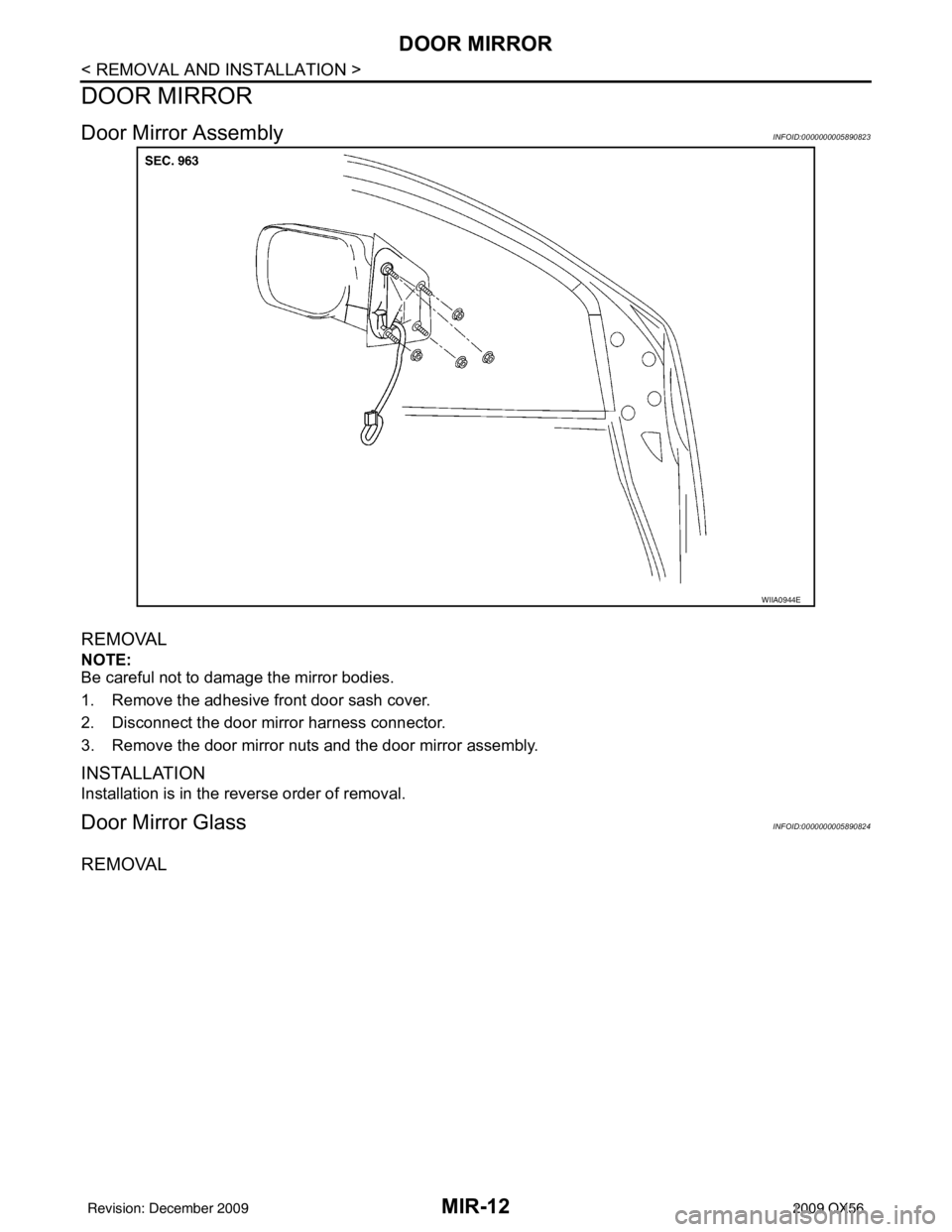

1. Remove the adhesive front door sash cover.
2. Disconnect the door mirror harness connector.
3. Remove the door mirror nuts and the door mirror assembly.
INSTALLATION
Installation is in the reverse order of removal.
Door Mirror GlassINFOID:0000000005890824
REMOVAL
WIIA0944E
Revision: December 20092009 QX56

DOOR MIRRORMIR-13
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P

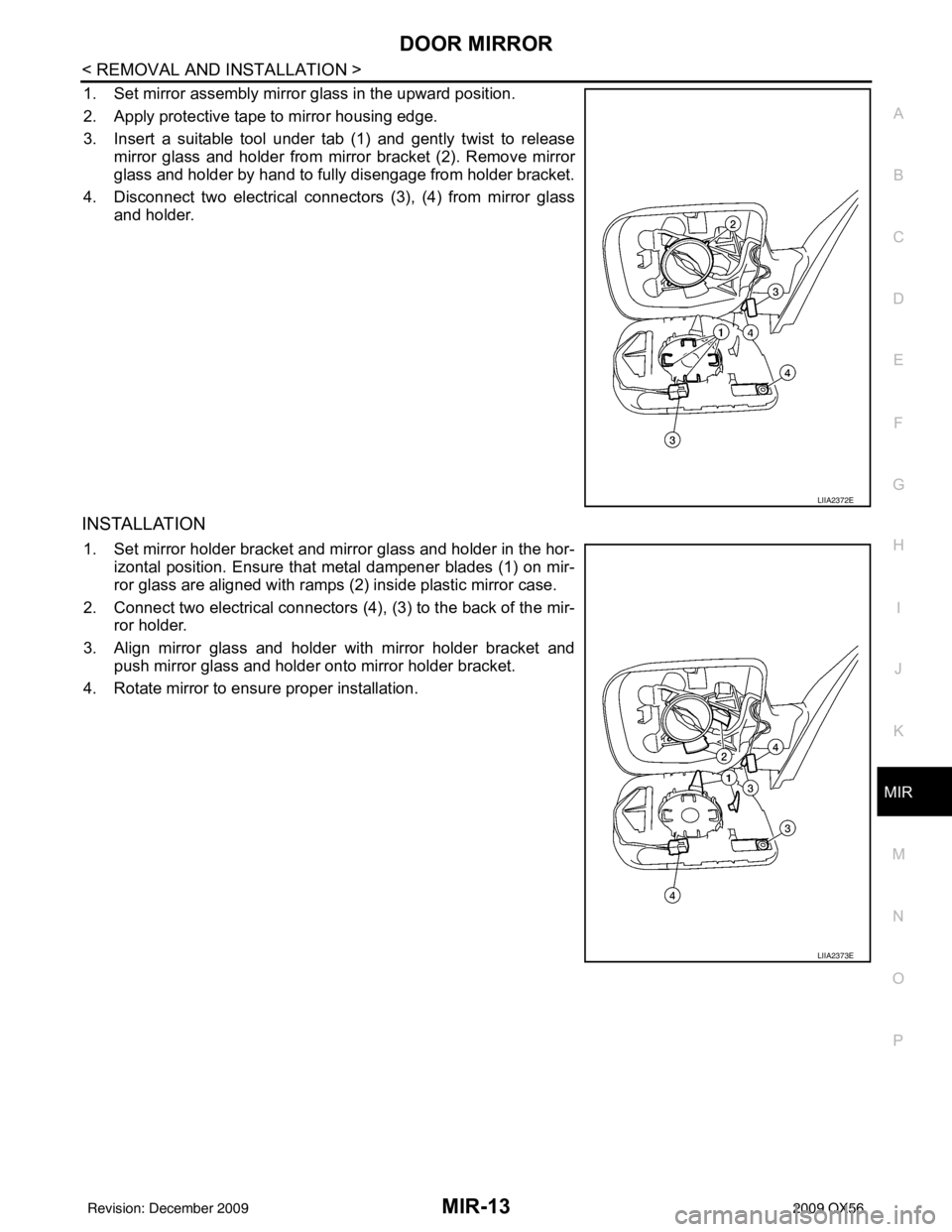

1. Set mirror assembly mirror glass in the upward position.
2. Apply protective tape to mirror housing edge.
3. Insert a suitable tool under tab (1) and gently twist to release mirror glass and holder from mirror bracket (2). Remove mirror
glass and holder by hand to fully disengage from holder bracket.
4. Disconnect two electrical connectors (3), (4) from mirror glass and holder.
INSTALLATION
1. Set mirror holder bracket and mirror glass and holder in the hor-izontal position. Ensure that metal dampener blades (1) on mir-
ror glass are aligned with ramps (2) inside plastic mirror case.
2. Connect two electrical connectors (4), (3) to the back of the mir-
ror holder.
3. Align mirror glass and holder with mirror holder bracket and push mirror glass and holder onto mirror holder bracket.
4. Rotate mirror to ensure proper installation.
LIIA2372E
LIIA2373E
Revision: December 20092009 QX56

MIR-14
< DISASSEMBLY AND ASSEMBLY >
DOOR MIRROR
DISASSEMBLY AND ASSEMBLY
DOOR MIRROR

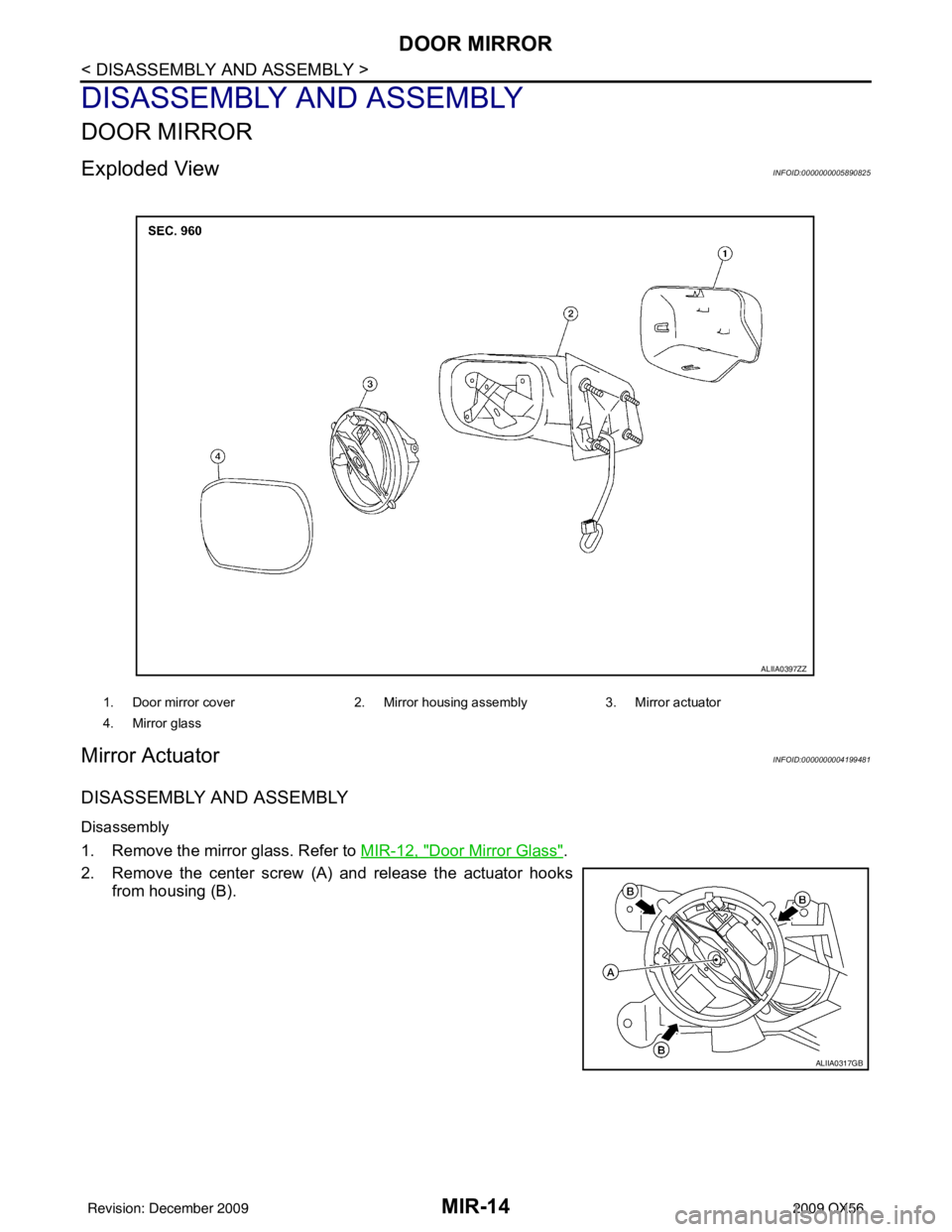

Exploded ViewINFOID:0000000005890825
Mirror ActuatorINFOID:0000000004199481
DISASSEMBLY AND ASSEMBLY
Disassembly
1. Remove the mirror glass. Refer to MIR-12, "Door Mirror Glass".
2. Remove the center screw (A) and release the actuator hooks from housing (B).
1. Door mirror cover 2. Mirror housing assembly 3. Mirror actuator
4. Mirror glass
ALIIA0397ZZ
ALIIA0317GB
Revision: December 20092009 QX56

DOOR MIRRORMIR-15
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P

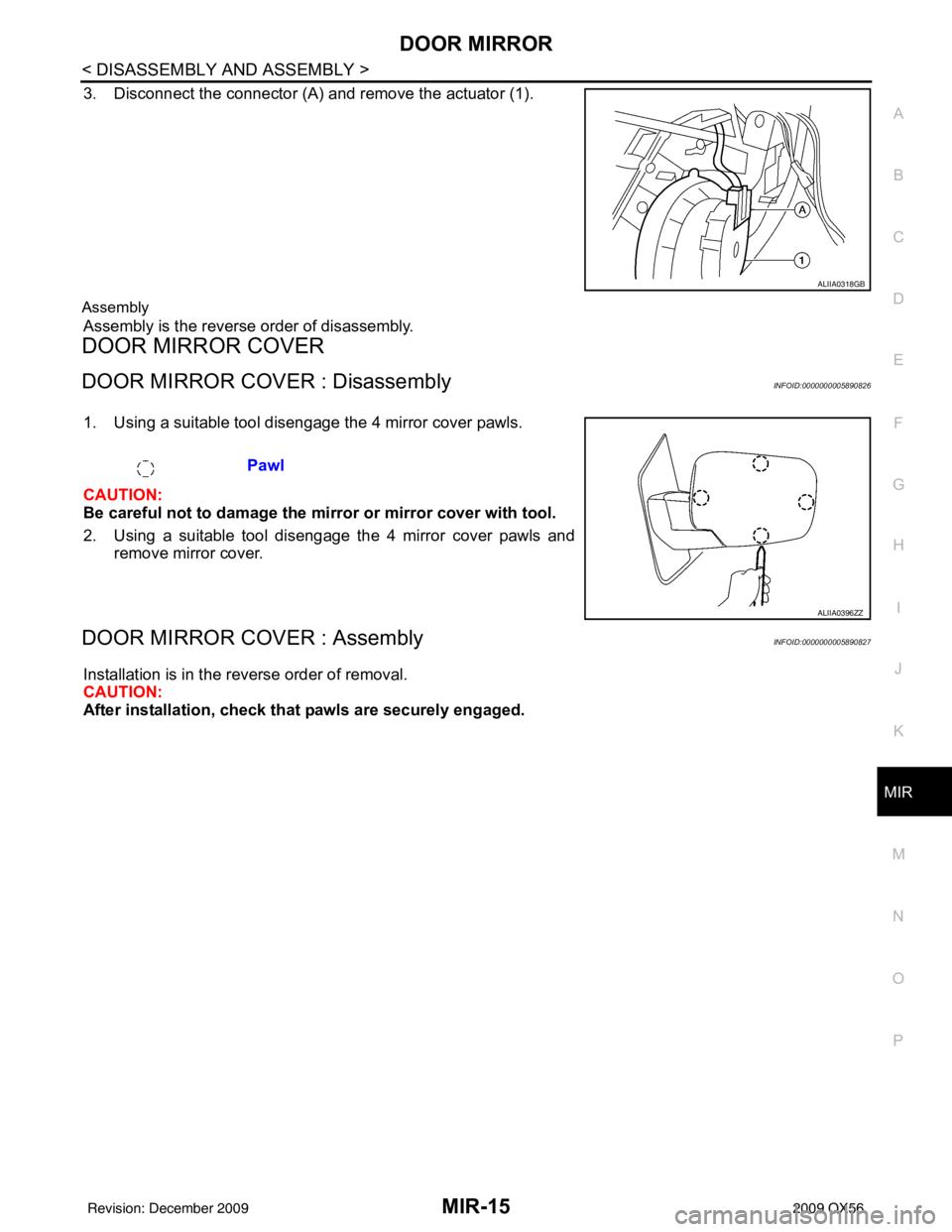

3. Disconnect the connector (A) and remove the actuator (1).
Assembly
Assembly is the reverse order of disassembly.
DOOR MIRROR COVER
DOOR MIRROR COVER : DisassemblyINFOID:0000000005890826
1. Using a suitable tool disengage the 4 mirror cover pawls.
CAUTION:
Be careful not to damage the mi rror or mirror cover with tool.
2. Using a suitable tool disengage the 4 mirror cover pawls and remove mirror cover.
DOOR MIRROR COVER : AssemblyINFOID:0000000005890827
Installation is in the reverse order of removal.
CAUTION:
After installation, check that pawls are securely engaged.
ALIIA0318GB
Pawl
ALIIA0396ZZ
Revision: December 20092009 QX56
