Maintenance
78
7
G270303BNF-EA

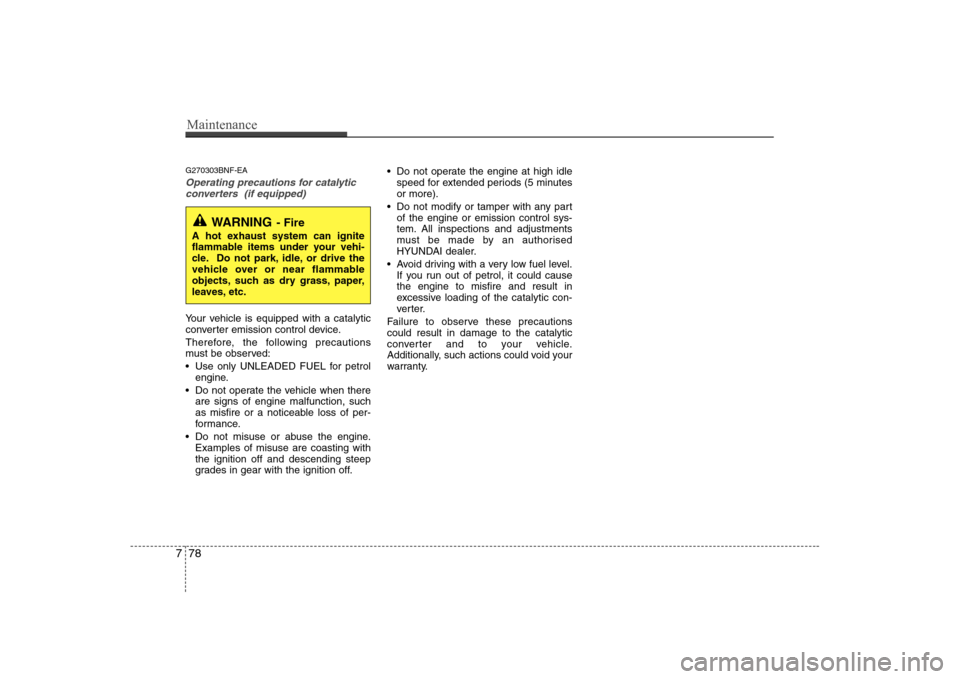

Operating precautions for catalytic
converters (if equipped)
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for petrol engine.
Do not operate the vehicle when there are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance.
Do not misuse or abuse the engine. Examples of misuse are coasting withthe ignition off and descending steep
grades in gear with the ignition off. Do not operate the engine at high idle
speed for extended periods (5 minutesor more).
Do not modify or tamper with any part of the engine or emission control sys-
tem. All inspections and adjustments
must be made by an authorised
HYUNDAI dealer.
Avoid driving with a very low fuel level. If you run out of petrol, it could causethe engine to misfire and result in
excessive loading of the catalytic con-
ver ter.
Failure to observe these precautionscould result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranty.
WARNING - Fire
A hot exhaust system can ignite
flammable items under your vehi-
cle. Do not park, idle, or drive the
vehicle over or near flammable
objects, such as dry grass, paper,
leaves, etc.

8

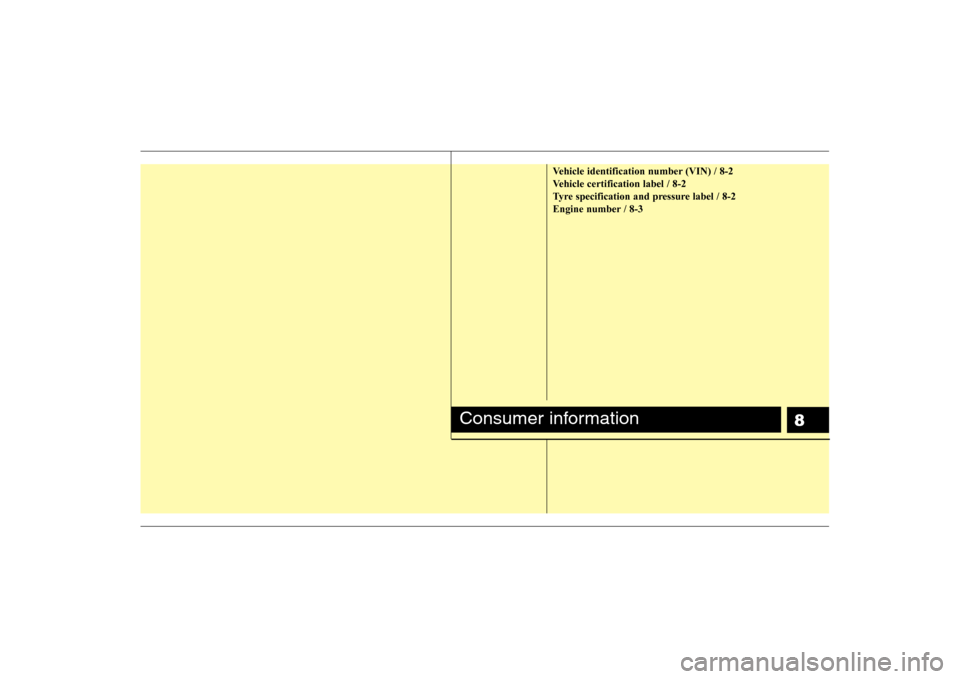

Vehicle identification number (VIN) / 8-2
Vehicle certification label / 8-2
Tyre specification and pressure label / 8-2
Engine number / 8-3
Consumer information

Consumer information
2
8

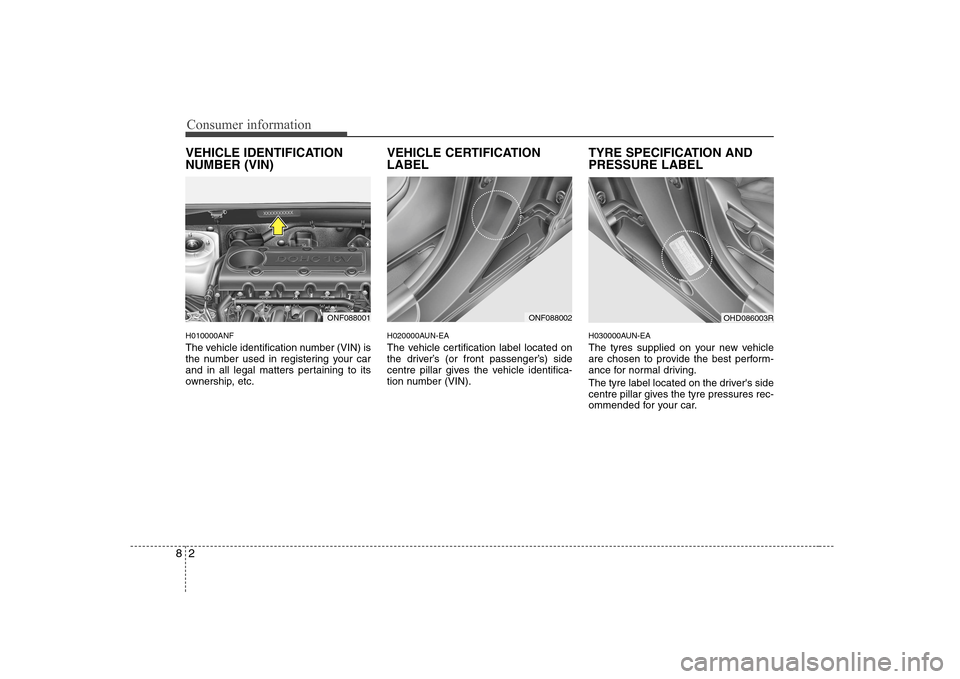

VEHICLE IDENTIFICATION NUMBER (VIN) H010000ANF
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc. VEHICLE CERTIFICATION LABEL
H020000AUN-EA
The vehicle certification label located on
the driver’s (or front passenger’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).TYRE SPECIFICATION AND PRESSURE LABEL
H030000AUN-EA
The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your car.
OHD086003RONF088001ONF088002

83
Consumer information
H04000AUN-EA

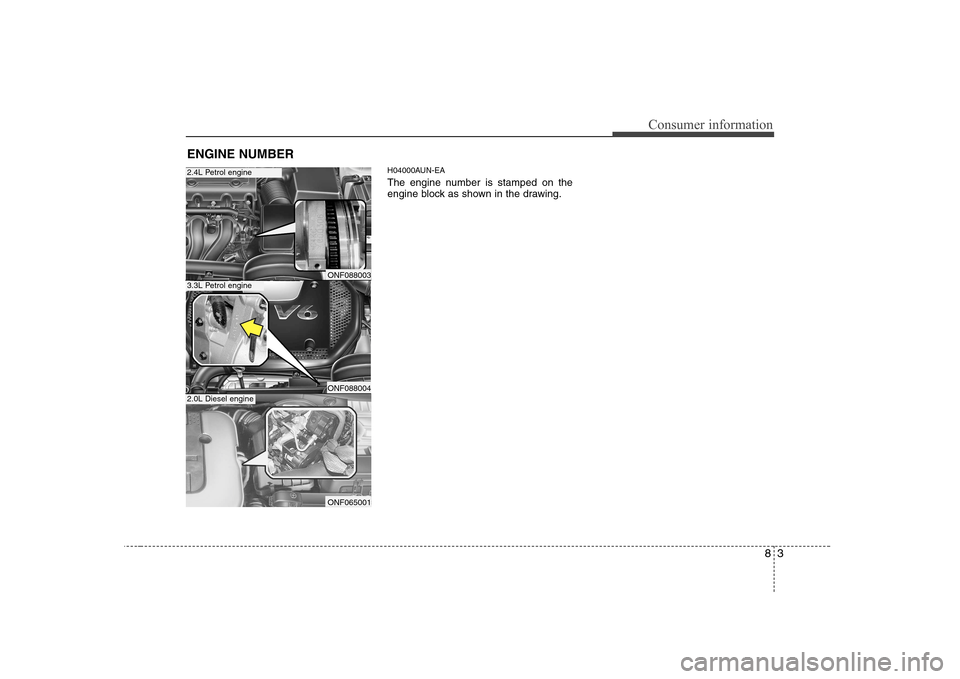

The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
ONF088003
ONF088004
ONF065001
2.4L Petrol engine
3.3L Petrol engine
2.0L Diesel engine

9

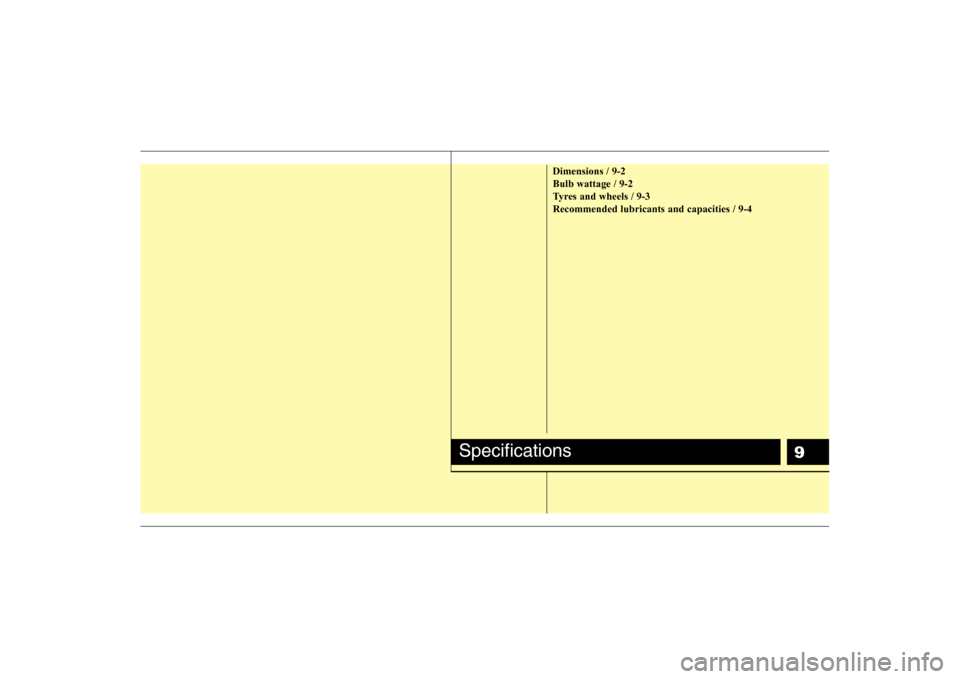

Dimensions / 9-2 Bulb wattage / 9-2
Tyres and wheels / 9-3Recommended lubricants and capacities / 9-4
Specifications

Specifications
2
9
Item mm (in.)
Overall length 4800 (189.9)
Overall width 1830 (72.0)
Overall height 1475 (58.0)
Front tread 1565 (61.6)
Rear tread 1550 (61.0)
Wheelbase 2730 (107.4)

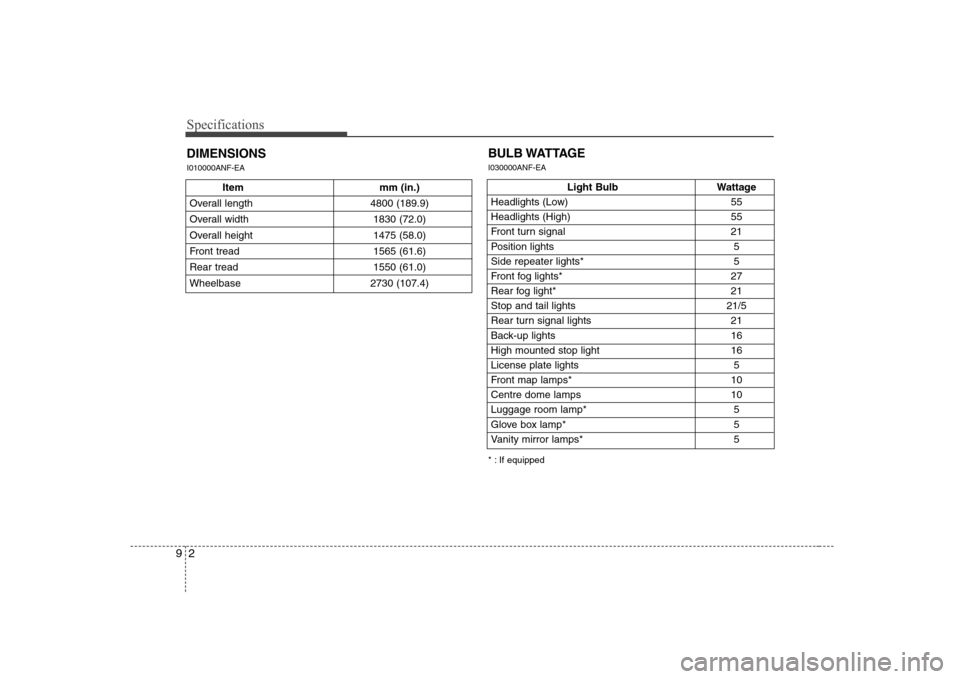

DIMENSIONS I010000ANF-EA
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal 21
Position lights 5
Side repeater lights* 5
Front fog lights* 27
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light 16
License plate lights 5
Front map lamps* 10
Centre dome lamps 10
Luggage room lamp* 5
Glove box lamp* 5
Vanity mirror lamps* 5
BULB WATTAGE I030000ANF-EA
* : If equipped

93
Specifications
Inflation pressure kPa (psi)
Front Rear
215/60R16 6.5J×16 220 (32) 220 (32)
225/50R17 6.5J×17
Full size tyre Wheel nut torque kg•m
(lb N
9~11
(65~79 , 88~107)
TYRES AND WHEELS I020000ANF-EA
Item Tyre
size Wheel size

Specifications
4
9

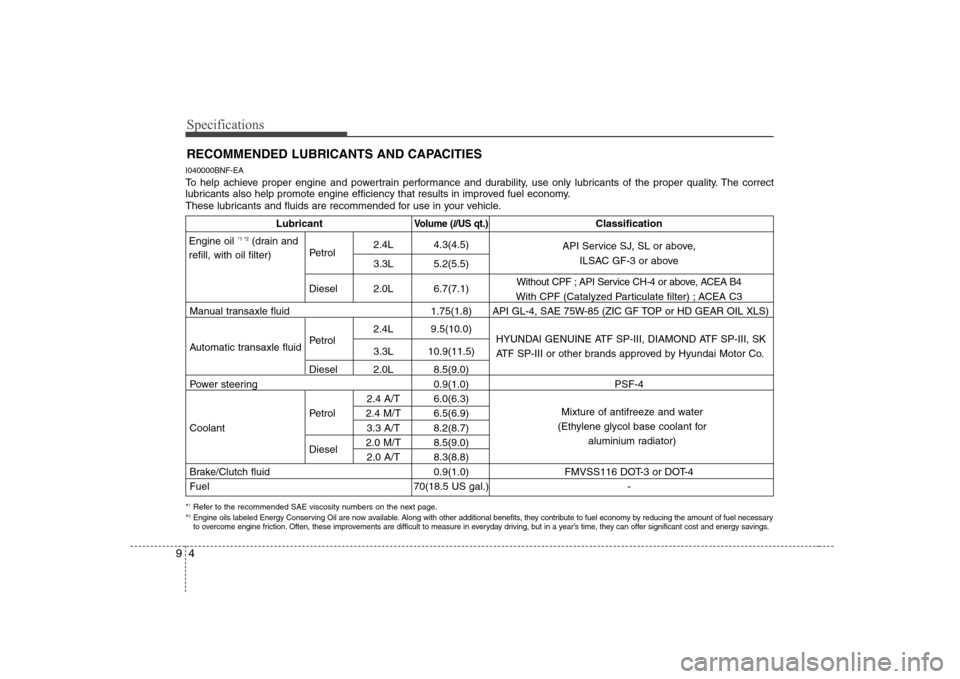

RECOMMENDED LUBRICANTS AND CAPACITIES
I040000BNF-EA
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume ( l/US qt.)Classification
API Service SJ, SL or above,
Petrol 2.4L 4.3(4.5)
ILSAC GF-3 or above
3.3L 5.2(5.5)
Diesel 2.0L 6.7(7.1)
Without CPF ; API Service CH-4 or above, ACEA B4
With CPF (Catalyzed Particulate filter) ; ACEA C3
Manual transaxle fluid 1.75(1.8) API GL-4, SAE 75W-85 (ZIC GF TOP or HD GEAR OIL XLS)
Automatic transaxle fluid Petrol2.4L 9.5(10.0)
3.3L 10.9(11.5)
Diesel 2.0L 8.5(9.0)
Power steering 0.9(1.0) PSF-4
2.4 A/T 6.0(6.3)
Petrol 2.4 M/T 6.5(6.9)
Coolant 3.3 A/T 8.2(8.7)
Diesel2.0 M/T 8.5(9.0)
2.0 A/T 8.3(8.8)
Brake/Clutch fluid 0.9(1.0) FMVSS116 DOT-3 or DOT-4 Fuel 70(18.5 US gal.) -
Engine oil *1 *2
(drain and
refill, with oil filter)
HYUNDAI GENUINE ATF SP-III, DIAMOND ATF SP-III, SK
ATF SP-III or other brands approved by Hyundai Motor Co.
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminium radiator)
* 1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo
my by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
