2009 Hyundai Sonata Owner's Manual - RHD (UK, Australia)

Maintenance
54
7
G210100AUN-EA

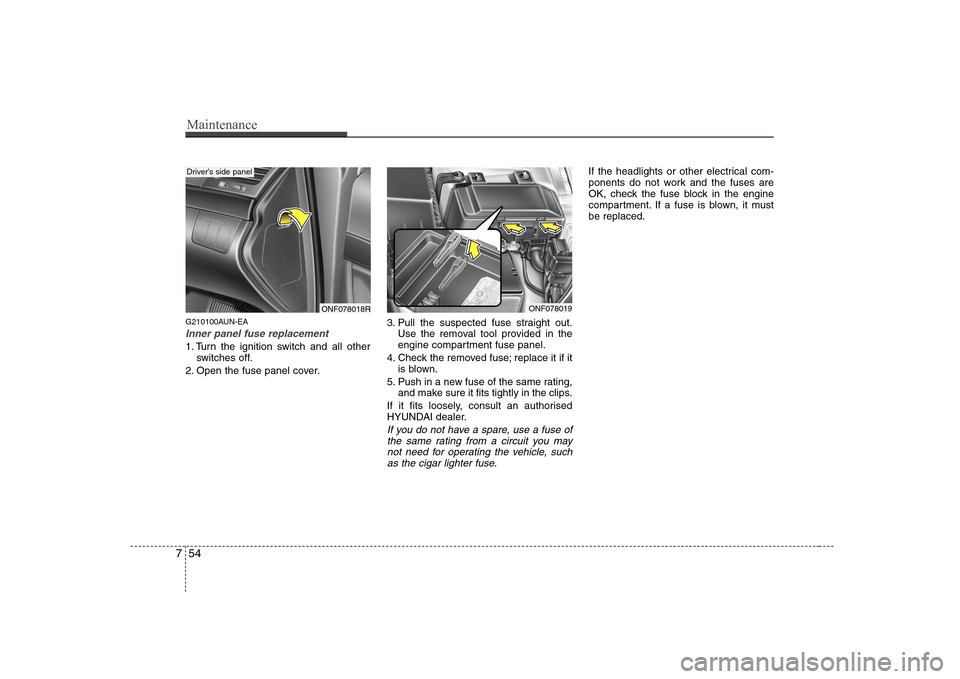

Inner panel fuse replacement
1. Turn the ignition switch and all other
switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight out.
Use the removal tool provided in the
engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorised
HYUNDAI dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, suchas the cigar lighter fuse.
If the headlights or other electrical com-
ponents do not work and the fuses are
OK, check the fuse block in the engine
compartment. If a fuse is blown, it mustbe replaced.
ONF078018R
Driver’s side panel
ONF078019

755
Maintenance
G210101AUN

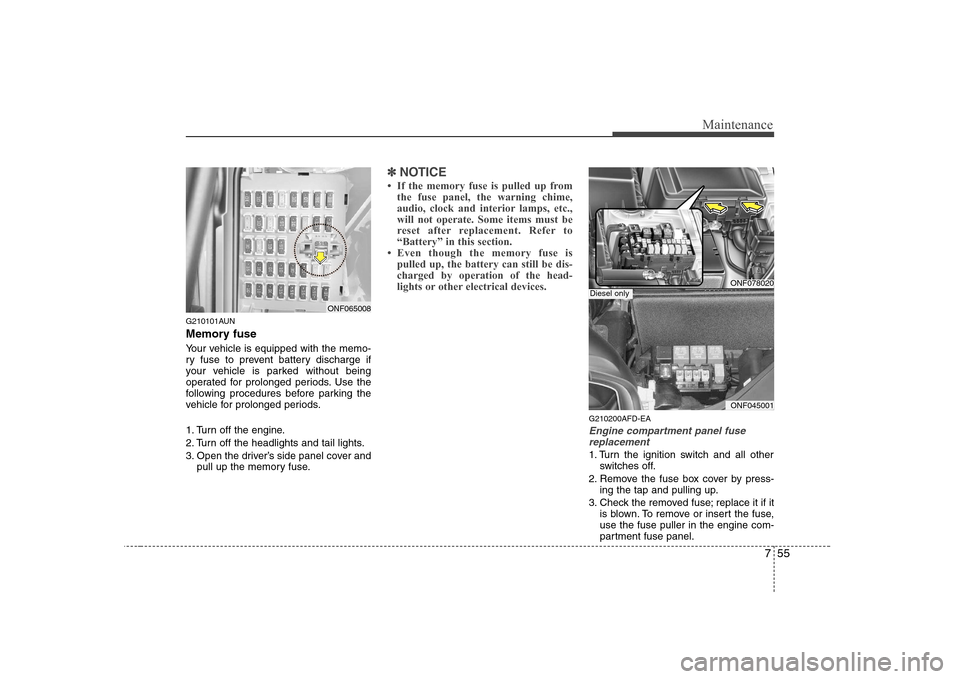

Memory fuse
Your vehicle is equipped with the memo-
ry fuse to prevent battery discharge if
your vehicle is parked without being
operated for prolonged periods. Use the
following procedures before parking the
vehicle for prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover andpull up the memory fuse.
✽✽ NOTICE

Maintenance
56
7
4. Push in a new fuse of the same rating,
and make sure it fits tightly in the clips.
If it fits loosely, consult an authorised
HYUNDAI dealer.

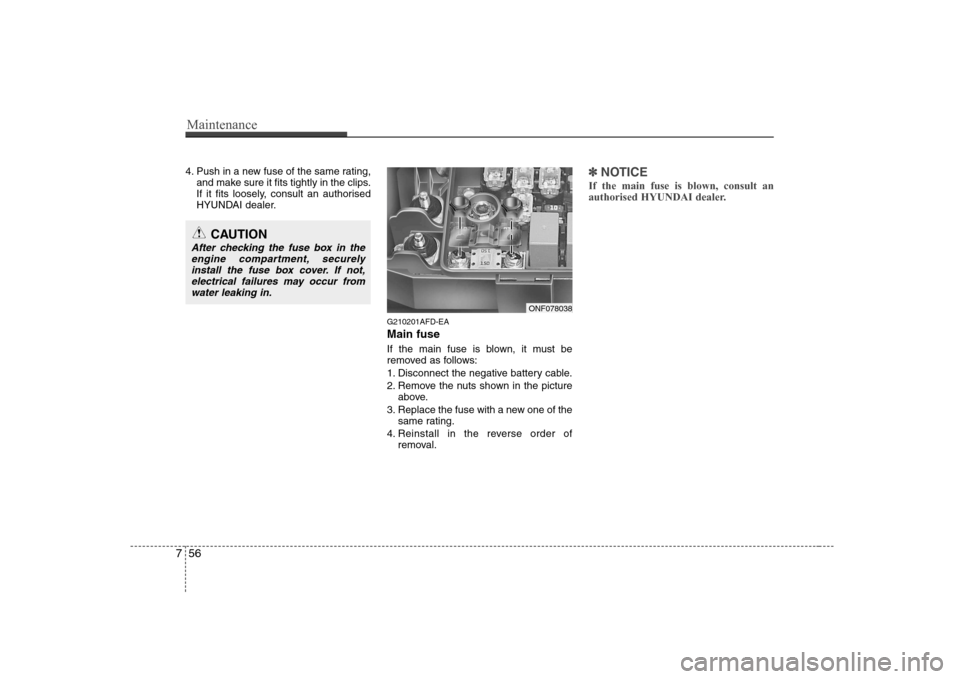

G210201AFD-EA Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the pictureabove.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.✽✽ NOTICE
If the main fuse is blown, consult an
authorised HYUNDAI dealer.
CAUTION
After checking the fuse box in the engine compartment, securely install the fuse box cover. If not,
electrical failures may occur from water leaking in.
ONF078038

757
Maintenance
✽✽NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-cle. It is accurate at the time of printing.When you inspect the fuse box on your
vehicle, refer to the fuse box label.G210300ANF-EA
Fuse/Relay panel description
Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay
name and capacity.
Engine compartmentONF078021R/ONF078022/ONF078023
Diesel only
Driver’s side panel

Maintenance
58
7

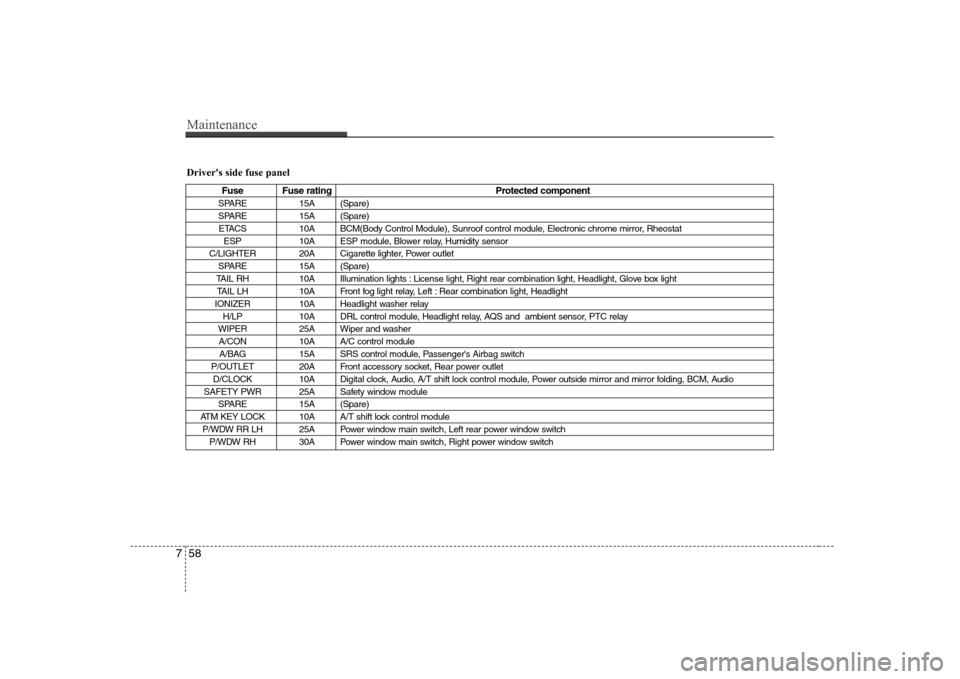

Driver's side fuse panel
Fuse Fuse rating Protected component
SPARE 15A (Spare)
SPARE 15A (Spare) ETACS 10A BCM(Body Control Module), Sunroof control module, Electronic chrome mirror, Rheostat ESP 10A ESP module, Blower relay, Humidity sensor
C/LIGHTER 20A Cigarette lighter, Power outlet SPARE 15A (Spare)
TAIL RH 10A Illumination lights : License light, Right rear combination light, Headlight, Glove box light TAIL LH 10A Front fog light relay, Left : Rear combination light, Headlight
IONIZER 10A Headlight washer relay H/LP 10A DRL control module, Headlight relay, AQS and ambient sensor, PTC relay
WIPER 25A Wiper and washer A/CON 10A A/C control module A/BAG 15A SRS control module, Passenger's Airbag switch
P/OUTLET 20A Front accessory socket, Rear power outlet D/CLOCK 10A Digital clock, Audio, A/T shift lock control module, Power outside mirror and mirror folding, BCM, Audio
SAFETY PWR 25A Safety window module SPARE 15A (Spare)
ATM KEY LOCK 10A A/T shift lock control module P/WDW RR LH 25A Power window main switch, Left rear power window switch P/WDW RH 30A Power window main switch, Right power window switch

759
Maintenance

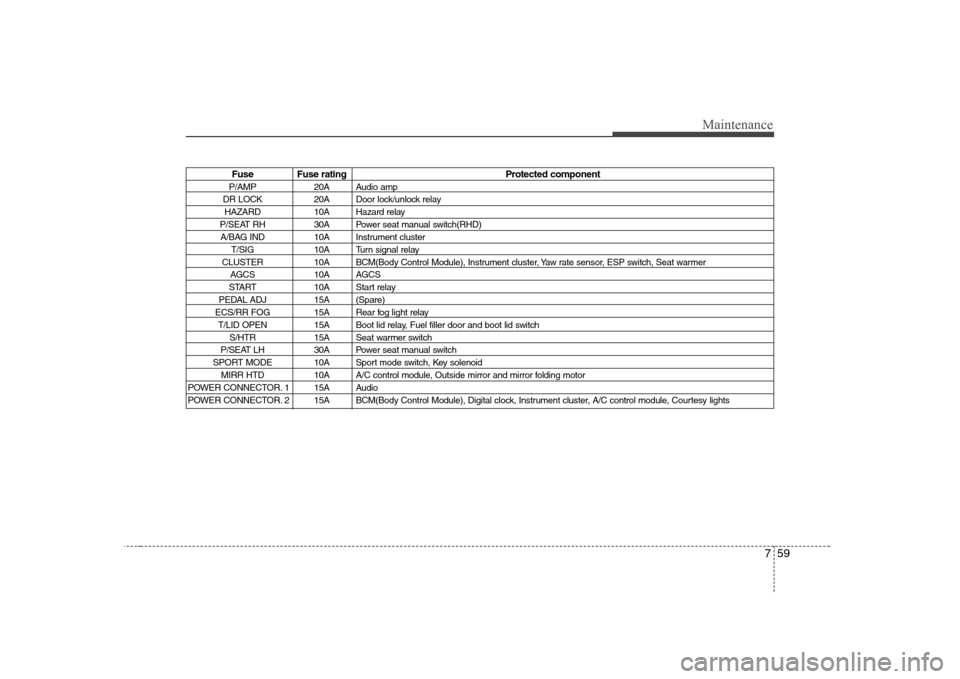

Fuse Fuse ratingProtected component
P/AMP 20A Audio amp
DR LOCK 20A Door lock/unlock relay HAZARD 10A Hazard relay
P/SEAT RH 30A Power seat manual switch(RHD) A/BAG IND 10A Instrument cluster T/SIG 10A Turn signal relay
CLUSTER 10A BCM(Body Control Module), Instrument cluster, Yaw rate sensor, ESP switch, Seat warmer AGCS 10A AGCS
START 10A Start relay
PEDAL ADJ 15A (Spare)
ECS/RR FOG 15A Rear fog light relay T/LID OPEN 15A Boot lid relay, Fuel filler door and boot lid switch S/HTR 15A Seat warmer switch
P/SEAT LH 30A Power seat manual switch
SPORT MODE 10A Sport mode switch, Key solenoid MIRR HTD 10A A/C control module, Outside mirror and mirror folding motor
POWER CONNECTOR. 1 15A Audio
POWER CONNECTOR. 2 15A BCM(Body Control Module), Digital clock, Instrument cluster, A/C control module, Courtesy lights

Maintenance
60
7

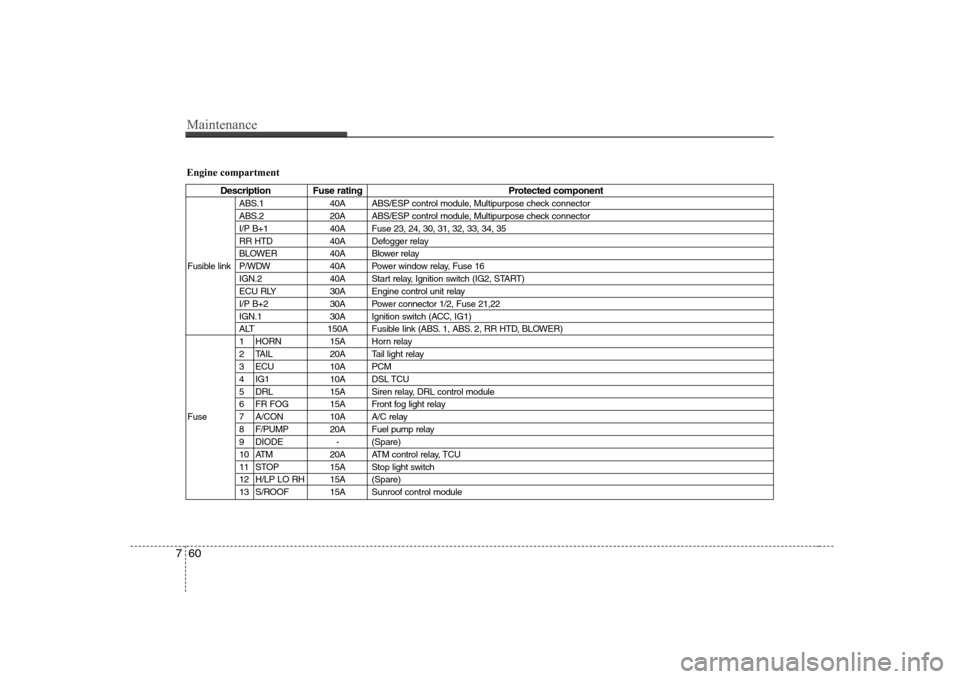

Engine compartment
Description Fuse rating Protected component
ABS.1 40A ABS/ESP control module, Multipurpose check connector
ABS.2 20A ABS/ESP control module, Multipurpose check connector
I/P B+1 40A Fuse 23, 24, 30, 31, 32, 33, 34, 35
RR HTD 40A Defogger relay
BLOWER 40A Blower relay
Fusible link P/WDW 40A Power window relay, Fuse 16 IGN.2 40A Start relay, Ignition switch (IG2, START)
ECU RLY 30A Engine control unit relay
I/P B+2 30A Power connector 1/2, Fuse 21,22
IGN.1 30A Ignition switch (ACC, IG1)
ALT 150A Fusible Iink (ABS. 1, ABS. 2, RR HTD, BLOWER)
1 HORN 15A Horn relay
2 TAIL 20A Tail light relay
3 ECU 10A PCM
4 IG1 10A DSL TCU
5 DRL 15A Siren relay, DRL control module
6 FR FOG 15A Front fog light relay
Fuse 7 A/CON 10A A/C relay 8 F/PUMP 20A Fuel pump relay
9 DIODE - (Spare)
10 ATM 20A ATM control relay, TCU
11 STOP 15A Stop light switch
12 H/LP LO RH 15A (Spare)
13 S/ROOF 15A Sunroof control module

761
Maintenance

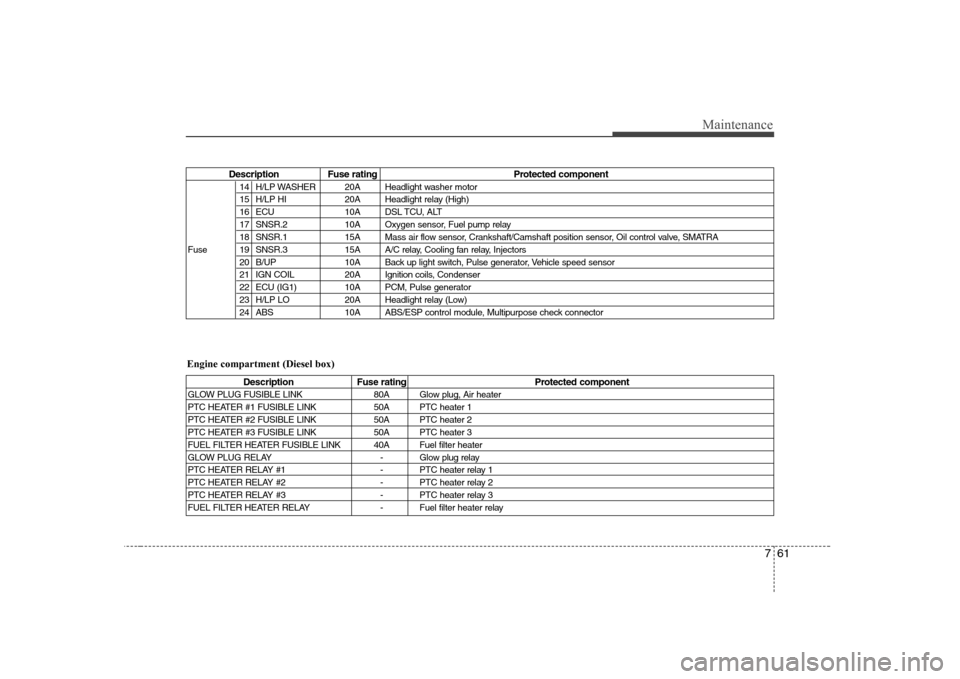

Description Fuse rating Protected component14 H/LP WASHER 20A Headlight washer motor
15 H/LP HI 20A Headlight relay (High)
16 ECU 10A DSL TCU, ALT
17 SNSR.2 10A Oxygen sensor, Fuel pump relay
18 SNSR.1 15A Mass air flow sensor, Crankshaft/Camshaft position sensor, Oil control valve, SMATRA
Fuse 19 SNSR.3 15A A/C relay, Cooling fan relay, Injectors 20 B/UP 10A Back up light switch, Pulse generator, Vehicle speed sensor
21 IGN COIL 20A Ignition coils, Condenser
22 ECU (IG1) 10A PCM, Pulse generator
23 H/LP LO 20A Headlight relay (Low)
24 ABS 10A ABS/ESP control module, Multipurpose check connector
Description Fuse rating Protected component
GLOW PLUG FUSIBLE LINK 80A Glow plug, Air heater
PTC HEATER #1 FUSIBLE LINK 50A PTC heater 1
PTC HEATER #2 FUSIBLE LINK 50A PTC heater 2
PTC HEATER #3 FUSIBLE LINK 50A PTC heater 3
FUEL FILTER HEATER FUSIBLE LINK 40A Fuel filter heater
GLOW PLUG RELAY - Glow plug relay
PTC HEATER RELAY #1 - PTC heater relay 1
PTC HEATER RELAY #2 - PTC heater relay 2
PTC HEATER RELAY #3 - PTC heater relay 3
FUEL FILTER HEATER RELAY - Fuel filter heater relay
Engine compartment (Diesel box)
