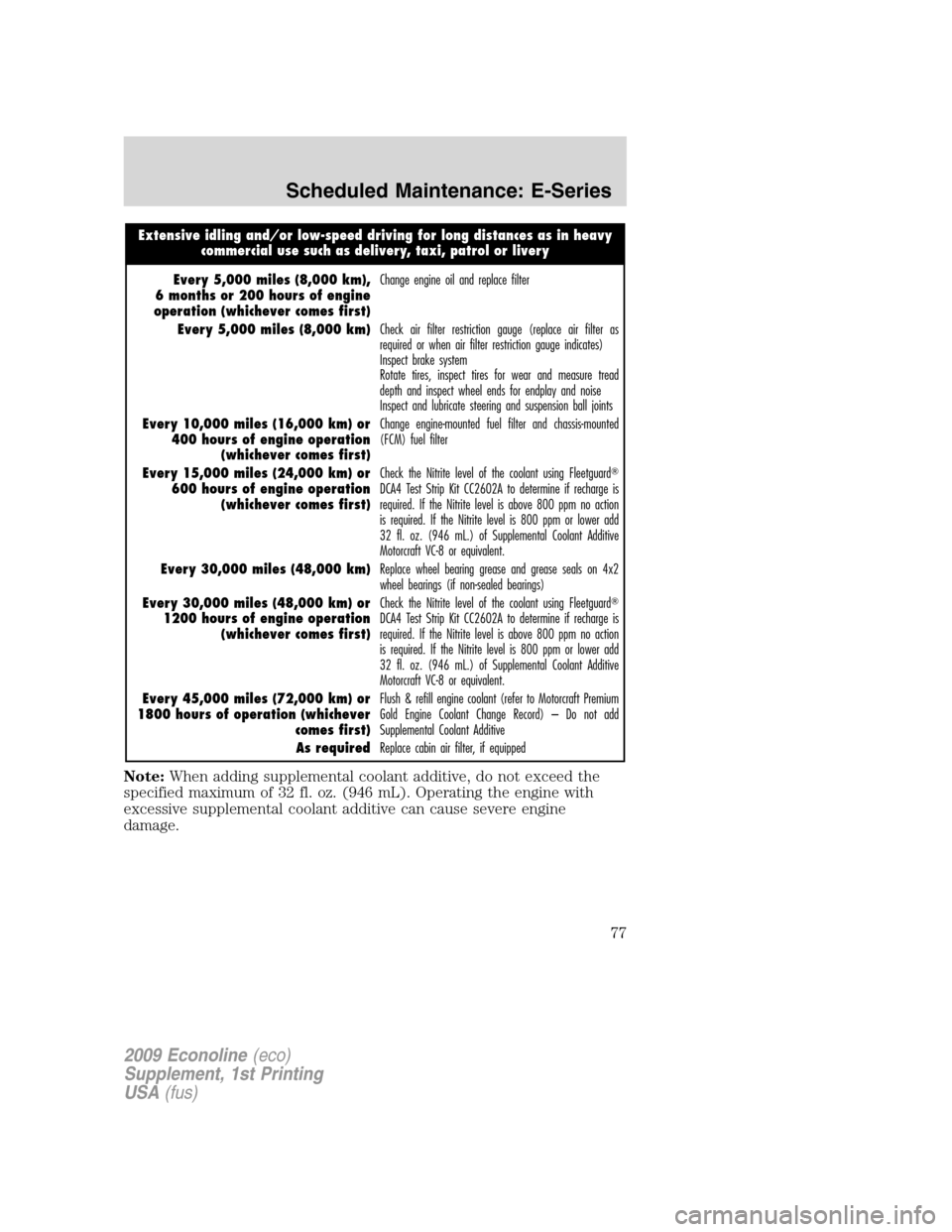

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol or livery
Every 5,000 miles (8,000 km),
6 months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect brake system
Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Inspect and lubricate steering and suspension ball joints
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(FCM) fuel filter
Every 15,000 miles (24,000 km) or
600 hours of engine operation
(whichever comes first)Check the Nitrite level of the coolant using Fleetguard
DCA4 Test Strip Kit CC2602A to determine if recharge is
required. If the Nitrite level is above 800 ppm no action
is required. If the Nitrite level is 800 ppm or lower add
32 fl. oz. (946 mL.) of Supplemental Coolant Additive
Motorcraft VC-8 or equivalent.
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Every 30,000 miles (48,000 km) or
1200 hours of engine operation
(whichever comes first)Check the Nitrite level of the coolant using Fleetguard
DCA4 Test Strip Kit CC2602A to determine if recharge is
required. If the Nitrite level is above 800 ppm no action
is required. If the Nitrite level is 800 ppm or lower add
32 fl. oz. (946 mL.) of Supplemental Coolant Additive
Motorcraft VC-8 or equivalent.
Every 45,000 miles (72,000 km) or
1800 hours of operation (whichever
comes first)Flush & refill engine coolant (refer to Motorcraft Premium
Gold Engine Coolant Change Record) – Do not add
Supplemental Coolant Additive
As requiredReplace cabin air filter, if equipped
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive can cause severe engine
damage.
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: E-Series
77

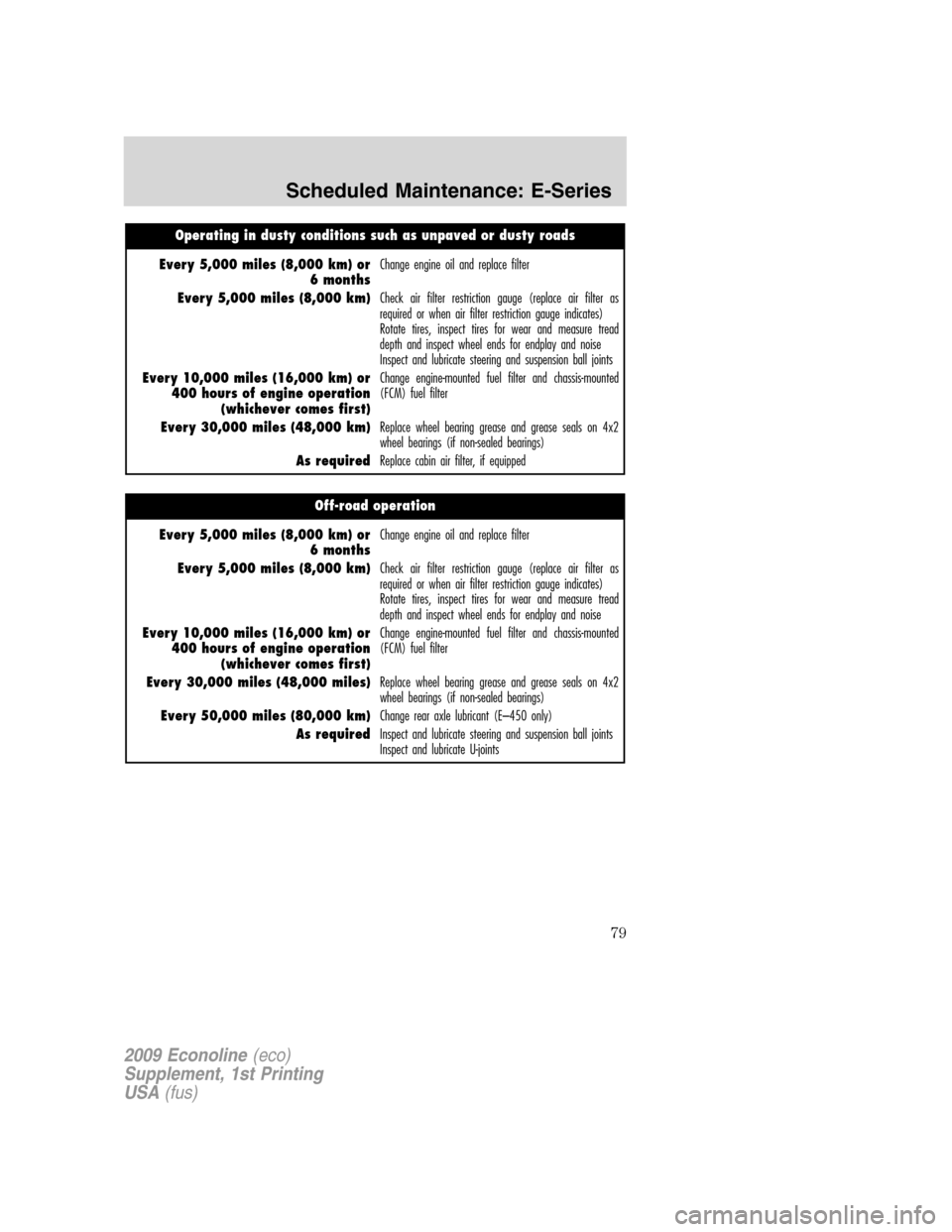

Operating in dusty conditions such as unpaved or dusty roads
Every 5,000 miles (8,000 km) or
6 monthsChange engine oil and replace filter
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Inspect and lubricate steering and suspension ball joints
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(FCM) fuel filter
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
As requiredReplace cabin air filter, if equipped
Off-road operation
Every 5,000 miles (8,000 km) or
6 monthsChange engine oil and replace filter
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(FCM) fuel filter
Every 30,000 miles (48,000 miles)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Every 50,000 miles (80,000 km)Change rear axle lubricant (E–450 only)
As requiredInspect and lubricate steering and suspension ball joints
Inspect and lubricate U-joints
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: E-Series
79
