2009 FORD SUPER DUTY engine coolant

20,000 miles (32,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
30,000 miles (48,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (lubri-
cate if equipped with Zerk fittings)
❑Inspect automatic transmission fluid level on all vehicles
equipped with the Torqshift transmission
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
40,000 miles (64,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect fuel cooling systems❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
84

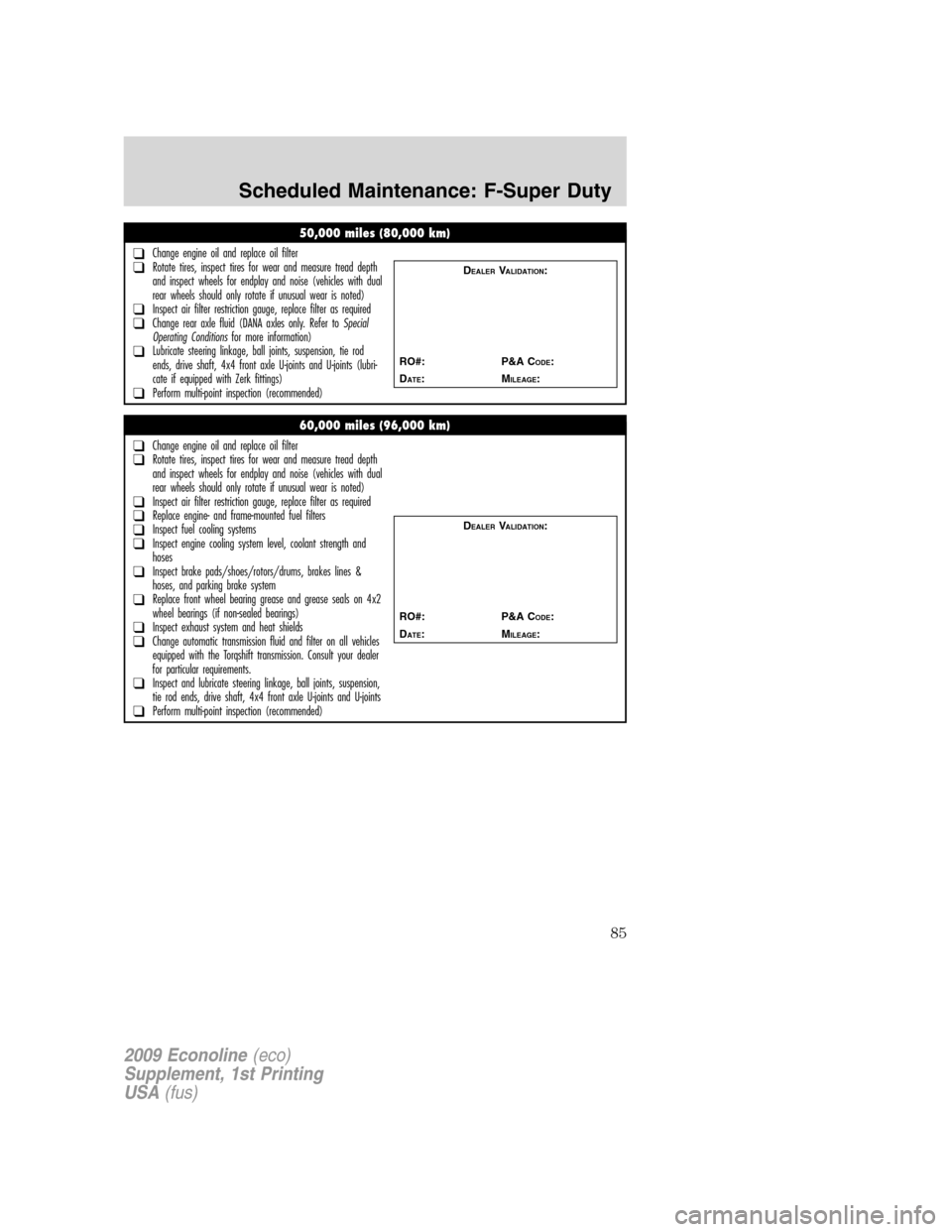

50,000 miles (80,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (lubri-
cate if equipped with Zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
60,000 miles (96,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect fuel cooling systems❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Replace front wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
❑Inspect exhaust system and heat shields❑Change automatic transmission fluid and filter on all vehicles
equipped with the Torqshift transmission. Consult your dealer
for particular requirements.
❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
85

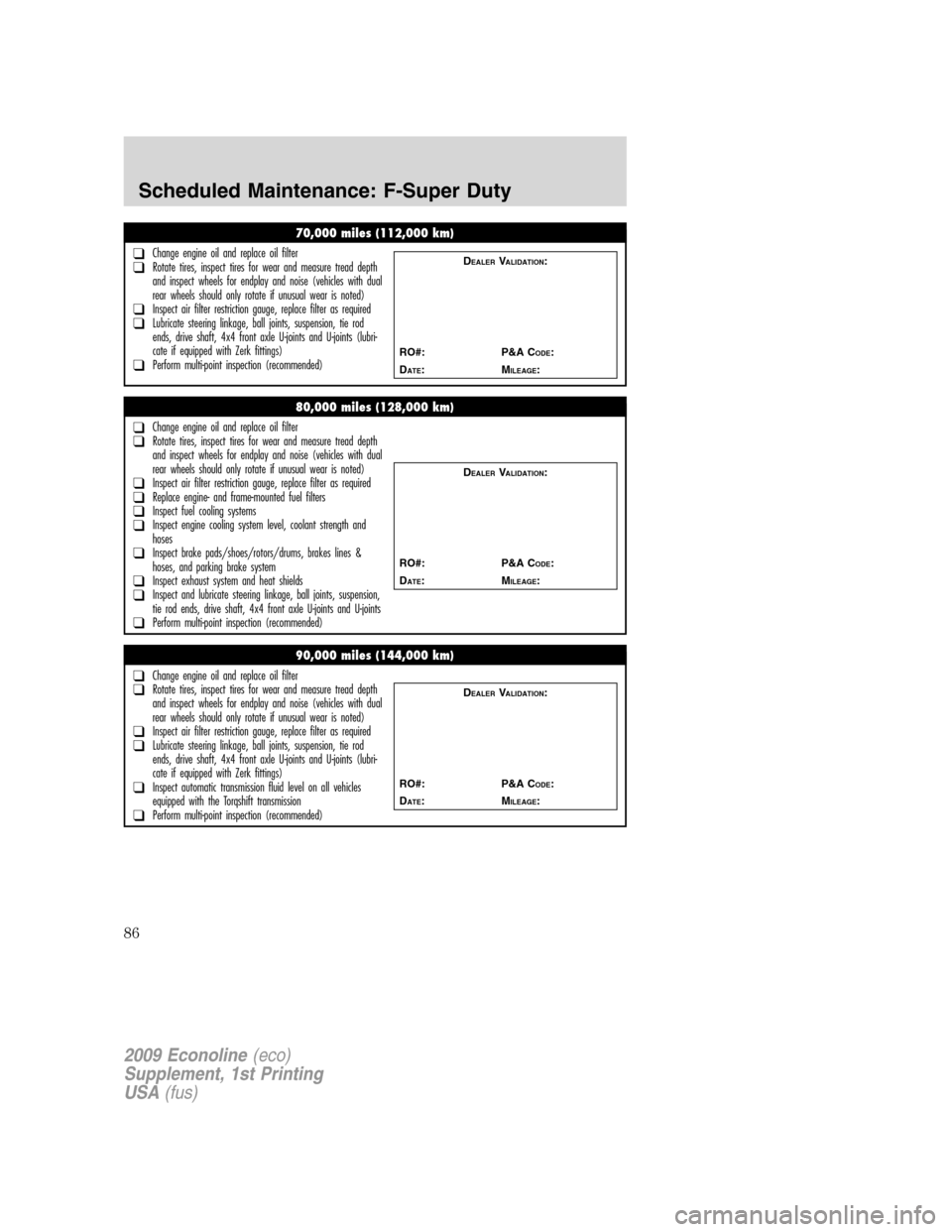

70,000 miles (112,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (lubri-
cate if equipped with Zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
80,000 miles (128,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect fuel cooling systems❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
90,000 miles (144,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (lubri-
cate if equipped with Zerk fittings)
❑Inspect automatic transmission fluid level on all vehicles
equipped with the Torqshift transmission
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
86

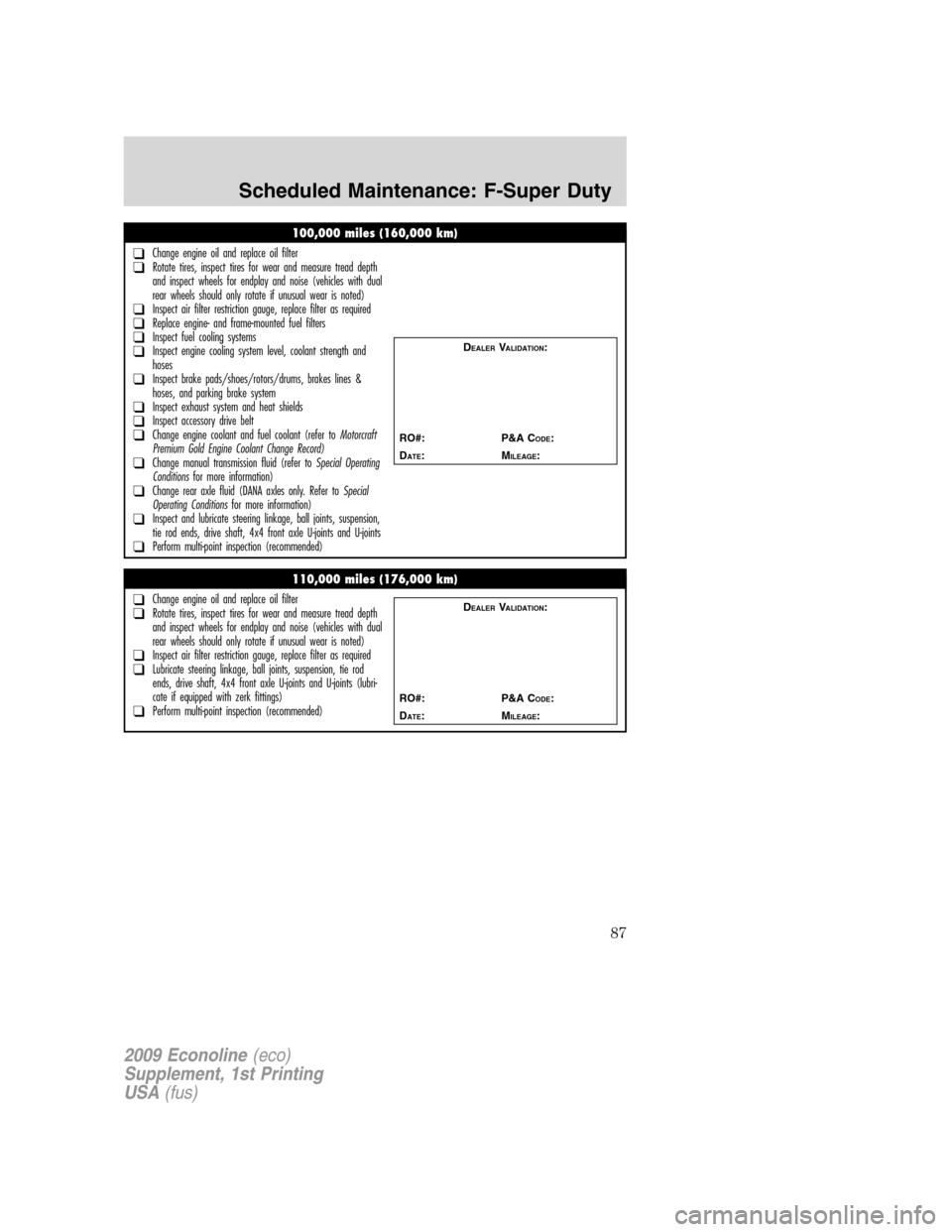

100,000 miles (160,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect fuel cooling systems❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect accessory drive belt❑Change engine coolant and fuel coolant (refer toMotorcraft
Premium Gold Engine Coolant Change Record)
❑Change manual transmission fluid (refer toSpecial Operating
Conditionsfor more information)❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
110,000 miles (176,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (lubri-
cate if equipped with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
87

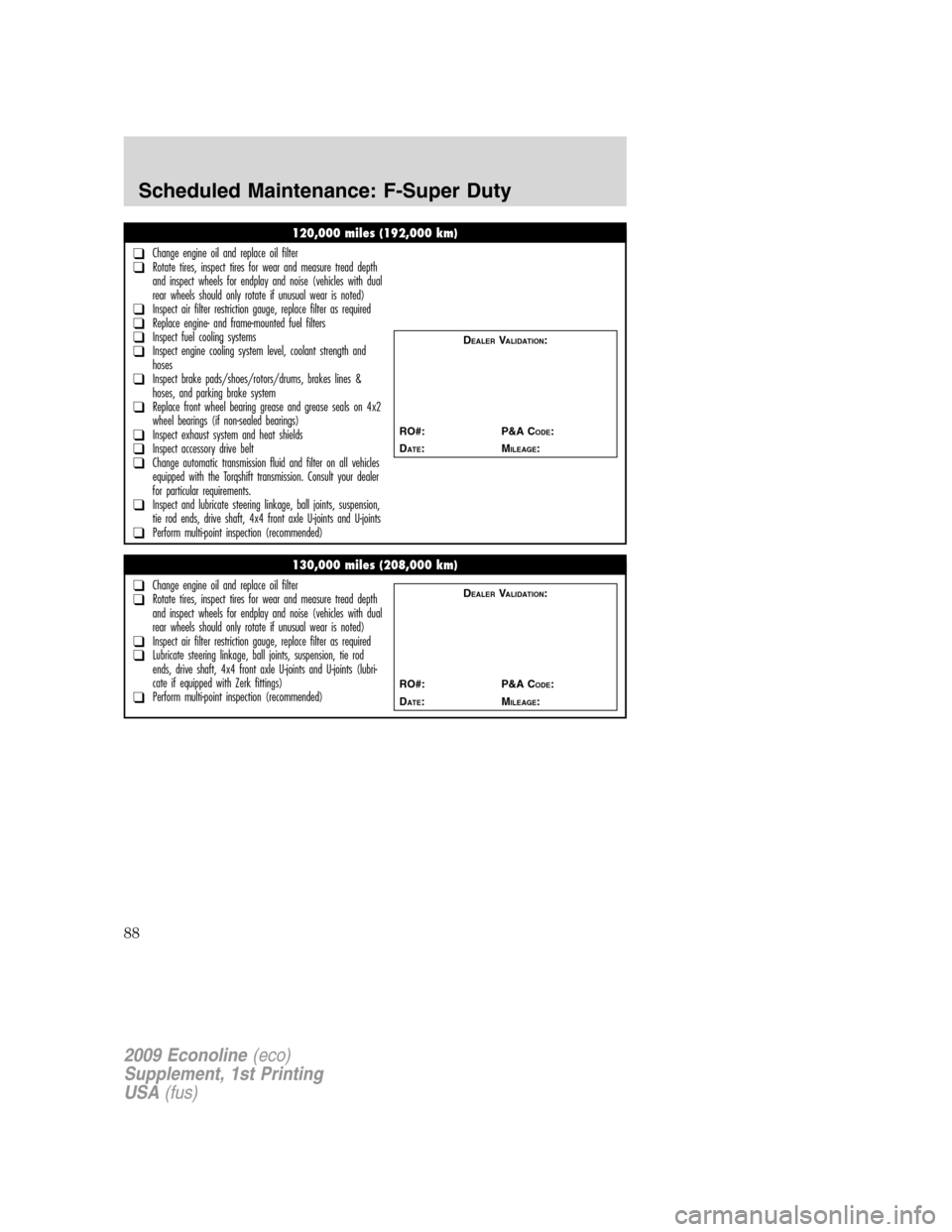

120,000 miles (192,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect fuel cooling systems❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Replace front wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
❑Inspect exhaust system and heat shields❑Inspect accessory drive belt❑Change automatic transmission fluid and filter on all vehicles
equipped with the Torqshift transmission. Consult your dealer
for particular requirements.
❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
130,000 miles (208,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (lubri-
cate if equipped with Zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
88

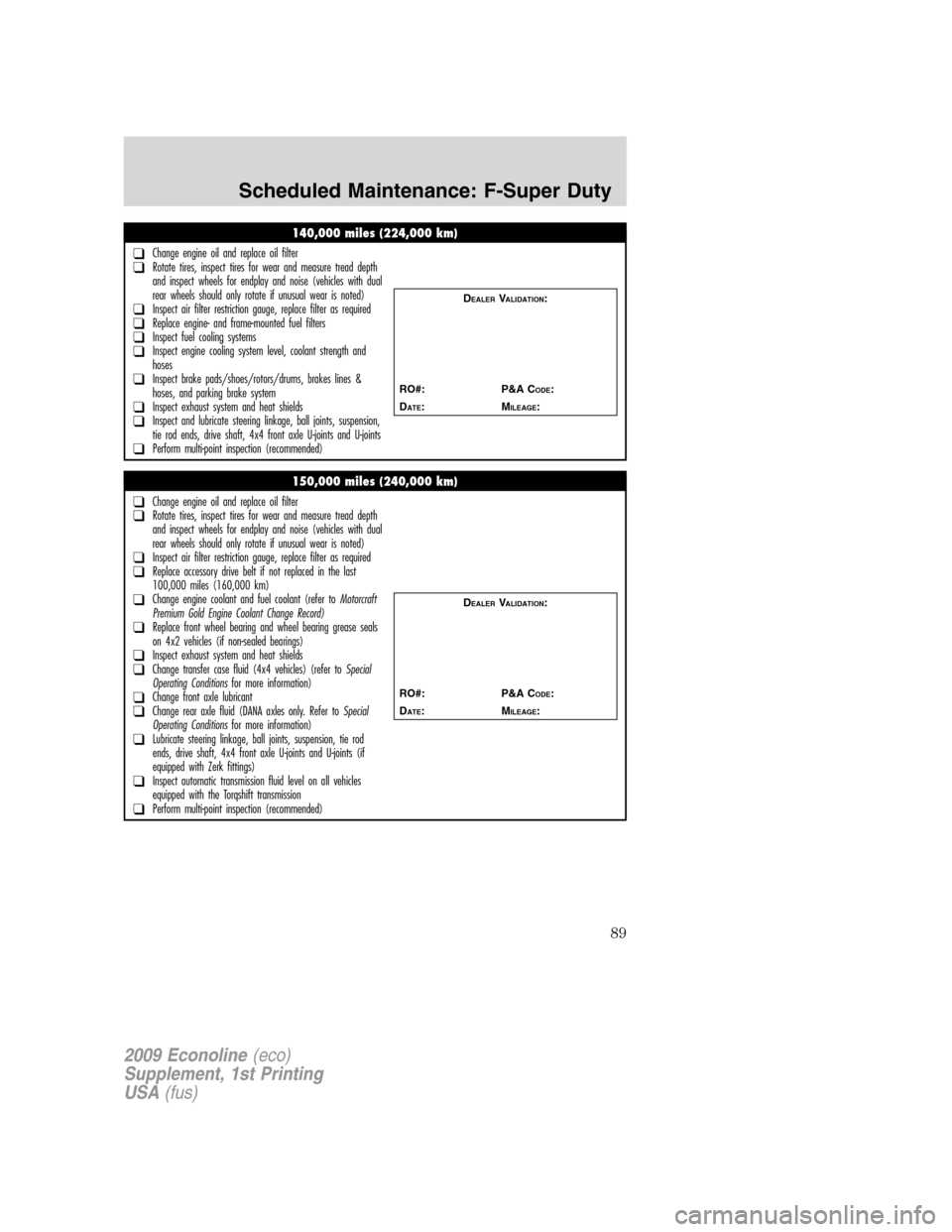

140,000 miles (224,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect fuel cooling systems❑Inspect engine cooling system level, coolant strength and
hoses
❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect and lubricate steering linkage, ball joints, suspension,
tie rod ends, drive shaft, 4x4 front axle U-joints and U-joints
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
150,000 miles (240,000 km)
❑Change engine oil and replace oil filter❑Rotate tires, inspect tires for wear and measure tread depth
and inspect wheels for endplay and noise (vehicles with dual
rear wheels should only rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace accessory drive belt if not replaced in the last
100,000 miles (160,000 km)
❑Change engine coolant and fuel coolant (refer toMotorcraft
Premium Gold Engine Coolant Change Record)
❑Replace front wheel bearing and wheel bearing grease seals
on 4x2 vehicles (if non-sealed bearings)
❑Inspect exhaust system and heat shields❑Change transfer case fluid (4x4 vehicles) (refer toSpecial
Operating Conditionsfor more information)❑Change front axle lubricant❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Lubricate steering linkage, ball joints, suspension, tie rod
ends, drive shaft, 4x4 front axle U-joints and U-joints (if
equipped with Zerk fittings)
❑Inspect automatic transmission fluid level on all vehicles
equipped with the Torqshift transmission
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
89

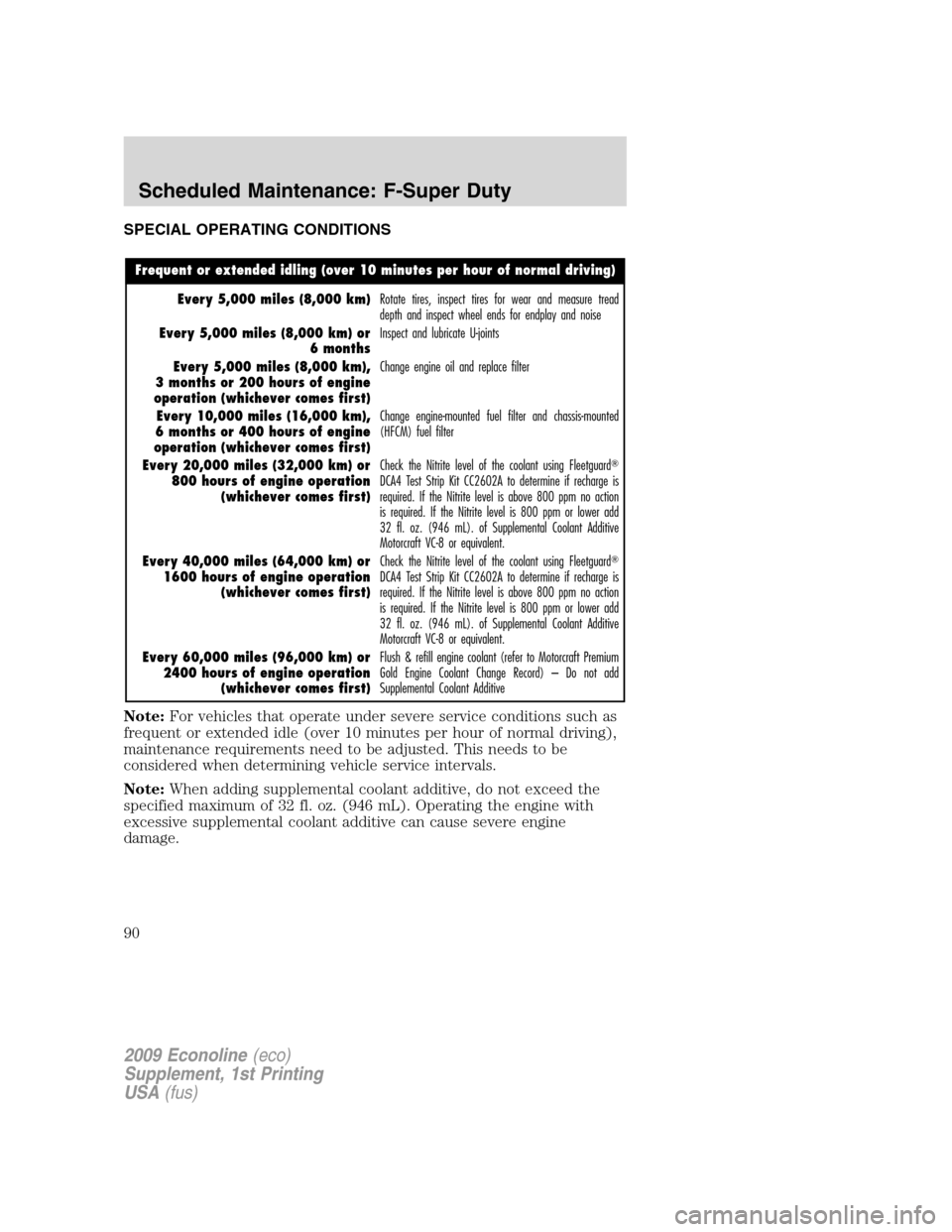

SPECIAL OPERATING CONDITIONS
Frequent or extended idling (over 10 minutes per hour of normal driving)
Every 5,000 miles (8,000 km)Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Every 5,000 miles (8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles (8,000 km),
3 months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km),
6 months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check the Nitrite level of the coolant using Fleetguard

DCA4 Test Strip Kit CC2602A to determine if recharge is
required. If the Nitrite level is above 800 ppm no action
is required. If the Nitrite level is 800 ppm or lower add
32 fl. oz. (946 mL). of Supplemental Coolant Additive
Motorcraft VC-8 or equivalent.
Every 40,000 miles (64,000 km) or
1600 hours of engine operation
(whichever comes first)Check the Nitrite level of the coolant using Fleetguard

DCA4 Test Strip Kit CC2602A to determine if recharge is
required. If the Nitrite level is above 800 ppm no action
is required. If the Nitrite level is 800 ppm or lower add
32 fl. oz. (946 mL). of Supplemental Coolant Additive
Motorcraft VC-8 or equivalent.
Every 60,000 miles (96,000 km) or
2400 hours of engine operation
(whichever comes first)Flush & refill engine coolant (refer to Motorcraft Premium
Gold Engine Coolant Change Record) – Do not add
Supplemental Coolant Additive
Note:For vehicles that operate under severe service conditions such as
frequent or extended idle (over 10 minutes per hour of normal driving),
maintenance requirements need to be adjusted. This needs to be
considered when determining vehicle service intervals.
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive can cause severe engine
damage.
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
90

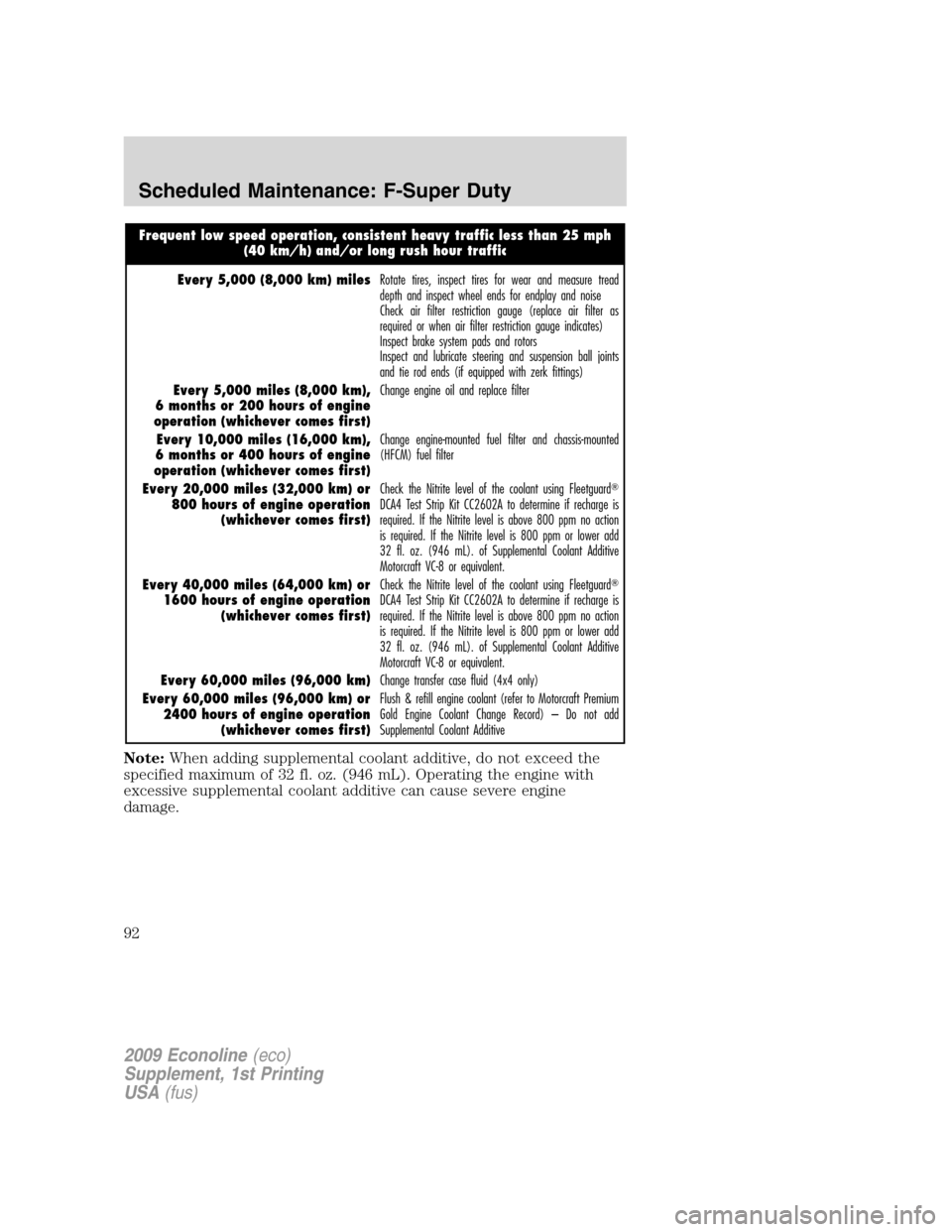

Frequent low speed operation, consistent heavy traffic less than 25 mph
(40 km/h) and/or long rush hour traffic
Every 5,000 (8,000 km) milesRotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect brake system pads and rotors
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Every 5,000 miles (8,000 km),
6 months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km),
6 months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check the Nitrite level of the coolant using Fleetguard

DCA4 Test Strip Kit CC2602A to determine if recharge is
required. If the Nitrite level is above 800 ppm no action
is required. If the Nitrite level is 800 ppm or lower add
32 fl. oz. (946 mL). of Supplemental Coolant Additive
Motorcraft VC-8 or equivalent.
Every 40,000 miles (64,000 km) or
1600 hours of engine operation
(whichever comes first)Check the Nitrite level of the coolant using Fleetguard

DCA4 Test Strip Kit CC2602A to determine if recharge is
required. If the Nitrite level is above 800 ppm no action
is required. If the Nitrite level is 800 ppm or lower add
32 fl. oz. (946 mL). of Supplemental Coolant Additive
Motorcraft VC-8 or equivalent.
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
Every 60,000 miles (96,000 km) or
2400 hours of engine operation
(whichever comes first)Flush & refill engine coolant (refer to Motorcraft Premium
Gold Engine Coolant Change Record) – Do not add
Supplemental Coolant Additive
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive can cause severe engine
damage.
2009 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Scheduled Maintenance: F-Super Duty
92
