2009 FORD FLEX set clock

Setting the clock
To set the time, press CLOCK. The
display will read SET TIME. Use the
memory preset numbers (0–9) to
enter in the desired time–hours and minutes. The clock will then begin
from that time.
If your vehicle is equipped with an in-dash clock, refer toClockin the
Driver Controlschapter for instructions on how to set the time.
AM/FM Radio
/ VOL (Power/Volume):Press
to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition switch is turned back on.
AM/FM:Press repeatedly to select
AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go
up/down the frequency band in
individual increments.
DIRECT:Press DIRECT and then
select the desired radio frequency
(i.e. 93.9) using the memory preset
numbers (0–9).
SEEK:Press
SEEKto
access the previous/next strong
radio station.
SCAN:Press for a brief sampling of
all strong radio stations.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
17

1. Remove the carpeted floor panel
located in the rear of the vehicle,
remove the wing nut that secures
the spare tire by turning it
counterclockwise.
2. Lift and remove the spare tire
from the trunk.
3. Remove the second wing nut that
secures the jack retention bracket
by turning it counterclockwise,
remove the jack kit from the
vehicle.
4. Remove the jack, L-shaped bolt,
and the wrench from the felt bag.
Fold down the wrench socket to use
to loosen the lug nuts and to
operate the jack.
Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in P (Park), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
292

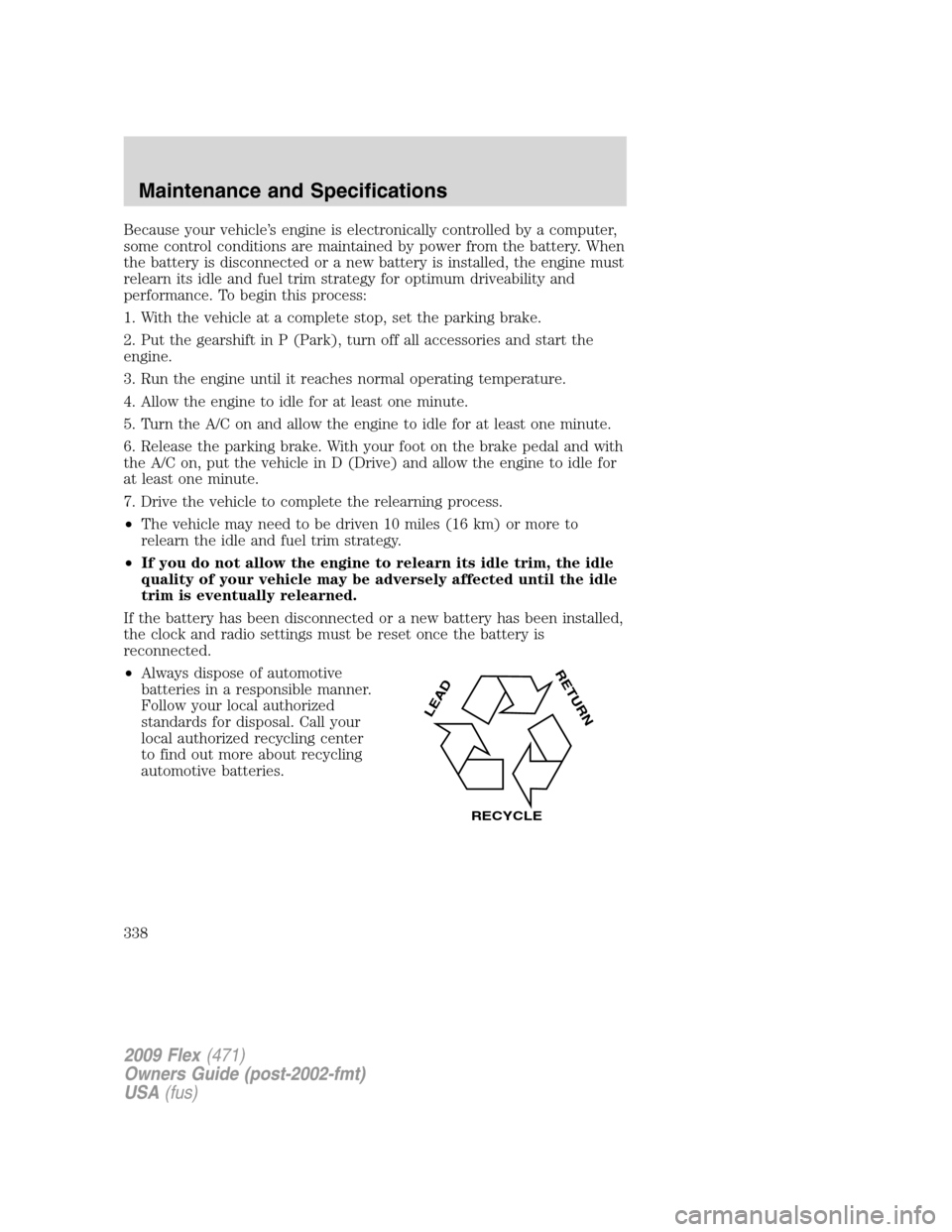

Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
LEAD
RETURN
RECYCLE
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
338

Cleaning your vehicle
engine compartment ..............324
instrument panel ....................326
interior .....................................326
plastic parts ............................325
washing ....................................322
waxing .....................................323
wheels ......................................323
wiper blades ............................325
Climate control
(see Air conditioning or
Heating) ...........................64, 67, 70
Clock ............................................88
Clock adjust
AM/FM .......................................17
Compass, electronic ....................89
calibration .................................90
set zone adjustment .................90
Console
overhead ..............................88–89
Controls
power seat ...............................153
steering column ......................104
Coolant
checking and adding ..............339
refill capacities ................342, 362
specifications ..........................362
Cooler ..........................................92
Cruise control
(see Speed control) ..................101
Customer Assistance ................278
Ford Extended Service
Plan ..........................................318
Getting assistance outside the
U.S. and Canada .....................319
Getting roadside assistance ...278
Getting the service you
need .........................................314Ordering additional owner’s
literature .................................320
Utilizing the
Mediation/Arbitration
Program ...................................318
D
Daytime running lamps
(see Lamps) ................................78
Defrost
rear window and rearview
mirrors .......................................70
windshield .................................70
Dipstick
automatic transmission
fluid ..........................................358
engine oil .................................333
Driving under special
conditions ..........................272, 275
sand .........................................274
snow and ice ...........................276
through water .................274, 277
DVD system .................................34
E
Electronic message center .......110
Emergencies, roadside
jump-starting ..........................307
running out of fuel .........307, 349
Emission control system ..........354
Engine ........................................364
cleaning ...................................324
coolant .....................................339
fail-safe cooling .......................343
idle speed control ...................336
lubrication specifications .......362
refill capacities ........................362
service points ..................331–332
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
370

Passenger Occupant
Classification Sensor .................169
Power adjustable foot pedals ...100
Power distribution box
(see Fuses) ...............................284
Power door locks ......................127
Power liftgate ............................119
Power mirrors .............................99
Power point .................................93
Power steering ..........................262
fluid, checking and adding ....357
fluid, refill capacity ................362
fluid, specifications .................362
Power Windows ...........................96
R
Radio ............................................16
6-CD in dash .............................16
Rear seat entertainment
system ..........................................34
Recommendations for
attaching safety restraints for
children ......................................199
Refrigerator .................................92
Relays ........................................280
Remote entry system .......132–133
illuminated entry ............137, 139
locking/unlocking
doors ................................133–134
opening the trunk ...................134
panic alarm .............................135
replacement/additional
transmitters .............................137
replacing the batteries ...........136
Reverse camera .........................269
Reverse sensing system ...........266Roadside assistance ..................278
Roof rack ...................................124
S
Safety belts (see Safety
restraints) ..................168, 171–175
Safety Canopy ...................190, 192
Safety defects, reporting ..320–321
Safety restraints ........168, 171–175
Belt-Minder
...........................177
extension assembly ................176
for adults .........................172–175
for children .............................196
Occupant Classification
Sensor ......................................169
warning light and chime ........176
Safety restraints - LATCH
anchors ......................................205
Safety seats for children ..........201
Safety Compliance
Certification Label ....................365
Satellite Radio (if equipped) .....16
Satellite Radio Information ........31
Seats ..........................................148
child safety seats ....................201
climate control ..........................70
easy access/easyout feature ..156
front seats ...............................151
heated ........................67, 155, 164
memory seat ...................135, 156
second row seats ............159, 162
third row seats ........162, 165–166
SecuriLock passive anti-theft
system ........................................142
Servicing your vehicle ..............329
Setting the clock .........................17
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
373
