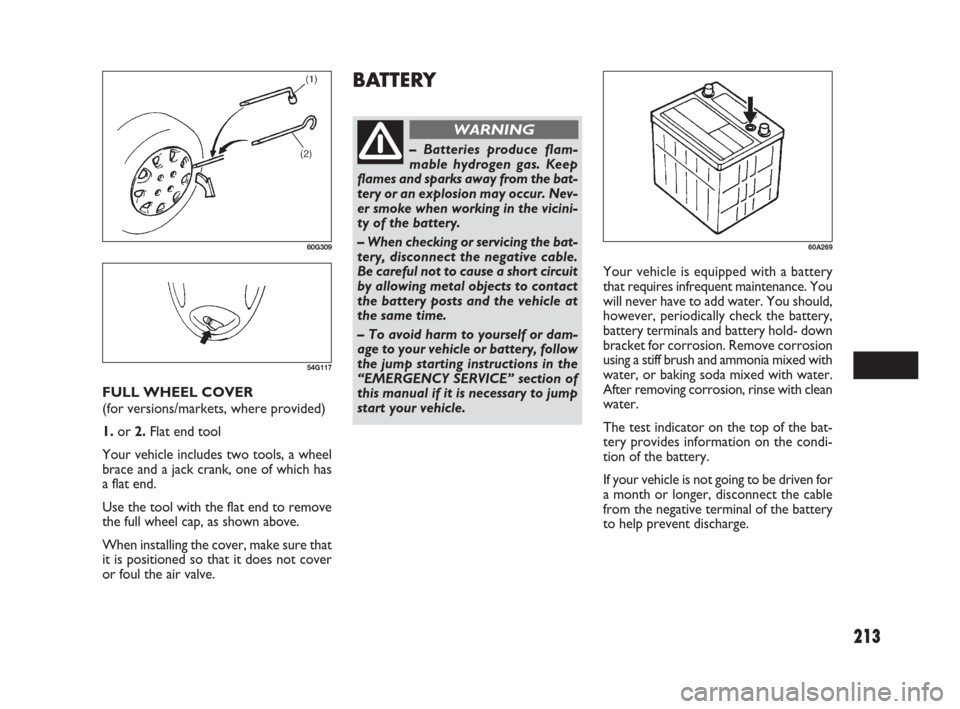

213
BATTERY
– Batteries produce flam-
mable hydrogen gas. Keep
flames and sparks away from the bat-
tery or an explosion may occur. Nev-
er smoke when working in the vicini-
ty of the battery.
– When checking or servicing the bat-
tery, disconnect the negative cable.
Be careful not to cause a short circuit
by allowing metal objects to contact
the battery posts and the vehicle at
the same time.
– To avoid harm to yourself or dam-
age to your vehicle or battery, follow
the jump starting instructions in the
“EMERGENCY SERVICE” section of
this manual if it is necessary to jump
start your vehicle.
WARNING
FULL WHEEL COVER
(for versions/markets, where provided)
1.or 2.Flat end tool
Your vehicle includes two tools, a wheel
brace and a jack crank, one of which has
a flat end.
Use the tool with the flat end to remove
the full wheel cap, as shown above.
When installing the cover, make sure that
it is positioned so that it does not cover
or foul the air valve.
60G309
54G117
Your vehicle is equipped with a battery
that requires infrequent maintenance. You
will never have to add water. You should,
however, periodically check the battery,
battery terminals and battery hold- down
bracket for corrosion. Remove corrosion
using a stiff brush and ammonia mixed with
water, or baking soda mixed with water.
After removing corrosion, rinse with clean
water.
The test indicator on the top of the bat-
tery provides information on the condi-
tion of the battery.
If your vehicle is not going to be driven for
a month or longer, disconnect the cable
from the negative terminal of the battery
to help prevent discharge.
60A269
