2009 FIAT SEDICI service schedule

90
Do not attempt to adjust the
display while driving.
If you attempt to adjust the display
while driving, you could lose control
of the vehicle.
WARNING
NOTE
❒If you push the indicator selector knob
or do not turn the knob for more than
5 seconds while activating the illumi-
nation control, the illumination con-
trol will be canceled automatically and
the display (D) will show the odome-
ter indication.
❒You can change the brightness when
the position lights or headlights are on
even if the ignition switch is in the
“ACC” or “LOCK” position.
❒When you reconnect the negative (–)
terminal to the battery, the brightness
of the instrument panel lights will be
reinitialized. Readjust the brightness
according to your preference.
NOTE If you select the highest brightness
level when the position lights or headlights
are on, the instrument panel lights are not
dimmed.
Clock (for versions/markets, where
provided)
When the ignition switch is in the “ON”
position, the display (E) shows the time.
80JM039
IMPORTANT Keep track of your odome-
ter reading and check the maintenance
schedule regularly for required services.
Increased wear or damage to certain parts
can result from failure to perform re-
quired services at the proper mileage in-
tervals.

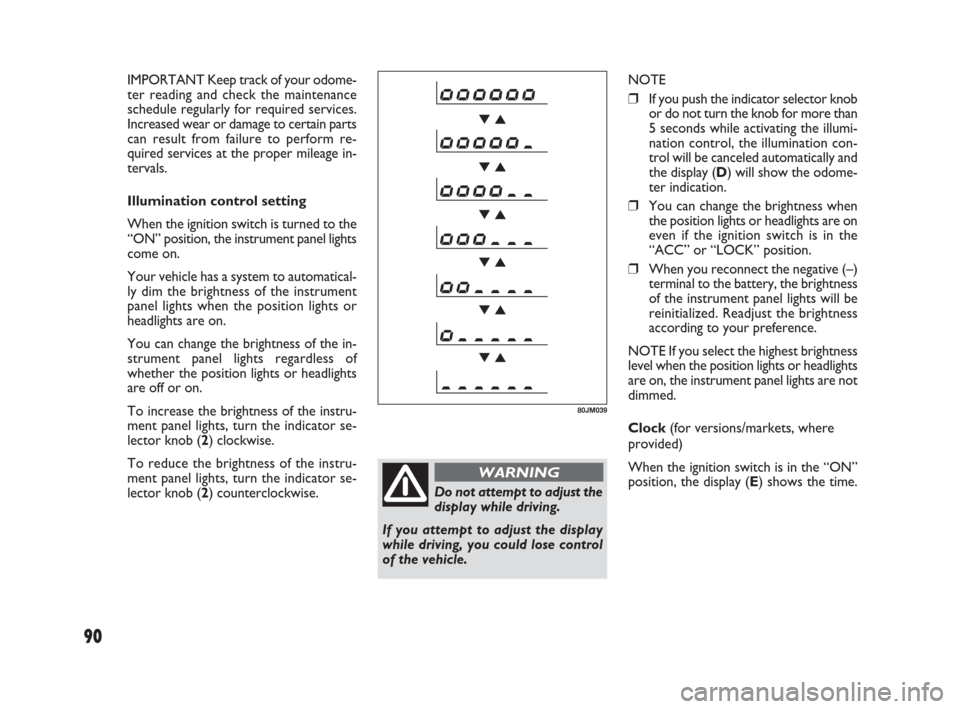

Illumination control setting
When the ignition switch is turned to the
“ON” position, the instrument panel lights
come on.
Your vehicle has a system to automatical-
ly dim the brightness of the instrument
panel lights when the position lights or
headlights are on.
You can change the brightness of the in-
strument panel lights regardless of
whether the position lights or headlights
are off or on.
To increase the brightness of the instru-
ment panel lights, turn the indicator se-
lector knob (2) clockwise.
To reduce the brightness of the instru-
ment panel lights, turn the indicator se-
lector knob (2) counterclockwise.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 90

183
I I
N N
S S
P P
E E
C C
T T
I I
O O
N N
A A
N N
D D
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
60G410
MAINTENANCE SCHEDULE................................................. 185
SERVICE SCHEDULE – PETROL VERSIONS ..................... 186
SERVICE SCHEDULE – DIESEL VERSIONS........................ 188
MAINTENANCE RECOMMENDED UNDER SEVERE
DRIVING CONDITIONS......................................................... 190
DRIVE BELT.................................................................................. 191
ENGINE OIL AND FILTER...................................................... 191
GEAR OIL...................................................................................... 195
AUTOMATIC TRANSAXLE (AT) FLUID ........................... 196
ENGINE COOLANT................................................................. 198
WINDSHIELD WASHER FLUID............................................ 201
AIR CLEANER.............................................................................. 201
SPARK PLUGS (Gasoline engine)........................................... 202
FUEL FILTER (Diesel engine).................................................... 204
BRAKES.......................................................................................... 205
STEERING ..................................................................................... 207
CLUTCH PEDAL........................................................................ 208
TIRES ............................................................................................... 208
BATTERY....................................................................................... 213
FUSES .............................................................................................. 215
BULB REPLACEMENT............................................................... 221
WINDSCREEN - REAR WINDOW WASHER/WIPERS 227
AIR CONDITIONING SYSTEM............................................. 230
8
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 183

185

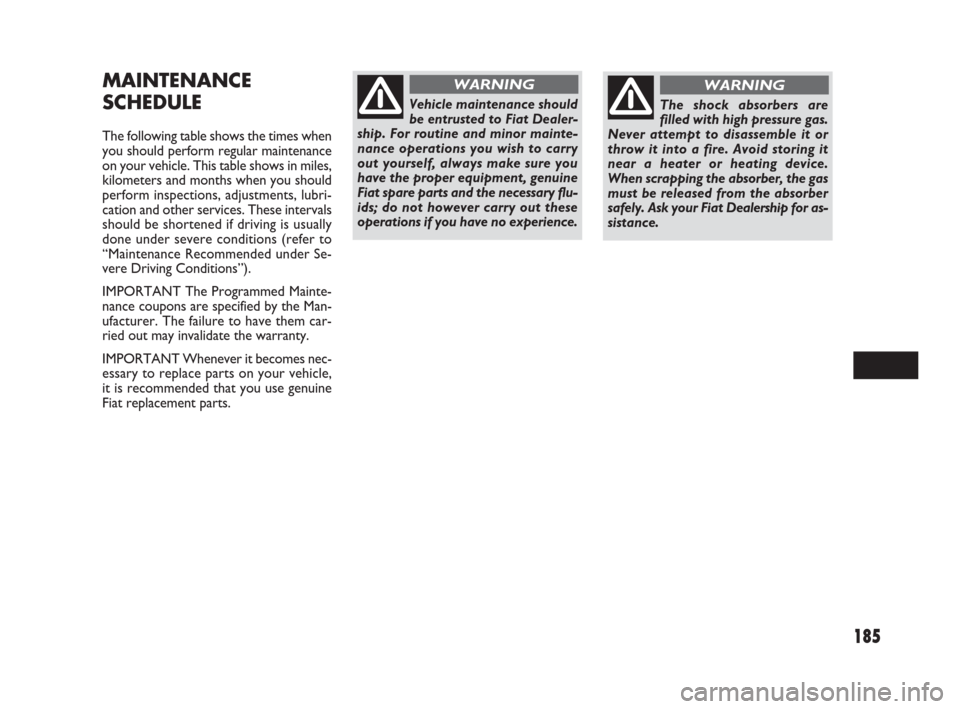

MAINTENANCE
SCHEDULE
The following table shows the times when
you should perform regular maintenance
on your vehicle. This table shows in miles,
kilometers and months when you should
perform inspections, adjustments, lubri-
cation and other services. These intervals
should be shortened if driving is usually
done under severe conditions (refer to
“Maintenance Recommended under Se-
vere Driving Conditions”).
IMPORTANT The Programmed Mainte-
nance coupons are specified by the Man-
ufacturer. The failure to have them car-
ried out may invalidate the warranty.
IMPORTANT Whenever it becomes nec-
essary to replace parts on your vehicle,
it is recommended that you use genuine
Fiat replacement parts.
Vehicle maintenance should
be entrusted to Fiat Dealer-
ship. For routine and minor mainte-
nance operations you wish to carry
out yourself, always make sure you
have the proper equipment, genuine
Fiat spare parts and the necessary flu-
ids; do not however carry out these
operations if you have no experience.
WARNING
The shock absorbers are
filled with high pressure gas.
Never attempt to disassemble it or
throw it into a fire. Avoid storing it
near a heater or heating device.
When scrapping the absorber, the gas
must be released from the absorber
safely. Ask your Fiat Dealership for as-
sistance.
WARNING
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 185

186
15 30 45 60 75 90 105 120 135 150 165 180
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●● ●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●
●●
●●●●●●●●●●●●
●● ●●●●
●● ●●●●

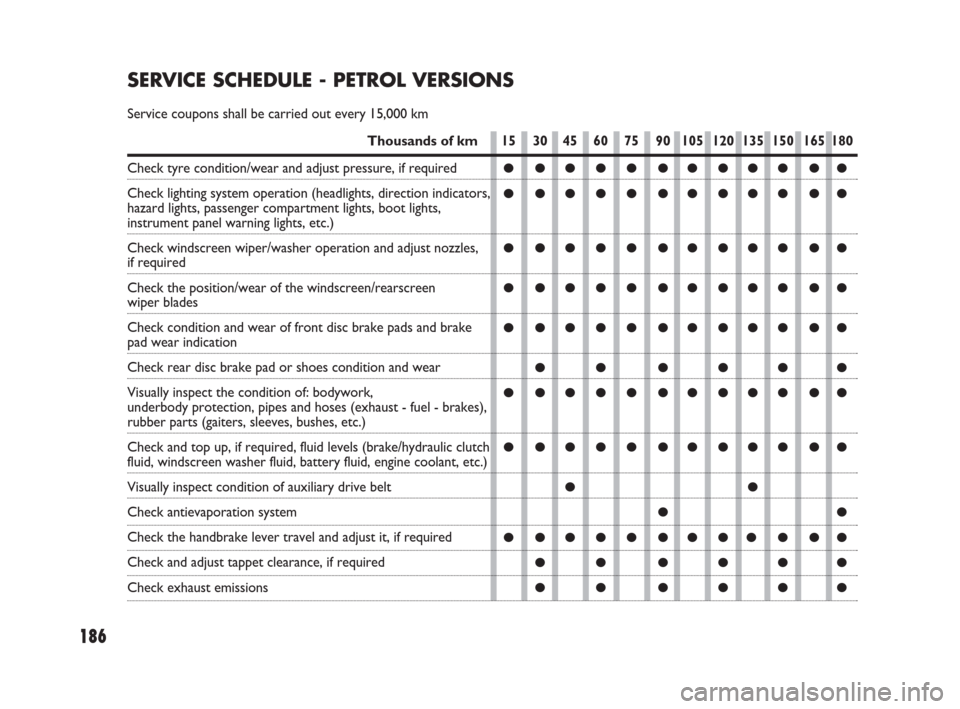

SERVICE SCHEDULE - PETROL VERSIONS
Service coupons shall be carried out every 15,000 km
Thousands of km
Check tyre condition/wear and adjust pressure, if required
Check lighting system operation (headlights, direction indicators,
hazard lights, passenger compartment lights, boot lights,
instrument panel warning lights, etc.)
Check windscreen wiper/washer operation and adjust nozzles,
if required
Check the position/wear of the windscreen/rearscreen
wiper blades
Check condition and wear of front disc brake pads and brake
pad wear indication
Check rear disc brake pad or shoes condition and wear
Visually inspect the condition of: bodywork,
underbody protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check and top up, if required, fluid levels (brake/hydraulic clutch
fluid, windscreen washer fluid, battery fluid, engine coolant, etc.)
Visually inspect condition of auxiliary drive belt
Check antievaporation system
Check the handbrake lever travel and adjust it, if required
Check and adjust tappet clearance, if required
Check exhaust emissions
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 186

188
15 30 45 60 75 90 105 120 135 150 165 180
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●● ●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●
●●●●●●
●● ●●●●
●●●●●●●●●●●●

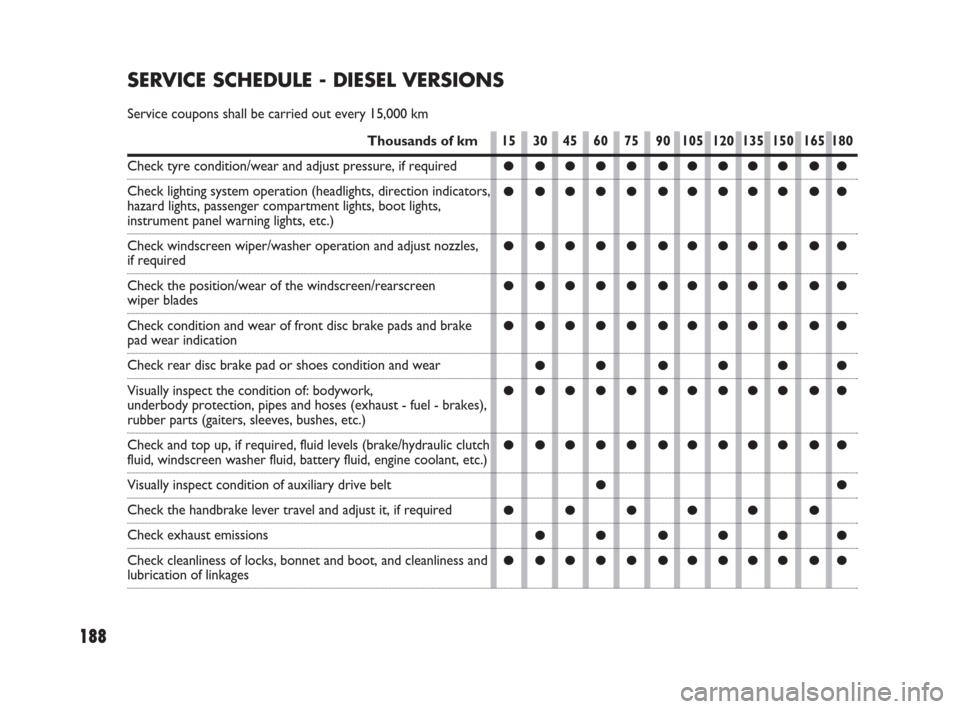

SERVICE SCHEDULE - DIESEL VERSIONS
Service coupons shall be carried out every 15,000 km
Thousands of km
Check tyre condition/wear and adjust pressure, if required
Check lighting system operation (headlights, direction indicators,
hazard lights, passenger compartment lights, boot lights,
instrument panel warning lights, etc.)
Check windscreen wiper/washer operation and adjust nozzles,
if required
Check the position/wear of the windscreen/rearscreen
wiper blades
Check condition and wear of front disc brake pads and brake
pad wear indication
Check rear disc brake pad or shoes condition and wear
Visually inspect the condition of: bodywork,
underbody protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check and top up, if required, fluid levels (brake/hydraulic clutch
fluid, windscreen washer fluid, battery fluid, engine coolant, etc.)
Visually inspect condition of auxiliary drive belt
Check the handbrake lever travel and adjust it, if required
Check exhaust emissions
Check cleanliness of locks, bonnet and boot, and cleanliness and
lubrication of linkages
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 188

262
– Level check ..................................... 192
– Oil life monitoring......................... 89
– Specifications.................................. 191
Engine oil filter (change)..................... 194
Engine oil life monitoring ................... 89
ESP (Electronic Stability
Program)......................................92-164
Exhaust gas............................................ 150
External lights................................63-222
Fiat CODE (Immobilizer system) .... 11
Frame hooks........................................... 143
Front fog lights ........................................ 91
Fuel
– Average fuel consumption
(gauge)................................................ 87
– Capacities/refuelling...................10-254
– Consumption.................................... 247
– Driving range .................................... 88
– Fuel filter ............................................ 204
– Fuel filler cap ..................................... 132
– Fuel gauge .......................................... 84
– Fuel recommendation.................... 10
– Improving fuel economy ................ 168
– Instantaneous fuel consumption
(gauge).................................................... 85
Fuses.......................................................... 215
Gear oil
– Changing .......................................... 196– Level check ..................................... 195
– Specifications.................................. 195
Gearshift lever...................................... 132
General information............................ 245
Glove box.............................................. 94
Hazard warning lights ....................... 91
Head restraints..................................... 30
Headlight levelling switch ................... 94
Headlights
– Bulb replacement........................... 222
– Headlight levelling switch............. 94
Heated rear window........................... 93
Heating and air conditioning system .. 96
– Air outlet......................................... 96
– Automatic heating and air
conditioning system
(Climate Control).......................... 104
– Heating system............................... 97
– Maintenance.............................110-230
– Manual heating and air
conditioning system...................... 100
Horn ....................................................... 68
Identification data .............................. 246
Ignition switch ...................................... 58
Information display.............................. 85
Inspection and maintenance .............. 183
– Maintenance schedule................... 185
– Severe driving conditions............. 190 – Keyless Start system..................... 15
– Opening/closing............................. 12
Drive belt (servicing).......................... 191
Driving tips............................................ 169
– Driving on hills ............................... 170
– Driving on slippery roads ............ 171
– Highway driving.............................. 170
Emergency service ............................ 231
Engine
– Air cleaner ...................................... 201
– Engine coolant ................................ 198
– Engine oil and filter........................ 191
– If the engine is flooded................. 236
– If the engine overheats ................. 236
– If the starter does not operate... 236
– Jump starting................................... 233
– Oil consumption ............................ 151
– Serial number................................. 246
– Spark plugs...................................... 202
– Starting............................................. 152
– Technical specifications ................ 249
– Temperature gauge ....................... 85
Engine coolant ...................................... 198
Engine coolant temperature gauge .. 85
Engine hood .......................................... 140
Engine oil
– Changing oil and filter................... 193
– Consumption.................................. 151
261-268 SEDICI LUM FL GB 1E 19-06-2009 11:12 Pagina 262

263
Mirrors
– Defroster......................................... 93
– Electric mirrors.............................. 28
– Inside rearview mirror ................. 27
– Outside rearview mirror ............. 27
MP3/WMA Player ................................ 119
Odometer ........................................... 87
Operating your vehicle....................... 149
Original spare parts............................. 2
Other controls and equipment......... 129
Parking brake lever ........................... 130
Parking lights ......................................... 63
Pedals..................................................... 131
Performance ......................................... 254
Pretensioners for seat belts .............. 45
Radio antenna...................................... 147
Rear door.............................................. 23
Rear fog light......................................... 64
Rear window washer
– Switch............................................... 66
Rear window wiper
– Blades............................................... 229
– Control ............................................ 66
Recirculated air.............................100-104
Refuelling/Capacities....................10-254
Remote audio controls....................... 126
Roof rails or roof rack anchors ........ 147
Running-in.............................................. 167
Seat back pocket ................................ 145
Seat belts............................................... 31
– Height adjuster............................... 36
– Pretensioners................................. 45
– Seat belt hangers............................ 36
– Seat belt inspection....................... 37
– Seat belt reminder (S.B.R.) .......... 35
– Use.................................................... 33
– Warnings......................................... 31
Seats
– Front (adjustment) ........................ 29
– Front seat heater........................... 139
– Seat back pocket............................ 145
Service station guide........................... 3
Shopping hook...................................... 145
Snow chains .......................................... 171
Spare tire........................................144-211
Spark plugs............................................ 202
Speedometer........................................ 84
Spot light................................................ 138
Starting the engine............................... 152
– If the engine is flooded................. 236
– If the starter does not operate... 236
– Jump starting................................... 233
Steering.................................................. 207
Steering column controls................... 57
Sun visors .............................................. 137
Supplement (declaration
of conformity).................................... 255 Instrument cluster............................... 73
– Meter illumination (control) ....... 90
Instrument panel.............................71-72
Interior light.......................................... 138
Isofix type child restraint system
(installation)..................................41-42
Jack ......................................................... 144
Jacking instructions.............................. 232
Jump starting instructions .................. 233
Keys ....................................................... 11
– Battery replacement..................... 20
– Keyless Entry.................................. 18
Keyless Entry System.......................... 18
Keyless Start System........................... 15
Luggage compartment
– Luggage compartment cover....... 146
– Luggage compartment light ......... 146
– Luggage restraint loops ................ 145
Main beam headlights ........................ 63
– Bulb replacement........................... 222
Maintenance (programmed) .............. 183
– Maintenance schedule................... 185
– Severe driving conditions............. 190
Manual heating and air conditioning
system.................................................. 100
– Maintenance............................108-230
261-268 SEDICI LUM FL GB 1E 19-06-2009 11:12 Pagina 263
