2WD/4WD SWITCH
OPERATION
Operate the 2WD/4WD switch accord-
ing to the appropriate procedure de-
scribed below:
How to turn on 2WD/4WD switch
2WD/4WD switch will activate when the
ignition switch is turned on.
From 2WD to 4WD AUTO
Turn the 2WD/4WD switch to the neu-
tral position, and the “4WD AUTO” in-
dicator will come on.
79J040
From 4WD AUTO to 4WD LOCK
Push the “4WD LOCK” switch for a few
seconds until the “4WD LOCK” indica-
tor will come on.
79J100
From 4WD LOCK to 4WD AUTO
Push the “4WD LOCK” switch, and the
“4WD AUTO” indicator will come on.From 4WD AUTO or LOCK to
2WD
Push the “2WD” switch, and the “4WD
AUTO” or “4WD LOCK” indicator will
turn off.
NOTE
The 2WD/4WD switch can be operat-
ed when the vehicle is either stopped
or moving.
Make sure that the front wheels are in
the straight ahead position when op-
erating the 2WD/4WD switch.
While making turns or accelerating and
decelerating, operating the 2WD/
4WD switch or turning off the key
switch in the “4WD AUTO” or “4WD
LOCK” mode may cause a shock, but
this is not a system malfunction.
While driving in the “4WD LOCK”
mode, as the vehicle speed increases,
the driving mode changes to the “4WD
AUTO” mode automatically. Even
when the vehicle speed reduces, on the
other hand, the driving mode does not
return to the “4WD LOCK” mode au-
tomatically. You should press the
“4WD LOCK” switch according to the
driving conditions.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 160

171
DRIVING ON SLIPPERY
ROADS
Under wet road conditions you should
drive at a lower speed than on dry roads
due to possible slippage of tires during
braking. When driving on icy, snow-cov-
ered, or muddy roads, reduce your speed
and avoid sudden acceleration, abrupt
braking, or sharp steering movements.
FOR 4-WHEEL DRIVE (4WD)
MODELS
Your 4WD is designed to get better trac-
tion on slippery roads than 2-wheel drive
models. However, your 4WD will not
have as much traction in deep snow, mud
or sand as multipurpose 4WD vehicles.
You should not attempt to drive your
4WD in deep snow, mud or sand. 4WD
models are not sport/utility vehicles, and
are not designed for off-road use.
SNOW CHAINS
Snow chains should only be used if they
are needed to increase traction or are re-
quired by law. Make sure that the chains
you use are the correct size for your ve-
hicle’s tires. Also make sure that there is
enough clearance between the fenders
and the chains as installed on the tires.Install the chains on the front tires tight-
ly, according to the chain manufacturer’s
instructions. Retighten the chains after dri-
ving about 1. 0 km (1/ 2 mile) if necessary.
With the chains installed, drive slowly.
IMPORTANT
❒If you hear the chains hitting against the
vehicle body while driving, stop and
tighten them.
❒If you vehicle is equipped with full wheel
caps, remove the wheel caps before in-
stalling the chains or the wheel caps can
be damaged by the chain bands. IMPORTANT When descending a down
hill, NEVER turn the ignition key to the
“OFF” position. Emission control system
damage may result.
79J02960G089S
169-172 SEDICI LUM FL GB 1E 19-06-2009 10:47 Pagina 171

181
79J130

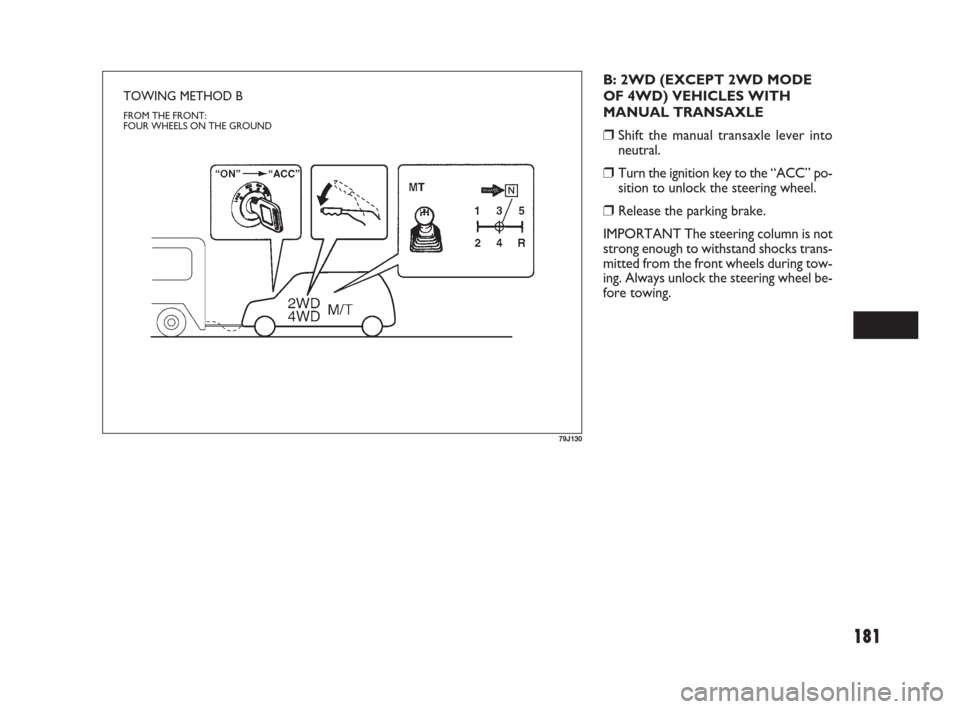

TOWING METHOD B
FROM THE FRONT:
FOUR WHEELS ON THE GROUND
B: 2WD (EXCEPT 2WD MODE
OF 4WD) VEHICLES WITH
MANUAL TRANSAXLE
❒Shift the manual transaxle lever into
neutral.
❒Turn the ignition key to the “ACC” po-
sition to unlock the steering wheel.
❒Release the parking brake.
IMPORTANT The steering column is not
strong enough to withstand shocks trans-
mitted from the front wheels during tow-
ing. Always unlock the steering wheel be-
fore towing.
173-182 SEDICI LUM FL GB 1E 19-06-2009 10:49 Pagina 181

182

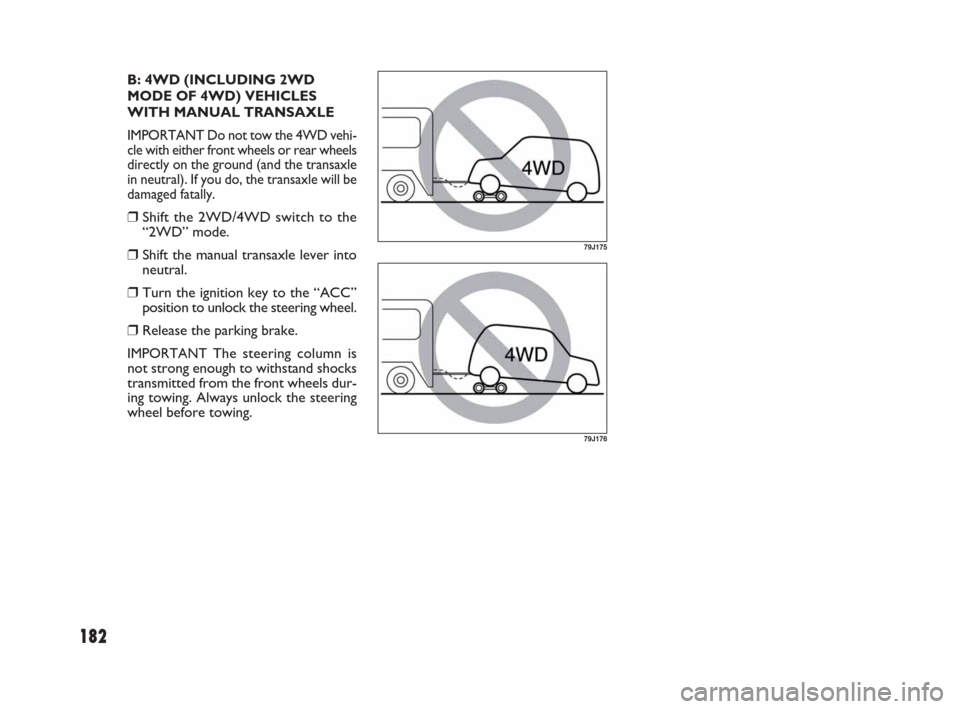

B: 4WD (INCLUDING 2WD
MODE OF 4WD) VEHICLES
WITH MANUAL TRANSAXLE
IMPORTANT Do not tow the 4WD vehi-
cle with either front wheels or rear wheels
directly on the ground (and the transaxle
in neutral). If you do, the transaxle will be
damaged fatally.
❒Shift the 2WD/4WD switch to the
“2WD” mode.
❒Shift the manual transaxle lever into
neutral.
❒Turn the ignition key to the “ACC”
position to unlock the steering wheel.
❒Release the parking brake.
IMPORTANT The steering column is
not strong enough to withstand shocks
transmitted from the front wheels dur-
ing towing. Always unlock the steering
wheel before towing.
79J175
79J176
173-182 SEDICI LUM FL GB 1E 19-06-2009 10:49 Pagina 182

235
2-WHEEL DRIVE (2WD)
MANUAL TRANSAXLE
Manual transaxle vehicles may be towed
using either of the following methods.
❒From the front, with the front wheels
lifted and the rear wheels on the
ground. Before towing, make sure that
the parking brake is released.
❒From the rear, with the rear wheels lift-
ed and the front wheels on the ground,
provided the steering and drivetrain are
in operational condition. Before tow-
ing, make sure that transaxle is in neu-
tral, the steering wheel is unlocked (the
ignition key should be in the “ACC” po-
sition), and the steering wheel is se-
cured with a clamping device designed
for towing service.
IMPORTANT The steering column is not
strong enough to withstand shocks trans-
mitted from the front wheels during tow-
ing. Always unlock the steering wheel be-
fore towing.
TOWING
If you need to have your vehicle towed,
contact a professional service. Your deal-
er can provide you with detailed towing
instructions.
IMPORTANT To help avoid damage to
your vehicle during towing, proper equip-
ment and towing procedures must be
used.
2- WHEEL DRIVE (2WD)
AUTOMATIC TRANSAXLE
Automatic transaxle vehicles may be
towed using either of the following meth-
ods.
❒From the front, with the front wheels
lifted and the rear wheels on the
ground. Before towing, make sure that
the parking brake is released.
❒From the rear, with the rear wheels lift-
ed and a dolly under the front wheels.
IMPORTANT Towing your vehicle with
the front wheels on the ground can result
in damage to the automatic transaxle.4-WHEEL DRIVE (4WD)
Your vehicle should be towed under one
of the following conditions:
❒With all four wheels on a flat-bed truck.
❒With the front or rear wheels lifted and
a dolly under the other wheels.
❒If you can shift the 2WD/4WD switch
to the “2WD” mode, and if the steer-
ing and drive train are in good condi-
tion and the engine can be started, the
vehicle may also be towed according to
the instructions in the “Towing Your
Vehicle (recreational towing)” section.
IMPORTANT Towing your vehicle with
front and/or rear wheels on the ground
can result in damage to the automatic
transaxle and/or the 4WD drive system.
231-238 SEDICI LUM FL GB 1E 19-06-2009 11:06 Pagina 235

238
(1)
68KM037
(1)
68KM038
IF YOU CANNOT
SHIFT AUTOMATIC
TRANSAXLE
GEARSHIFT LEVER
OUT OF “P” (PARK)
Left Hand Drive Vehicle
Vehicles with an automatic transaxle have
an electrically operated park- lock feature.
If the vehicle’s battery is discharged, or
there is some other electrical failure, the
automatic transaxle cannot be shifted out
of Park in the normal way. Jump starting
may correct the condition. If not, follow
the procedure described below. This pro-
cedure will permit shifting the transaxle
out of Park.
❒Be sure the parking brake is firmly ap-
plied.
❒If the engine is running, stop the engine.
❒Make sure the key is in the “ON” or
“ACC” position.
❒Remove the cover (1) over the button.
❒With pushing the release button by the
key or the flat end rod, shift the
gearshift lever to the desired position.This procedure is for emergency use on-
ly. If repeated use of this procedure is nec-
essary, or the procedure does not work
as described, take the vehicle to your deal-
er for repair.
Right Hand Drive Vehicle
Vehicles with an automatic transaxle have
an electrically operated park- lock feature.
If the vehicle’s battery is discharged, or
there is some other electrical failure, the
automatic transaxle cannot be shifted out
of Park in the normal way. Jump starting
may correct the condition. If not, follow
the procedure described below. This pro-
cedure will permit shifting the transaxle
out of Park.
❒Be sure the parking brake is firmly ap-
plied.
❒If the engine is running, stop the engine.
❒Make sure the key is in the “ON” or
“ACC” position.
❒With pushing the release button (1),
shift the gearshift lever to the desired
position.
This procedure is for emergency use on-
ly. If repeated use of this procedure is nec-
essary, or the procedure does not work
as described, take the vehicle to your deal-
er for repair.
231-238 SEDICI LUM FL GB 1E 19-06-2009 11:06 Pagina 238

258

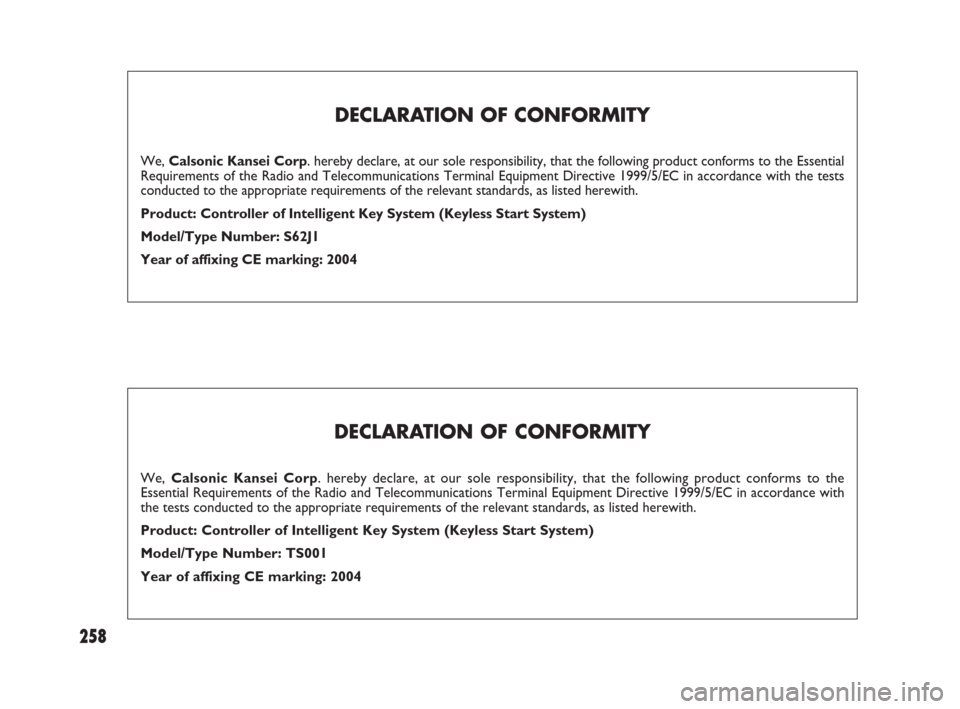

DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the Essential
Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with the tests
conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Controller of Intelligent Key System (Keyless Start System)
Model/Type Number: S62J1
Year of affixing CE marking: 2004
DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the
Essential Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with
the tests conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Controller of Intelligent Key System (Keyless Start System)
Model/Type Number: TS001
Year of affixing CE marking: 2004
255-260 SEDICI LUM FL GB 1E 19-06-2009 13:36 Pagina 258

259

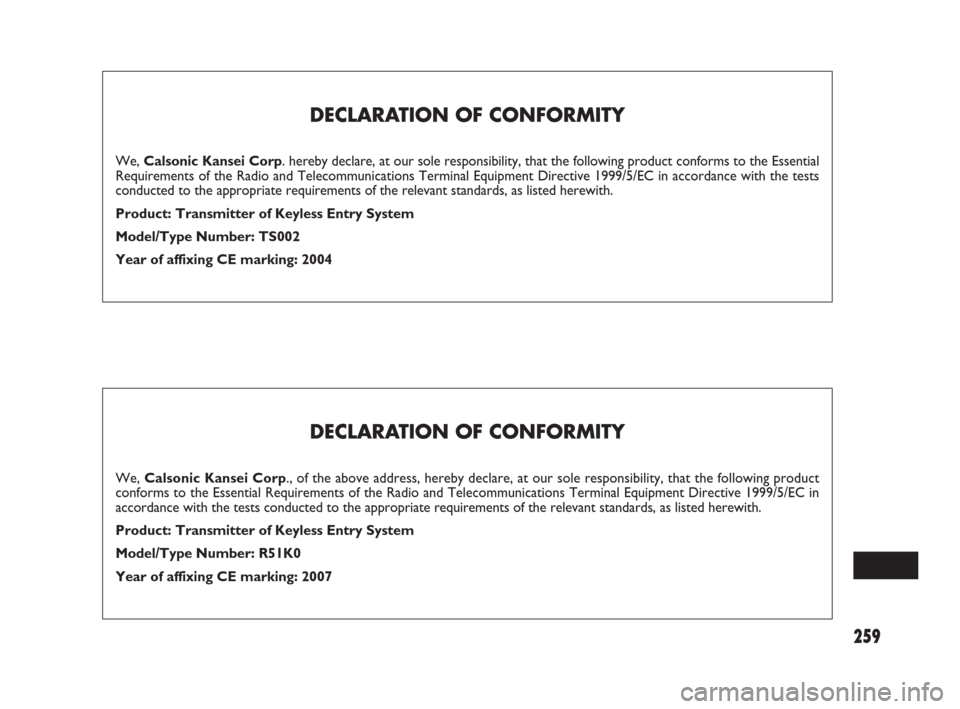

DECLARATION OF CONFORMITY
