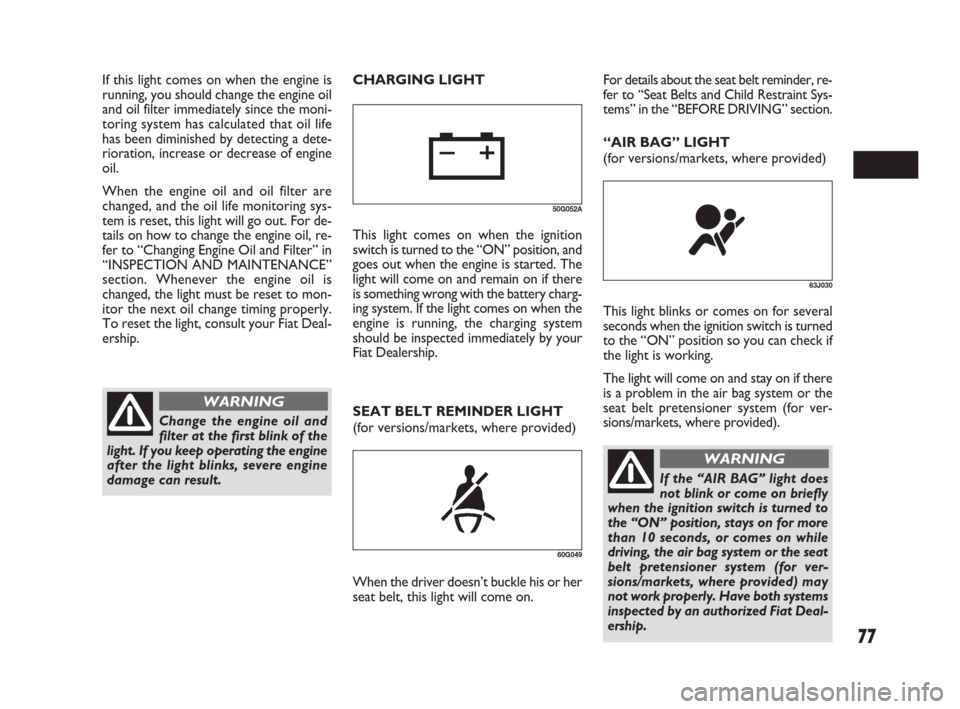

77
SEAT BELT REMINDER LIGHT
(for versions/markets, where provided)
60G049
When the driver doesn’t buckle his or her
seat belt, this light will come on.
63J030
This light blinks or comes on for several
seconds when the ignition switch is turned
to the “ON” position so you can check if
the light is working.
The light will come on and stay on if there
is a problem in the air bag system or the
seat belt pretensioner system (for ver-
sions/markets, where provided). CHARGING LIGHT
50G052A
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is something wrong with the battery charg-
ing system. If the light comes on when the
engine is running, the charging system
should be inspected immediately by your
Fiat Dealership.For details about the seat belt reminder, re-
fer to “Seat Belts and Child Restraint Sys-
tems” in the “BEFORE DRIVING” section.
“AIR BAG” LIGHT
(for versions/markets, where provided)
Change the engine oil and
filter at the first blink of the
light. If you keep operating the engine
after the light blinks, severe engine
damage can result.
WARNING
If this light comes on when the engine is
running, you should change the engine oil
and oil filter immediately since the moni-
toring system has calculated that oil life
has been diminished by detecting a dete-
rioration, increase or decrease of engine
oil.
When the engine oil and oil filter are
changed, and the oil life monitoring sys-
tem is reset, this light will go out. For de-
tails on how to change the engine oil, re-
fer to “Changing Engine Oil and Filter” in
“INSPECTION AND MAINTENANCE”
section. Whenever the engine oil is
changed, the light must be reset to mon-
itor the next oil change timing properly.
To reset the light, consult your Fiat Deal-
ership.
If the “AIR BAG” light does
not blink or come on briefly
when the ignition switch is turned to
the “ON” position, stays on for more
than 10 seconds, or comes on while
driving, the air bag system or the seat
belt pretensioner system (for ver-
sions/markets, where provided) may
not work properly. Have both systems
inspected by an authorized Fiat Deal-
ership.
WARNING
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 77

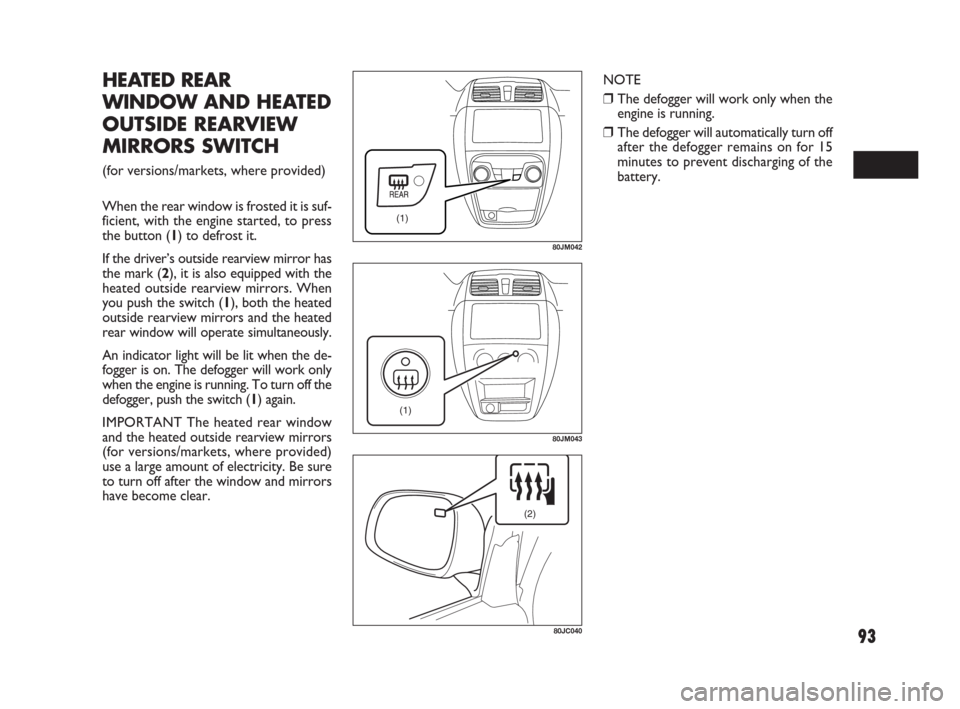

93
HEATED REAR
WINDOW AND HEATED
OUTSIDE REARVIEW
MIRRORS SWITCH
(for versions/markets, where provided)
When the rear window is frosted it is suf-
ficient, with the engine started, to press
the button (1) to defrost it.
If the driver’s outside rearview mirror has
the mark (2), it is also equipped with the
heated outside rearview mirrors. When
you push the switch (1), both the heated
outside rearview mirrors and the heated
rear window will operate simultaneously.
An indicator light will be lit when the de-
fogger is on. The defogger will work only
when the engine is running. To turn off the
defogger, push the switch (1) again.
IMPORTANT The heated rear window
and the heated outside rearview mirrors
(for versions/markets, where provided)
use a large amount of electricity. Be sure
to turn off after the window and mirrors
have become clear.
(1)
80JM042
(1)
80JM043
NOTE
❒The defogger will work only when the
engine is running.
❒The defogger will automatically turn off
after the defogger remains on for 15
minutes to prevent discharging of the
battery.
(2)
80JC040
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 93

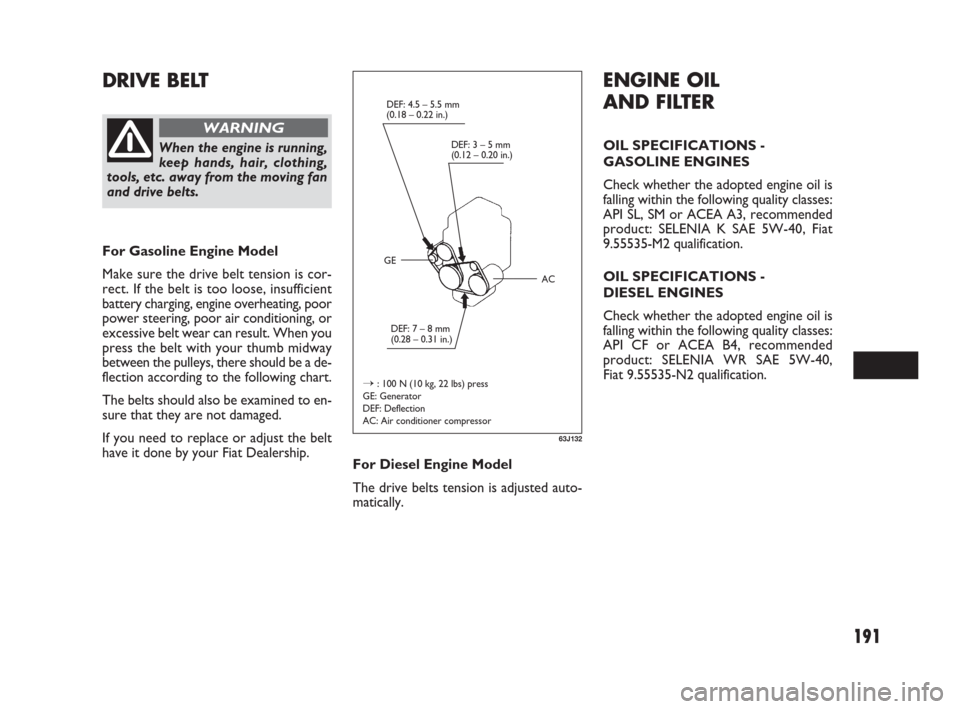

191
ENGINE OIL
AND FILTER
OIL SPECIFICATIONS -
GASOLINE ENGINES
Check whether the adopted engine oil is
falling within the following quality classes:
API SL, SM or ACEA A3, recommended
product: SELENIA K SAE 5W-40, Fiat
9.55535-M2 qualification.
OIL SPECIFICATIONS -
DIESEL ENGINES
Check whether the adopted engine oil is
falling within the following quality classes:
API CF or ACEA B4, recommended
product: SELENIA WR SAE 5W-40,
Fiat 9.55535-N2 qualification.
DRIVE BELT
63J132
DEF: 4.5 – 5.5 mm
(0.18 – 0.22 in.)
DEF: 3 – 5 mm
(0.12 – 0.20 in.)
DEF: 7 – 8 mm
(0.28 – 0.31 in.)
AC GE
→: 100 N (10 kg, 22 lbs) press
GE: Generator
DEF: Deflection
AC: Air conditioner compressor
When the engine is running,
keep hands, hair, clothing,
tools, etc. away from the moving fan
and drive belts.
WARNING
For Gasoline Engine Model
Make sure the drive belt tension is cor-
rect. If the belt is too loose, insufficient
battery charging, engine overheating, poor
power steering, poor air conditioning, or
excessive belt wear can result. When you
press the belt with your thumb midway
between the pulleys, there should be a de-
flection according to the following chart.
The belts should also be examined to en-
sure that they are not damaged.
If you need to replace or adjust the belt
have it done by your Fiat Dealership.
For Diesel Engine Model
The drive belts tension is adjusted auto-
matically.
