2009 FIAT SEDICI check engine

79

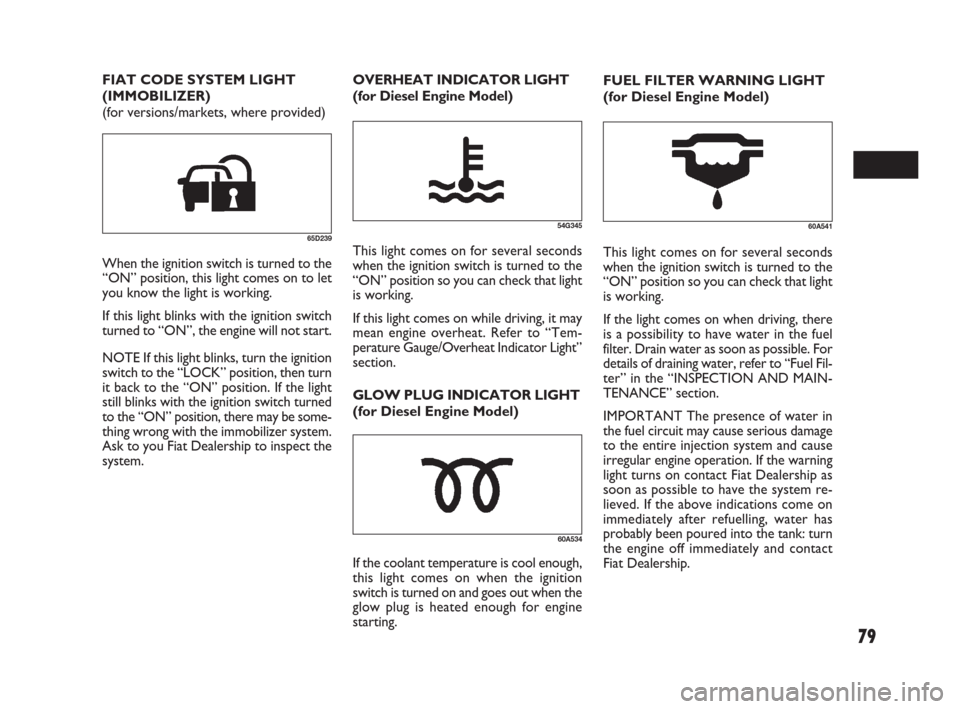

FUEL FILTER WARNING LIGHT
(for Diesel Engine Model)
60A541
This light comes on for several seconds
when the ignition switch is turned to the
“ON” position so you can check that light
is working.
If the light comes on when driving, there
is a possibility to have water in the fuel
filter. Drain water as soon as possible. For
details of draining water, refer to “Fuel Fil-
ter” in the “INSPECTION AND MAIN-
TENANCE” section.
IMPORTANT The presence of water in
the fuel circuit may cause serious damage
to the entire injection system and cause
irregular engine operation. If the warning
light turns on contact Fiat Dealership as
soon as possible to have the system re-
lieved. If the above indications come on
immediately after refuelling, water has
probably been poured into the tank: turn
the engine off immediately and contact
Fiat Dealership. FIAT CODE SYSTEM LIGHT
(IMMOBILIZER)
(for versions/markets, where provided)
65D239
When the ignition switch is turned to the
“ON” position, this light comes on to let
you know the light is working.
If this light blinks with the ignition switch
turned to “ON”, the engine will not start.
NOTE If this light blinks, turn the ignition
switch to the “LOCK” position, then turn
it back to the “ON” position. If the light
still blinks with the ignition switch turned
to the “ON” position, there may be some-
thing wrong with the immobilizer system.
Ask to you Fiat Dealership to inspect the
system.
54G345
OVERHEAT INDICATOR LIGHT
(for Diesel Engine Model)
This light comes on for several seconds
when the ignition switch is turned to the
“ON” position so you can check that light
is working.
If this light comes on while driving, it may
mean engine overheat. Refer to “Tem-
perature Gauge/Overheat Indicator Light”
section.
GLOW PLUG INDICATOR LIGHT
(for Diesel Engine Model)
60A534
If the coolant temperature is cool enough,
this light comes on when the ignition
switch is turned on and goes out when the
glow plug is heated enough for engine
starting.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 79

80
79J039
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started.
If this light comes on while driving, the
power steering system may not work
properly. Have the system inspected by
your Fiat Dealership.
NOTE If the power steering system does
not work properly, you will feel heavier
to steer but you still will be able to steer. ELECTRIC POWER STEERING
LIGHT
(for versions/markets, where provided)
LOW FUEL WARNING LIGHT
54G391
This light remains on until all doors (in-
cluding the rear door) are completely
closed.
If any door (including the tailgate) is open
when the vehicle is moving, a ding sounds
to remind you to close all doors com-
pletely.
54G343
If this light comes on, fill the fuel tank im-
mediately. OPEN DOOR WARNING LIGHTWhen this light comes on, a ding sounds
once to remind you to fill the fuel. If you
do not fill the fuel, a ding sounds every
time when the ignition switch is turned to
“ON”.
NOTE The activation point of this light
varies depending on road conditions (for
example, slope or curve) and driving con-

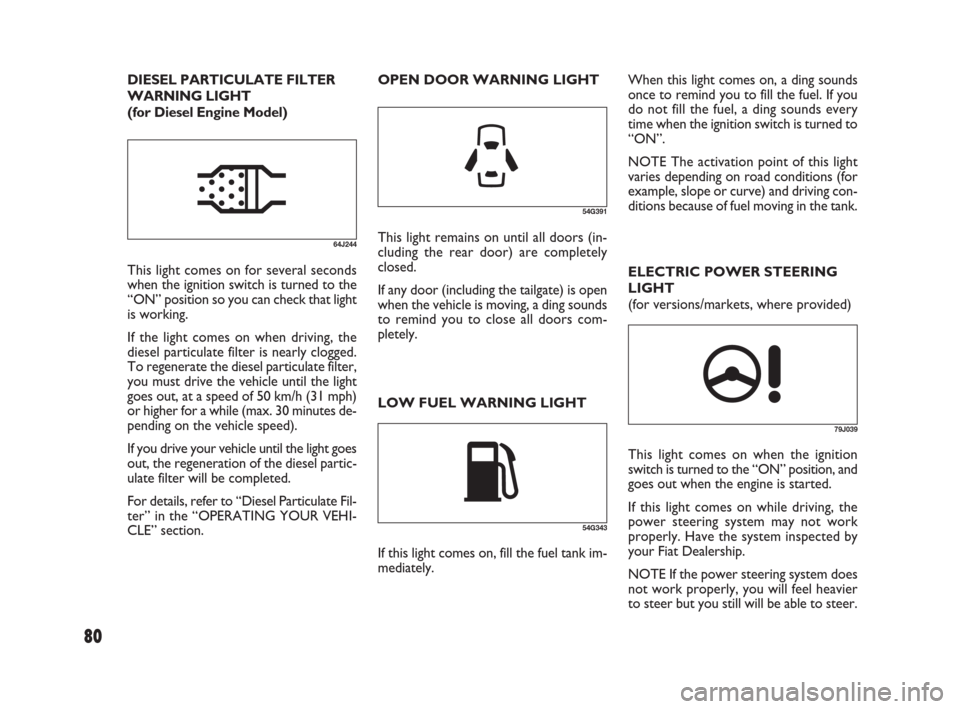

ditions because of fuel moving in the tank. DIESEL PARTICULATE FILTER
WARNING LIGHT
(for Diesel Engine Model)
64J244
This light comes on for several seconds
when the ignition switch is turned to the
“ON” position so you can check that light
is working.
If the light comes on when driving, the
diesel particulate filter is nearly clogged.
To regenerate the diesel particulate filter,
you must drive the vehicle until the light
goes out, at a speed of 50 km/h (31 mph)
or higher for a while (max. 30 minutes de-
pending on the vehicle speed).
If you drive your vehicle until the light goes
out, the regeneration of the diesel partic-
ulate filter will be completed.
For details, refer to “Diesel Particulate Fil-
ter” in the “OPERATING YOUR VEHI-
CLE” section.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 80

82
For details, refer to “Using the 2WD/
4WD Switch” in the “OPERATING
YOUR VEHICLE” section.
NOTE If you restart the engine, the light
will stop blinking temporarily.
NOTE When the vehicle speed is in-
creased, the “4WD LOCK” mode will be
changed to the “4WD AUTO” mode au-
tomatically. The “4WD AUTO” indicator
light will come on and stay on.
4WD LOCK INDICATOR LIGHT
(for versions/markets, where provided)
79J100
If the light and the “4WD AUTO” indi-
cator light stay on or come on simultane-
ously when driving, there may be some-
thing wrong with the 4WD system. Have
the system inspected by an authorized
Fiat Dealership.
NOTE
❒When the vehicle speed is increased,
the “4WD LOCK” mode will be
changed to the “4WD AUTO” mode
automatically. The “4WD AUTO” in-
dicator light will come on and stay on.
❒When the ignition switch is turned to
the “OFF” position, the “4WD LOCK”
mode is canceled.
For details of the “4WD LOCK” mode,
refer to “Using the 2WD/4WD Switch”
in the “OPERATING YOUR VEHICLE”
section.
IMPORTANT Do not operate your vehi-
cle in “4WD LOCK” mode on dry hard
surfaces.
When the ignition switch is turned to the
“ON” position, this light comes on briefly
so you can check that the light is working.
The light comes on when the 2WD/4WD
switch is changed to the “4WD LOCK”
mode from the “4WD AUTO” mode.
79J040
When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
When the 2WD/4WD switch is in the
“4WD AUTO” mode with the ignition
switch in the “ON” position, the light
comes on and stays on.
If the light and the “4WD LOCK” indica-
tor light stay on or come on simultane-
ously when driving, there may be some-
thing wrong with the 4WD system. Have
the system inspected by an authorized
Fiat Dealership.
If the oil temperature of the parts for
4WD system is high, this light will blink.
The “4WD AUTO” or “4WD LOCK”
mode will be changed to the “2WD”
mode automatically to prevent a damage
of the parts for 4WD system. 4WD AUTO INDICATOR LIGHT
(for versions/markets, where provided)
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 82

131
PEDAL
Clutch Pedal (1)
(For manual transaxle)
The clutch pedal is used to disengage the
drive to the wheels when starting the en-
gine, stopping, or shifting the gearshift
lever. Depressing the pedal disengages the
clutch.
IMPORTANT Do not drive with your
foot resting on the clutch pedal. It could
result in excessive clutch wear, clutch
damage, or unexpected loss of engine
braking.
Brake Pedal (2)
Your Fiat vehicle is equipped with either
front and rear disc brakes or front disc
brakes and rear drum brakes. Depress-
ing the brake pedal applies both sets of
brakes.
You may hear occasional brake squeal
when you apply the brakes. This is a nor-
mal condition caused by environmental
factors such as cold, wet, snow, etc.Accelerator Pedal (3)
This pedal controls the speed of the en-
gine. Depressing the accelerator pedal in-
creases power output and speed.
(1) (2) (3)
79J072
If brake squeal is excessive
and occurs each time the
brakes are applied, you should have
the brakes checked by your Fiat
Dealership.
WARNING
Do not “ride” the brakes by
applying them continuously
or resting your foot on the pedal. This
will result in overheating of the brakes
which could cause unpredictable
braking action, longer stopping dis-
tances, or permanent brake damage.
WARNINGManual transaxle
79J154Automatic transaxle
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 131

141

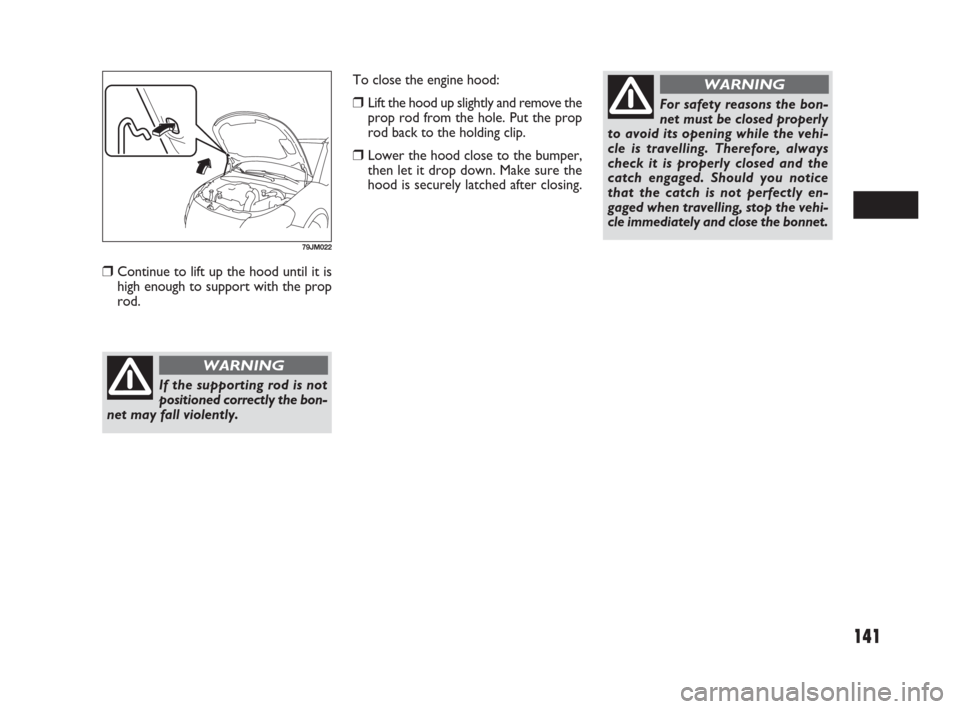

Continue to lift up the hood until it is
high enough to support with the prop
rod.
79JM022
If the supporting rod is not
positioned correctly the bon-
net may fall violently.
WARNING
To close the engine hood:
Lift the hood up slightly and remove the
prop rod from the hole. Put the prop
rod back to the holding clip.
Lower the hood close to the bumper,
then let it drop down. Make sure the
hood is securely latched after closing.
For safety reasons the bon-
net must be closed properly
to avoid its opening while the vehi-
cle is travelling. Therefore, always
check it is properly closed and the
catch engaged. Should you notice
that the catch is not perfectly en-
gaged when travelling, stop the vehi-
cle immediately and close the bonnet.
WARNING
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 141

149
O O
P P
E E
R R
A A
T T
I I
N N
G G
Y Y
O O
U U
R R
V V
E E
H H
I I
C C
L L
E E
60G408

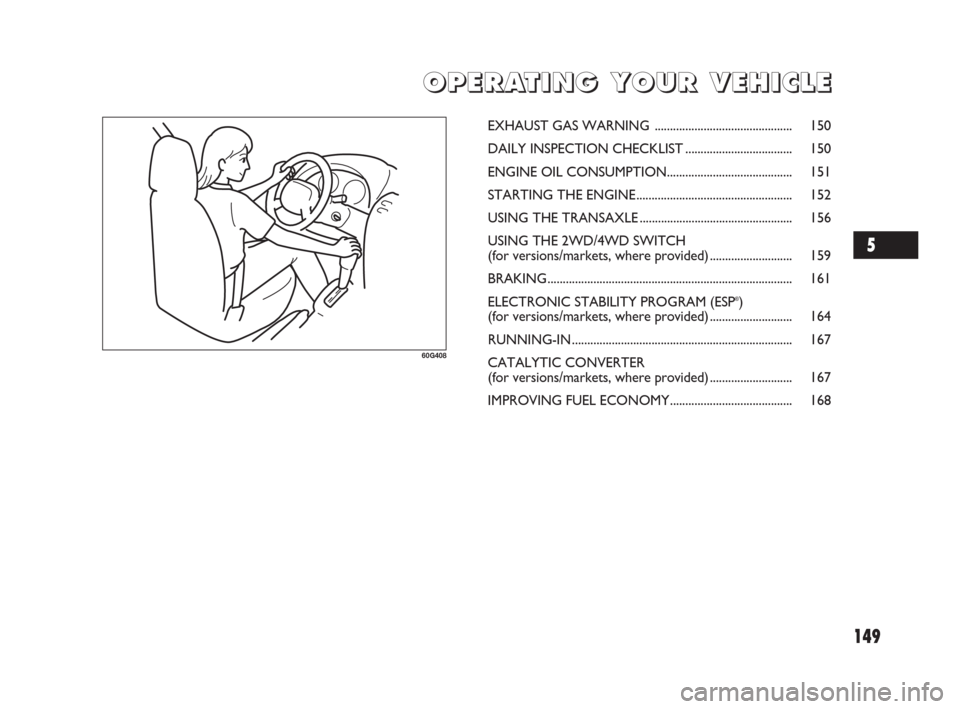

EXHAUST GAS WARNING ............................................. 150
DAILY INSPECTION CHECKLIST ................................... 150
ENGINE OIL CONSUMPTION......................................... 151
STARTING THE ENGINE................................................... 152
USING THE TRANSAXLE .................................................. 156
USING THE 2WD/4WD SWITCH
(for versions/markets, where provided)........................... 159
BRAKING................................................................................ 161
ELECTRONIC STABILITY PROGRAM (ESP
®)
(for versions/markets, where provided)........................... 164
RUNNING-IN........................................................................ 167
CATALYTIC CONVERTER
(for versions/markets, where provided)........................... 167
IMPROVING FUEL ECONOMY........................................ 168
5
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 149

150
DAILY INSPECTION
CHECKLIST
BEFORE DRIVING
Make sure that windows, mirrors,
lights, and reflectors are clean and un-
obstructed.
Visually check the tires for the fol-
lowing points:
– the depth of the tread groove
– abnormal wear, cracks and damage
– loose wheel bolts
– existence of foreign material such as
nails, stones, etc.
Refer to “Tires” in “INSPECTION AND
MAINTENANCE” section for details.
Look for fluid and oil leaks.
NOTE It is normal for water to drip from
the air conditioning system after use.
Make sure the hood is fully closed and
latched.
Check the headlights, turn signal lights,
brake lights and horn for proper oper-
ation.
EXHAUST GAS
WARNING
52D334
Avoid breathing exhaust gas-
es. Exhaust gases contain
carbon monoxide, a potentially lethal
gas that is colorless and odorless.
Since carbon monoxide is difficult to
detect by itself, be sure to take the
following precautions to help prevent
carbon monoxide from entering your
vehicle.
– Do not leave the engine running in
garages or other confined areas.
– Do not park with the engine run-
ning for a long period of time, even in
an open area. If it is necessary to sit
for a short time in a parked vehicle
with the engine running, make sure
the air intake selector is set to
“FRESH AIR” and the fan is at high
speed.
– Avoid operating the vehicle with the
tail gate or trunk open. If it is neces-
sary to operate the vehicle with the
tail gate or trunk open, make sure the
sunroof (for versions/markets, where
provided) and all windows are closed,
and the blower is at high speed with
the air intake selector set to “FRESH
AIR”.
WARNING
– To allow proper operation
of your vehicle’s ventilation
system, keep the air inlet grille in
front of the windshield clear of snow,
leaves, or other obstructions at all
times.
– Keep the exhaust tailpipe area
clear of snow and other material to
help reduce the buildup of exhaust
gases under the vehicle. This is par-
ticularly important when parked in
blizzard conditions.
– Have the exhaust system inspect-
ed periodically for damage and leaks.
Any damage or leaks should be re-
paired immediately.
WARNING
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 150

151
Brake fluid level
Power steering (for versions/markets,
where provided) fluid level
Windshield washer fluid level
Battery solution level
Hood latch operation
Pull the hood release handle inside the
vehicle. Make sure that you cannot
open the hood all the way without re-
leasing the secondary latch. Be sure to
close the hood securely after check-
ing for proper latch operation. See “All
latches, hinges & locks” of “CHASSIS
AND BODY” in the “Periodic Main-
tenance Schedule” in the “INSPEC-
TION AND MAINTENANCE” section
for lubrication schedule.
Once a month, or each time you fill your
fuel tank, check the tire pressure using a
tire pressure gauge. Also check the tire
pressure of the spare tire.
Adjust the seat and adjustable head re-
straint (for versions/markets, where
provided).
Check the brake pedal and the park-
ing brake lever.
Adjust the mirrors.
Make sure that you and all passengers
have properly fastened your seat belts.
Make sure that all warning lights come
on as the key is turned to the “ON” or
“START” position.
Check all gauges.
Make sure that the BRAKE SYSTEM
WARNING light turns off when the
parking brake is released.
Once a week, or each time you fill your
fuel tank, perform the following under-
hood checks:
Engine oil level
Coolant level
60A187S
Make sure the hood is fully
closed and latched before
driving. If it is not, it can fly up un-
expectedly during driving, obstructing
your view and resulting in an acci-
dent.
WARNING
ENGINE OIL
CONSUMPTION
It is normal for the engine to consume
some engine oil during normal vehicle op-
eration.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the qual-
ity of the oil and the conditions the vehi-
cle is driven under.
More oil is consumed during high- speed
driving and when there is frequent accel-
eration and deceleration. Under high
loads, your engine also will consume more
oil.
A new engine also consumes more oil,
since its pistons, piston rings and cylinder
walls have not yet become conditioned.
New engines reach the normal level of oil
consumption only after approximately
5000 km (3000 miles) driving.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 151
