ASHTRAY fig. 63-64
The ashtray is a removable plastic box that
can be fitted into the cup/can holders on
the central console.
IMPORTANT Do not use the ashtray as
a waste paper basket at the same time: fire
hazard.SUN VISORS fig. 65
These are located at the sides of the rear
view mirror. They may be positioned at
the front and to the side.
A mirror can be applied to the back of the
driver-side sun visor:
To use the mirror (for versions/markets
where provided), on some versions you
need to open the sliding cover A.
fig. 63F0M0085mfig. 65F0M0086mfig. 66F0M0249m
fig. 64F0M0116m
SOCKET
(for versions/markets where provided)
This is located in the boot, on the left side
of the plastic support for the parcel shelf
fig. 66.
To use it, open cap A.
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 59

60
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

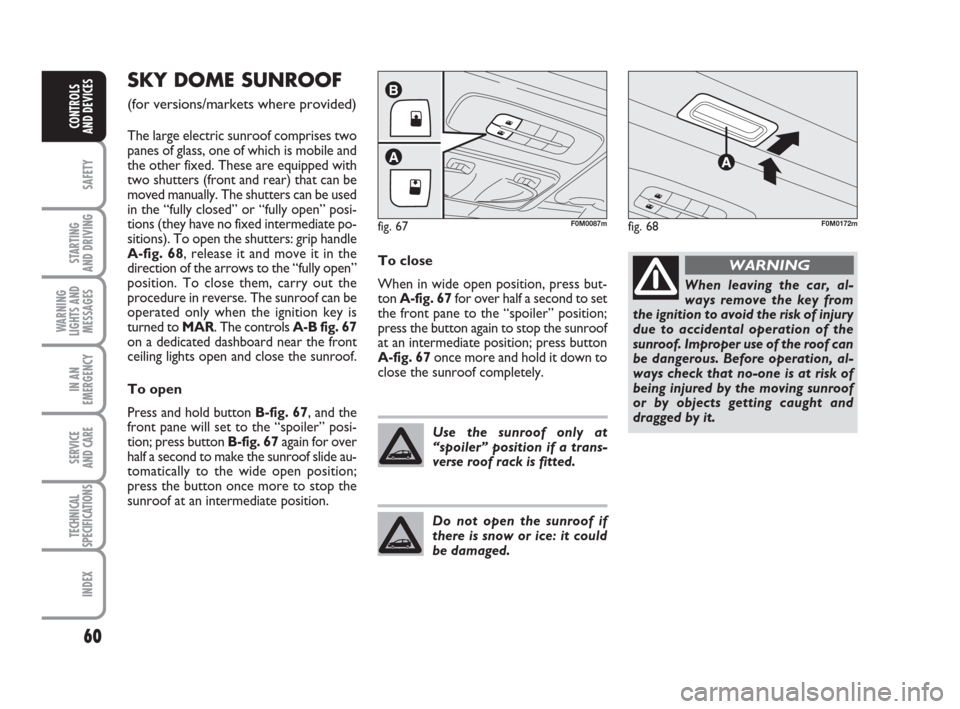

SKY DOME SUNROOF
(for versions/markets where provided)
The large electric sunroof comprises two
panes of glass, one of which is mobile and
the other fixed. These are equipped with
two shutters (front and rear) that can be
moved manually. The shutters can be used
in the “fully closed” or “fully open” posi-
tions (they have no fixed intermediate po-
sitions). To open the shutters: grip handle
A-fig. 68, release it and move it in the
direction of the arrows to the “fully open”
position. To close them, carry out the
procedure in reverse. The sunroof can be
operated only when the ignition key is
turned to MAR. The controls A-B fig. 67
on a dedicated dashboard near the front
ceiling lights open and close the sunroof.
To open
Press and hold button B-fig. 67, and the
front pane will set to the “spoiler” posi-
tion; press button B-fig. 67 again for over
half a second to make the sunroof slide au-
tomatically to the wide open position;
press the button once more to stop the
sunroof at an intermediate position.To close
When in wide open position, press but-
ton A-fig. 67for over half a second to set
the front pane to the “spoiler” position;
press the button again to stop the sunroof
at an intermediate position; press button
A-fig. 67once more and hold it down to
close the sunroof completely.
fig. 67
A
B
F0M0087m
Use the sunroof only at
“spoiler” position if a trans-
verse roof rack is fitted.
Do not open the sunroof if
there is snow or ice: it could
be damaged.
When leaving the car, al-
ways remove the key from
the ignition to avoid the risk of injury
due to accidental operation of the
sunroof. Improper use of the roof can
be dangerous. Before operation, al-
ways check that no-one is at risk of
being injured by the moving sunroof
or by objects getting caught and
dragged by it.
WARNING
fig. 68F0M0172m
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 60

61
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

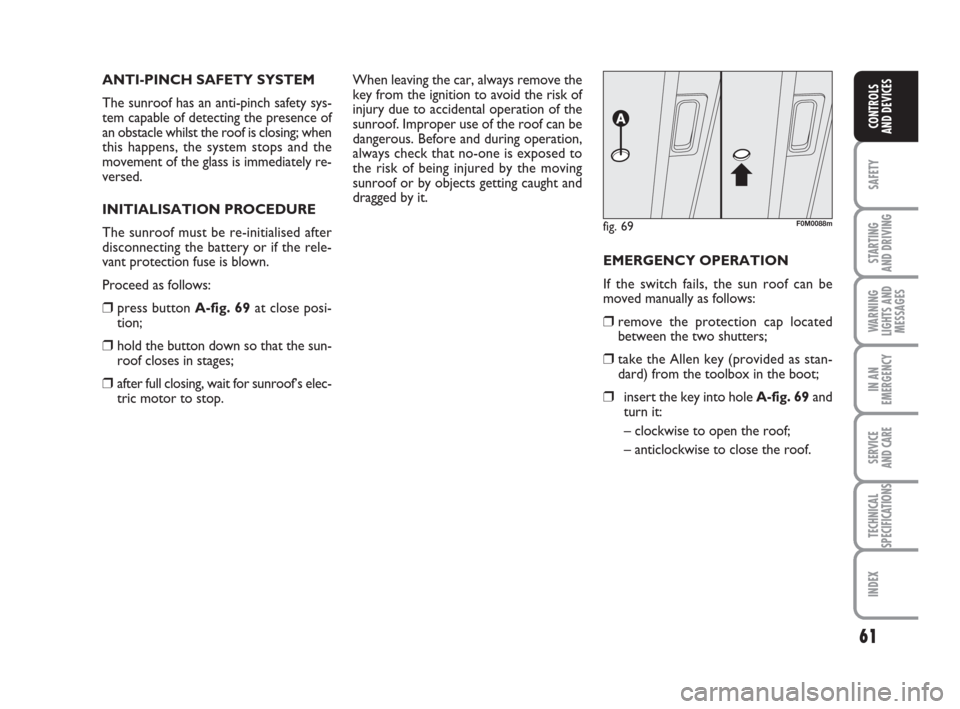

ANTI-PINCH SAFETY SYSTEM
The sunroof has an anti-pinch safety sys-
tem capable of detecting the presence of
an obstacle whilst the roof is closing; when
this happens, the system stops and the
movement of the glass is immediately re-
versed.
INITIALISATION PROCEDURE
The sunroof must be re-initialised after
disconnecting the battery or if the rele-
vant protection fuse is blown.
Proceed as follows:
❒press button A-fig. 69at close posi-
tion;
❒hold the button down so that the sun-
roof closes in stages;
❒after full closing, wait for sunroof’s elec-
tric motor to stop.When leaving the car, always remove the
key from the ignition to avoid the risk of
injury due to accidental operation of the
sunroof. Improper use of the roof can be
dangerous. Before and during operation,
always check that no-one is exposed to
the risk of being injured by the moving
sunroof or by objects getting caught and
dragged by it.
EMERGENCY OPERATION
If the switch fails, the sun roof can be
moved manually as follows:
❒remove the protection cap located
between the two shutters;
❒take the Allen key (provided as stan-
dard) from the toolbox in the boot;
❒insert the key into hole A-fig. 69and
turn it:
– clockwise to open the roof;
– anticlockwise to close the roof.
fig. 69F0M0088m
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 61

62
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

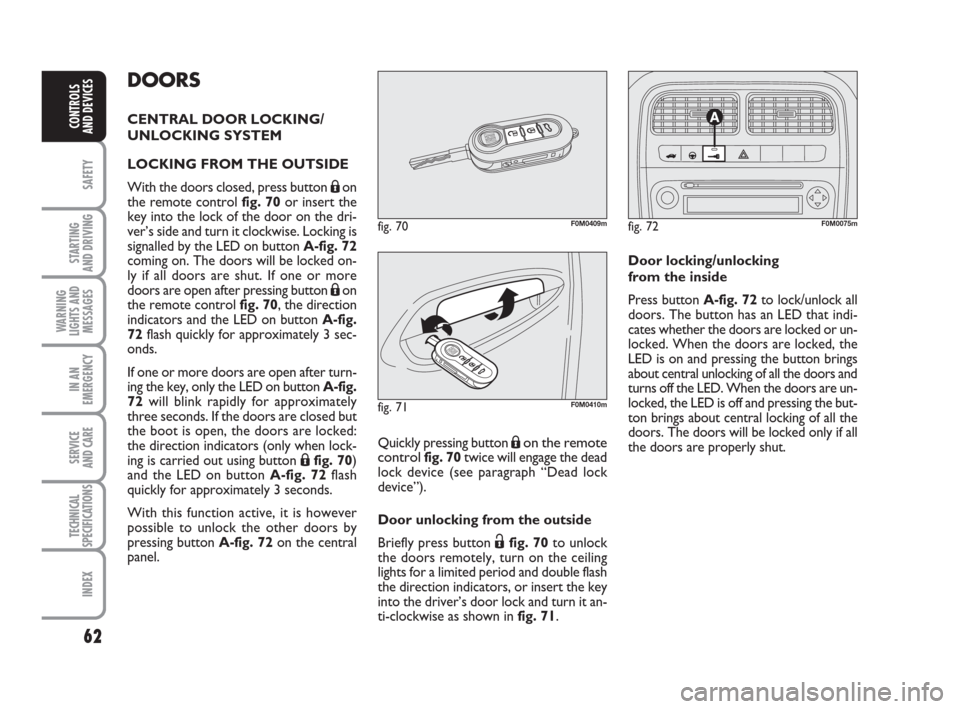

DOORS
CENTRAL DOOR LOCKING/
UNLOCKING SYSTEM
LOCKING FROM THE OUTSIDE
With the doors closed, press button
Áon
the remote control fig. 70or insert the
key into the lock of the door on the dri-
ver’s side and turn it clockwise. Locking is
signalled by the LED on button A-fig. 72
coming on. The doors will be locked on-
ly if all doors are shut. If one or more
doors are open after pressing button
Áon
the remote control fig. 70, the direction
indicators and the LED on button A-fig.
72flash quickly for approximately 3 sec-
onds.
If one or more doors are open after turn-
ing the key, only the LED on button A-fig.
72will blink rapidly for approximately
three seconds. If the doors are closed but
the boot is open, the doors are locked:
the direction indicators (only when lock-
ing is carried out using button
Áfig. 70)
and the LED on button A-fig. 72flash
quickly for approximately 3 seconds.
With this function active, it is however
possible to unlock the other doors by
pressing button A-fig. 72on the central
panel.Quickly pressing button
Áon the remote
control fig. 70 twice will engage the dead
lock device (see paragraph “Dead lock
device”).
Door unlocking from the outside
Briefly press button
Ëfig. 70to unlock
the doors remotely, turn on the ceiling
lights for a limited period and double flash
the direction indicators, or insert the key
into the driver’s door lock and turn it an-
ti-clockwise as shown in fig. 71.
fig. 72F0M0075m
Door locking/unlocking
from the inside
Press button A-fig. 72to lock/unlock all
doors. The button has an LED that indi-
cates whether the doors are locked or un-
locked. When the doors are locked, the
LED is on and pressing the button brings
about central unlocking of all the doors and
turns off the LED. When the doors are un-
locked, the LED is off and pressing the but-
ton brings about central locking of all the
doors. The doors will be locked only if all
the doors are properly shut.
fig. 71F0M0410m
fig. 70F0M0409m
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 62

63
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

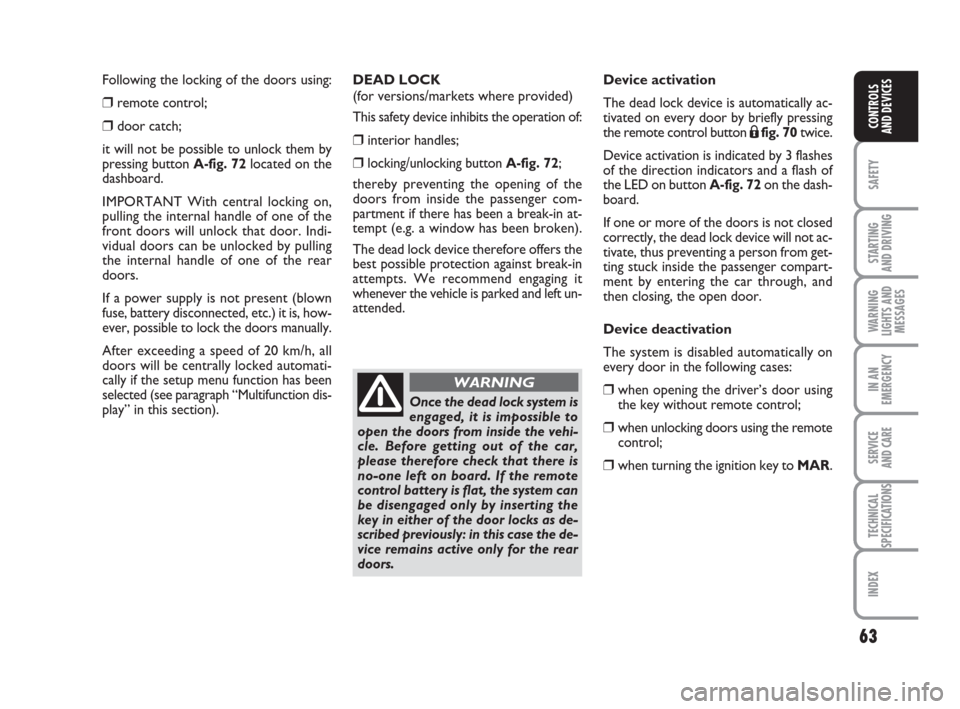

Following the locking of the doors using:
❒remote control;
❒door catch;
it will not be possible to unlock them by
pressing button
A-fig. 72located on the
dashboard.
IMPORTANT With central locking on,
pulling the internal handle of one of the
front doors will unlock that door. Indi-
vidual doors can be unlocked by pulling
the internal handle of one of the rear
doors.
If a power supply is not present (blown
fuse, battery disconnected, etc.) it is, how-
ever, possible to lock the doors manually.
After exceeding a speed of 20 km/h, all
doors will be centrally locked automati-
cally if the setup menu function has been
selected (see paragraph “Multifunction dis-
play” in this section).
Once the dead lock system is
engaged, it is impossible to
open the doors from inside the vehi-
cle. Before getting out of the car,
please therefore check that there is
no-one left on board. If the remote
control battery is flat, the system can
be disengaged only by inserting the
key in either of the door locks as de-
scribed previously: in this case the de-
vice remains active only for the rear
doors. DEAD LOCK
(for versions/markets where provided)
This safety device inhibits the operation of:
❒interior handles;
❒locking/unlocking button A-fig. 72;
thereby preventing the opening of the
doors from inside the passenger com-
partment if there has been a break-in at-
tempt (e.g. a window has been broken).
The dead lock device therefore offers the
best possible protection against break-in
attempts. We recommend engaging it
whenever the vehicle is parked and left un-
attended.Device activation
The dead lock device is automatically ac-
tivated on every door by briefly pressing
the remote control button
Áfig. 70twice.
Device activation is indicated by 3 flashes
of the direction indicators and a flash of
the LED on button
A-fig. 72on the dash-
board.
If one or more of the doors is not closed
correctly, the dead lock device will not ac-
tivate, thus preventing a person from get-
ting stuck inside the passenger compart-
ment by entering the car through, and
then closing, the open door.
Device deactivation
The system is disabled automatically on
every door in the following cases:
❒when opening the driver’s door using
the key without remote control;
❒when unlocking doors using the remote
control;
❒when turning the ignition key to MAR.
WARNING
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 63

64
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

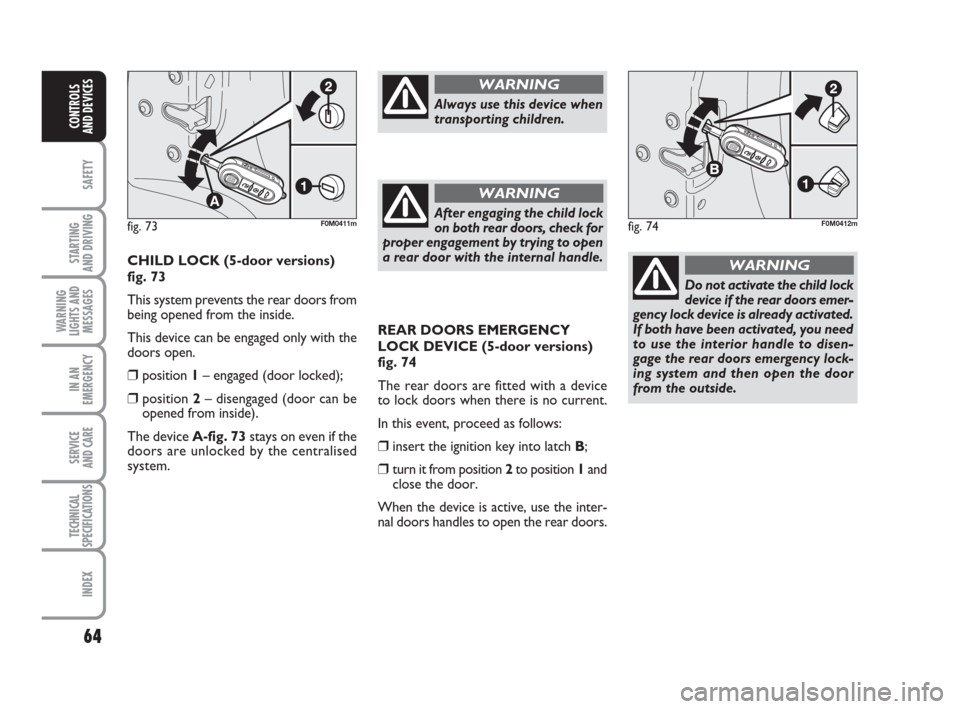

REAR DOORS EMERGENCY
LOCK DEVICE (5-door versions)
fig. 74
The rear doors are fitted with a device
to lock doors when there is no current.
In this event, proceed as follows:
❒insert the ignition key into latch B;
❒turn it from position 2 to position 1and
close the door.
When the device is active, use the inter-
nal doors handles to open the rear doors.
Do not activate the child lock
device if the rear doors emer-
gency lock device is already activated.
If both have been activated, you need
to use the interior handle to disen-
gage the rear doors emergency lock-
ing system and then open the door
from the outside.
WARNINGCHILD LOCK (5-door versions)
fig. 73
This system prevents the rear doors from
being opened from the inside.
This device can be engaged only with the
doors open.
❒position 1– engaged (door locked);
❒position 2– disengaged (door can be
opened from inside).
The device A-fig. 73stays on even if the
doors are unlocked by the centralised
system.
Always use this device when
transporting children.
WARNING
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
fig. 74F0M0412mfig. 73F0M0411m
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 64

65
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WINDOWS
ELECTRIC
Two switches fig. 75on the armrest in-
side the driver’s door control the follow-
ing with the ignition key turned to MAR:
Aopening/closing of the left front window;
B opening/closing the right front window.Keep one of the buttons pressed for
longer than half a secondto operate
the automatic continuous operation of the
window. The window will stop when it is
fully opened or closed, or when the but-
ton is pressed again.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This condition is apparent from
the window closing in stages.
fig. 75F0M0136m
Continuous automatic operation
The car has an automatic setting to raise
and lower the driver-side front window.
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 65

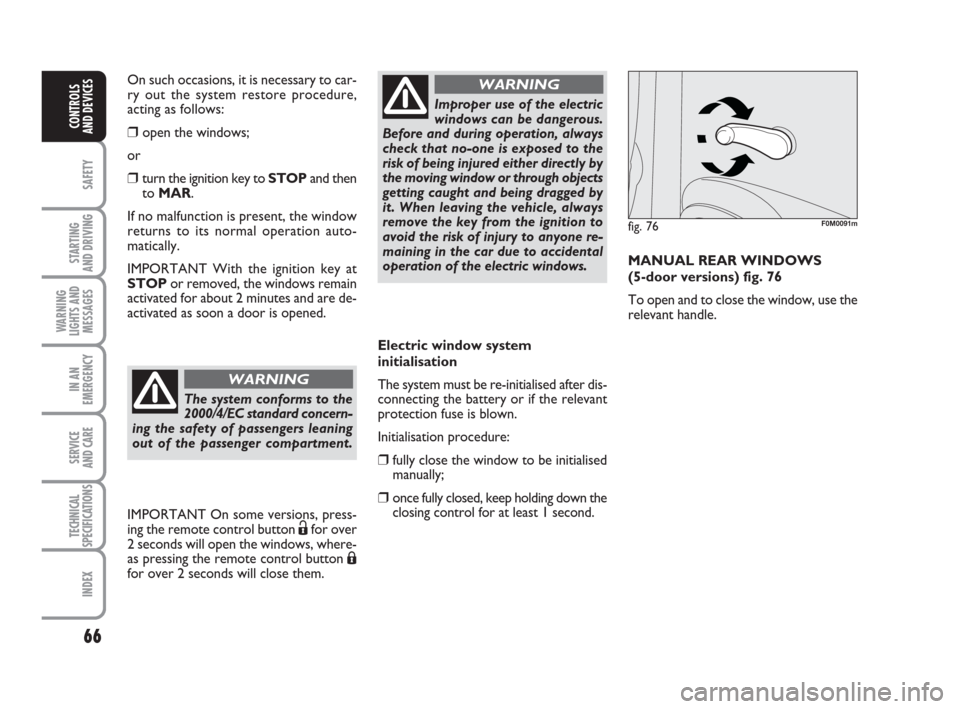

66
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Electric window system
initialisation
The system must be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Initialisation procedure:
❒fully close the window to be initialised
manually;
❒once fully closed, keep holding down the
closing control for at least 1 second.
Improper use of the electric
windows can be dangerous.
Before and during operation, always
check that no-one is exposed to the
risk of being injured either directly by
the moving window or through objects
getting caught and being dragged by
it. When leaving the vehicle, always
remove the key from the ignition to
avoid the risk of injury to anyone re-
maining in the car due to accidental
operation of the electric windows.
WARNING
MANUAL REAR WINDOWS
(5-door versions) fig. 76
To open and to close the window, use the
relevant handle.
fig. 76F0M0091m
On such occasions, it is necessary to car-
ry out the system restore procedure,
acting as follows:
❒ open the windows;
or
❒turn the ignition key to STOPand then
to MAR.
If no malfunction is present, the window
returns to its normal operation auto-
matically.
IMPORTANT With the ignition key at
STOPor removed, the windows remain
activated for about 2 minutes and are de-
activated as soon a door is opened.
The system conforms to the
2000/4/EC standard concern-
ing the safety of passengers leaning
out of the passenger compartment.
WARNING
IMPORTANT On some versions, press-
ing the remote control button Ëfor over
2 seconds will open the windows, where-
as pressing the remote control button
Áfor over 2 seconds will close them.
033-071 ACTUAL 1ed EN 28-08-2009 13:44 Pagina 66
