2009 FIAT GRANDE PUNTO lights

195
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
FLUIDS AND LUBRICANTS
SPECIFICATIONS AND RECOMMENDED PRODUCTS
Use Quality specifications of fluids and lubricants Original Replacement
for correct car operation fluids and lubricants interval
Lubricants for
petrol engines
Lubricants for
diesel engines
For diesel engines, in the event of an emergency in which the original products are not available, lubricants with at least ACEA C2
performance are acceptable; however, in this case optimum engine performances are not guaranteed and the lubricants should be
replaced with recommended products as soon as possible at a Fiat Dealership.
The use of products with specifications lower than ACEA C3 and ACEA C2 could cause engine damage not covered under warranty.SAE 5W-40 ACEA C3
grade synthetic base lubricant.
FIAT 9.55535-S2 certification.
SAE 5W-30
grade synthetic base lubricant.
FIAT 9.55535-S1 certification.SELENIA K P.E.
Contractual Technical
Reference
N° F603.C07
SELENIA WR P.E.
Contractual Technical
Reference
N° F510.D07As per
the Scheduled
Servicing Plan
As per
the Scheduled
Servicing Plan
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 195

196
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
Lubricants and greases
for drive transmission
system
Brake liquid
Radiator protection
Fuel additive
Windscreen/rear
window washer fluidMechanical gearbox
and differential
Wheel side
constant-velocity joints
Differential side
constant-velocity joints
Hydraulic brakes
and hydraulic clutch
controls
Cooling circuit.
Mixture: 50% water and
50% PARAFLU
UP(❒)
Mix 25cc per 10 litres
of diesel
To be used diluted
or undiluted
in windscreen/rear
window washer/wiper
systems TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07
TUTELA STAR 700
Contractual Technical
Reference N° F701.C07
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02 SAE 75W-85 grade synthetic base lubricant.
FIAT 9.55550-MX3 certification
Molybdenum disulphide grease, for use at
high temperatures.
FIAT 9.55580 certification. NL.GI. 1-2 consistency
Grease for constant-velocity joints with low
friction coefficient.
FIAT 9.55580 certification. NL.GI. 0-2 consistency
Synthetic fluid FMVSS n° 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01.
FIAT 9.55597 certification
Inhibited mono ethylene glycol-based antifreeze
protection, red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
FIAT 9.55523 certification
Additive for diesel antifreeze, protecting
diesel engines
Mixture of alcohol, water and surfactants
CUNA NC 956-II
FIAT 9.55522 certification.
Use Quality specifications of fluids and lubricants Original Applicationsfor correct car operation fluids and lubricants
(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❒) When the vehicle is used in particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU
UPand distalled water.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 196

197
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
❒extra-urban cycle: driving that simulates
using the vehicle out of town with fre-
quent acceleration in all gears; the
speed varies from 0 to 120 km/h;
❒combined consumption: this is calcu-
lated with a weighting of about 37% ur-
ban cycle consumption and about 63%
extra-urban consumption.
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒urban cycle: cold starting followed by
driving that simulates urban use of the
car;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general state of the car, trim lev-
el/equipment/accessories, load, climate
control system, roof rack, and other sit-
uations that affect how the car moves
through the air may lead to different fuel
consumption levels than those measured.
Fuel consumption according to the current European directive
Versions Urban Extra-urban Combined
1.27.3 4.8 5.7
1.4 7.5 5.0 5.9
1.3 Multijet 75 HP6.2/5.2 () 3.5 4.5/4.1 ()
() ECO version 109 g CO2
CO2EMISSIONS
The CO2emission figures in the table below refer to combined fuel consumption.
Versions CO2emissions according to the current European directive
1.2135
1.4 139
1.3 Multijet 75 HP119
109 ()
(
) ECO version 109 g CO2
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 197

198
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES– version codes .......................... 184
Bonnet ............................................ 70
Boot ................................................. 67
– opening the boot
in an emergency ...................... 67
– opening and closing
the boot .................................... 67
– extension .................................. 68
Boot extension .............................. 68
Brake Assist (emergency
braking assistance) ..................... 75
Brake fluid level ............................. 172
Brakes
– properties ................................. 187
– fluid level ................................... 172
Bulb (replacement)
– general information ................ 141
– bulb types ................................. 142
Car inactivity ................................ 116
Card/CD holder ........................... 58Carrying children safely ............... 93
Ceiling lights ................................... 51
Changing a wheel .......................... 131
Chassis (marking) ......................... 182
Checking levels ............................. 168
Child lock ....................................... 64
Child seats
(suitability for use) ..................... 96
Cigarette lighter ............................ 58
Clutch .............................................. 186
CO
2emissions .............................. 197
Code Card ..................................... 8
Consumptions
– fuel ............................................. 197
– engine oil .................................. 170
Control buttons ............................ 53
Cup/can holder ............................. 58
Cup/can holders ............................ 58
Dashboard .................................... 5
Dashboard and controls ............. 4
Ability to install
navigation system ....................... 82
ABS .................................................. 74
ABS system .................................... 74
Accessories purchased
by the owner ............................... 82
Air filter .......................................... 173
Alarm .............................................. 10
Arm rest ......................................... 57
Ashtray ........................................... 59
ASR .................................................. 77
– activation/deactivation ............ 77
ASR system .................................... 77
Battery
– jump starting ............................ 130
– checking the charge ............... 173
– recharging ................................. 157
– replacement ............................. 173
Bodywork
– maintenance ............................. 178
I I
N N
D D
E E
X X
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 198

199
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Engine coolant gauge ................... 15
Engine coolant level ..................... 171
Engine oil
– technical specifications .......... 195
– consumption ............................ 170
– checking the level ................... 170
Engine oil level ............................... 170
EOBD system ................................ 78
ESP system ..................................... 75
Exterior lights ................................ 47
Fiat CODE system ...................... 6
Fix&Go automatic ........................ 136
Flashing the headlights ................. 47
Fluids and lubricants ..................... 195
Fog lights
– control button ......................... 53
– bulb replacement .................... 145
Follow Me Home (device) .......... 48
Front airbags .................................. 98
Front ceiling lights
– control ...................................... 51– bulb replacement .................... 148
Fuel
– gauge ......................................... 15
– Cut-off system ......................... 55
Fuel cap ........................................... 85
Fuel cut-off system ....................... 55
Fuel flap ........................................... 85
Fuel gauge ....................................... 15
Fuses (changing) ............................ 149
Gears
– using the manual gearbox ..... 110
Glove box ...................................... 57
Glove compartment ..................... 56
Handbrake .................................... 109
Hazard lights .................................. 53
Head restraints ............................. 34
Headlights ....................................... 72
– headlight alignment
adjustor ..................................... 72
– beam direction ........................ 72
– adjusting headlights abroad ... 73 Dead lock (device) ....................... 63
Digital display ................................. 16
Dimensions .................................... 192
Dipped beam headlights
– control ...................................... 47
– bulb replacement .................... 144
Direction indicators
– control ...................................... 48
– front bulb replacement .......... 144
– side bulb replacement ............ 145
– rear bulb replacement ........... 145
Display functions ........................... 24
Door locking ................................. 62
Doors .............................................. 62Electric windows ......................... 65
Emergency rear door
locking device .............................. 64
Engine .............................................. 185
– identification code .................. 184
– specifications ............................ 185
– marking ..................................... 183
Engine compartment .................... 168
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 199

200
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Levels ............................................. 168
Lifting the car ................................. 158
Load limiters .................................. 90
Main beam headlights
– control ...................................... 47
– flashing ....................................... 47
– bulb replacement .................... 144
Manual climate
control system ............................ 41
Mirrors
– wing mirrors ............................. 36
– rear-view mirror ..................... 35
Multifunction display .................... 21
Number plate light ...................... 147
On-board instruments ............... 14
Paintwork ...................................... 178
Parking lights .................................. 54
Particulate filter ............................. 86
Passenger compartment
air vents ........................................ 38Passenger compartment
ventilation .................................... 37
Performance .................................. 191
Plates
– identification data ................... 182
– body paint ................................ 183
Pollen filter ..................................... 173
Power steering ..........................54-79
Pretensioners ................................ 90
Protecting the environment ....... 85
Radio transmitters
and mobile phones ..................... 83
Rear fog lights
– control button ......................... 54
– bulb replacement .................... 146
Rear window washer
– control ...................................... 50
Rear window wiper
– control ...................................... 50
– blades ........................................ 177
– nozzles ...................................... 178
Refuelling the car .......................... 84 Heated rear window ..........40-45-54
Heating and ventilation ................ 37
Heating/ventilation system ......... 37
Hill Holder system ....................... 76
Identification data ........................ 182
Ignition device ............................... 12
In an emergency ............................ 129
Installing the tow hook ................ 113
Instrument panel ........................... 13
Interior ............................................ 180
Interior fittings .............................. 56
Jack .................................................. 133
Key with remote control ........... 8
– Replacing the battery
of the key with remote
control ...................................... 9
– Replacing the cover
of the remote control ........... 9
Key without remote control ..... 10
Keys ................................................. 8
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 200

201
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
– Scheduled servicing plan
for diesel versions .................. 165
– Demanding use of the car .... 167
Side airbags .................................... 101
Side/taillights
– control ...................................... 47
– front bulb replacement .......... 143
– rear bulb replacement ........... 145
Smart washing ............................... 49
Snow chains ................................... 115
Snow tyres ..................................... 190
Socket ............................................. 59
Sound system ................................ 81
Spark plugs
– type ............................................ 185
Speedometer ................................. 14
Starting and driving ....................... 105
Starting the engine
– jump starting ............................ 130
– bump starting ........................... 130
– emergency starting ................. 130
– ignition device ......................... 12– procedure for petrol
versions ..................................... 106
– procedure for diesel
versions ..................................... 107
– how to warm up the engine
after it has just started .......... 108
– stopping the engine ................ 108
Steering ........................................... 187
Steering wheel adjustment ......... 35
Steering wheel lock ...................... 12
Sun visors ....................................... 59
Sunroof ........................................... 60
– emergency operation ............. 61
Suspension ..................................... 187
Symbols ........................................... 6
Technical specifications .............. 181
Third brake light ........................... 147
Tool kit ........................................... 132
Top speeds ..................................... 191
Towing the car .............................. 159
Towing trailers .............................. 112
– installing the tow hook .......... 113 Removing the parcel shelf ........... 69
Rev counter ................................... 14
Reverse light .................................. 146
Roof rack/ski rack ........................ 71
Rubber tubes ................................. 176
Safety .............................................. 87
Safety belts
– general information ................ 91
– use .............................................. 88
– load limiters ............................. 90
– maintenance ............................. 93
SBR system .................................... 89
Seat adjustment ............................. 32
Seats
– cleaning ..................................... 180
– adjustment ................................ 32
– tipping (rear seats) ................. 33
Servicing and care ......................... 161
– Regular checks ........................ 167
– Scheduled servicing ................ 162
– Scheduled servicing plan
for petrol versions ................. 163
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 201

202
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

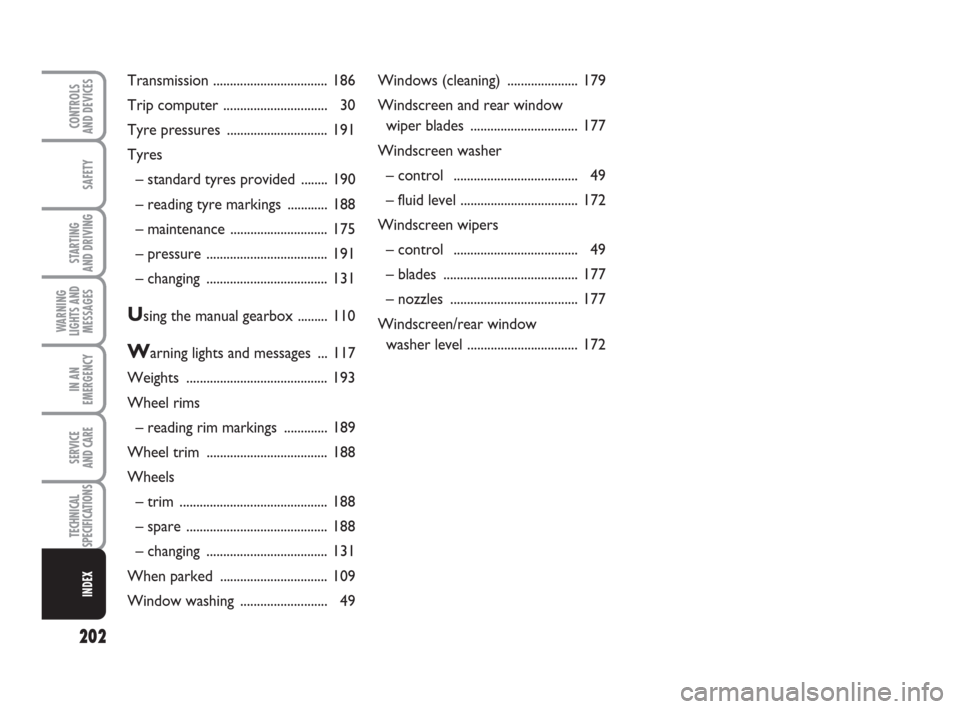

Windows (cleaning) ..................... 179
Windscreen and rear window
wiper blades ................................ 177
Windscreen washer
– control ..................................... 49
– fluid level ................................... 172
Windscreen wipers
– control ..................................... 49
– blades ........................................ 177
– nozzles ...................................... 177
Windscreen/rear window
washer level ................................. 172 Transmission .................................. 186
Trip computer ............................... 30
Tyre pressures .............................. 191
Tyres
– standard tyres provided ........ 190
– reading tyre markings ............ 188
– maintenance ............................. 175
– pressure .................................... 191
– changing .................................... 131
Using the manual gearbox ......... 110
Warning lights and messages ... 117
Weights .......................................... 193
Wheel rims
– reading rim markings ............. 189
Wheel trim .................................... 188
Wheels
– trim ............................................ 188
– spare .......................................... 188
– changing .................................... 131
When parked ................................ 109
Window washing .......................... 49
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 202
