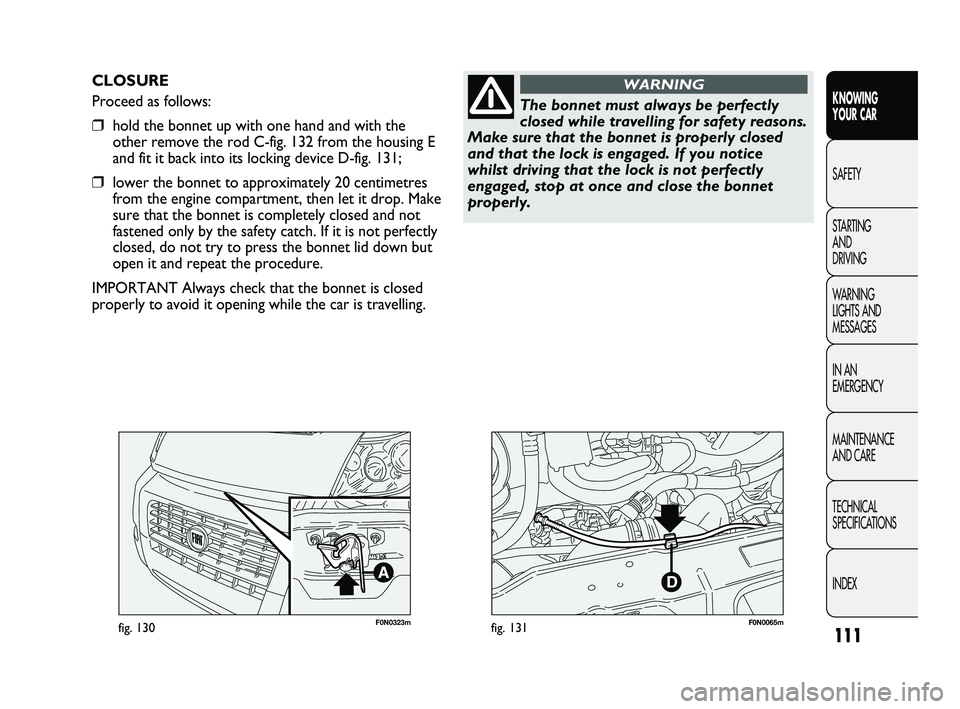

CLOSURE
Proceed as follows:
❒hold the bonnet up with one hand and with the
other remove the rod C-fig. 132 from the housing E
and fit it back into its locking device D-fig. 131;
❒lower the bonnet to approximately 20 centimetres
from the engine compartment, then let it drop. Make
sure that the bonnet is completely closed and not
fastened only by the safety catch. If it is not perfectly
closed, do not try to press the bonnet lid down but
open it and repeat the procedure.
IMPORTANT Always check that the bonnet is closed
properly to avoid it opening while the car is travelling.
The bonnet must always be perfectly
closed while travelling for safety reasons.
Make sure that the bonnet is properly closed
and that the lock is engaged. If you notice
whilst driving that the lock is not perfectly
engaged, stop at once and close the bonnet
properly.
WARNING

037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 111

120
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
EOBD SYSTEM
The EOBD system (European On Board Diagnosis)
allows continuous diagnosis of emission-related
components on the vehicle.
It also alerts the driver, by turning on the
Uwarning
light on the instrument panel (together with a relevant
message in the multifunction display, for versions/
markets where provided) (see “Warning lights and
messages” section), when these components are no
longer in peak condition.
The goal of the system is to:
❒keep the system efficiency under control;
❒warn about increased emissions due to a vehicle
malfunction;
❒warn of the need to replace deteriorated
components.
The system also has a diagnostic connector that can be
interfaced with appropriate equipment, which makes it
possible to read the error codes stored in the control
unit together with a series of specific parameters for
engine operation and diagnosis. This check can also be
carried out by traffic control authorities.
IMPORTANT After eliminating the problem, to check
the system completely, Fiat Dealerships run a bench test
and, if necessary, road tests which may also call for
a long journey.
If, when the ignition key is turned to the
MAR-ON position, the Uwarning light
either does not come on or, when driving,
it comes on constantly or flashing (along with
a message in the multidirection display,
for
versions/markets where provided
) contact a Fiat
Dealership as soon as possible. The operation of
the warning light Umay be checked by the
traffic control authorities using specific devices.
Always comply with the traffic regulations in
force in the country where you are driving.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 120

S.B.R. SYSTEM
The vehicle is fitted with a Seat Belt Reminder system
(S.B.R.), consisting of a buzzer and a flashing warning
light
that the seat belt must be fastened.
The buzzer can be deactivated (until the next engine
stop) as follows:
❒fasten the driver’s seat belt;
❒turn the ignition key to MAR-ON;
❒wait for over 20 seconds and then release one of the
seat belts.
For permanent deactivation, contact the Fiat Dealership.
With digital display, the S.B.R. system can only be reset
at Fiat Dealership.
With multifunction display, the S.B.R. system can also be
reset through the set-up menu.
130
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0070mfig. 143F0N0156mfig. 144
Seat belt with reel for front central position on
bench seat fig. 144
The two-seater front bench is equipped with an on-
board seat belt (reel on seat) with three anchorage
points for the central position. Correct regulation is obtained when the belt passes
approximately half way between the shoulder and the
neck.
After adjustment, always check that the
cursor to which the ring is fastened is
locked in one of the set positions. Push
downwards to enable the locking device to click
if the grip has not been released in one of the
possible positions.
WARNING
129-146 DUCATO LUM EN 7ed 6/21/10 2:12 PM Page 130

146
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
With ignition key inserted, on MAR-ON,
even if the engine is off, the air bags can
activate even with the vehicle stopped, if it is hit
by another vehicle. For this reason, children
must never sit on the front seat, even if the
vehicle is not moving. On the other hand,
whenever the key is positioned on STOP,
the safety devices (airbags or pretensioners)
do not deploy after a collision. In this case
non-deployment of these devices does not
indicate a system malfunction.
WARNING
If the vehicle has been subject to theft
or a theft attempt or if it has been
affected by vandalism, flooding or inundation,
have the air bag system checked at a Fiat
Dealership.
WARNING
Turning the ignition key to MAR-ON, the
warning light F(airbag on passenger’s
side enabled) goes on and flashes for a few
seconds, thus reminding the passenger that the
airbag on his/her side will deploy in the event of
a collision. After this time, the light goes off.
WARNING
Do not wash the car seats with water or
pressurised steam (either by hand or at
automatic washing stations).
WARNING
The front airbag is deployed in the event
of collisions with a more severe nature
than those required to activate the
pretensioners. For collisions in the range
between the two activation thresholds, the fact
that only the pretensioners activate is normal.
WARNING
Always drive keeping your hands on the
rim of the steering wheel so that, in the
event of airbag activation, it can inflate without
meeting obstacles. Do not drive with your body
bent forward. Keep the backrest in an upright
position, resting your back on it firmly.
WARNING
Do not hook rigid objects to clothes
hangers or to the support handles.
The air bag does not replace seat belts but
increases their efficiency. Furthermore, since
front air bags are not deployed in low speed
collisions, side collisions, rear-end shunts or roll-
overs, the passengers are only protected by the
seat belts which must be fastened at all times.
WARNING
129-146 DUCATO LUM EN 7ed 6/21/10 2:12 PM Page 146

❒cover the vehicle with a piece of fabric or perforated
plastic sheet. Do not use compact plastic tarpaulins,
which prevent humidity from evaporating from the
surface of the vehicle;
❒inflate tyres to a pressure of +0.5 bar above the
normal specified pressure and check it at intervals;
❒if you don’t disconnect the battery from the electric
system, check its charge every month and recharge it
if the optical indicator shows a dark colour without
the central green area;
❒do not drain the engine cooling system.
IMPORTANT If the vehicle is equipped with an alarm
system, switch off the vehicle alarm with the remote
control.
LONG VEHICLE INACTIVITY
If the vehicle needs to be off the road for longer than
one month, the following precautions must be taken:
❒park the vehicle indoors in a dry and, possibly, well-
ventilated place;
❒engage a gear;
❒check that the handbrake is not engaged;
❒disconnect the negative battery terminal and check
battery charge. Repeat this check once every three
months during storage. Recharge if the optical
indicator shows a dark colour without the central
green area (see “Battery recharging” in the section
“Dashboard and controls”); If the vehicle is equipped
with a battery disconnection function (disconnector),
see the description of the procedure in the
“Controls” paragraph in the “Dashboard and
controls” section;
❒clean and protect the painted parts using protective
wax;
❒clean and protect the shiny metal parts using special
commercially-available compounds;
❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off
the glass;
❒slightly open the windows;
160
CONOSCENZA
DEL
VEICOLO
SICUREZZA
AVVIAMENTO
E GUIDA
SPIE E
MESSAGGI
IN EMERGENZA
MANUTENZIONE
E CURA
DATI TECNICI
INDICE
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 160

162
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
AIRBAG FAILURE (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light stays on constantly if there is a failure
in the air bag system.
On some versions the display shows the dedicated
message.
¬
If when turning the key to MAR-ON
the warning light ¬does not turn on
or if it stays on when travelling, there could be
a failure in the safety systems; in this event air
bags or pretensioners may not be deployed in
the event of impact or, in a lower number of
cases, they deploy accidentally. Contact a Fiat
Dealership immediately to have the system
checked.
WARNING
HOT ENGINE COOLANT (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light turns on when the engine is
overheated.
ç
If the warning light comes on, proceed as follows:
❒when driving normally: stop the vehicle, switch off
the engine and check that the water level in the
reservoir is not below the MIN mark. If it is not, wait
for a few minutes for the engine to cool down then
slowly and carefully open the cap, top up with
coolant and check that the level is between the MIN
and MAX marks. Also check for any fluid leaks.
If, when restarting, the warning light should come on
again, contact a Fiat Dealership.
❒heavy duty use of vehicle (e.g.: towing trailer uphill
or fully laden car): decrease speed and if the warning
light stays on, stop the vehicle. Wait for 2 or
3 minutes with the engine running and slightly
accelerated to further accelerate the coolant
circulation. Then stop the engine. Check the correct
liquid level as described above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before switching it off.
On some versions the display shows the dedicated
message.
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 162

165
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
FRONT PASSENGER’S AIR BAG
DEACTIVATED (amber)
(for versions/markets, where provided)
The warning light
Fcomes on when the front
passenger’s air bag is deactivated.
With front passenger air bag on, when the ignition key
is turned to MAR-ON the
Fwarning light comes on
constantly for about 4 seconds, flashes for another
4 seconds and then should go out.
INJECTION SYSTEM FAILURE
(amber)
In normal conditions, when the ignition key is
moved to MAR-ON, the warning light turns on
and should go off after engine start-up.
The warning light staying on or turning on when
travelling, signals a fault in the supply/ignition system
which could cause possible lack of performance, poor
handling and high consumption levels.
On some versions the display shows the dedicated
message.
Under these conditions, you may continue travelling at
moderate speed without demanding excessive effort
from the engine. Contact a Fiat Dealership as soon as
possible.
UF
Warning light Findicates failure of
warning light ¬. This condition is
indicated by intermittent blinking of warning
light
Ffor longer than 4 seconds. In this case,
the warning light ¬may not indicate failures in
the retaining system. Before resuming driving,
contact a Fiat Dealership immediately to have
the system checked.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 165

FUEL RESERVE (amber)
Turning the key to the MAR-ON position
illuminates the warning light, but it should switch
off after a few seconds.
The warning light turns on when about 10 to 12 litres of
fuel are left in the tank (depending on the version).
IMPORTANT The warning light will flash to indicate
a system failure. If this is the case, contact a Fiat
Dealership to have the system checked.
166
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEXç
ABS SYSTEM FAILURE (amber)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light will light up when the system is either
not working or not available. Under these
circumstances the braking system will work as normal
without the extra performance offered by the ABS
system. Drive carefully and contact a Fiat Dealership as
soon as possible.
On some versions the display shows the dedicated
message.
>
GLOW PLUG PRE-HEATING
(Multijet versions – amber)
GLOW PLUG HEATING FAILURE
(Multijet versions – amber)
Glow plugs
This warning light comes on when the key is turned to
MAR-ON. It will go out as soon as the heater plugs
have reached a preset temperature. Start the engine as
soon as the warning light goes out.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short time.
Glow plug warming failure
The warning light flashes if there is a fault in the
preheating system. Contact a Fiat Dealership as soon
as possible.
On some versions the display shows the dedicated
message.
m
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 166
