2009 DODGE VIPER Owners Manual

WARNING!
Ignoring the Airbag Warning Light in your instrument
panel could mean you won’t have the airbags to protect
you in a collision. If the light does not come on, stays
on after you start the vehicle, or if it comes on as you
drive, have the airbag system checked right away.
•TheDriver Airbag/Inflator Unitis mounted in the
steering wheel. ThePassenger Airbag/Inflator Unitis
mounted underneath a cover in the passenger side of
the instrument panel. When the ORC detects a colli-
sion requiring the airbags, it signals the inflator units.
A large quantity of non-toxic gas is generated to inflate
the airbags. Different airbag inflation rates may be
possible based on collision severity and occupant size.
The steering wheel hub trim cover and the upper right
side of the instrument panel separate and then fold out
of the way, as the bags inflate to their full size. Thebags inflate fully in about 50 to 70 ms. This is about
half of the time it takes to blink your eyes. The bags
then deflate quickly while helping to restrain the
driver and passenger. The airbag gas is vented toward
the instrument panel through vent holes in the airbag
material. In this way, the airbags do not interfere with
your control of the vehicle.•TheKnee Impact Bolstershelp protect the knees of
the driver and the passenger, and position everyone
for the best interaction with the airbags.
•TheOccupant Classification Module (OCM)is lo-
cated underneath the passenger seat. The OCM uses
input from the Flex Mat to classify the occupant in the
passenger seat into a size category. The OCM commu-
nicates this information to the ORC. The ORC may
modify the rate of passenger airbag inflation or pre-
vent passenger airbag deployment based on occupant
classification.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
2

If there is a fault present in the OCS, the Airbag
Warning Light will turn on. This indicates that you
should take the vehicle to an authorized dealer for
service. The Airbag Warning Light will turn on when-
ever there is fault present, which can affect the opera-
tion of the airbag system. If there is a fault present in
the OCS, both the PAD Indicator Light and the Airbag
Warning Light will illuminate to show that the pas-
senger airbag is turned off. Should this occur the
passenger airbag would remain off until the fault is
cleared. If an object is lodged under the seat and
interferes with operation of the Flex Mat, a fault will
occur which turns on both the PAD Indicator Light
and the Airbag Warning Light. Once the lodged object
is removed, the fault will be cleared automatically
after a short period.
•ThePassenger Airbag Disabled (PAD) Indicator
Lightindicates to the driver and passenger when the
passenger airbag is turned OFF. In the presence of anoccupant seated properly in the passenger seat, when
the PAD Indicator Light is illuminated, the passenger
airbag is turned OFF.
The passenger airbag will be enabled for most any size
adult who is seated properly in the passenger seat. The
passenger airbag may or may not be enabled for
(depending on size) a small teenager or a small adult
who is seated properly in the passenger seat. The
driver and passenger should always use the PAD
Indicator Light as an indication that the passenger is
positioned properly in their seat. If the PAD Indicator
Light comes on when an adult or teenager is in the
passenger seat, have the passenger reposition their self
in the seat until the light goes out. Remember, if the
PAD Indicator Light is illuminated the passenger
airbag will not inflate in the event of a collision.
The passenger airbag will not be enabled for most any
size child who is seated properly in the passenger seat
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

and for most properly installed child restraint systems.
However, under certain conditions, even with a properly
installed child restraint system, the PAD Indicator Light
may not be on, even though the airbag is disabled. This
can occur if the child restraint is lighter than the thresh-
old weight necessary to turn the PAD Indicator Light on.
In any case,DO NOTassume the airbag is turned off if
the PAD Indicator Light is not illuminated.
WARNING!
An infant in rear facing child safety seat, designed
for a child up to one year or approximately 20 lbs
(9 kg), should NEVER ride in the front seat of a
vehicle equipped with a passenger airbag, unless the
airbag is shut OFF. An airbag deployment can cause
severe injury or death to an infant in this position.
•TheFlex Matis located beneath the passenger seat
cushion foam. The Flex Mat sends signals to the OCM
for classifying the occupant in the passenger seat.
Any weight on the seat will be sensed by the Flex Mat.
Therefore, the occupant in the passenger seat needs to
sit in a normal position (with their feet on or near the
floor) in order to be classified properly. If an occu-
pant’s weight is transferred to another part of the
vehicle (like the door or instrument panel), the system
may not classify the occupant properly. Furthermore,
objects lodged under the seat can prevent the occu-
pant’s weight from being measured properly and may
result in the occupant being classified improperly.
The passenger seat assembly contains critical compo-
nents that affect passenger airbag deployment. Correctly
functioning passenger seat components are critical for the
OCS to classify the passenger properly and calculate the
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

proper airbag deployment. Do not make any modifica-
tions to the passenger seat components, assembly, or to
the seat cover. If the seat, trim cover, or cushion needs
service for any reason, take the vehicle to your autho-
rized dealer. Only manufacturer approved seat accesso-
ries may be used.
The following requirements must be strictly adhered to:
•Do not modify the passenger seat assembly or compo-
nents in any way.
•Do not use prior or future model year seat covers not
designated for the specific model being repaired. Al-
ways use the correct seat cover specified for the
vehicle.
•Do not replace the seat cover with an aftermarket seat
cover.
•Do not add a secondary seat cover other than those
approved by Chrysler LLC/Mopar.
•At no time should any supplemental restraint system
(SRS) component or SRS related component or fas-
tener be modified or replaced with any part except
those which are approved by Chrysler LLC/Mopar.
WARNING!
Unapproved modifications or service procedures to
the passenger seat assembly, its related components,
or seat cover may inadvertently change the airbag
deployment in case of a frontal crash. This could
result in death or serious injury to the passenger if
the vehicle is involved in an accident. A modified
vehicle may not comply with required Federal Motor
Vehicle Safety Standards (FMVSS).
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If a Deployment Occurs
The airbag system is designed to deploy when the ORC
detects a moderate-to-severe frontal collision, to help
restrain the driver and passenger, and then to deflate
immediately.
NOTE:A frontal collision that is not severe enough to
need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.
If you do have a collision, which deploys the airbags, any
or all of the following may occur:
•The nylon airbag material may sometimes cause abra-
sions and/or skin reddening to the driver and passen-
ger as the airbags deploy and unfold. The abrasions
are similar to friction rope burns or those you might
get sliding along a carpet or gymnasium floor. They
are not caused by contact with chemicals. They are not
permanent and normally heal quickly. However, if youhaven’t healed significantly within a few days, or if
you have any blistering, see your doctor immediately.
•As the airbags deflate, you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the non-toxic nitrogen gas used
for airbag inflation. These airborne particles may irri-
tate the skin, eyes, nose, or throat. If you have skin or
eye irritation, rinse the area with cool water. For nose
or throat irritation, move to fresh air. If the irritation
continues, see your doctor. If these particles settle on
your clothing, follow the garment manufacturer’s in-
structions for cleaning.
•It is not advisable to drive your vehicle after the
airbags have been deployed. If you are involved in
another collision, the airbags will not be in place to
protect you.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

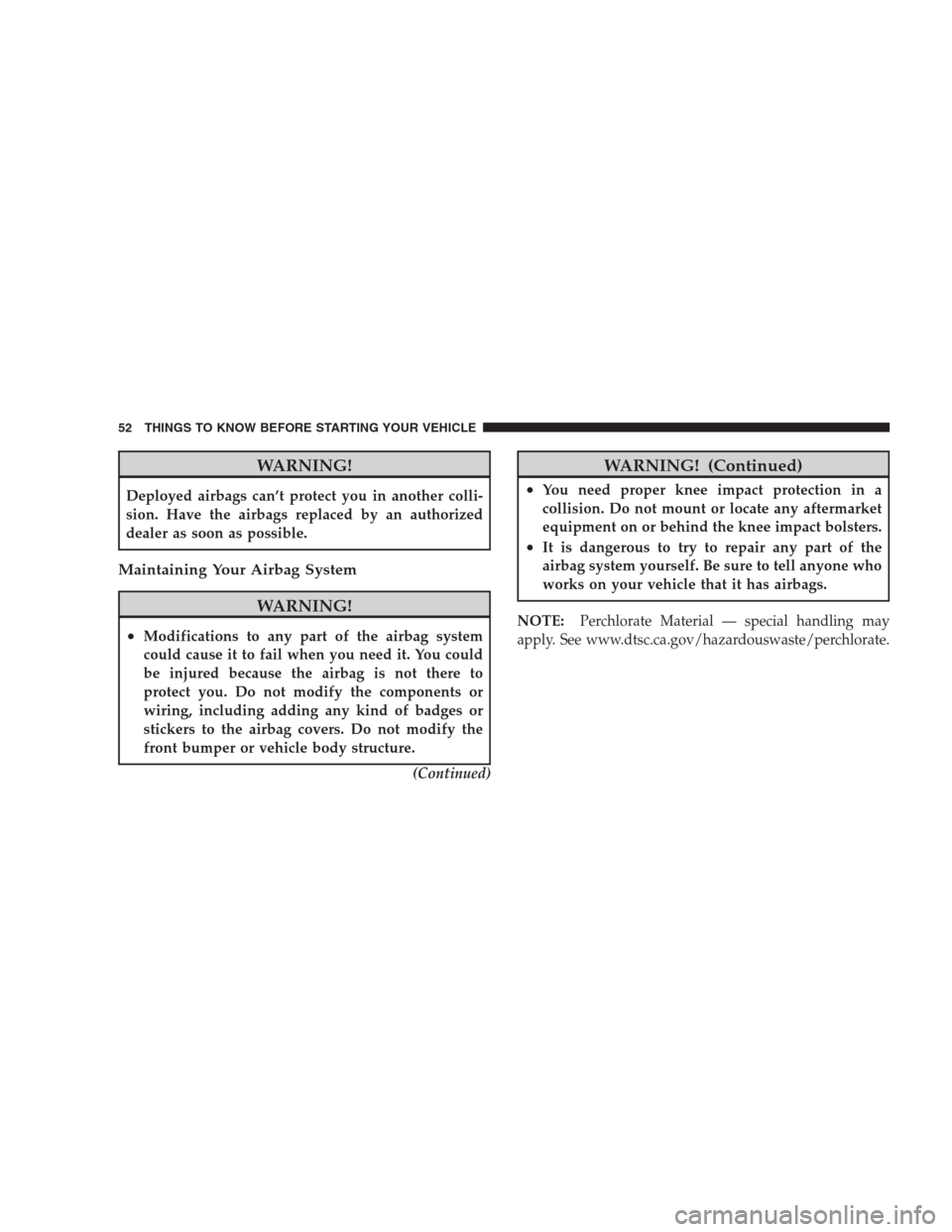

WARNING!
Deployed airbags can’t protect you in another colli-
sion. Have the airbags replaced by an authorized
dealer as soon as possible.
Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured because the airbag is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the airbag covers. Do not modify the
front bumper or vehicle body structure.
(Continued)
WARNING! (Continued)
•You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee impact bolsters.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.
NOTE:
Perchlorate Material — special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

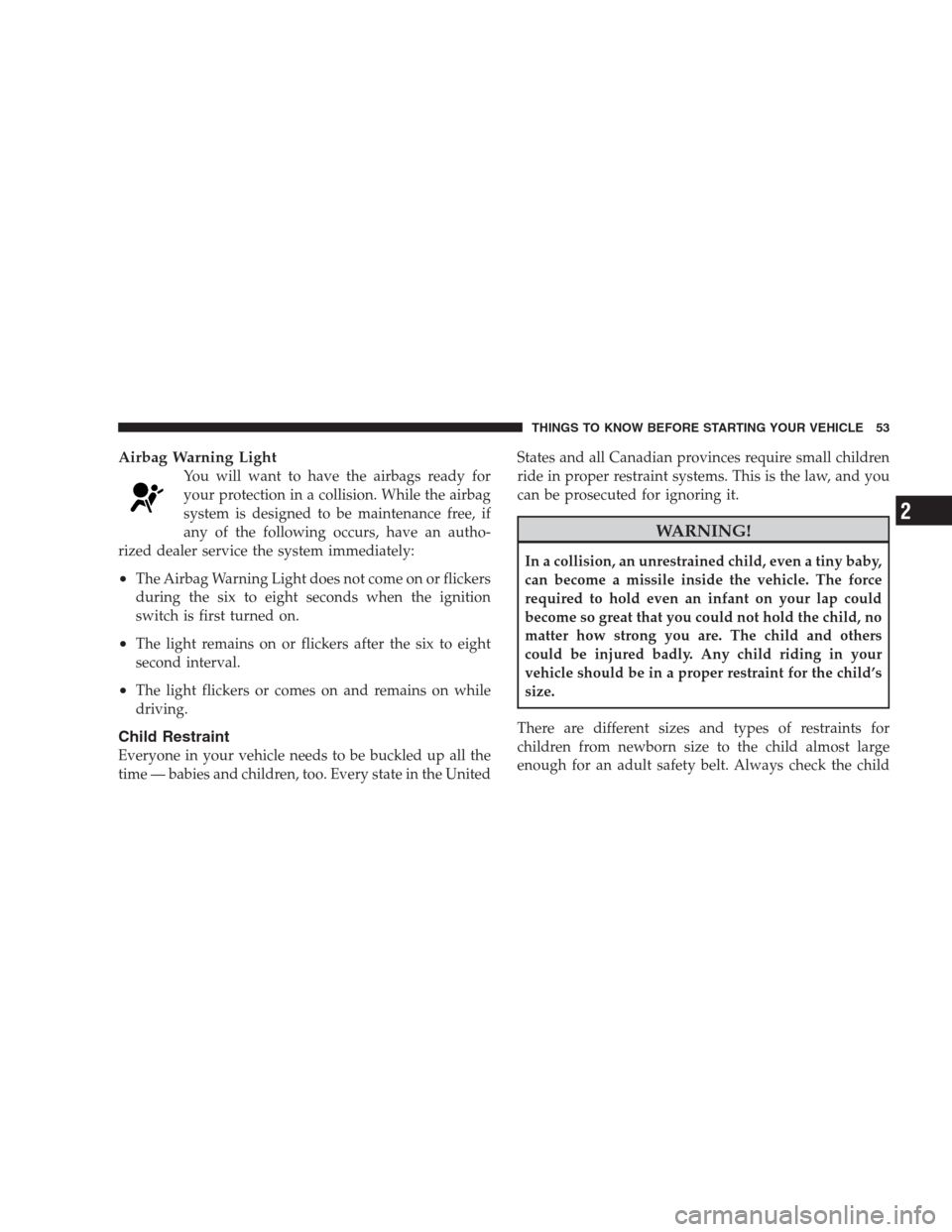

Airbag Warning Light
You will want to have the airbags ready for
your protection in a collision. While the airbag
system is designed to be maintenance free, if
any of the following occurs, have an autho-
rized dealer service the system immediately:
•The Airbag Warning Light does not come on or flickers
during the six to eight seconds when the ignition
switch is first turned on.
•The light remains on or flickers after the six to eight
second interval.
•The light flickers or comes on and remains on while
driving.
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the UnitedStates and all Canadian provinces require small children
ride in proper restraint systems. This is the law, and you
can be prosecuted for ignoring it.
WARNING!
In a collision, an unrestrained child, even a tiny baby,
can become a missile inside the vehicle. The force
required to hold even an infant on your lap could
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be injured badly. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

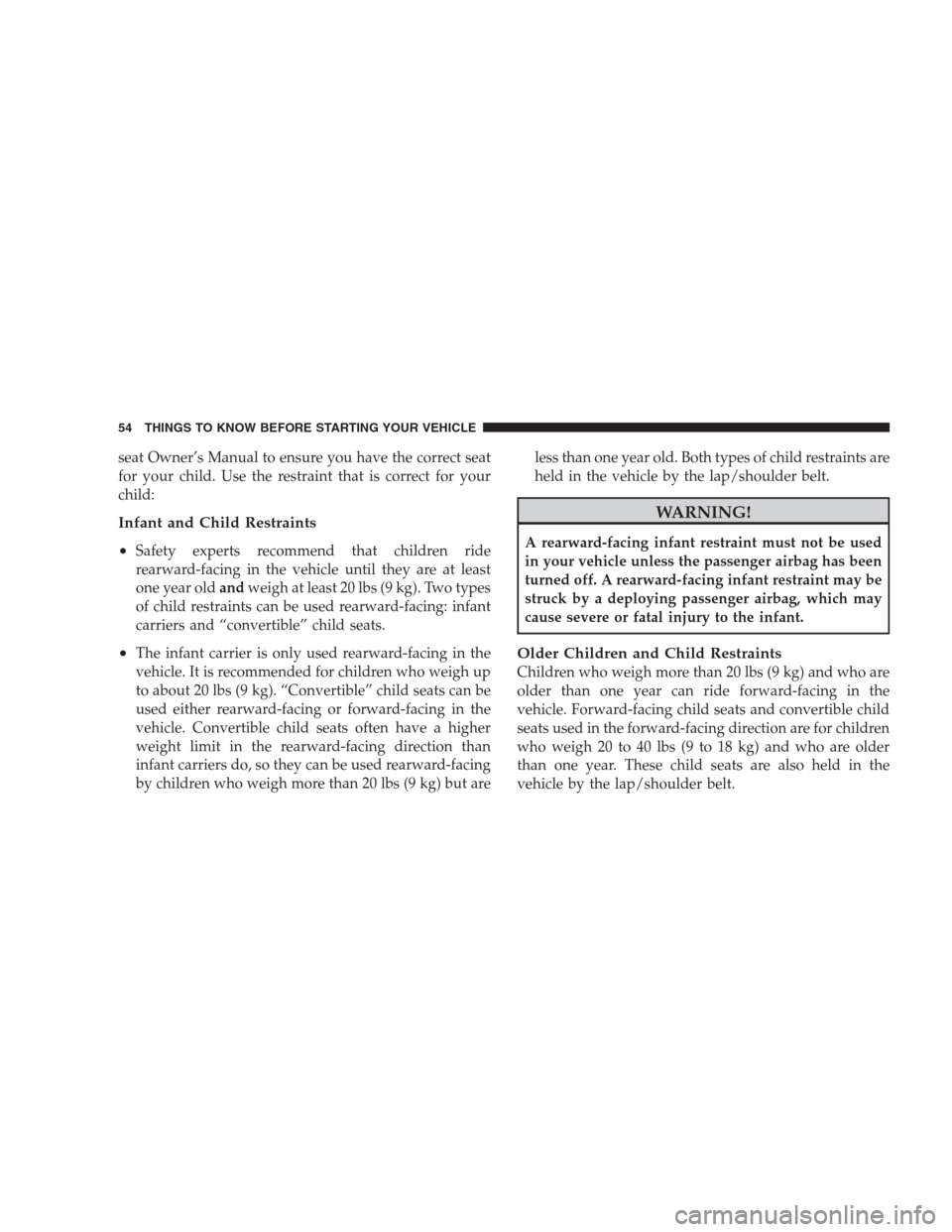

seat Owner’s Manual to ensure you have the correct seat
for your child. Use the restraint that is correct for your
child:
Infant and Child Restraints
•
Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year oldandweigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and “convertible” child seats.
•The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). “Convertible” child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but areless than one year old. Both types of child restraints are
held in the vehicle by the lap/shoulder belt.
WARNING!
A rearward-facing infant restraint must not be used
in your vehicle unless the passenger airbag has been
turned off. A rearward-facing infant restraint may be
struck by a deploying passenger airbag, which may
cause severe or fatal injury to the infant.
Older Children and Child Restraints
Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who weigh 20 to 40 lbs (9 to 18 kg) and who are older
than one year. These child seats are also held in the
vehicle by the lap/shoulder belt.
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
