2009 DODGE VIPER Owners Manual

Cavity Car-
tridge
FuseMini-
FuseDescription
9 40 Amp
Green— Headlights
10 30 Amp
Pink— Ignition Switch Run Feed
11 — 20 Amp
YellowAuto Shutdown Relay
(ASD)
12 — 20 Amp
YellowCigar Lighter
13 — 15 Amp
BlueHazard Flasher
14 — 20 Amp
YellowAuto Shutdown Relay
(ASD)
15 — 20 Amp
YellowRear Window Defogger
(EBL)
16, 17 — 20 Amp
YellowSelectable Power OutletCavity Car-
tridge
FuseMini-
FuseDescription
18 — 15 Amp
BlueIgnition Off Draw (IOD)
19 — 15 Amp
BlueHorn
20 — 15 Amp
BlueAir Conditioning (A/C)
Clutch Relay
21 — 15 Amp
BlueSTOP LIGHT Switch
22 — 25 Amp
ClearFuel Pump/Powertrain
Control Module (PCM)
23, 24 — 10 Amp
RedAirbag
60, 61 — 15 Amp
BlueIgnition Run/Start Relay
Feed
62, 63 — 15 Amp
BlueGauges
MAINTAINING YOUR VEHICLE 231
7

Cavity Car-
tridge
FuseMini-
FuseDescription
64, 65 — 10 Amp
RedAirbag
66, 67 — 20 Amp
YellowWIPER Switch
68, 69 — 20 Amp
YellowLeft HID Headlight
70, 71 — 20 Amp
YellowRight HID HeadlightCAUTION!
•When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribution
Center, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
232 MAINTAINING YOUR VEHICLE

Mini-Power Distribution Center
The Mini-Power Distribution Center is located in the
engine compartment on the passenger’s side of the
vehicle. This center contains radiator fan control relays
and has two externally-mounted 40 Amp fuses for the
radiator fans.CAUTION!
•When installing the Mini-Power Distribution
Center cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Power
Distribution Center, and possibly result in an
electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Mini-Power Distribution Center
MAINTAINING YOUR VEHICLE 233
7

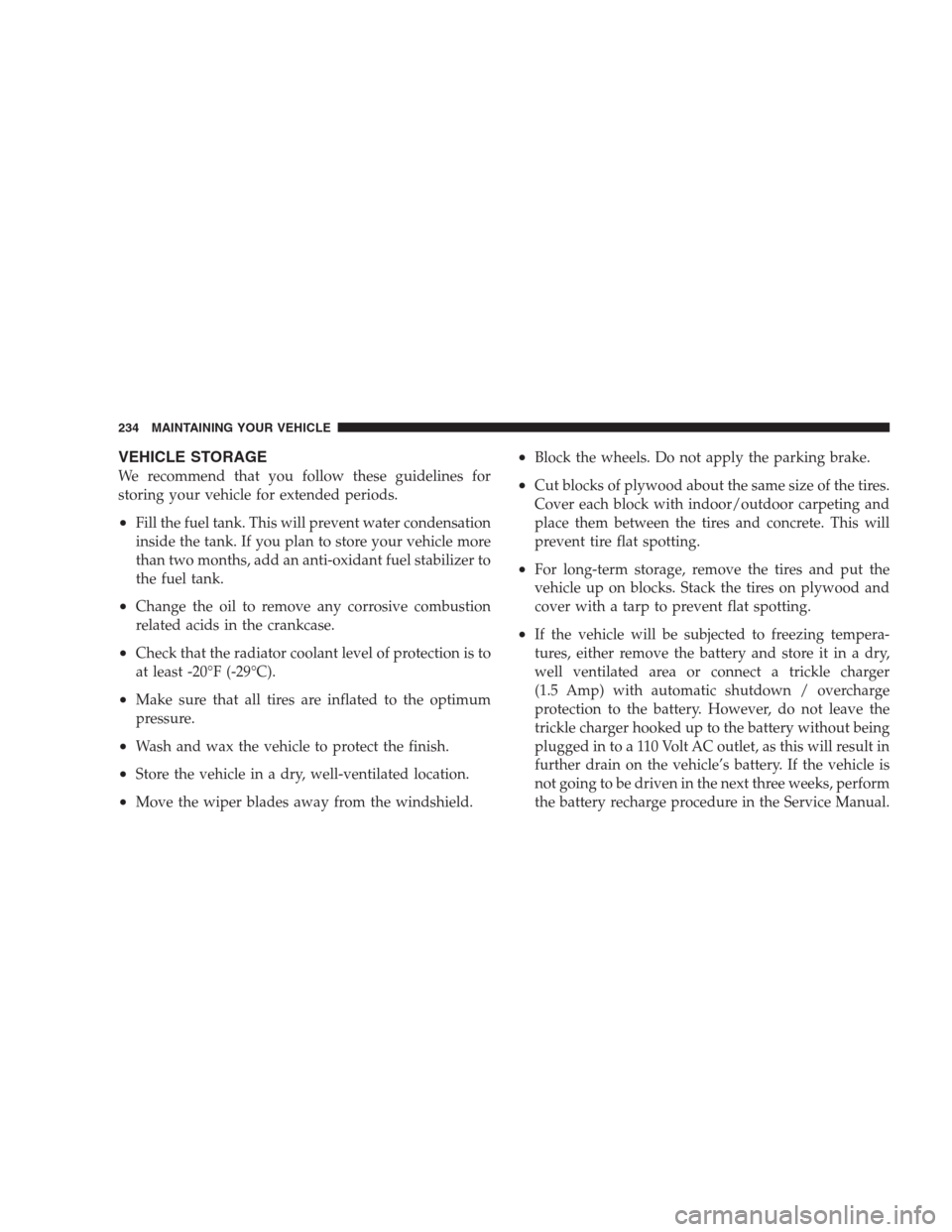

VEHICLE STORAGE
We recommend that you follow these guidelines for
storing your vehicle for extended periods.
•Fill the fuel tank. This will prevent water condensation
inside the tank. If you plan to store your vehicle more
than two months, add an anti-oxidant fuel stabilizer to
the fuel tank.
•Change the oil to remove any corrosive combustion
related acids in the crankcase.
•Check that the radiator coolant level of protection is to
at least -20°F (-29°C).
•Make sure that all tires are inflated to the optimum
pressure.
•Wash and wax the vehicle to protect the finish.
•Store the vehicle in a dry, well-ventilated location.
•Move the wiper blades away from the windshield.
•Block the wheels. Do not apply the parking brake.
•Cut blocks of plywood about the same size of the tires.
Cover each block with indoor/outdoor carpeting and
place them between the tires and concrete. This will
prevent tire flat spotting.
•For long-term storage, remove the tires and put the
vehicle up on blocks. Stack the tires on plywood and
cover with a tarp to prevent flat spotting.
•If the vehicle will be subjected to freezing tempera-
tures, either remove the battery and store it in a dry,
well ventilated area or connect a trickle charger
(1.5 Amp) with automatic shutdown / overcharge
protection to the battery. However, do not leave the
trickle charger hooked up to the battery without being
plugged in to a 110 Volt AC outlet, as this will result in
further drain on the vehicle’s battery. If the vehicle is
not going to be driven in the next three weeks, perform
the battery recharge procedure in the Service Manual.
234 MAINTAINING YOUR VEHICLE

Then, either disconnect the battery at the negative
terminal or use the “Battery Save Feature” to conserve
battery power. Refer to “Battery Save Feature” under
“Maintenance Procedures” in this section for details.
NOTE:Disconnecting the battery causes the engine
control system to lose memory of some “learned” func-
tions. After reconnecting the battery, the engine may run
rough until the control module “relearns” these func-
tions. Using the Battery Save Feature will prevent the
engine controller from loosing its memory.
CAUTION!
Use care when disconnecting the remote positive
cable. It is connected to the battery and can short out
to any metal on the vehicle. Always tape or wrap the
exposed cable end to prevent electrical shorts.Check the battery every four to six weeks to ensure that
the voltage is above 12.40 Volts. The voltage will drop
more rapidly in hot temperatures. If battery voltage
drops below 12.40 Volts, follow the battery recharge
procedure in the Service Manual.
NOTE:To help prevent the battery from discharging
during shorter periods of inactivity, perform the follow-
ing:
1. Make sure that the trunk/liftgate, hood, doors, win-
dows, and convertible top are completely closed.
2. Make sure that Remote Keyless Entry (RKE) transmit-
ter is operating and that the battery is good.
3. Make sure that the HOOD, TRUNK/LIFTGATE, and
DOOR switches are in adjustment. Perform the quick
system check, which follows:
Use the remote transmitter to set the alarm. If the alarm
SET light comes on and flashes, the system is operating
MAINTAINING YOUR VEHICLE 235
7

properly. If not, there is a problem with a switch or the
system. See your authorized dealer for service.
•Cover the vehicle whenever possible to prevent acci-
dental damage to the finish.
REPLACEMENT BULBS
LIGHT BULBS — Interior Bulb Number
Message Center Indicators.................. 103
Cluster................................ 103
Gauge Pack............................ 103
Heater Control........................... 37
Interior Light..........................212–2
Courtesy Foot Well Lights.................. 194
Cargo Light (Coupe Liftgate)................ 168LIGHT BULBS — Exterior
(Convertible Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop Light.........................3157
Taillight............................... 194
Rear Marker Light........................ 194
Backup Light...........................3157
Rear Turn Signal Light..................3457AK
License Light........................... 168
236 MAINTAINING YOUR VEHICLE

LIGHT BULBS — Exterior
(Coupe Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop/Turn Signal Light................3157
Rear Marker Light........................ 194
Backup Light...........................3157
License Light........................... 168
NOTE:Upon turning the High Intensity Discharge
(HID) Headlights on, there is a blue hue to the lamps.
This diminishes and becomes more white after approxi-
mately 10 seconds as the system charges.BULB REPLACEMENT
Auxiliary High Beam Headlight, Front Park/Turn
Signal Light, Front Side Marker Light
1. Remove the push pin from the upper outer corner of
the splash shield and remove the splash shield.
MAINTAINING YOUR VEHICLE 237
7

2.Turn the appropriate bulb and socket assembly counter-
clockwise, and then pull it out of the headlight assembly.3. Pull the bulb out of the socket assembly.
4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.
6. Install the splash shield and push pin.
High Intensity Discharge Headlights (HID)
The headlights are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
HEADLIGHT switch off and the key removed.Because
of this, you should not attempt to service a headlight
bulb yourself. If a headlight bulb fails, take your
vehicle to an authorized dealer for service.
1 — Front Side Marker Light
2 — Front Park/Turn Signal Light
3 — Low/High Beam HID Headlight
4 — Auxiliary High Beam Headlight
5 — Headlight Adjustment — Aim Up and Down 238 MAINTAINING YOUR VEHICLE
