2009 DODGE VIPER Owners Manual

•A door is unlocked using the outside driver’s door key
cylinder.
The interior lights will turn on and remain on for about
four seconds and then fade to off if a door is opened
using the inside door handle.
Courtesy/Reading Lights
Two courtesy/reading lights are located in the bottom of
the rearview mirror. You can turn these lights on and off
from the switches in the bottom of the mirror or from the
dimmer control in the multifunction lever. These lights
are also controlled automatically by the illuminated entry
system.
Courtesy lights are also found in the driver’s foot well,
the passenger’s foot well, and in the liftgate on Coupe
models. You can turn this light on and off from the
dimmer control in the multifunction lever. This light is
also controlled automatically by the illuminated entry
system.
Courtesy/Reading Light Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

Battery Saver Feature — Interior Lights
To protect the battery, the interior lights will turn off
automatically 15 minutes after the ignition switch is
moved to the OFF/LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open or the liftgate is open (Coupe
models). To restore interior light operation, turn the
ignition switch to the ON/RUN position or cycle the
light switch.
Dimmer Control
The dimmer control is part of the multifunction lever. It
controls the operation of the interior lights and the
brightness of the instrument panel lights.
Instrument Panel Dimming
With the parking lights or headlights
on, rotate the dimmer control upward
to increase the brightness of the instru-
ment panel lights or rotate it down-
ward to decrease the brightness of the
instrument panel lights.
Interior Light (ON)
Rotate the dimmer control completely
upward to the second detent to turn
on the interior lights. The interior
lights will remain on when the dim-
mer control is in this position.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Interior Light Defeat (OFF)
Rotate the dimmer control to the ex-
treme bottom OFF position. The inte-
rior lights will remain off when the
doors are open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control to the first
detent (white semi-circle). This feature
brightens the odometer and radio dis-
play when the parking lights or head-
lights are on during daylight
conditions.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is on
the right side of the steering column.
From the off position, push the windshield wiper/
washer control lever upward to the first detent past the
Windshield Wiper/Washer
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

intermittent DEL setting for Low-speed wiper operation,
or to the second detent past the intermittent DEL setting
for High-speed wiper operation.
CAUTION!
Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper switch is left in
any position other than off.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause be-
tween cycles desirable. From the off position, push the
windshield wiper/washer control lever upward to the
first detent DEL position, and then rotate the end of the
lever to select the desired delay interval. There are seven
delay settings, which allow you to regulate the wipe
interval from a minimum of one cycle every second to amaximum of approximately 15 seconds between cycles.
Rotating the lever upward decreases the delay time.
WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
Mist Feature
From the off position, push the windshield wiper/
washer control lever downward to activate a single wipe
cycle to clear the windshield of road mist or spray from
a passing vehicle. The wipers will continue to operate
until you release the lever.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Windshield Washers
To use the washer, pull the windshield wiper/washer
control lever toward you and hold it for as long as
washer spray is desired.
If you activate the washer while the windshield wiper is
in the delay range, the wipers will operate in low speed
for two wipe cycles after releasing the lever and then
resume the intermittent interval previously selected.
If you activate the washer while the windshield wiper is
turned off, the wipers will operate for two wipe cycles
and then turn off.
TILT STEERING COLUMN
The tilt release lever is located below the multifunction
lever on the left side of the steering column. To tilt the
column, simply pull the release lever downward and
then move the steering wheel upward or downward asdesired. When the column is in the desired position, push
the release lever upward to lock the column firmly in
place.
Tilt Steering Column Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

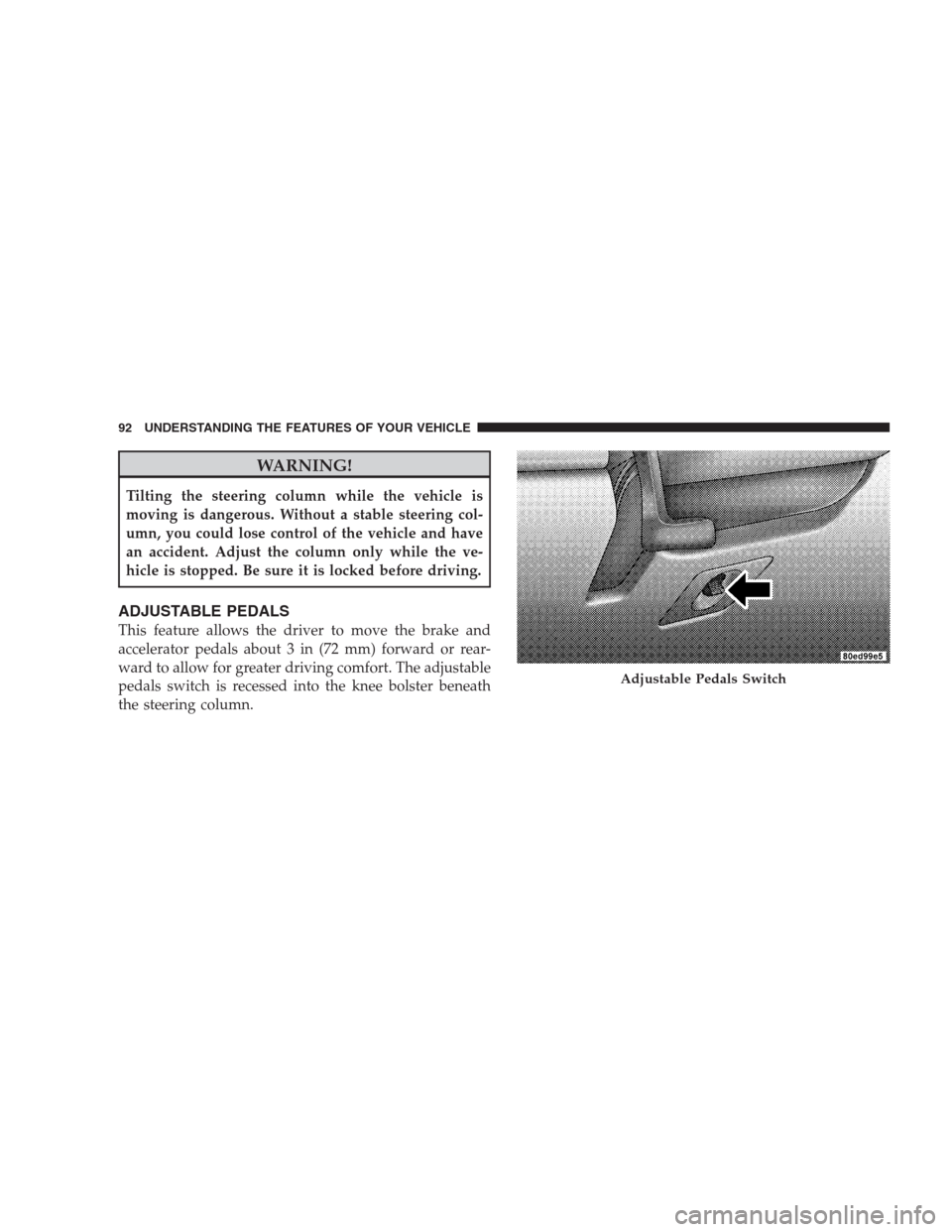

WARNING!
Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.
ADJUSTABLE PEDALS
This feature allows the driver to move the brake and
accelerator pedals about 3 in (72 mm) forward or rear-
ward to allow for greater driving comfort. The adjustable
pedals switch is recessed into the knee bolster beneath
the steering column.
Adjustable Pedals Switch
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

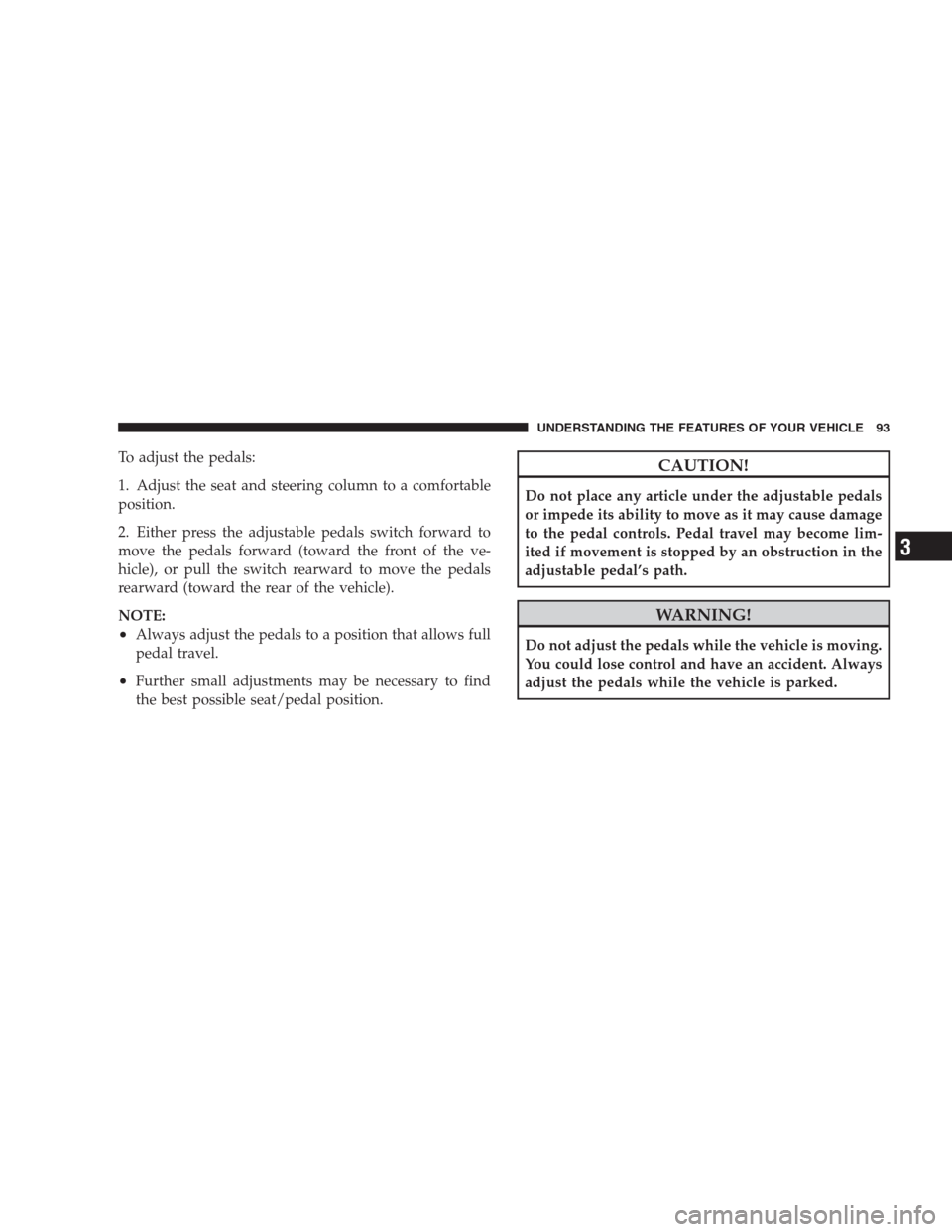

To adjust the pedals:
1. Adjust the seat and steering column to a comfortable
position.
2. Either press the adjustable pedals switch forward to
move the pedals forward (toward the front of the ve-
hicle), or pull the switch rearward to move the pedals
rearward (toward the rear of the vehicle).
NOTE:
•Always adjust the pedals to a position that allows full
pedal travel.
•Further small adjustments may be necessary to find
the best possible seat/pedal position.
CAUTION!
Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.
WARNING!
Do not adjust the pedals while the vehicle is moving.
You could lose control and have an accident. Always
adjust the pedals while the vehicle is parked.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

Adjustable Foot Rest
This feature allows the driver to adjust the foot rest
forward or backward and to rotate it upward or down-
ward to allow for greater driving comfort.To adjust the pedal:
1. Adjust the seat and steering column to a comfortable
position.
2. Using a 13 mm socket wrench, loosen the nut on the
pedal.
3. Slide the pedal either forward or backward and rotate
it upward or downward as desired.
4. Tighten the nut, being careful not to over tighten it.
CONSOLE FEATURES
The front console has a removable ashtray, power outlet/
cigarette lighter, and power window switches.
The center console compartment is equipped with a
cigarette lighter/power outlet.
Adjustable Foot Rest
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
