2009 DODGE JOURNEY navigation system

3. Pull the sun visor toward the inside rearview mirror to
extend it.
PARKVIEWREAR BACKUP CAMERA — IF
EQUIPPED
The Parkview Rear Backup Camera captures live video
of the area behind the vehicle. The live video displays on
the radio’s display screen when backing up your vehicle.
NOTE: Refer to “Setting Display Properties,” under
“System Settings” in the Navigation User’s Manual for
navigation screen brightness adjustment instructions.
To operate the Rear Backup Camera:
1. Start the engine.
2. Move the shift lever into REVERSE.
3. Wait one to two seconds and the video will display on
the radio’s display screen. NOTE:
The video will only display while the shift lever
is in REVERSE.
WARNING!
Drivers must be careful when backing up a vehicle,
even when using the Rear Backup Camera. Always
check carefully for pedestrians, animals, other ve-
hicles, obstructions, and blind spots before backing
up a vehicle. You are responsible for the safety of
your surroundings and must continue to pay atten-
tion while backing up a vehicle. Failure to do so can
result in serious injury or death.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

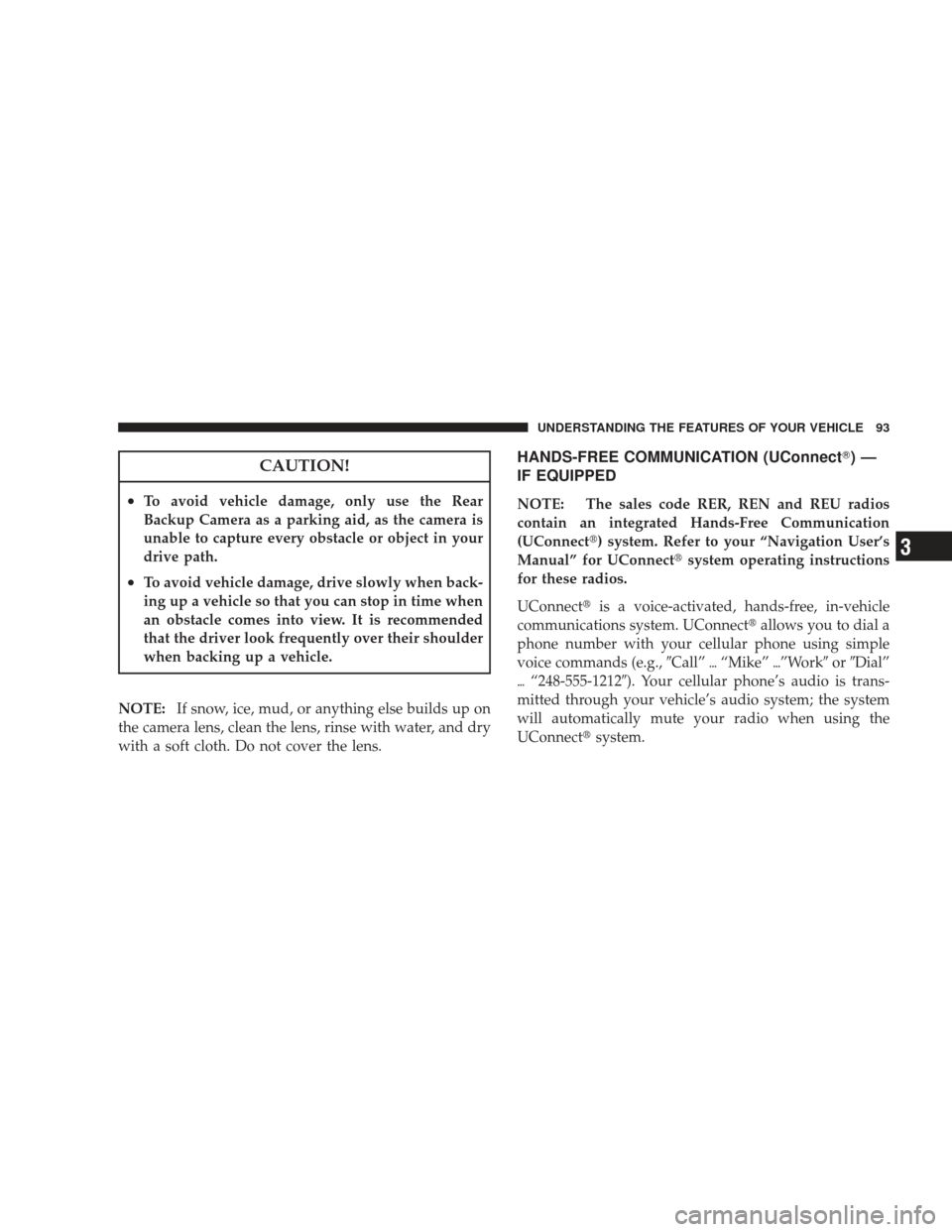

CAUTION!
•To avoid vehicle damage, only use the Rear
Backup Camera as a parking aid, as the camera is
unable to capture every obstacle or object in your
drive path.
•To avoid vehicle damage, drive slowly when back-
ing up a vehicle so that you can stop in time when
an obstacle comes into view. It is recommended
that the driver look frequently over their shoulder
when backing up a vehicle.
NOTE: If snow, ice, mud, or anything else builds up on
the camera lens, clean the lens, rinse with water, and dry
with a soft cloth. Do not cover the lens.
HANDS-FREE COMMUNICATION (UConnect )—
IF EQUIPPED
NOTE: The sales code RER, REN and REU radios
contain an integrated Hands-Free Communication
(UConnect) system. Refer to your “Navigation User’s
Manual” for UConnect system operating instructions
for these radios.
UConnect is a voice-activated, hands-free, in-vehicle
communications system. UConnect allows you to dial a
phone number with your cellular phone using simple
voice commands (e.g., Call”“Mike” ”Work orDial”
 “248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect system.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

a significant amount of fuel to the vehicle will turn off
theLOW FUEL text and a new DTE value will
display.
•Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.
•Units In
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press and
release the RESET button until “U.S.” or “METRIC”
appears.
To Reset The Display
Reset will only occur while a resettable function is being
displayed. Press and release the RESET button once to
clear the resettable function being displayed. To reset all
resettable functions, press and release the RESET button
a second time within three seconds of resetting the
currently-displayed function. (>Reset ALL will display
during this three-second window).
Compass Display
Press and release this button to display
one of eight compass readings and the
outside temperature. The compass read-
ings indicate the direction the vehicle is
facing.
COMPASS/
TEMPERA-
TURE Button
UNDERSTANDING YOUR INSTRUMENT PANEL 227
4

1. Turn the ignition switch ON.
2. Press and release the MENU button until Personal
Settings displays in the EVIC.
3. Press the SCROLL button until “COMPASS VARI-
ANCE” message and the last variance zone number
displays in the EVIC.
4. Press and release RESET button until the proper
variance zone is selected according to the map.
5. Press and release the COMPASS/TEMPERATURE
button to exit.
Personal Settings (Customer Programmable
Features)
Personal Settings allows the driver to set and recall
features when the transaxle is in PARK.
Press and release the MENU button until Personal Set-
tings displays in the EVIC.Use the SCROLL button to display one of the following
choices.
“LANGUAGE”
When in this display you may select one of three lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the RESET button while in this display to select English,
French, or Spanish. Then, as you continue, the informa-
tion will display in the selected language.
NOTE:
The EVIC will not change the UConnect lan-
guage selection. Refer to “Language Selection” under
“Hands-Free Communication (UConnect)” in Section 3.
“AUTO UNLK ON EXIT”
When ON is selected, all doors and the liftgate will
unlock when the vehicle is stopped and the transaxle is in
the PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press and release the
RESET button until “ON” or “OFF” appears.
230 UNDERSTANDING YOUR INSTRUMENT PANEL

ON. The headlights will also turn off when the wipers are
turned OFF if they were turned ON by this feature. To
make your selection, press and release the RESET button
until “ON” or “OFF” appears.
“KEY-OFF POWER DELAY”
When this feature is selected, the power window
switches, radio, hands-free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and ignition powered outlets will remain active for up to
10 minutes after the ignition switch is turned OFF.
Opening a vehicle door will cancel this feature. To make
your selection, press and release the RESET button until
“Off,” “45 sec.,” “5 min.,” or “10 min.” appears.
“ILLUMIN APPROACH”
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors areunlocked with the RKE transmitter. To make your selec-
tion, press and hold the RESET button until “Off,” “30
sec,” “60 sec,” or “90 sec” appears.
“DISPLAY UNITS IN”
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press and
release the RESET button until “U.S.” or “METRIC”
appears.
“NAV TURN BY TURN” — If Equipped
When ON is selected, the Turn-by-Turn directions will
appear in the display as the vehicle approaches a desig-
nated turn within a programmed route. To make your
selection, press and release the RESET button until “ON”
or “OFF” appears.
COMPASS VARIANCE
Refer to “Compass Variance” under “Compass Display.”
232 UNDERSTANDING YOUR INSTRUMENT PANEL

TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when ignition is
OFF).
Operating Instructions - Hands-Free Phone
(UConnect) (If Equipped)
Refer to “Hands-Free Communication (UConnect)” in
Section 3.
Operating Instructions - Satellite Radio Mode (If
Equipped)
Refer to “Satellite Radio” in this section.
Operating Instructions - Video Entertainment
System (VES)™ (If Equipped)
Refer to separate “Video Entertainment System (VES)™
Guide.”
SALES CODE REU — MULTIMEDIA SYSTEM — IF
EQUIPPED
NOTE:The sales code is located on the lower right side
of the unit’s faceplate.
The REU Multimedia system contains a radio, Sirius
Satellite Radio player, navigation system, six disc CD/
DVD player, USB port, 30-gigabyte hard drive (HDD),
and the UConnect Hands-Free Bluetooth cellular sys-
tem.
A 7 in (17.8 cm) remote screen allows easy menu selec-
tion, while the Advanced Voice Dialog System recognizes
more than 1,000 words for audio, navigation, entertain-
ment, and hands-free mobile phone use.
The satellite navigation capability combines a Global-
Positioning System (GPS)-based navigation system with
266 UNDERSTANDING YOUR INSTRUMENT PANEL

a remote color screen to provide maps, turn identifica-
tion, selection menus, and instructions for selecting a
variety of destinations and routes.
A shared HDD for the navigation system, the database,
and other radio features allows uploads of music and
photos from CDs or through the USB port. The Gracenote
database finds the artist, track, and title for the music.
An auxiliary input jack permits passengers to listen to a
portable MP3 player through the vehicle’s speakers. For
vehicles equipped with the Video Entertainment System
(VES)™, separate audio outputs allow passengers to
listen to the vehicle speakers while different audio tracks
play through the system’s wireless headphones. This
means rear-seat passengers can watch a DVD on the
optional rear-seat entertainment system while the driver
and front-seat passenger listen to the radio.
Other special features include music type selections,
traffic messaging (optional), easy store presets, parentallockout for VES™ (if equipped), and a backup camera
display for vehicles equipped with a backup camera.
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Operating Instructions — Satellite Radio
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Operating Instructions — Hands-Free
Communication (UConnect
) (If Equipped)
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Clock Setting Procedure
The GPS receiver in this system is synchronized to the
time data being transmitted by the GPS satellites. The
satellites’ clock is Greenwich Mean Time (GMT). This is
the worldwide standard for time. This makes the sys-
tem’s clock very accurate once the appropriate time zone
and daylight savings information is set.
UNDERSTANDING YOUR INSTRUMENT PANEL 267
4

Operating Instructions - Hands-Free Phone (If
Equipped)
Refer to “Hands-Free Communication (UConnect)” in
Section 3.
Operating Instructions - Video Entertainment
System (VES)™ (If Equipped)
Refer to separate “Video Entertainment System (VES)™
Guide.”
SIRIUS BACKSEAT TV™ — IF EQUIPPED
Satellite video uses direct satellite receiver broadcasting
technology to provide streaming video. The subscription
service provider is SIRIUS Satellite Radio. SIRIUS Backseat
TV™ offers three video channels for family entertainment,
directly from its satellites and broadcasting studios.
NOTE:SIRIUS service is not available in Hawaii and
has limited coverage in Alaska. Refer to your Video Entertainment System (VES)™, RER
Navigation or REN Multimedia User Manual for detailed
operating instructions.
VIDEO ENTERTAINMENT SYSTEM (VES)™ — IF
EQUIPPED
The optional Video Entertainment System (VES)™ in-
cludes the following components for rear seat entertain-
ment:
•A diagonal 8 in (20 cm) Liquid Crystal Display (LCD)
screen integrated into the center overhead console.
The screen features brightness control for optimum
daytime and nighttime viewing.
•The LCD Screen swings down from the console to
allow the rear seat passenger(s) to view the display.
276 UNDERSTANDING YOUR INSTRUMENT PANEL
