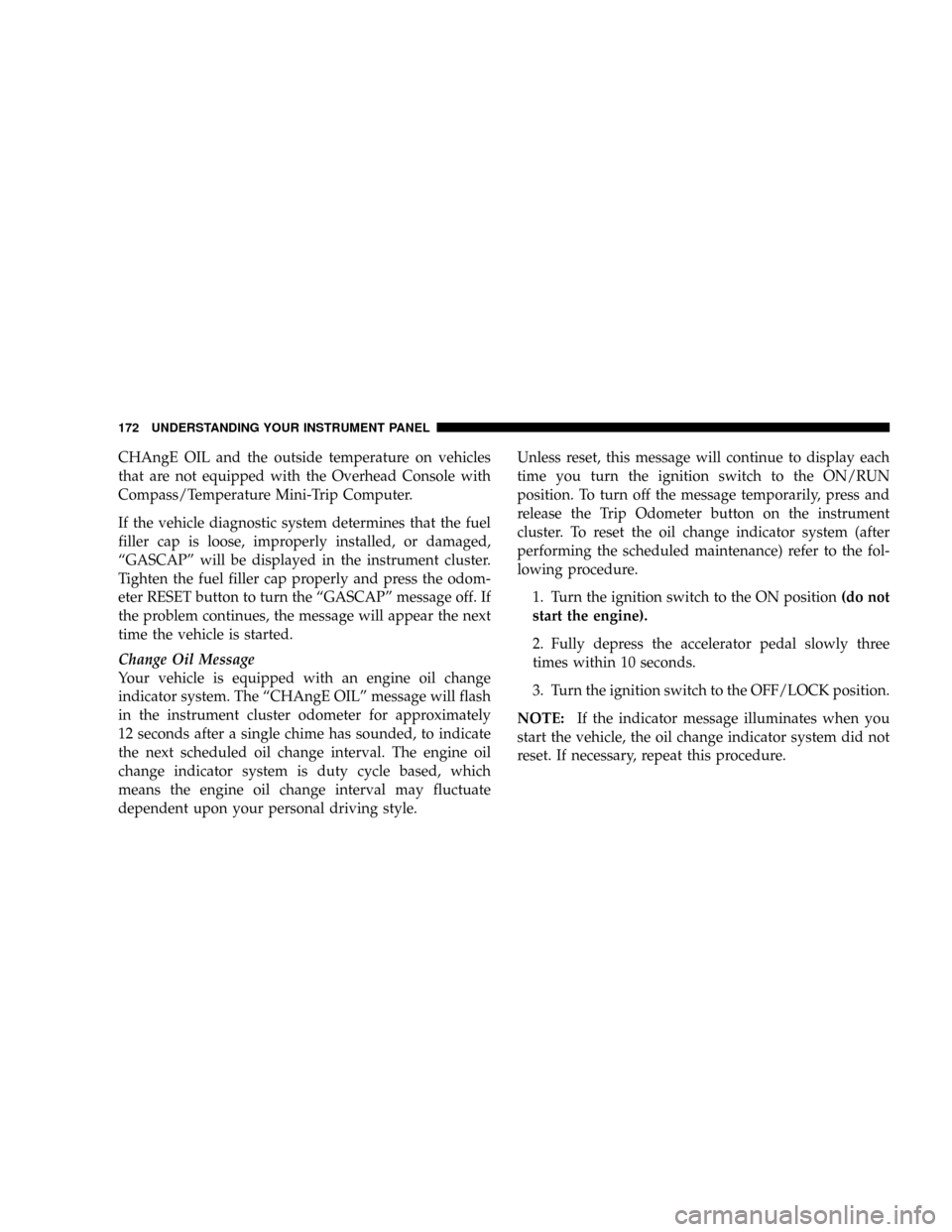

CHAngE OIL and the outside temperature on vehicles
that are not equipped with the Overhead Console with
Compass/Temperature Mini-Trip Computer.
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged,
ªGASCAPº will be displayed in the instrument cluster.
Tighten the fuel filler cap properly and press the odom-
eter RESET button to turn the ªGASCAPº message off. If
the problem continues, the message will appear the next
time the vehicle is started.
Change Oil Message
Your vehicle is equipped with an engine oil change
indicator system. The ªCHAngE OILº message will flash
in the instrument cluster odometer for approximately
12 seconds after a single chime has sounded, to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty cycle based, which
means the engine oil change interval may fluctuate
dependent upon your personal driving style.Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the Trip Odometer button on the instrument
cluster. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the fol-
lowing procedure.
1. Turn the ignition switch to the ON position(do not
start the engine).
2. Fully depress the accelerator pedal slowly three
times within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
172 UNDERSTANDING YOUR INSTRUMENT PANEL

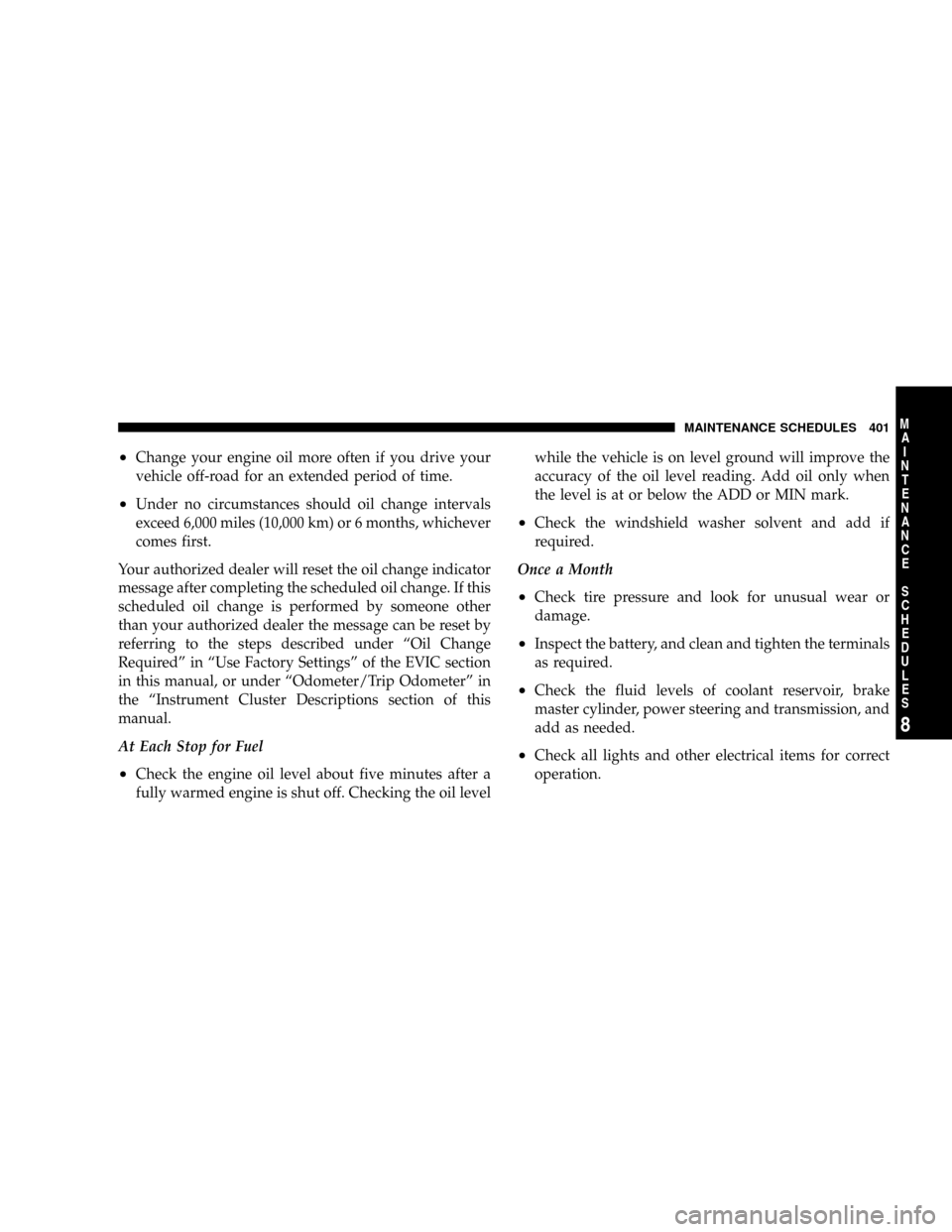

²Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
²Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or 6 months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If this
scheduled oil change is performed by someone other
than your authorized dealer the message can be reset by
referring to the steps described under ªOil Change
Requiredº in ªUse Factory Settingsº of the EVIC section
in this manual, or under ªOdometer/Trip Odometerº in
the ªInstrument Cluster Descriptions section of this
manual.
At Each Stop for Fuel
²Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil levelwhile the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
²Check the windshield washer solvent and add if
required.
Once a Month
²Check tire pressure and look for unusual wear or
damage.
²Inspect the battery, and clean and tighten the terminals
as required.
²Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission, and
add as needed.
²Check all lights and other electrical items for correct
operation.
MAINTENANCE SCHEDULES 401
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

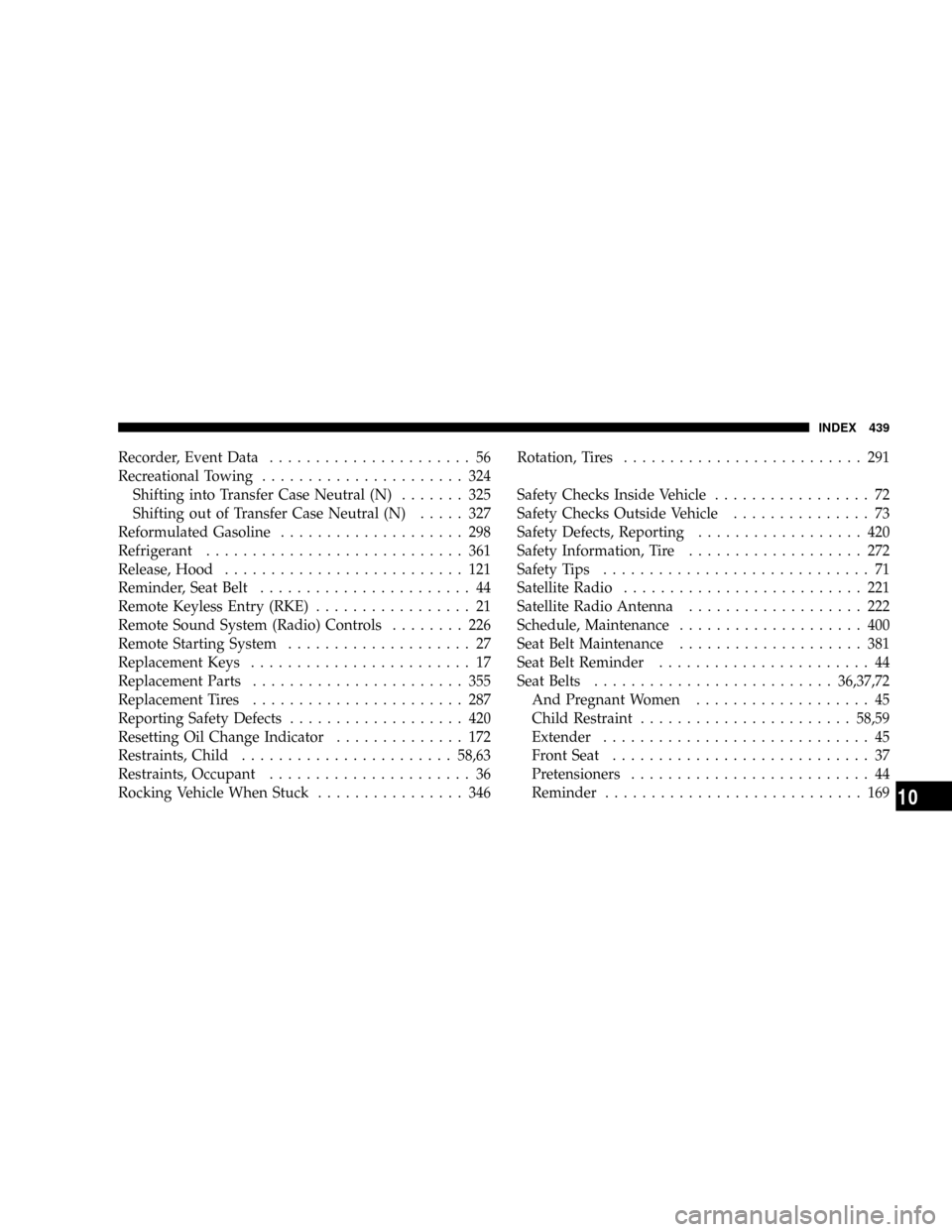

Recorder, Event Data...................... 56
Recreational Towing...................... 324
Shifting into Transfer Case Neutral (N)....... 325
Shifting out of Transfer Case Neutral (N)..... 327
Reformulated Gasoline.................... 298
Refrigerant............................ 361
Release, Hood.......................... 121
Reminder, Seat Belt....................... 44
Remote Keyless Entry (RKE)................. 21
Remote Sound System (Radio) Controls........ 226
Remote Starting System.................... 27
Replacement Keys........................ 17
Replacement Parts....................... 355
Replacement Tires....................... 287
Reporting Safety Defects................... 420
Resetting Oil Change Indicator.............. 172
Restraints, Child.......................58,63
Restraints, Occupant...................... 36
Rocking Vehicle When Stuck................ 346Rotation, Tires.......................... 291
Safety Checks Inside Vehicle................. 72
Safety Checks Outside Vehicle............... 73
Safety Defects, Reporting.................. 420
Safety Information, Tire................... 272
Safety Tips............................. 71
Satellite Radio.......................... 221
Satellite Radio Antenna................... 222
Schedule, Maintenance.................... 400
Seat Belt Maintenance.................... 381
Seat Belt Reminder....................... 44
Seat Belts..........................36,37,72
And Pregnant Women................... 45
Child Restraint.......................58,59
Extender............................. 45
Front Seat............................ 37
Pretensioners.......................... 44
Reminder............................ 169
INDEX 439
10

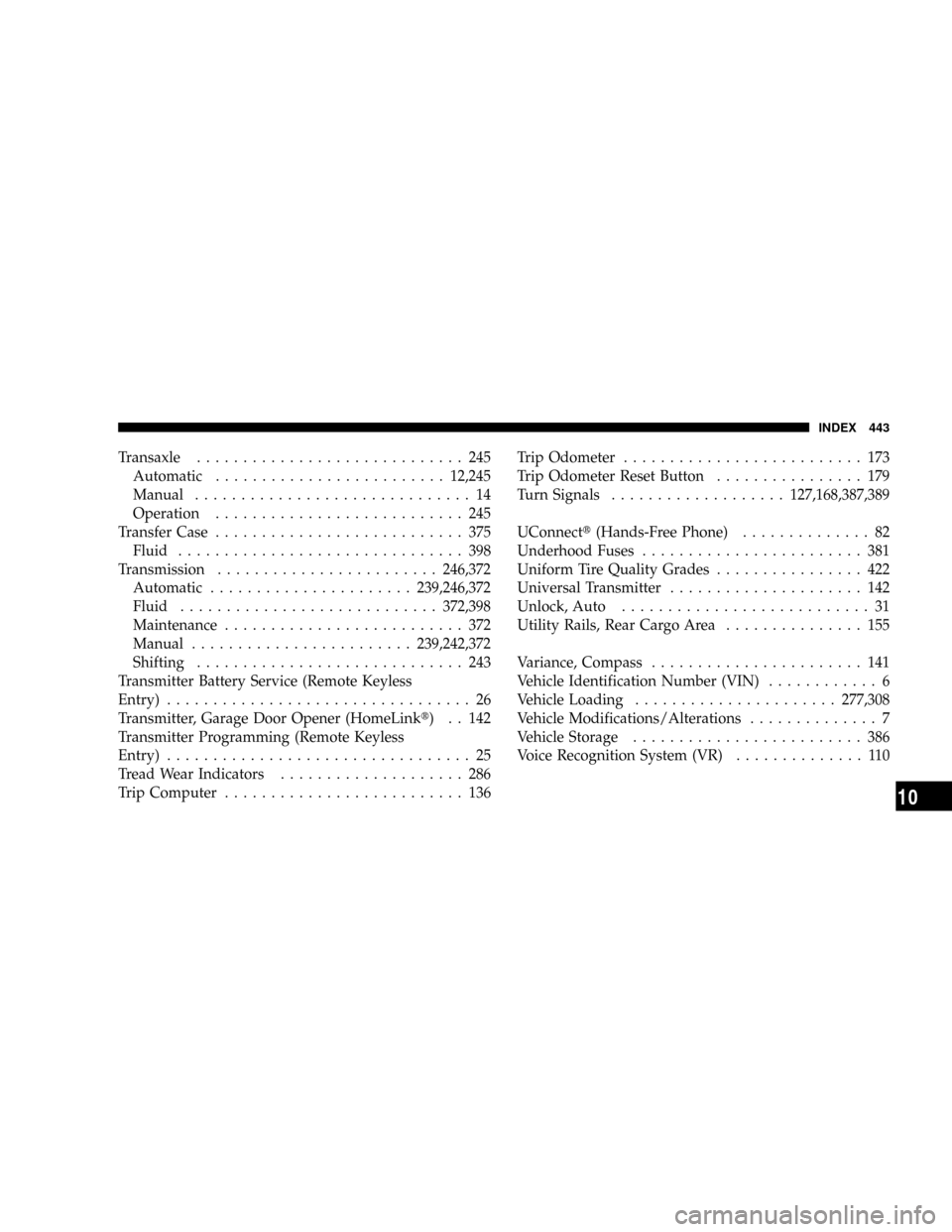

Transaxle............................. 245
