2009 DODGE DAKOTA Owners Manual

CavityCartridge
FuseMini-
FuseDescription
8 10 Amp
RedCabin Compartment
Node (CCN)/Mirror/
4x4
9 Spare
10 2 Amp
GrayLow Current Ignition
Switch
11 10 Amp
RedAC Clutch
12 15 Amp
BlueTrailer Tow Lt Stop/
Turn
13 15 Amp
BlueTrailer Tow Rt Stop/
Turn
14 20 Amp
YellowIgnition Off Draw
(IOD) #2
15 25 Amp
NaturalTrans/Powertrain
Control Module
(PCM)CavityCartridge
FuseMini-
FuseDescription
16 20 Amp
YellowHorn
17 20 Amp
YellowABS Feed (Valves)
18 20 Amp
YellowFuel Pump
19 15 Amp
BlueCenter High-Mounted
Stop Light (CHMSL)
20 20 Amp
YellowCabin Compartment
Node (CCN) Door
Locks/Brake Trans-
mission Shift Inter-
lock (BTSI)
21 25 Amp
NaturalAudio Amp
22 20 Amp
YellowPower Outlet (Switch-
able)
MAINTAINING YOUR VEHICLE 383
7

CavityCartridge
FuseMini-
FuseDescription
23 20 Amp
YellowFog Lamps
24 20 Amp
YellowPowertrain Control
Module (PCM) B+
25 15 Amp
BlueCabin Compartment
Node (CCN) Illumi-
nation
26 20 Amp
YellowIgnition Run/Start
Feed
27 10 Amp
RedPower Mirror
28 20 Amp
YellowPower Outlet
29 20 Amp
YellowFront Control Module
(FCM) 4 (Wipers)
30 SpareCavityCartridge
FuseMini-
FuseDescription
31 30 Amp
GreenIgnition Accessory
Feed
32 30 Amp
PinkFront Control Module
(FCM) 1 (Ext. Lights #
1)
33 30 Amp
PinkAuto Shut Down
(ASD)
34 30 Amp
PinkFront Control Module
(FCM) 2 (Ext. Light #
2)
35 40 Amp
GreenHVAC Blower Motor
36 Spare
37 Spare
38 20 Amp
BlueSpare
384 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini-
FuseDescription
39 30 Amp
PinkStarter Solenoid
40 40 Amp
GreenIgnition Run Feeds
41 30 Amp
PinkWiper Motor
42 25 Amp
NaturalFront Control Module
(FCM) 5 (T-Case)
43 10 Amp
RedLt Park Lamps
44 10 Amp
RedRt Park Lamps
45 20 Amp
YellowTrailer Tow Park
Lamps
46 10 Amp
RedAirbag System # 2CavityCartridge
FuseMini-
FuseDescription
47 Spare
48 20 Amp
BlueSunroof/Sound Box
49 30 Amp
PinkTrailer Tow B+
50 40 Amp
GreenAnti-Lock Brake Sys-
tem (ABS) Module
(Pump)
51 40 Amp
GreenPark Lamps
52 Spare
53 40 Amp
GreenRear Defogger
54 Spare
55 Spare
MAINTAINING YOUR VEHICLE 385
7

CavityCartridge
FuseMini-
FuseDescription
56 10 Amp
RedHeated Seats
57 20 Amp
YellowAirbag System # 2
58 20 Amp
YellowHeated Seats
59 10 Amp
RedHVAC Module
60 10 Amp
RedABS Module
61 20 Amp
YellowFront Control Module
(FCM) 3 (Reverse
Lamps)VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle's battery:
²Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
²The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
²As an alternative to the above steps you may discon-
nect the negative cable from the battery.
386 MAINTAINING YOUR VEHICLE

REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb No.
Dome Light........................WL212±2
Cargo Light............................ 921
Overhead Console Lights................... 192
Reading Light.......................WL212±2
LIGHT BULBS Ð Exterior Bulb No.
Headlight............................. H13
Front Park/Turn/Side Marker............3157NA
Back-Up..............................3157
Center High Mounted Stop Light............. 921
Fog Light.............................9145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal.................3057
BULB REPLACEMENT
Headlight (Halogen)/Front Park And Turn Lights
1. Open the hood
2. Remove the three bolts from the front of the headlight
housing.
MAINTAINING YOUR VEHICLE 387
7

3. Grasp the headlight and pull firmly to disengage the
headlight housing from the fender panel.
4. While firmly holding the headlight housing in your
hands, unlock and disconnect headlight bulb connector.
5. Twist 1/4-turn and remove headlight bulb from hous-
ing and replace.NOTE:The headlight bulb is a halogen bulb. Take care
not to touch the bulb with your fingers. Body oils from
your fingers could cause excessive heat buildup which
reduces bulb life.
To remove the park/turn signal bulb, rotate bulb socket
1/4-turn and remove socket from housing. Pull bulb
straight from socket.
388 MAINTAINING YOUR VEHICLE

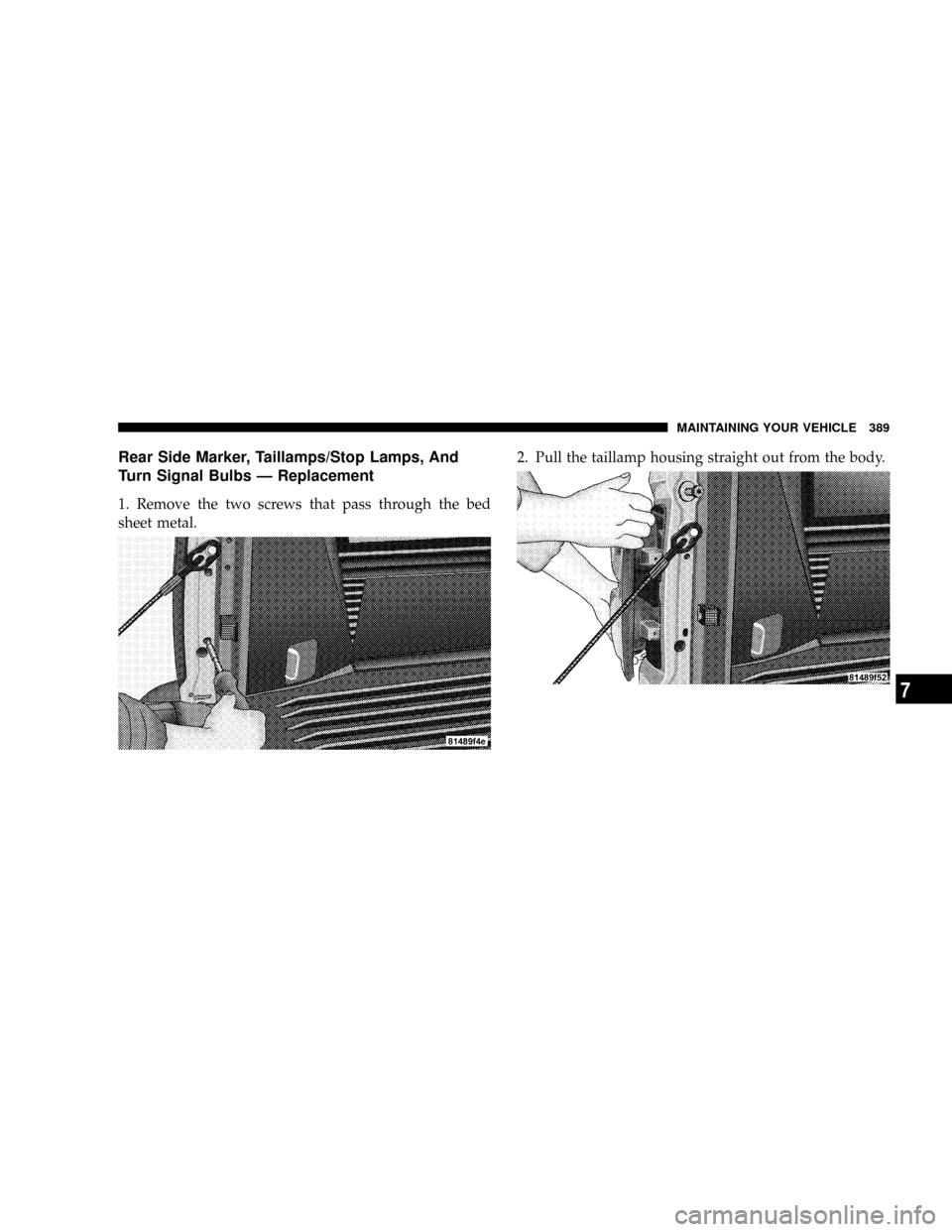

Rear Side Marker, Taillamps/Stop Lamps, And
Turn Signal Bulbs Ð Replacement
1. Remove the two screws that pass through the bed
sheet metal.2. Pull the taillamp housing straight out from the body.
MAINTAINING YOUR VEHICLE 389
7

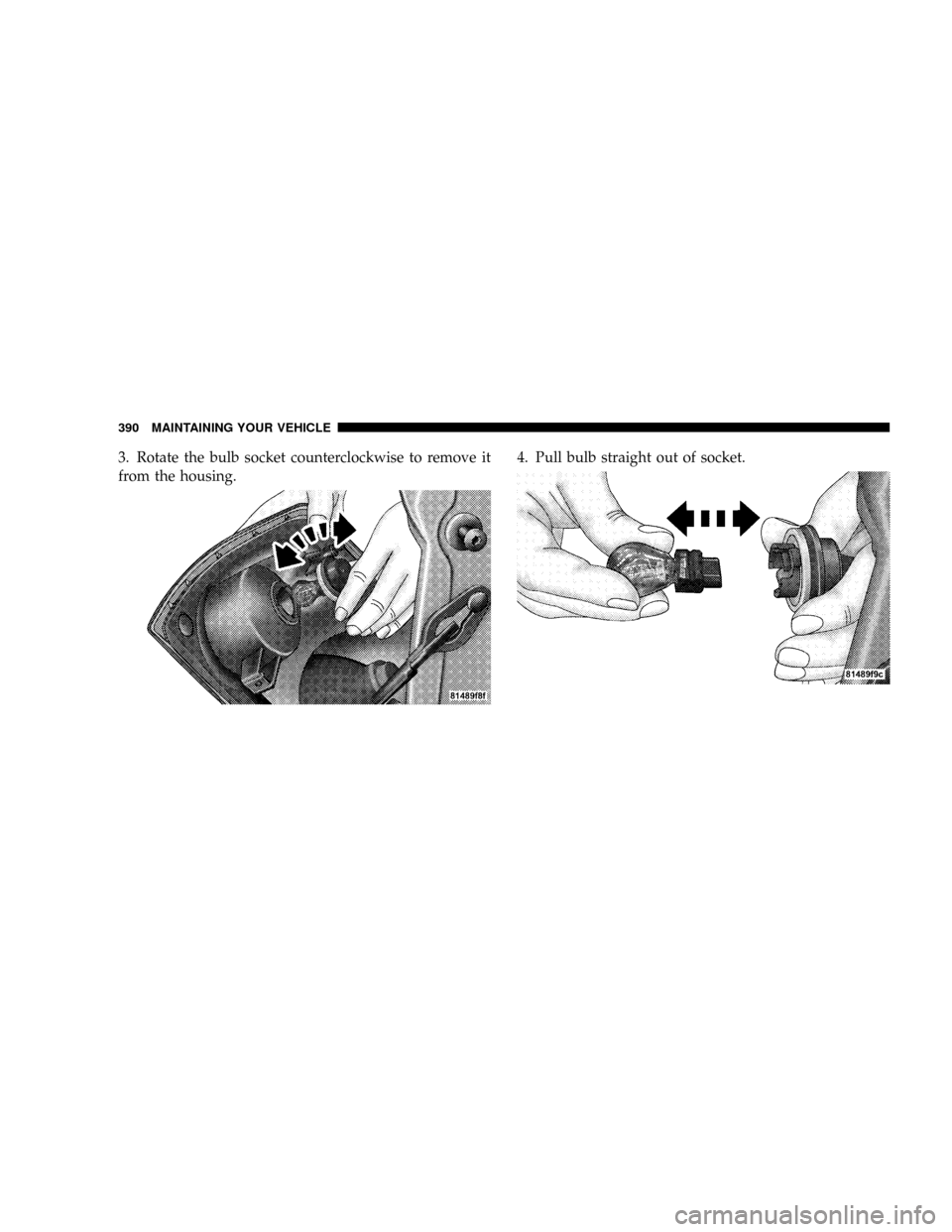

3. Rotate the bulb socket counterclockwise to remove it
from the housing.4. Pull bulb straight out of socket.
390 MAINTAINING YOUR VEHICLE
