This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may be
stamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover thatcorresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
CavityCartridge
FuseMini-
FuseDescription
1 Spare
2 Spare
3 30 Amp
PinkElectric Brake
4 50 Amp
RedPower Seat
5 Spare
6 20 Amp
YellowIgnition Off Draw
(IOD) Cabin Com-
partment Node
(CCN), Radio
7 10 Amp
RedPowertrain Control
Module (PCM)/Fuel/
RAD/AC Coils
Power Distribution Center
382 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini-
FuseDescription
8 10 Amp
RedCabin Compartment
Node (CCN)/Mirror/
4x4
9 Spare
10 2 Amp
GrayLow Current Ignition
Switch
11 10 Amp
RedAC Clutch
12 15 Amp
BlueTrailer Tow Lt Stop/
Turn
13 15 Amp
BlueTrailer Tow Rt Stop/
Turn
14 20 Amp
YellowIgnition Off Draw
(IOD) #2
15 25 Amp
NaturalTrans/Powertrain
Control Module
(PCM)CavityCartridge
FuseMini-
FuseDescription
16 20 Amp
YellowHorn
17 20 Amp
YellowABS Feed (Valves)
18 20 Amp
YellowFuel Pump
19 15 Amp
BlueCenter High-Mounted
Stop Light (CHMSL)
20 20 Amp
YellowCabin Compartment
Node (CCN) Door
Locks/Brake Trans-
mission Shift Inter-
lock (BTSI)
21 25 Amp
NaturalAudio Amp
22 20 Amp
YellowPower Outlet (Switch-
able)
MAINTAINING YOUR VEHICLE 383
7

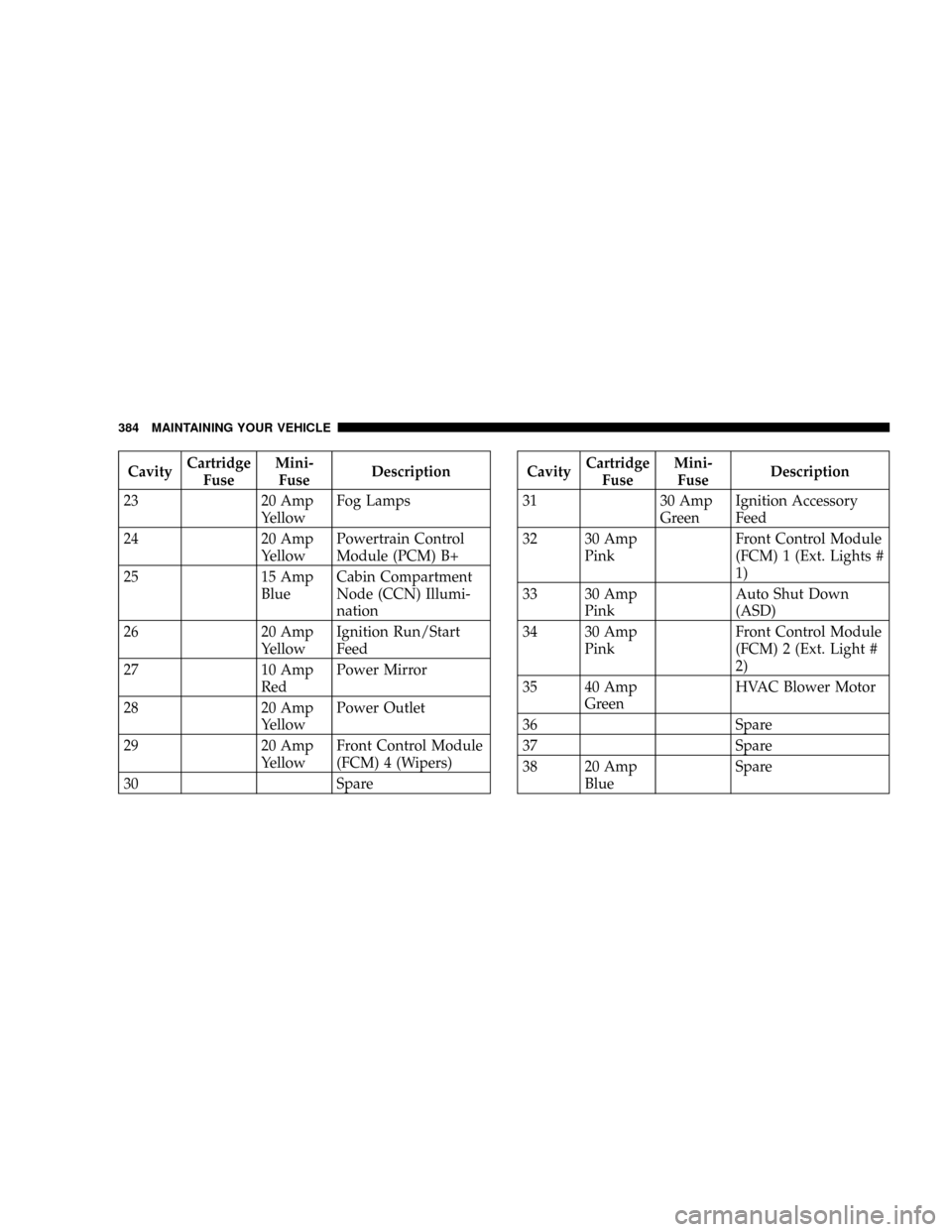

CavityCartridge
FuseMini-
FuseDescription
23 20 Amp
YellowFog Lamps
24 20 Amp
YellowPowertrain Control
Module (PCM) B+
25 15 Amp
BlueCabin Compartment
Node (CCN) Illumi-
nation
26 20 Amp
YellowIgnition Run/Start
Feed
27 10 Amp
RedPower Mirror
28 20 Amp
YellowPower Outlet
29 20 Amp
YellowFront Control Module
(FCM) 4 (Wipers)
30 SpareCavityCartridge
FuseMini-
FuseDescription
31 30 Amp
GreenIgnition Accessory
Feed
32 30 Amp
PinkFront Control Module
(FCM) 1 (Ext. Lights #
1)
33 30 Amp
PinkAuto Shut Down
(ASD)
34 30 Amp
PinkFront Control Module
(FCM) 2 (Ext. Light #
2)
35 40 Amp
GreenHVAC Blower Motor
36 Spare
37 Spare
38 20 Amp
BlueSpare
384 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini-
FuseDescription
39 30 Amp
PinkStarter Solenoid
40 40 Amp
GreenIgnition Run Feeds
41 30 Amp
PinkWiper Motor
42 25 Amp
NaturalFront Control Module
(FCM) 5 (T-Case)
43 10 Amp
RedLt Park Lamps
44 10 Amp
RedRt Park Lamps
45 20 Amp
YellowTrailer Tow Park
Lamps
46 10 Amp
RedAirbag System # 2CavityCartridge
FuseMini-
FuseDescription
47 Spare
48 20 Amp
BlueSunroof/Sound Box
49 30 Amp
PinkTrailer Tow B+
50 40 Amp
GreenAnti-Lock Brake Sys-
tem (ABS) Module
(Pump)
51 40 Amp
GreenPark Lamps
52 Spare
53 40 Amp
GreenRear Defogger
54 Spare
55 Spare
MAINTAINING YOUR VEHICLE 385
7

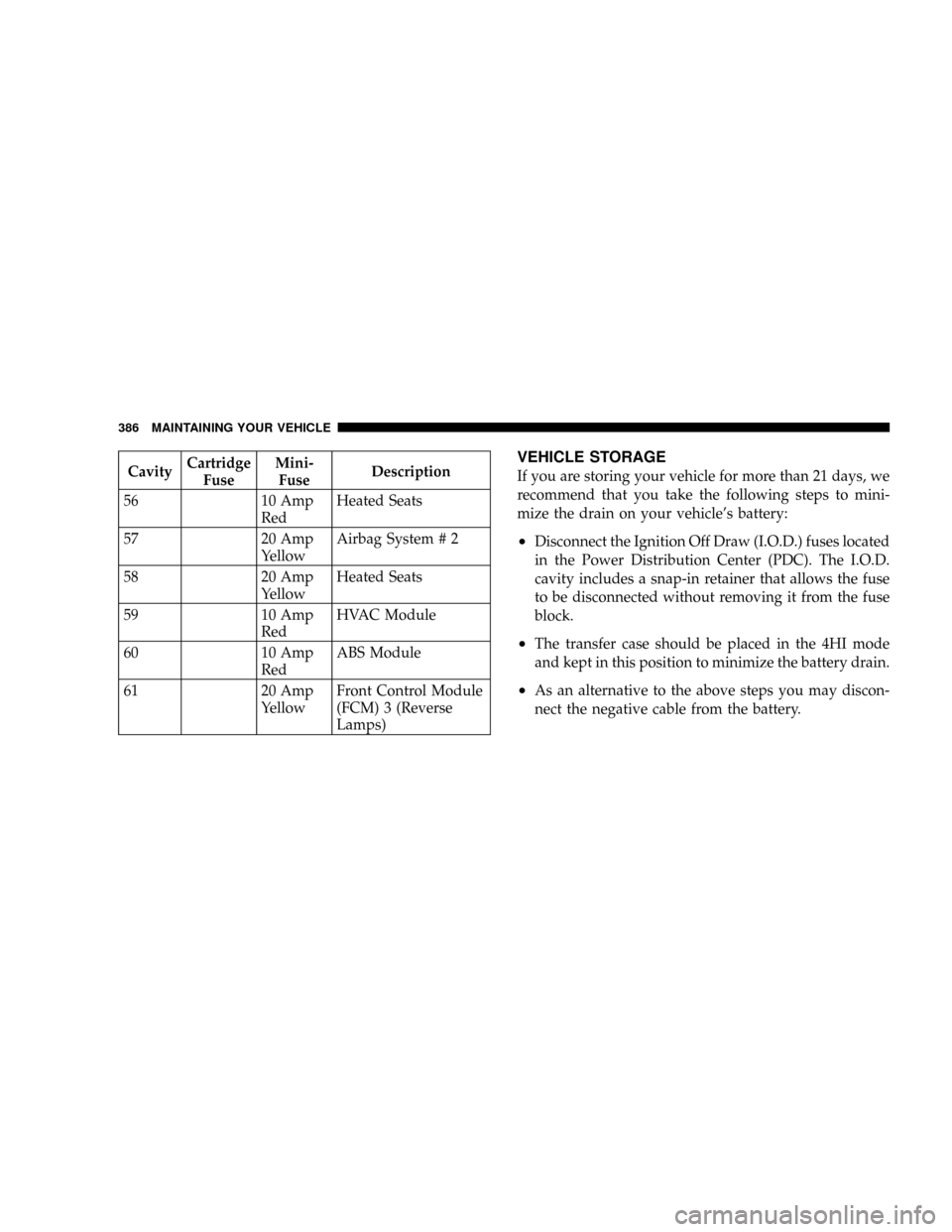

CavityCartridge
FuseMini-
FuseDescription
56 10 Amp
RedHeated Seats
57 20 Amp
YellowAirbag System # 2
58 20 Amp
YellowHeated Seats
59 10 Amp
RedHVAC Module
60 10 Amp
RedABS Module
61 20 Amp
YellowFront Control Module
(FCM) 3 (Reverse
Lamps)VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle's battery:
²Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
²The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
²As an alternative to the above steps you may discon-
nect the negative cable from the battery.
386 MAINTAINING YOUR VEHICLE

60,000 Miles (100,000 km) or 60 Months Maintenance Service Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oReplace the engine air cleaner filter.
oReplace the ignition cables (3.7L engine).
oReplace the spark plugs (3.7L engines).
oReplace the top row of spark plugs (4.7L engines). **
oInspect the brake linings, replace if necessary.
oChange the manual transmission fluid if using your vehicle for any of the following: trailer towing, snow plowing, heavy loading, taxi, police,
delivery service (commercial service), off-road, desert operation or more than 50% of your driving is at sustained high speeds during hot
weather, above 90ÉF (32ÉC).
oChange the automatic transmission fluid & filter if using your vehicle for any of the following: police, taxi, fleet, or frequent trailer towing.
oChange the transfer case fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 407
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

96,000 Miles (160,000 km) or 96 Months Maintenance Service
Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oIf using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
oInspect the brake linings, replace if necessary.
oInspect the CV joints.
oInspect the exhaust system.
oInspect the front suspension, tie rod ends and boot seals, replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
102,000 Miles (170,000 km) or
102 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
oReplace the ignition cables (4.7L
engines).
oReplace the side row of spark plugs
(4.7L engines). **
oFlush and replace the engine coolant.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 411
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

120,000 Miles (200,000 km) or 120 Months Maintenance Service Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oReplace the engine air cleaner filter.
oReplace the ignition cables (3.7L engine).
oReplace the spark plugs (3.7L engines).
oReplace the top row of spark plugs (4.7L engines). **
oInspect the brake linings, replace if necessary.
oInspect the CV joints.
oInspect the exhaust system.
oInspect the front suspension, tie rod ends and boot seals, replace if necessary.
oChange the manual transmission fluid if using your vehicle for any of the following: trailer towing, snow plowing, heavy loading, taxi, police,
delivery service (commercial service), off-road, desert operation or more than 50% of your driving is at sustained high speeds during hot
weather, above 90ÉF (32ÉC).
oChange the automatic transmission fluid & filter.
oChange the transfer case fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or frequent trailer towing.
oReplace the accessory drive belt(s).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
